SAXSdb — 9gsp

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemagglutinin

H1N1 subtype

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Other combination Homooligomer Protein × 3 其他Polymer 6 PDB declaration: trimeric（3） Consistent with protein copy count	Chain A； UniProt 1–566 Chain B； UniProt 1–566 Chain C； UniProt 1–566	Not recorded	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 3 NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 12	ELECTRON MICROSCOPY cryo-EM buffer：pH 8；0.15 M NaCl, 25 mM Tris-HCl pH 8, and 0.1% beta-octylglucoside (BOG) cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 3.68 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9GSP	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9Y41 Crystal structure of hemagglutinin head domain from H1N1 Influenza A virus A/Victoria/2570/2019 bound to the 49_C09 antibody Deposited 2025-09-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain G 63–285（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Tris, pH 8.0, 65% (v/v) MPD	Resolution 2.89 Å R-free 0.283
9Y41 Crystal structure of hemagglutinin head domain from H1N1 Influenza A virus A/Victoria/2570/2019 bound to the 49_C09 antibody Deposited 2025-09-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 63–285（223 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；291 K；0.1M Tris, pH 8.0, 65% (v/v) MPD	Resolution 2.89 Å R-free 0.283

1 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A0A6M4YP75_9INFA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–566； UniProt 1–566 Author chain B； PDBConstruct 1–566； UniProt 1–566 Author chain C； PDBConstruct 1–566； UniProt 1–566

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9gsp
Deposition date deposition_date	2024-09-16
Structure title title	Structure of uncleaved Influenza A/Victoria/2570/2019 Haemagglutinin. The 2021 Influenza A(H1N1)pdm09 egg-derived vaccine candidate.
Keywords keywords	glycoprotein, viral receptor, fusion protein, HA, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	41.99 Å
Radius of gyration Rg (electron density) rg_electron	41.53 Å
Forward intensity I(0) i0	451976000.00
Molecular weight molecular_weight	170460.0 kDa
Excluded volume excluded_volume	211710 Å³
Envelope volume envelope_volume	292220 Å³
Hydration-shell volume shell_volume	59466 Å³
Envelope diameter envelope_diameter	141.5 Å
Shell Rg shell_rg	45.87 Å
Envelope Rg envelope_rg	41.59 Å
Shape Rg shape_rg	41.53 Å
Total Rg total_rg	41.72 Å
Total atoms total_atoms	23595
Residues n_residues	1464
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

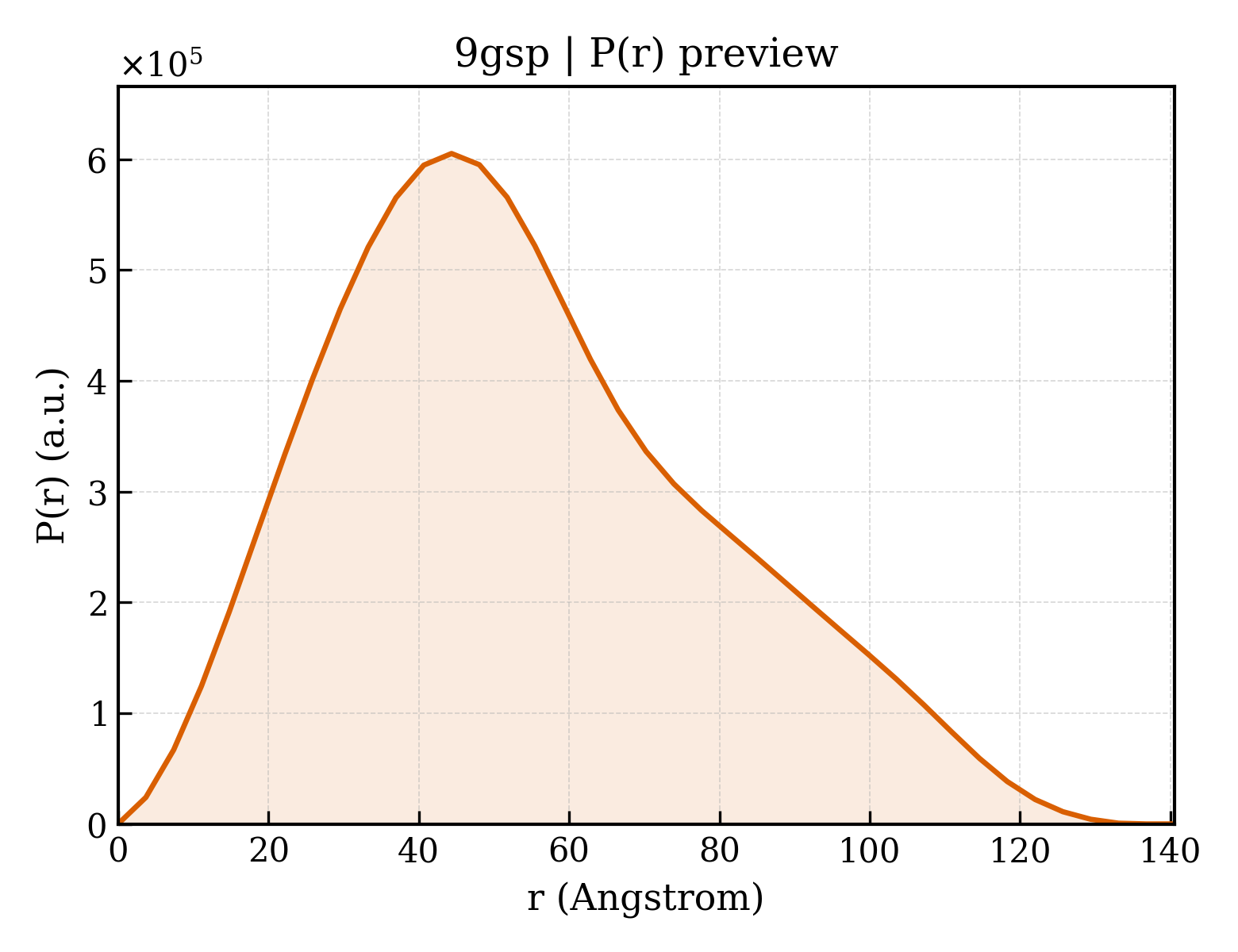

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	140.5 Å
Rg (real space) rg_real	42.15 Å
Rg uncertainty (real space) rg_real_error	1.21 Å
I(0) (real space) i0_real	4.5200e+08
I(0) uncertainty (real space) i0_real_error	7.4000e+06
Rg (reciprocal space) rg_reciprocal	41.99 Å
I(0) (reciprocal space) i0_reciprocal	451900000.0000
Solution quality estimate total_estimate	0.8491
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	44.4 Å
Skewness Skewness skewness	0.475
Kurtosis Kurtosis kurtosis	-0.374
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	52400000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.773; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.994; Smooth: 0.722

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Hemagglutinin
Molecular weight formula_weight	63550.7 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C
Atom count atom_count	23595

MKAILVVMLYTFTTANADTLCIGYHANNSTDTVDTVLEKNVTVTHSVNLLEDKHNGKLCKLRGVAPLHLGKCNIAGWILGNPECESLSTARSWSYIVETSNSDNGTCYPGDFINYEELREQLSSVSSFERFEIFPKTSSWPNHDSDNGVTAACPHAGAKSFYKNLIWLVKKGKSYPKINQTYINDKGKEVLVLWGIHHPPTIADQQSLYQNADAYVFVGTSRYSKKFKPEIATRPKVRDREGRMNYYWTLVEPGDKITFEATGNLVAPRYAFTMERDAGSGIIISDTPVHDCNTTCQTPEGAINTSLPFQNVHPITIGKCPKYVKSTKLRLATGLRNVPSIQSRGLFGAIAGFIEGGWTGMVDGWYGYHHQNEQGSGYAADLKSTQNAIDKITNKVNSVIEKMNTQFTAVGKEFNHLEKRIENLNKKVDDGFLDIWTYNAELLVLLENERTLDYHDSNVKNLYEKVRNQLKNNAKEIGNGCFEFYHKCDNTCMESVKNGTYDYPKYSEEAKLNREKIDGVKLDSTRIYQILAIYSTVASSLVLVVSLGAISFWMCSNGSLQCRICI

来源 Source

来源生物 organism	H1N1 subtype
NCBI Class编号 ncbi_taxonomy_id	114727
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	424.4 kDa
Source method src_method	man
Copy count entity_count	3

Entity 3 Entity 3 branched

Description description	beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	586.5 kDa
Source method src_method	man
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	12

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.68 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	163054

fit	/app/data/saxs_computation/gs/9gsp/9gsp.fit
pddf	/app/data/pr_computation/gs/9gsp/9gsp.pr.out
profile	/app/data/saxs_computation/gs/9gsp/9gsp.dat
