1. Protein Identity and Related Structures Protein Identity & Related Structures

Collagen alpha-3(VI) chain

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 2	Collagen alpha-2(VI) chain × 1 （P12110） Collagen alpha-1(VI) chain × 1 （P12109） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CO6A3_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 16–492； UniProt 2344–2820

Collagen alpha-2(VI) chain

Homo sapiens

UniProt P12110

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 2	Collagen alpha-3(VI) chain × 1 （P12111） Collagen alpha-1(VI) chain × 1 （P12109） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CO6A2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 21–476； UniProt 564–1019

Collagen alpha-1(VI) chain

Homo sapiens

UniProt P12109

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Heteromer	Protein 3 其他Polymer 2	Collagen alpha-3(VI) chain × 1 （P12111） Collagen alpha-2(VI) chain × 1 （P12110） 2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 2 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	CO6A1_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain A； PDBConstruct 17–479； UniProt 566–1028

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9gtu
Deposition date deposition_date	2024-09-18
Structure title title	Collagen VI alpha 1, 2, 3 heterotrimer recombinant C terminal region. Local refinement.
Keywords keywords	;extracellular, matrix, collagen, co6A1, co6A2, co6A3, von willebrand, von-willebrand, coiled-coil, ECM, double-bead, structural, microfibril, Bethlem myopathy, Ullrich congenital muscular dystrophy, STRUCTURAL PROTEIN ;; STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9gtu__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9gtu__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

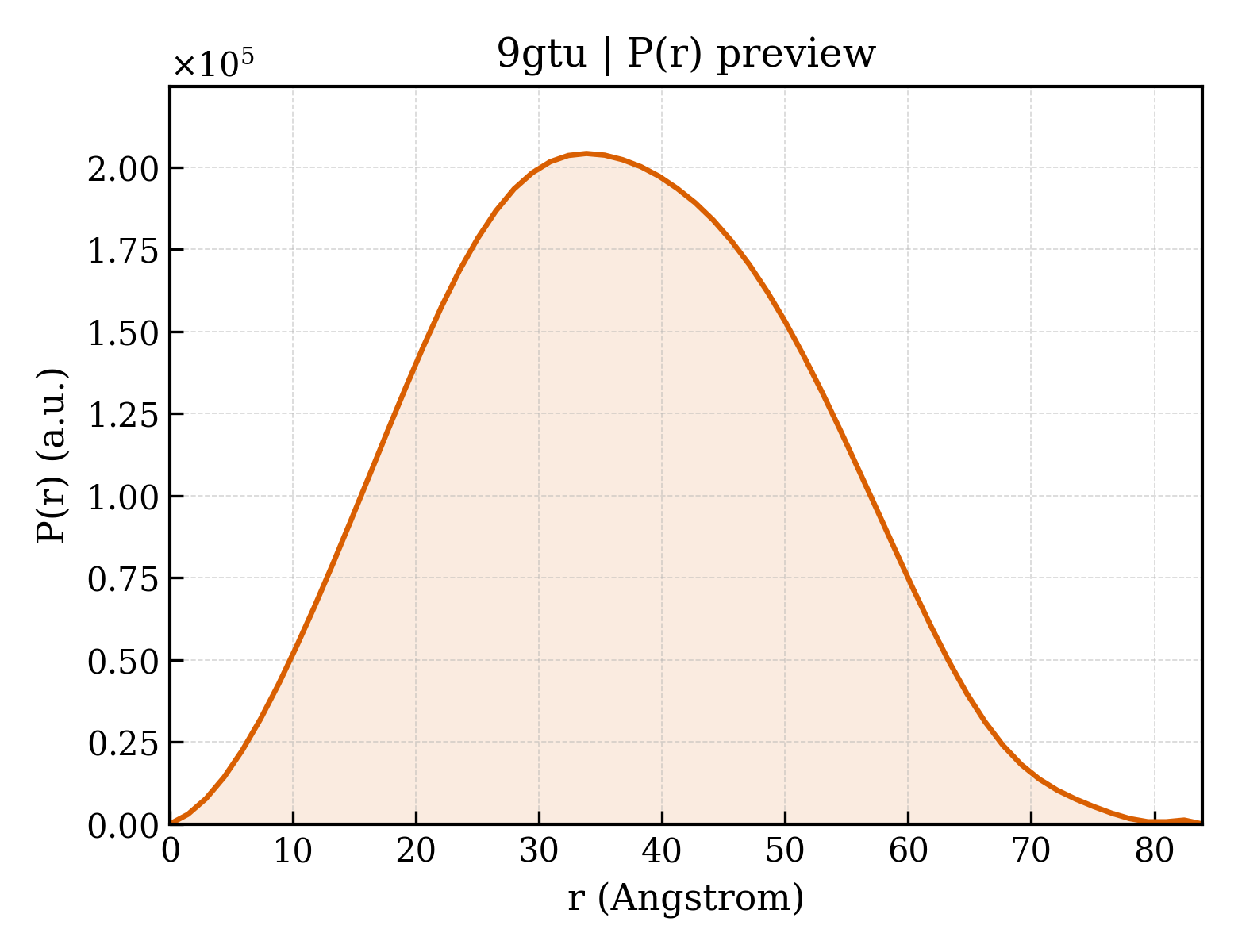

9gtu__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	28.01 Å
Rg (electron density)	26.67 Å
Total Rg	27.51 Å
Atom count	10992
Residues	706
Excluded volume	98678 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9gtu__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Collagen alpha-3(VI) chain
Molecular weight formula_weight	53947.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	11077

DYKDDDDKGGGGSGGGGSGPPGIVGQKGRPGYPGPAGPRGNRGDSIDQCALIQSIKDKCPCCYGPLECPVFPTELAFALDTSEGVNQDTFGRMRDVVLSIVNVLTIAESNCPTGARVAVVTYNNEVTTEIRFADSKRKSVLLDKIKNLQVALTSKQQSLETAMSFVARNTFKRVRNGFLMRKVAVFFSNTPTRASPQLREAVLKLSDAGITPLFLTRQEDRQLINALQINNTAVGHALVLPAGRDLTDFLENVLTCHVCLDICNIDPSCGFGSWRPSFRDAAAAGSDVDIDMAFILDSAETTTLFQFNEMKKYIAYLVRQLDMSPDPKASQHFARVAVVQHAPSESVDNASMPPVKVEFSLTDYGSKEKLVDFLSRGMTQLQGTRALGSAIEYTIENVFESAPNPRDLKIVVLMLTGEVPEQQLEEAQRVILQAKCKGYFFVVLGIGRKVNIKEVYTFASEPNDVFFKLVDKSTELNEEPLMRFGRLLPSFV

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Collagen alpha-2(VI) chain
Molecular weight formula_weight	52290.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SAWSHPQFEKGGGGSGGGGSGEPGPRGPRGVPGPEGEPGPPGDPGLTECDVMTYVRETCGCCDCEKRCGALDVVFVIDSSESIGYTNFTLEKNFVINVVNRLGAIAKDPKSETGTRVGVVQYSHEGTFEAIQLDDEHIDSLSSFKEAVKNLEWIAGGTWTPSALKFAYDRLIKESRRQKTRVFAVVITDGRHDPRDDDLNLRALCDRDVTVTAIGIGDMFHEKHESENLYSIACDKPQQVRNMTLFSDLVAEKFIDDMEDVLCPDPQIVCPDLPCQTELSVAQCTQRPVDIVFLLDGSERLGEQNFHKARRFVEQVARRLTLARRDDDPLNARVALLQFGGPGEQQVAFPLSHNLTAIHEALETTQYLNSFSHVGAGVVHAINAIVRSPRGGARRHAELSFVFLTDGVTGNDSLHESAHSMRNENVVPTVLALGSDVDMDVLTTLSLGDRAAVFHEKDYDSLAQPGFFDRFIRWIC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 3 Entity 3 polymer

Description description	Collagen alpha-1(VI) chain
Molecular weight formula_weight	51872.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

HHHHHHGGGGSGGGGSGVKGAKGYRGPEGPQGPPGHQGPPGPDECEILDIIMKMCSCCECKCGPIDLLFVLDSSESIGLQNFEIAKDFVVKVIDRLSRDELVKFEPGQSYAGVVQYSHSQMQEHVSLRSPSIRNVQELKEAIKSLQWMAGGTFTGEALQYTRDQLLPPSPNNRIALVITDGRSDTQRDTTPLNVLCSPGIQVVSVGIKDVFDFIPGSDQLNVISCQGLAPSQGRPGLSLVKENYAELLEDAFLKNVTAQICIDKKCPDYTCPITFSSPADITILLDGSASVGSHNFDTTKRFAKRLAERFLTAGRTDPAHDVRVAVVQYSGTGQQRPERASLQFLQNYTALASAVDAMDFINDATDVNDALGYVTRFYREASSGAAKKRLLLFSDGNSQGATPAAIEKAVQEAQRAGIEIFVVVVGRQVNEPHIRVLVTGKTAEYDVAYGESHLFRVPSYQALLRGVFHQTVSRKVALG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 4 Entity 4 branched

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	570.5 kDa
Source method src_method	man
Copy count entity_count	2

Entity 5 Entity 5 non-polymer

Description description	2-acetamido-2-deoxy-beta-D-glucopyranose
Molecular weight formula_weight	221.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	43

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.14 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	246984

Collagen VI alpha 1, 2, 3 heterotrimer recombinant C terminal region. Local refinement.
