SAXSdb — 9gvq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Mucin-5AC

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 8	CALCIUM ION × 24 COPPER (II) ION × 8	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MUC5A_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–1456； UniProt 28–1483 Author chain B； PDBConstruct 1–1456； UniProt 28–1483 Author chain C； PDBConstruct 1–1456； UniProt 28–1483 Author chain D； PDBConstruct 1–1456； UniProt 28–1483

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9gvq
Deposition date deposition_date	2024-09-25
Structure title title	MUC5AC mucin amino acids 28 to 1483
Keywords keywords	mucin, lung, filament, polymer, disulfide, PROTEIN FIBRIL; PROTEIN FIBRIL
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9gvq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9gvq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

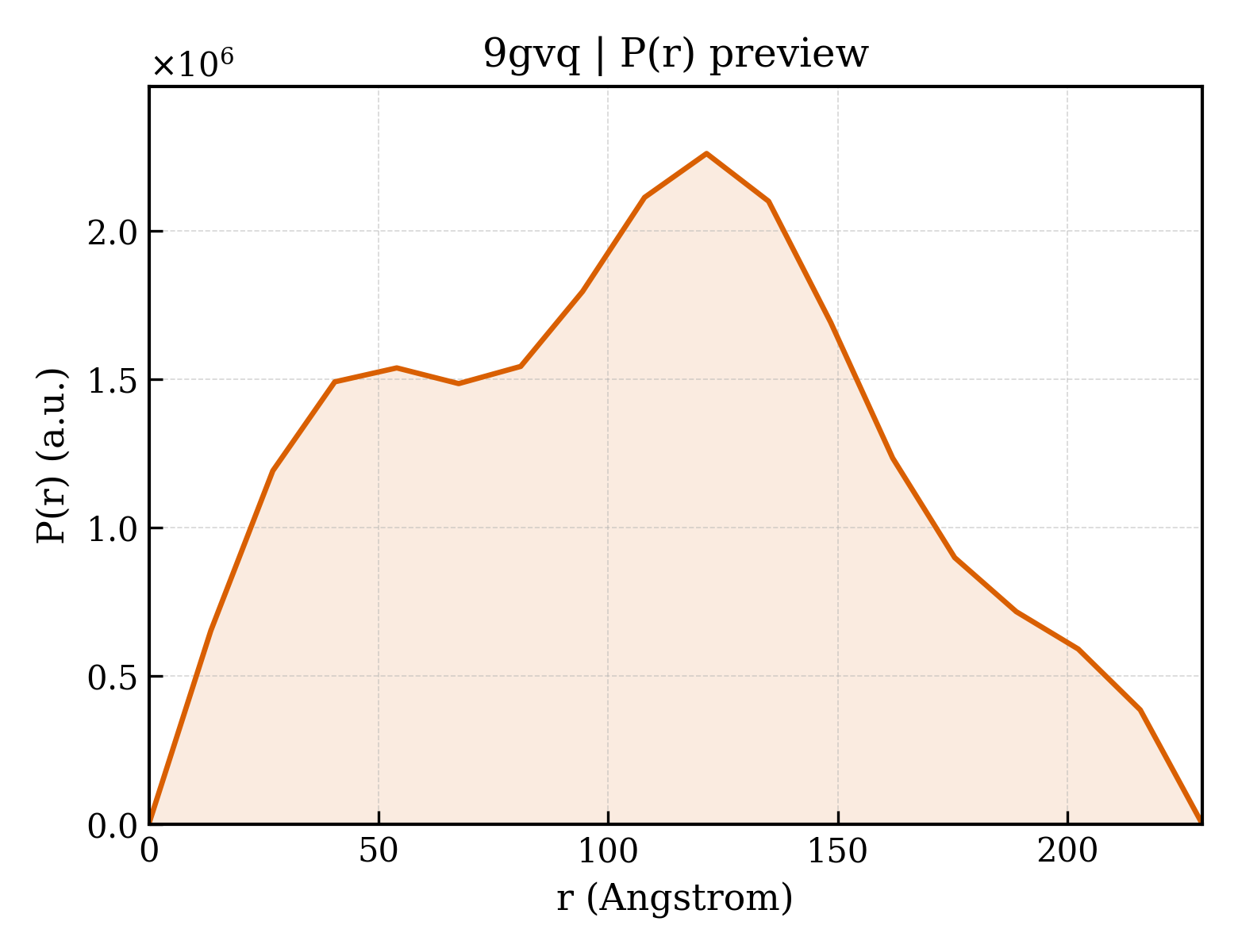

9gvq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	0.00 Å
Rg (electron density)	110.30 Å
Total Rg	110.10 Å
Atom count	69028
Residues	9216
Excluded volume	1214700 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9gvq__assembly_1__model_1`	octameric （8）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Mucin-5AC
Molecular weight formula_weight	157080.7 kDa
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	34750

QDGSSESSYKHHPALSPIARGPSGVPLRGATVFPSLRTIPVVRASNPAHNGRVCSTWGSFHYKTFDGDVFRFPGLCNYVFSEHCGAAYEDFNIQLRRSQESAAPTLSRVLMKVDGVVIQLTKGSVLVNGHPVLLPFSQSGVLIQQSSSYTKVEARLGLVLMWNHDDSLLLELDTKYANKTCGLCGDFNGMPVVSELLSHNTKLTPMEFGNLQKMDDPTDQCQDPVPEPPRNCSTGFGICEELLHGQLFSGCVALVDVGSYLEACRQDLCFCEDTDLLSCVCHTLAEYSRQCTHAGGLPQDWRGPDFCPQKCPNNMQYHECRSPCADTCSNQEHSRACEDHCVAGCFCPEGTVLDDIGQTGCVPVSKCACVYNGAAYAPGATYSTDCTNCTCSGGRWSCQEVPCPGTCSVLGGAHFSTFDGKQYTVHGDCSYVLTKPCDSSAFTVLAELRRCGLTDSETCLKSVTLSLDGAQTVVVIKASGEVFLNQIYTQLPISAANVTIFRPSTFFIIAQTSLGLQLNLQLVPTMQLFMQLAPKLRGQTCGLCGNFNSIQADDFRTLSGVVEATAAAFFNTFKTQAACPNIRNSFEDPCSLSVENEKYAQHWCSQLTDADGPFGRCHAAVKPGTYYSNCMFDTCNCERSEDCLCAALSSYVHACAAKGVQLGGWRDGVCTKPMTTCPKSMTYHYHVSTCQPTCRSLSEGDITCSVGFIPVDGCICPKGTFLDDTGKCVQASNCPCYHRGSMIPNGESVHDSGAICTCTHGKLSCIGGQAPAPVCAAPMVFFDCRNATPGDTGAGCQKSCHTLDMTCYSPQCVPGCVCPDGLVADGEGGCITAEDCPCVHNEASYRAGQTIRVGCNTCTCDSRMWRCTDDPCLATCAVYGDGHYLTFDGQSYSFNGDCEYTLVQNHCGGKDSTQDSFRVVTENVPCGTTGTTCSKAIKIFLGGFELKLSHGKVEVIGTDESQEVPYTIRQMGIYLVVDTDIGLVLLWDKKTSIFINLSPEFKGRVCGLCGNFDDIAVNDFATRSRSVVGDVLEFGNSWKLSPSCPDALAPKDPCTANPFRKSWAQKQCSILHGPTFAACHAHVEPARYYEACVNDACACDSGGDCECFCTAVAAYAQACHEVGLCVSWRTPSICPLFCDYYNPEGQCEWHYQPCGVPCLRTCRNPRGDCLRDVRGLEGCYPKCPPEAPIFDEDKMQCVATCPTPPLPPRCHVHGKSYRPGAVVPSDKNCQSCLCTERGVECTYKAEACVCTYNGQRFHPGDVIYHTTDGTGGCISARCGANGTIERRVYPCSPTTPVPPTTFSFSTPPLVVSSTHTPSNGPSSAHTGPPSSAWPTTAGTSPRTRLPTASASLPPVCGEKCLWSPWMDVSRPGRGTDSGDFDTLENLRAHGYRVCESPRSVECRAEDAPGVPLRALGQRVQCSPDVGLTCRNREQASGLCYNYQIRVQCCTPLPCST

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Homo sapiens

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	12

Entity 3 Entity 3 non-polymer

Description description	COPPER (II) ION
Molecular weight formula_weight	63.5 kDa
Source method src_method	syn
Copy count entity_count	4

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	165735

MUC5AC mucin amino acids 28 to 1483
