SAXSdb — 9gzl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Periplasmic [Fe] hydrogenase large subunit

Desulfovibrio desulfuricans

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Periplasmic [Fe] hydrogenase small subunit × 1 （P07603） IRON/SULFUR CLUSTER × 3 CHLORIDE ION × 7 LITHIUM ION × 3 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHFL_NITV2
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–396； UniProt 2–397

Periplasmic [Fe] hydrogenase small subunit

Desulfovibrio desulfuricans

UniProt P07603

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Periplasmic [Fe] hydrogenase large subunit × 1 （P07598） IRON/SULFUR CLUSTER × 3 CHLORIDE ION × 7 LITHIUM ION × 3 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHFS_DESVH
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–88； UniProt 36–123

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9gzl
Deposition date deposition_date	2024-10-04
Structure title title	Apo FeFe Hydrogenase from Desulfovibrio desulfuricans labelled with cyanophenylalanine
Keywords keywords	Metalloprotein Iron-sulfur cluster Electron transfer, OXIDOREDUCTASE; OXIDOREDUCTASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9gzl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

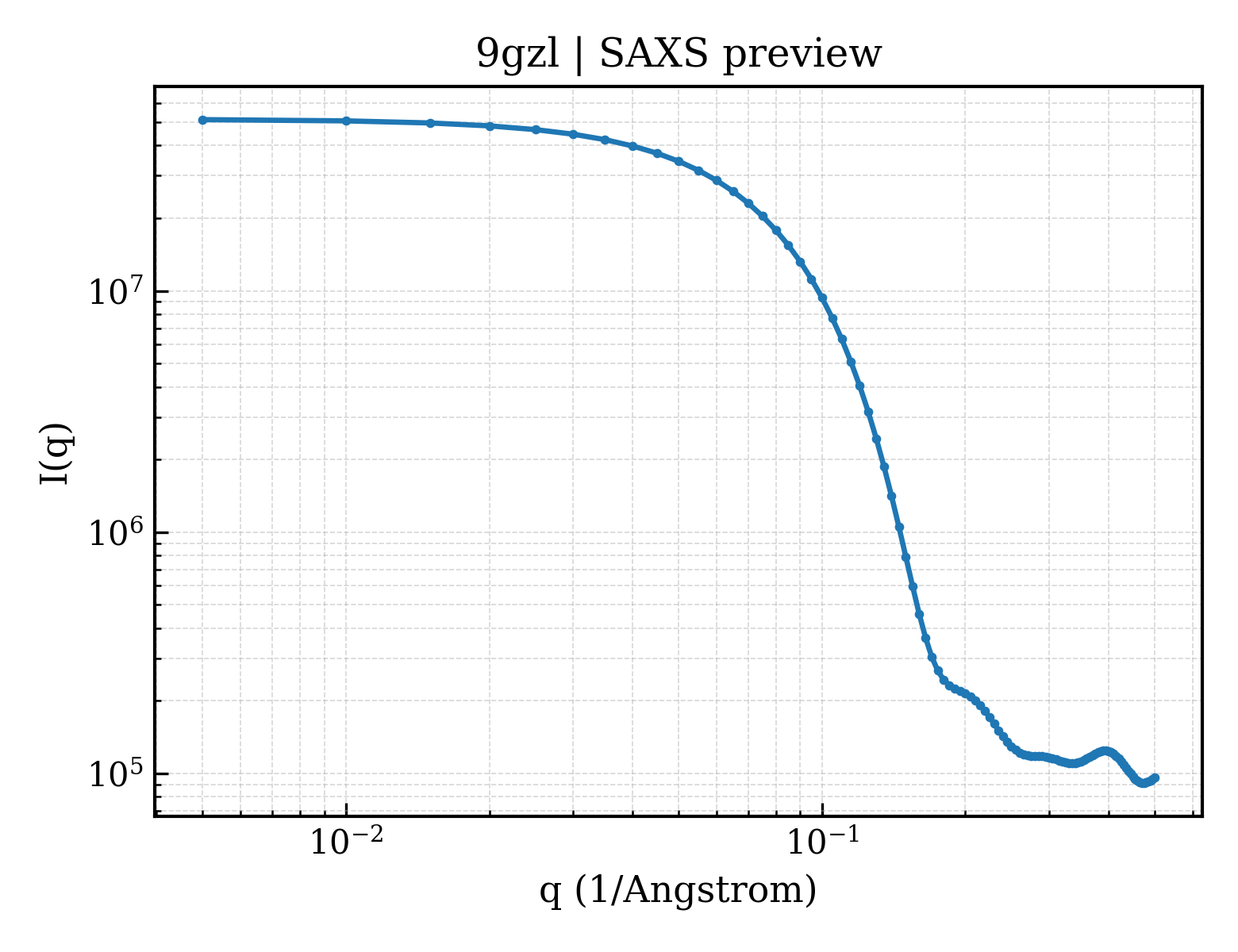

9gzl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9gzl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	21.91 Å
Rg (electron density)	21.04 Å
Total Rg	21.77 Å
Atom count	7417
Residues	482
Excluded volume	67379 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9gzl__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Periplasmic [Fe] hydrogenase large subunit
Molecular weight formula_weight	43248.8 kDa
EC 编号 ec_number	1.12.7.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	8206

SRTVMERIEYEMHTPDPKADPDKLHFVQIDEAKCIGCDTCSQYCPTAAIFGEMGEPHSIPHIEACINCGQCLTHCPENAIYEAQSWVPEVEKKLKDGKVKCIAMPAPAVRYALGDAFGMPVGSVTTGKMLAALQKLGFAHCWDTEFTADVTIWEEGSEFVERLTKKSDMPLPQFTSCCPGWQKYAETYYPELLPHFSTCKSPIGMNGALAKTYGAERMKYDPKQVYTVSIMPCIAKKYEGLRPELKSSGMRDIDATLTTRELAYMIKKAGIDFAKLPDGKRDSLMGESTGGATIFGVTGGVMEAALRFAYEAVTGKKPDSWDFKAVRGLDGIKEATVNVGGTDVKVAVVHGAKRFKQVCDDVKAGKSPYHFIEYMACPGGCVCGGGQPVMPGVLEA

Source Source

Source organism organism	Desulfovibrio desulfuricans
NCBI taxonomy ID ncbi_taxonomy_id	876
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Periplasmic [Fe] hydrogenase small subunit
Molecular weight formula_weight	10082.4 kDa
EC 编号 ec_number	1.12.7.2
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

VKQIKDYMLDRINGVYGADAKFPVRASQDNTQVKALYKSYLEKPLGHKSHDLLHTHWFDKSKGVKELTTAGKLPNPRASEFEGPYPYE

Source Source

Source organism organism	Desulfovibrio desulfuricans
NCBI taxonomy ID ncbi_taxonomy_id	876
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 non-polymer

Description description	IRON/SULFUR CLUSTER
Molecular weight formula_weight	351.6 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 4 Entity 4 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 5 Entity 5 non-polymer

Description description	LITHIUM ION
Molecular weight formula_weight	6.9 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	579

▶

Unit-cell length a length_a	50.460 Å
Unit-cell length b length_b	88.005 Å
Unit-cell length c length_c	92.859 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	orthorhombic

Resolution resolution	1.020 Å
Low-resolution limit resolution_low	46.430 Å
R factor r_factor	0.1399
R_work r_work	0.1392
R_free r_free	0.1533

Apo FeFe Hydrogenase from Desulfovibrio desulfuricans labelled with cyanophenylalanine
