9h5d

Crystal structure of sheep (Ovis aries) oxyhemoglobin at 2.1 Angstrom resolution

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Hemoglobin subunit alpha-1/2

Ovis aries

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Hemoglobin subunit beta × 2 （P02075） PROTOPORPHYRIN IX CONTAINING FE × 4 OXYGEN MOLECULE × 4 POTASSIUM ION × 6 ZINC ION × 7 DI(HYDROXYETHYL)ETHER × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HBA_SHEEP
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–141； UniProt 2–142 Author chain C； PDBConstruct 1–141； UniProt 2–142

Hemoglobin subunit beta

Ovis aries

UniProt P02075

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Hemoglobin subunit alpha-1/2 × 2 （P68240） PROTOPORPHYRIN IX CONTAINING FE × 4 OXYGEN MOLECULE × 4 POTASSIUM ION × 6 ZINC ION × 7 DI(HYDROXYETHYL)ETHER × 1 water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HBB_SHEEP
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–145； UniProt 1–145 Author chain D； PDBConstruct 1–145； UniProt 1–145

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9h5d
Deposition date deposition_date	2024-10-22
Last revision last_revision	2026-05-06
Structure title title	Crystal structure of sheep (Ovis aries) oxyhemoglobin at 2.1 Angstrom resolution
Keywords keywords	sheep, Ovis aries, hemoglobin, oxy form, Hb, OXYGEN TRANSPORT; OXYGEN TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9h5d__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

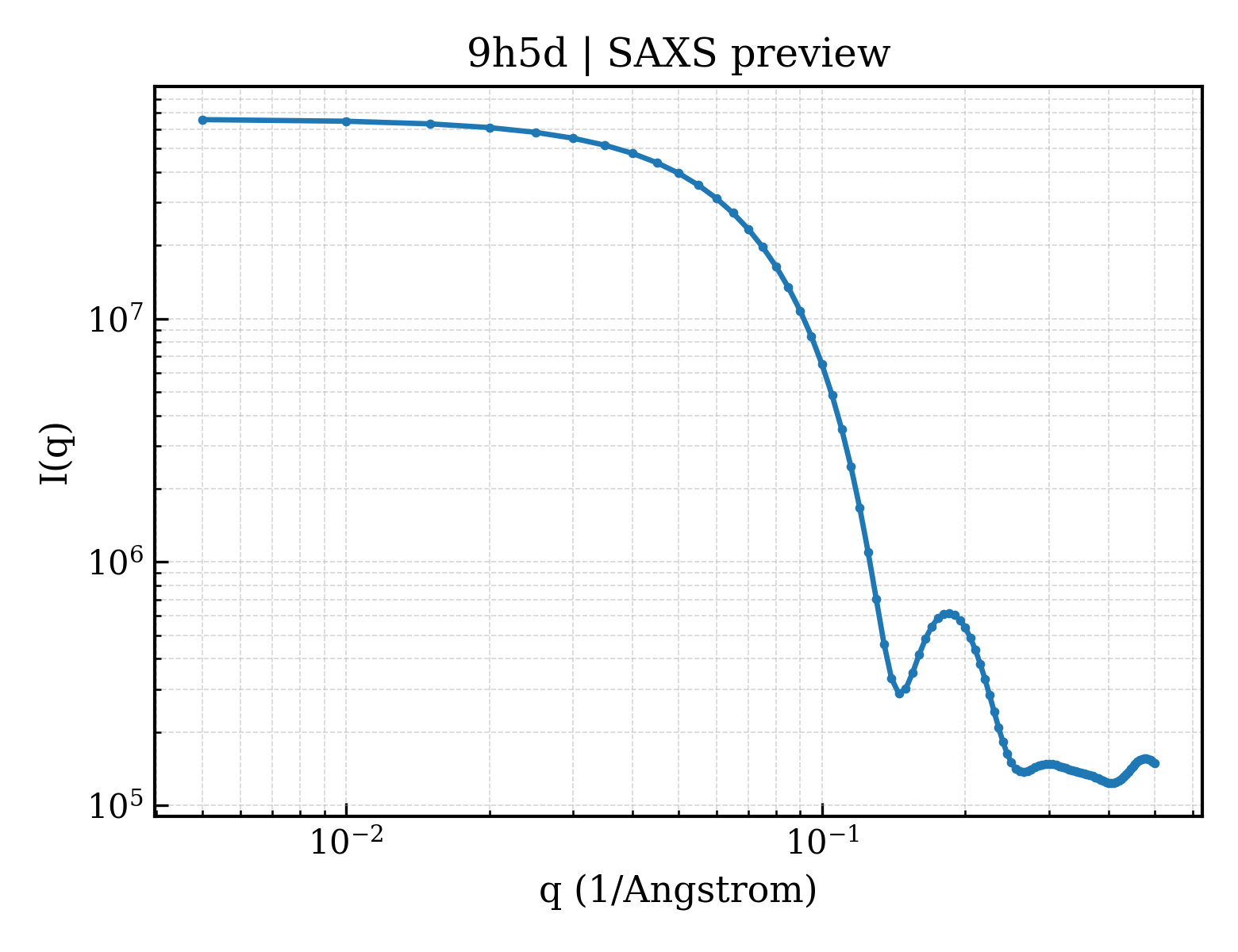

9h5d__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

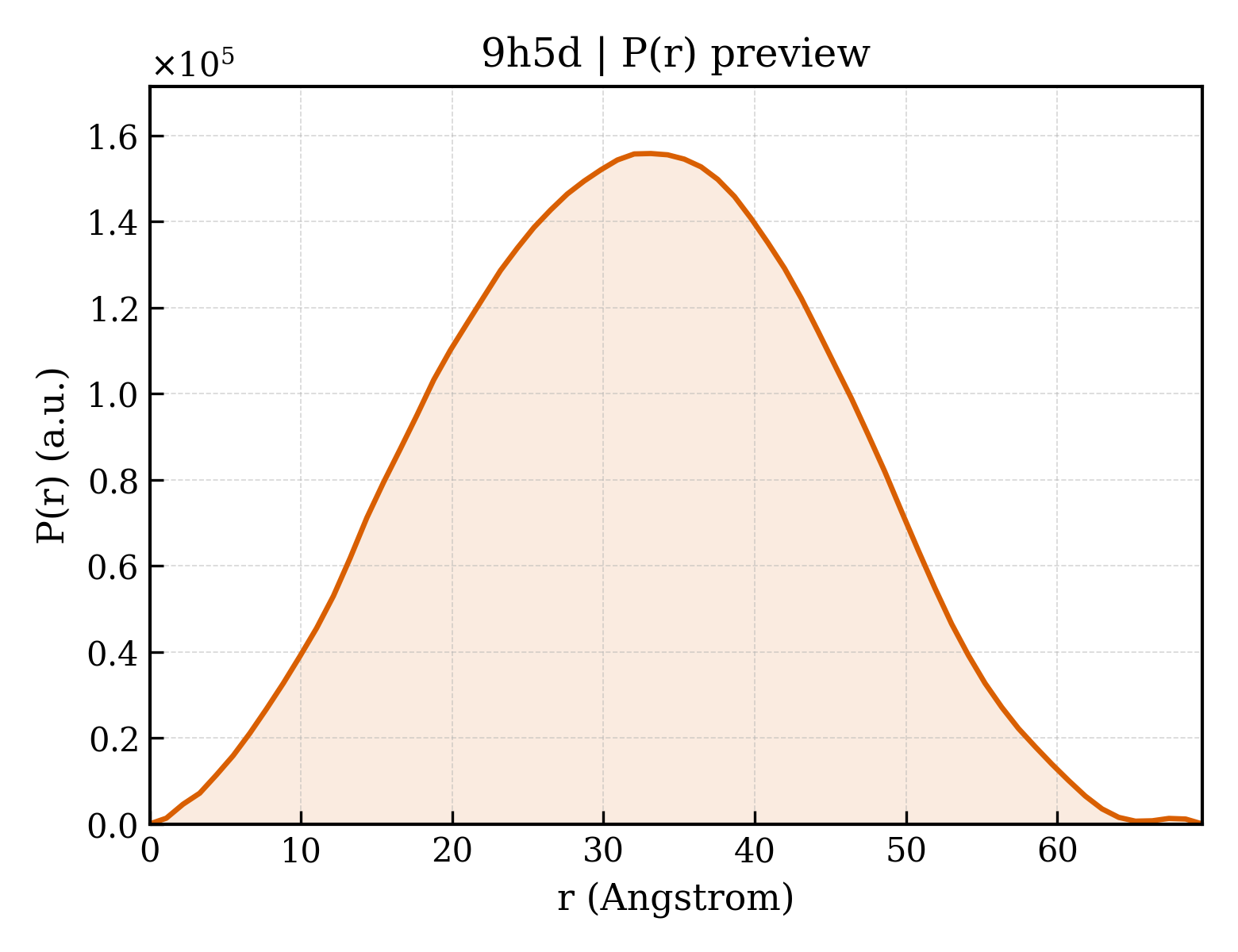

9h5d__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	24.66 Å
Rg (electron density)	23.34 Å
Total Rg	24.30 Å
Atom count	4584
Residues	571
Excluded volume	82390 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9h5d__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (8)

Entity 1 Entity 1 polymer

Description description	Hemoglobin subunit alpha-1/2
Molecular weight formula_weight	15056.2 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,C
Atom count atom_count	5273

VLSAADKSNVKAAWGKVGGNAGAYGAEALERMFLSFPTTKTYFPHFDLSHGSAQVKGHGEKVAAALTKAVGHLDDLPGTLSDLSDLHAHKLRVDPVNFKLLSHSLLVTLACHLPNDFTPAVHASLDKFLANVSTVLTSKYR

Source Source

Source organism organism	Ovis aries
Common name common_name	sheep
NCBI taxonomy ID ncbi_taxonomy_id	9940
Host organism host_organism	Ovis aries

Entity 2 Entity 2 polymer

Description description	Hemoglobin subunit beta
Molecular weight formula_weight	16098.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D

MLTAEEKAAVTGFWGKVKVDEVGAEALGRLLVVYPWTQRFFEHFGDLSNADAVMNNPKVKAHGKKVLDSFSNGMKHLDDLKGTFAQLSELHCDKLHVDPENFRLLGNVLVVVLARHHGNEFTPVLQADFQKVVAGVANALAHKYH

Source Source

Source organism organism	Ovis aries
Common name common_name	sheep
NCBI taxonomy ID ncbi_taxonomy_id	9940
Host organism host_organism	Ovis aries

Entity 3 Entity 3 non-polymer

Description description	PROTOPORPHYRIN IX CONTAINING FE
Molecular weight formula_weight	616.5 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	OXYGEN MOLECULE
Molecular weight formula_weight	32.0 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 5 Entity 5 non-polymer

Description description	POTASSIUM ION
Molecular weight formula_weight	39.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 6 Entity 6 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	7

Entity 7 Entity 7 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 8 Entity 8 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	646

▶

Unit-cell length a length_a	60.148 Å
Unit-cell length b length_b	70.730 Å
Unit-cell length c length_c	128.730 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.080 Å
Low-resolution limit resolution_low	24.850 Å
R factor r_factor	0.1993
R_work r_work	0.1968
R_free r_free	0.2450
