SAXSdb — 9hiq

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

tRNA modification GTPase MnmE

Escherichia coli

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	tRNA uridine 5-carboxymethylaminomethyl modification enzyme MnmG × 2 （P0A6U3） PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 4 FLAVIN-ADENINE DINUCLEOTIDE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MNME_ECOLI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–454； UniProt 1–454 Author chain B； PDBConstruct 1–454； UniProt 1–454 Author chain E； PDBConstruct 1–454； UniProt 1–454 Author chain F； PDBConstruct 1–454； UniProt 1–454

tRNA uridine 5-carboxymethylaminomethyl modification enzyme MnmG

Escherichia coli

UniProt P0A6U3

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	tRNA modification GTPase MnmE × 4 （P25522） PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER × 4 FLAVIN-ADENINE DINUCLEOTIDE × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	MNMG_ECOLI
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 21–649； UniProt 1–629 Author chain D； PDBConstruct 21–649； UniProt 1–629

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9hiq
Deposition date deposition_date	2024-11-27
Structure title title	MnmE-MnmG a4b2 complex
Keywords keywords	tRNA modification, FAD binding protein, folate binding protein, G protein activated by dimerization, RNA BINDING PROTEIN; RNA BINDING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9hiq__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9hiq__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

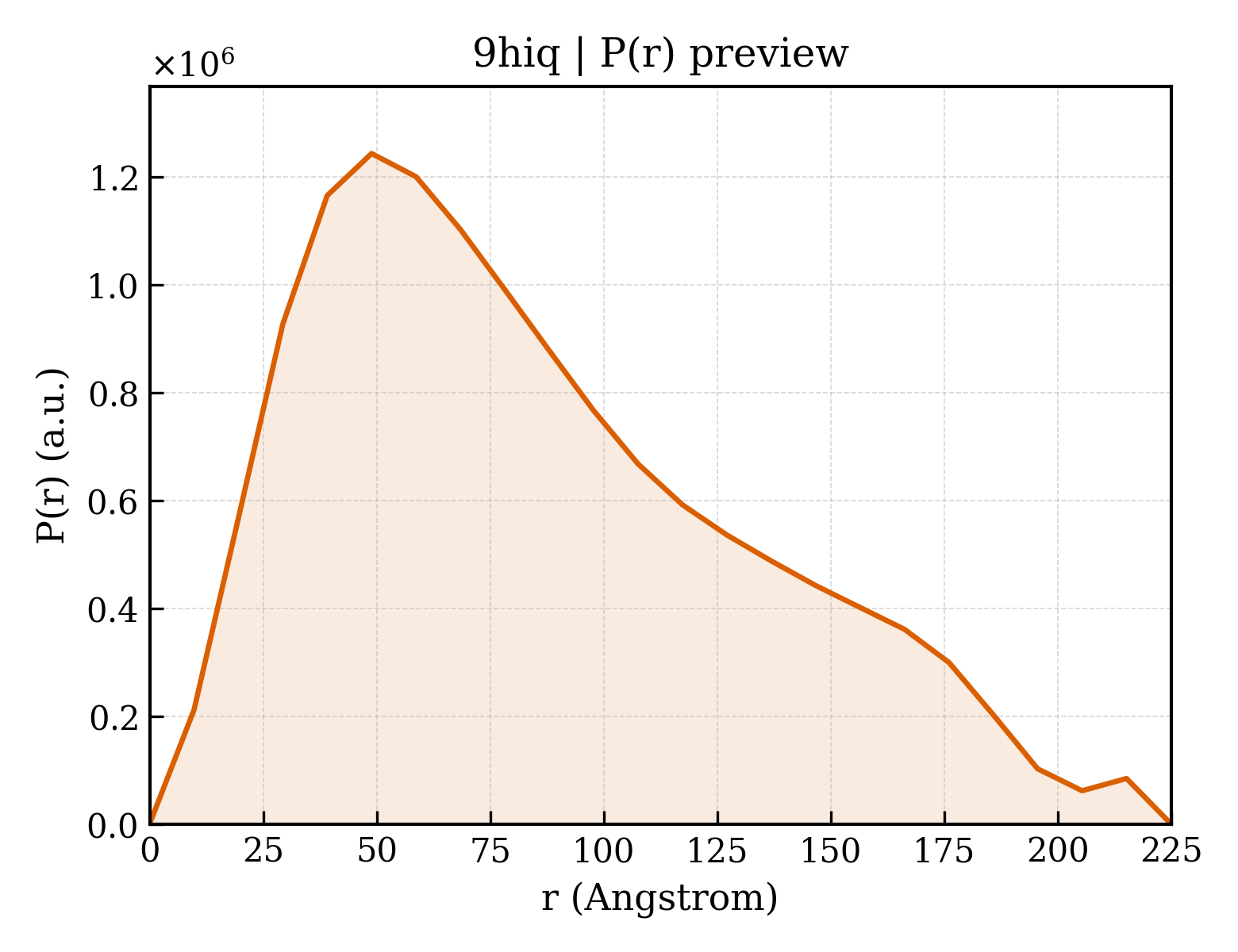

9hiq__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	68.10 Å
Rg (electron density)	69.11 Å
Total Rg	68.67 Å
Atom count	23300
Residues	3029
Excluded volume	410830 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9hiq__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	tRNA modification GTPase MnmE
Molecular weight formula_weight	49286.7 kDa
EC 编号 ec_number	3.6.-.-
Source method src_method	man
Copy count entity_count	4

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,E,F
Atom count atom_count	23300

MSDNDTIVAQATPPGRGGVGILRISGFKAREVAETVLGKLPKPRYADYLPFKDADGSVLDQGIALWFPGPNSFTGEDVLELQGHGGPVILDLLLKRILTIPGLRIARPGEFSERAFLNDKLDLAQAEAIADLIDASSEQAARSALNSLQGAFSARVNHLVEALTHLRIYVEAAIDFPDEEIDFLSDGKIEAQLNDVIADLDAVRAEARQGSLLREGMKVVIAGRPNAGKSSLLNALAGREAAIVTDIAGTTRDVLREHIHIDGMPLHIIDTAGLREASDEVERIGIERAWQEIEQADRVLFMVDGTTTDAVDPAEIWPEFIARLPAKLPITVVRNKADITGETLGMSEVNGHALIRLSARTGEGVDVLRNHLKQSMGFDTNMEGGFLARRRHLQALEQAAEHLQQGKAQLLGAWAGELLAEELRLAQQNLSEITGEFTSDDLLGRIFSSFCIGK

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21

Entity 2 Entity 2 polymer

Description description	tRNA uridine 5-carboxymethylaminomethyl modification enzyme MnmG
Molecular weight formula_weight	71877.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

MGSSHHHHHHSSGENLYFQGMFYPDPFDVIIIGGGHAGTEAAMAAARMGQQTLLLTHNIDTLGQMSCNPAIGGIGKGHLVKEVDALGGLMAKAIDQAGIQFRILNASKGPAVRATRAQADRVLYRQAVRTALENQPNLMIFQQAVEDLIVENDRVVGAVTQMGLKFRAKAVVLTVGTFLDGKIHIGLDNYSGGRAGDPPSIPLSRRLRELPLRVGRLKTGTPPRIDARTIDFSVLAQQHGDNPMPVFSFMGNASQHPQQVPCYITHTNEKTHDVIRSNLDRSPMYAGVIEGVGPRYCPSIEDKVMRFADRNQHQIFLEPEGLTSNEIYPNGISTSLPFDVQMQIVRSMQGMENAKIVRPGYAIEYDFFDPRDLKPTLESKFIQGLFFAGQINGTTGYEEAAAQGLLAGLNAARLSADKEGWAPARSQAYLGVLVDDLCTLGTKEPYRMFTSRAEYRLMLREDNADLRLTEIGRELGLVDDERWARFNEKLENIERERQRLKSTWVTPSAEAAAEVNAHLTAPLSREASGEDLLRRPEMTYEKLTTLTPFAPALTDEQAAEQVEIQVKYEGYIARQQDEIEKQLRNENTLLPATLDYRQVSGLSNEVIAKLNDHKPASIGQASRISGVTPAAISILLVWLKKQGMLRRSA

Source Source

Source organism organism	Escherichia coli
NCBI taxonomy ID ncbi_taxonomy_id	562
Host organism host_organism	Escherichia coli BL21

Entity 3 Entity 3 non-polymer

Description description	PHOSPHOAMINOPHOSPHONIC ACID-GUANYLATE ESTER
Molecular weight formula_weight	522.2 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 4 Entity 4 non-polymer

Description description	FLAVIN-ADENINE DINUCLEOTIDE
Molecular weight formula_weight	785.5 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	4.02 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	53595

MnmE-MnmG a4b2 complex
