9i07

Photosynthetic A8B8 glycerldeyde-3-phosphate dehydrogenase hexadecamer (major conformer) from Spinacia oleracea.

Method: ELECTRON MICROSCOPY D_max: 216.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

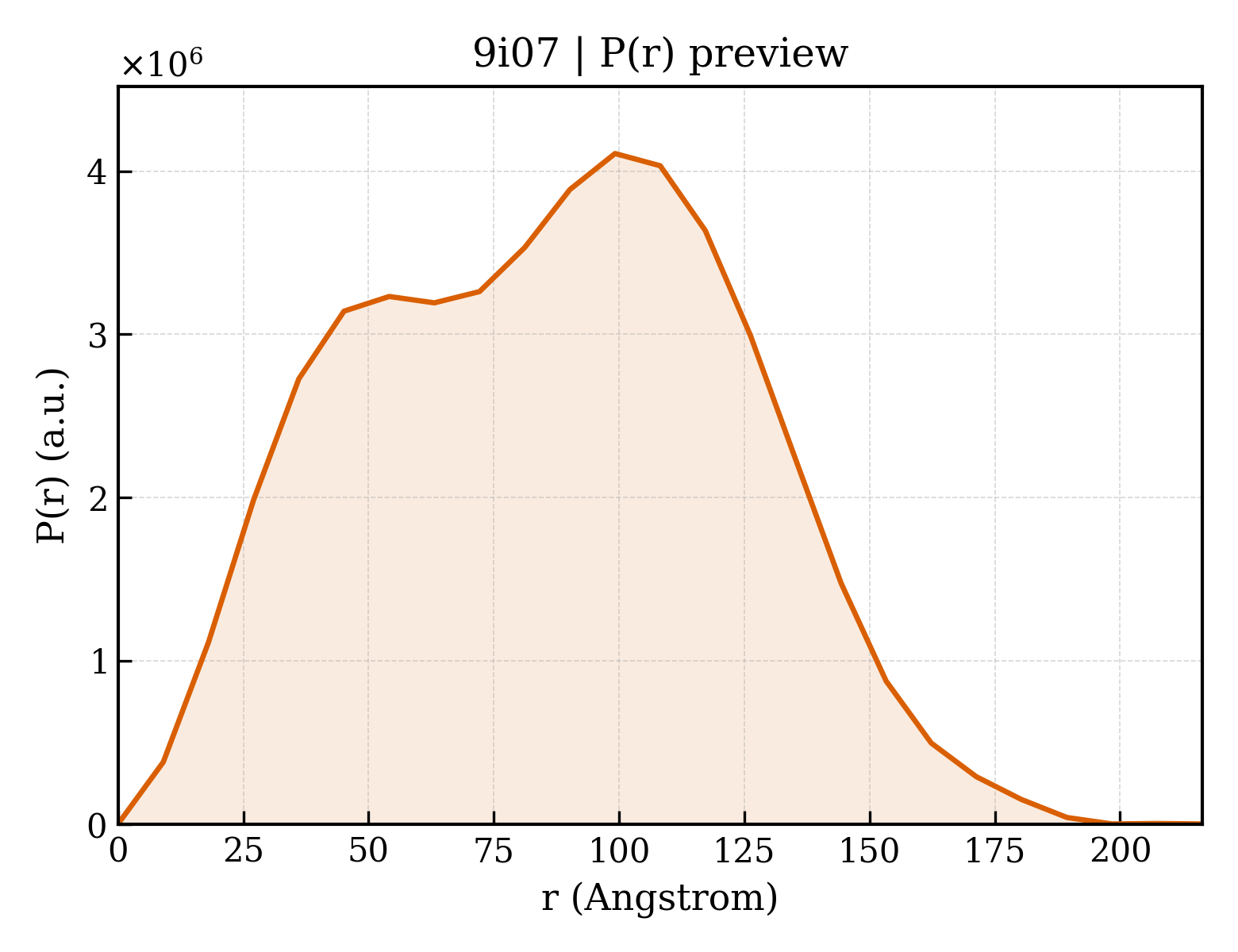

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9i07
沉积日期 deposition_date	2025-01-14
结构标题 title	Photosynthetic A8B8 glycerldeyde-3-phosphate dehydrogenase hexadecamer (major conformer) from Spinacia oleracea.
关键词 keywords	photosynthesis, Calvin-Benson cycle, redox regulation, OXIDOREDUCTASE; OXIDOREDUCTASE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	66.59 Å
回转半径 Rg (电子) rg_electron	66.33 Å
零角强度 I(0) i0	5301200000.00
分子量 molecular_weight	614990.0 kDa
排除体积 excluded_volume	769300 Å³
包络体积 envelope_volume	1078100 Å³
水化壳体积 shell_volume	129470 Å³
包络直径 envelope_diameter	210.8 Å
壳层 Rg shell_rg	73.89 Å
包络 Rg envelope_rg	64.09 Å
形状 Rg shape_rg	66.34 Å
总 Rg total_rg	66.40 Å
总原子数 total_atoms	43184
残基数 n_residues	5552
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	216.4 Å
Rg (实空间) rg_real	66.29 Å
Rg 误差 (实空间) rg_real_error	2.16 Å
I(0) (实空间) i0_real	5.3010e+09
I(0) 误差 (实空间) i0_real_error	1.1310e+08
Rg (倒空间) rg_reciprocal	66.77 Å
I(0) (倒空间) i0_reciprocal	5305000000.0000
解质量估计 total_estimate	0.8480
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	99.2 Å
偏度 Skewness skewness	0.044
峰度 Kurtosis kurtosis	-0.733
角度范围 angular_range	— – 0.1200 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	1218000000.0000
实空间数据点数 n_real_points	25
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.804; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.999; Smooth: 0.609

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (3)

Entity 1 polymer

描述 description	Glyceraldehyde-3-phosphate dehydrogenase B, chloroplastic
分子量 formula_weight	39404.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	O,Q,A,C,E,G,I,K
原子数 atom_count	43184

KLKVAINGFGRIGRNFLRCWHGRKDSPLDVVVVNDSGGVKSATHLLKYDSILGTFKADVKIIDNETFSIDGKPIKVVSNRDPLKLPWAELGIDIVIEGTGVFVDGPGAGKHIQAGAKKVIITAPAKGSDIPTYVVGVNEKDYGHDVANIISNASCTTNCLAPFVKVLDEELGIVKGTMTTTHSYTGDQRLLDASHRDLRRARAAALNIVPTSTGAAKAVSLVLPQLKGKLNGIALRVPTPNVSVVDLVVNIEKVGVTAEDVNNAFRKAAAGPLKGVLDVCDIPLVSVDFRCSDFSSTIDSSLTMVMGGDMVKVVAWYDNEWGYSQRVVDLADLVANKWPGLEGSVASGDPLEDFCKDNPADEECKLYE

Entity 2 polymer

描述 description	Glyceraldehyde-3-phosphate dehydrogenase A, chloroplastic
分子量 formula_weight	36256.4 kDa
来源方法 src_method	nat
拷贝数 entity_count	8

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	P,R,B,D,F,H,J,L

KLKVAINGFGRIGRNFLRCWHGRKDSPLDVVVINDTGGVKQASHLLKYDSILGTFDADVKTAGDSAISVDGKVIKVVSDRNPVNLPWGDMGIDLVIEGTGVFVDRDGAGKHLQAGAKKVLITAPGKGDIPTYVVGVNEEGYTHADTIISNASCTTNCLAPFVKVLDQKFGIIKGTMTTTHSYTGDQRLLDASHRDLRRARAACLNIVPTSTGAAKAVALVLPNLKGKLNGIALRVPTPNVSVVDLVVQVSKKTFAEEVNAAFRESADNELKGILSVCDEPLVSIDFRCTDVSSTIDSSLTMVMGDDMVKVIAWYDNEWGYSQRVVDLADIVANKWQA

Entity 3 non-polymer

描述 description	NICOTINAMIDE-ADENINE-DINUCLEOTIDE
分子量 formula_weight	663.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	16

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	3.10 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	55141

fit	/app/data/saxs_computation/i0/9i07/9i07.fit
pddf	/app/data/pr_computation/i0/9i07/9i07.pr.out
profile	/app/data/saxs_computation/i0/9i07/9i07.dat
