1. Protein Identity and Related Structures Protein Identity & Related Structures

Anterior gradient protein 2 homolog

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Serine/threonine-protein kinase/endoribonuclease IRE2 × 1 （Q76MJ5）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	AGR2_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 1–155； UniProt 21–175 Author chain D； PDBConstruct 1–155； UniProt 21–175

Serine/threonine-protein kinase/endoribonuclease IRE2

Homo sapiens

UniProt Q76MJ5

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 3	Anterior gradient protein 2 homolog × 2 （O95994）	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ERN2_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 1–395； UniProt 35–429

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9i3u
Deposition date deposition_date	2025-01-24
Structure title title	Cryo-EM structure of the AGR2 dimer in complex with the monomeric IRE1beta luminal domain
Keywords keywords	endoplasmic reticulum (ER) / molecular chaperones/ protein multimerisation/ unfolded protein response (UPR), CHAPERONE; CHAPERONE
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9i3u__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9i3u__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

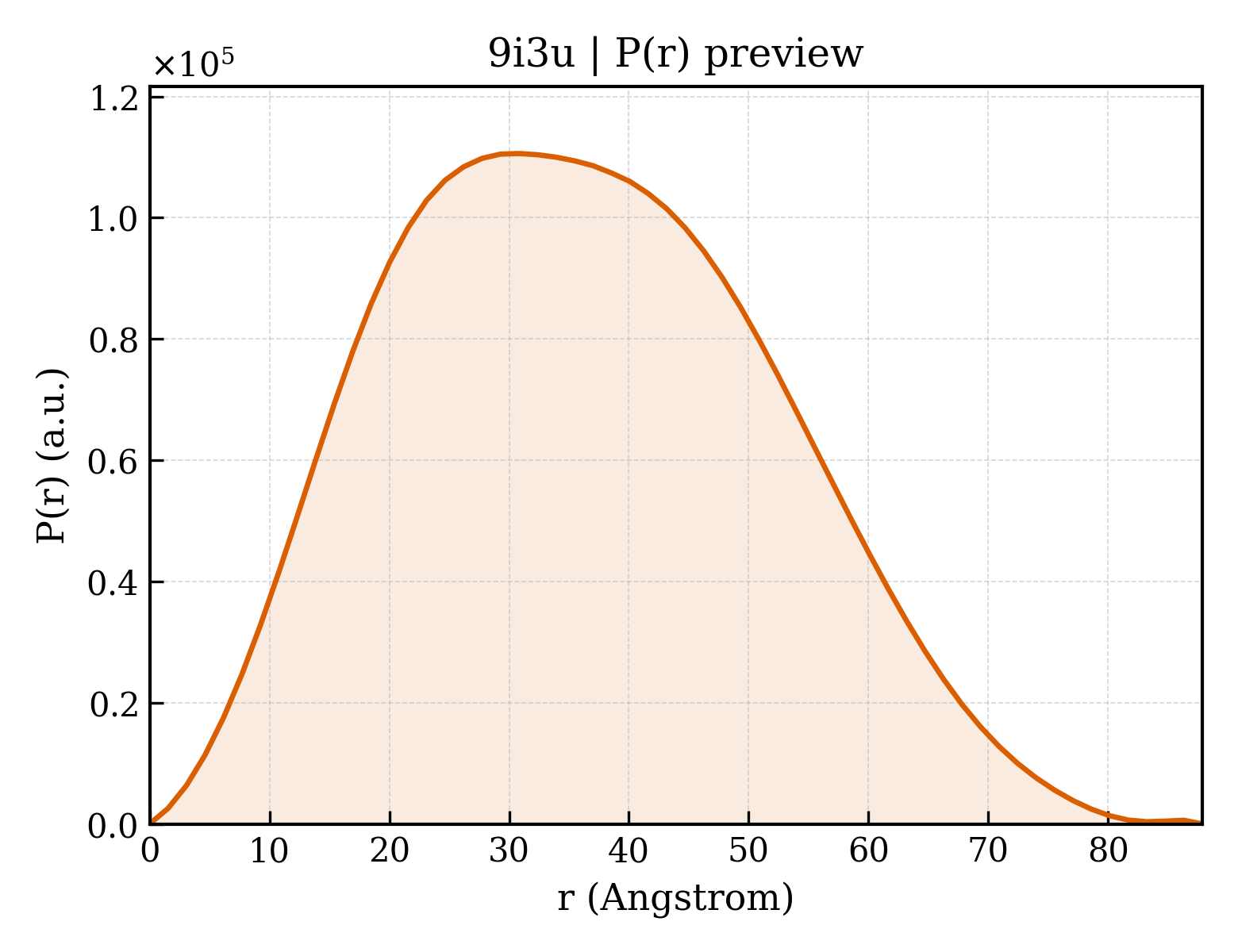

9i3u__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	27.90 Å
Rg (electron density)	27.00 Å
Total Rg	27.77 Å
Atom count	4445
Residues	563
Excluded volume	79698 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9i3u__assembly_1__model_1`	trimeric （3）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Anterior gradient protein 2 homolog
Molecular weight formula_weight	17845.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D
Atom count atom_count	4445

RDTTVKPGAKKDTKDSRPKLPQTLSRGWGDQLIWTQTYEEALYKSKTSNKPLMIIHHLDECPHSQALKKVFAENKEIQKLAEQFVLLNLVYETTDKHLSPDGQYVPRIMFVDPSLTVRADITGRYSNRLYAYEPADTALLLDNMKKALKLLKTEL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Serine/threonine-protein kinase/endoribonuclease IRE2
Molecular weight formula_weight	43393.2 kDa
EC 编号 ec_number	2.7.11.1,3.1.26.-
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

LRPENLLLVSTLDGSLHALSKQTGDLKWTLRDDPVIEGPMYVTEMAFLSDPADGSLYILGTQKQQGLMKLPFTIPELVHASPCRSSDGVFYTGRKQDAWFVVDPESGETQMTLTTEGPSTPRLYIGRTQYTVTMHDPRAPALRWNTTYRRYSAPPMDGSPGKYMSHLASCGMGLLLTVDPGSGTVLWTQDLGVPVMGVYTWHQDGLRQLPHLTLARDTLHFLALRWGHIRLPASGPRDTATLFSTLDTQLLMTLYVGKDETGFYVSKALVHTGVALVPRGLTLAPADGPTTDEVTLQVSGEREGSPSTAVRYPSGSVALPSQWLLIGHHELPPVLHTTMLRVHPTLGSGTAETRPPENTQAPAFFLELLSLSREKLWDSELHPEEKTPDSYLGLG

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.900 Å
Low-resolution limit resolution_low	— Å
R factor r_factor	—
R_work r_work	—
R_free r_free	—

Resolution resolution	2.90 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	313426

Cryo-EM structure of the AGR2 dimer in complex with the monomeric IRE1beta luminal domain
