SAXSdb — 9i67

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alkaline serine protease

Stenotrophomonas maltophilia

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein monomer Monomer Protein × 1 PDB declaration: monomeric（1） Consistent with protein copy count	Chain A； UniProt 151–506	Not recorded	CA CALCIUM ION × 1 SO4 SULFATE ION × 6 GOL GLYCEROL × 3 A1I1B (2~{S})-2-[[(1~{S})-1-[(6~{S})-2-azanyl-1,4,5,6-tetrahydropyrimidin-6-yl]-2-[[(2~{S})-4-methyl-1-oxidanylidene-1-[[(2~{S})-1-oxidanylidene-3-phenyl-propan-2-yl]amino]pentan-2-yl]amino]-2-oxidanylidene-ethyl]carbamoylamino]-3-phenyl-propanoic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions：BATCH MODE；pH 8；293.15 K；1,8 M Ammonium sulfate, 0,1 M Tris-HCl	Resolution 1.99 Å R-free 0.213

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9I67	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9G8V StmPr1, Stenotrophomonas maltophilia Protease 1, 36 kDa alkine serine protease Deposited 2024-07-24	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 151–506（356 aa）	Not recorded	GOL GLYCEROL × 2 CA CALCIUM ION × 1 SO4 SULFATE ION × 4	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；1.8 M ammonium sulfate 0.1 M Tris	Resolution 1.64 Å R-free 0.209
9GOI StmPr1, Stenotrophomonas maltophilia Protease 1, 36 kDa alkine serine protease in complex with Bortezomib Deposited 2024-09-05	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 151–506（356 aa）	Not recorded	BO2 N-[(1R)-1-(DIHYDROXYBORYL)-3-METHYLBUTYL]-N-(PYRAZIN-2-YLCARBONYL)-L-PHENYLALANINAMIDE × 1 GOL GLYCEROL × 4 SO4 SULFATE ION × 3 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293.15 K；0.9 M ammonium sulfate 0.4 M lithium sulfate 0.1 M sodium citrate	Resolution 1.89 Å R-free 0.251
9GRG StmPr1, Stenotrophomonas maltophilia Protease 1, 36 kDa alkine serine protease in complex with PMSF Deposited 2024-09-11	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 151–506（356 aa）	Not recorded	GOL GLYCEROL × 4 PMS phenylmethanesulfonic acid × 1 SO4 SULFATE ION × 4 CA CALCIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293.15 K；0.9 M Ammonium sulfate 0.4 M Lithium sulfate 0.1 M Sodium acetate	Resolution 1.89 Å R-free 0.235
9I6C StmPr1, Stenotrophomonas maltophilia Protease 1, 36 kDa alkine serine protease in complex with Leupeptin Deposited 2025-01-29	Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 151–506（356 aa）	Not recorded	CA CALCIUM ION × 1 SO4 SULFATE ION × 5 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；293.15 K；1.8 M Ammonium sulfate, 0.1 M Tris-HCl	Resolution 2.08 Å R-free 0.218

4 other PDB entries and 4 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	Q93IQ4_STEMA
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–356； UniProt 151–506

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9i67
Deposition date deposition_date	2025-01-29
最后修订 last_revision	2025-08-06
Structure title title	StmPr1, Stenotrophomonas maltophilia Protease 1, 36 kDa alkine serine protease in complex with Chymostatin
Keywords keywords	alkaline serine protease, Chymostatin, excreted protease, subtilisin-like, HYDROLASE; HYDROLASE
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	19.42 Å
Radius of gyration Rg (electron density) rg_electron	18.52 Å
Forward intensity I(0) i0	48831000.00
Molecular weight molecular_weight	35175.0 kDa
Excluded volume excluded_volume	33288 Å³
Envelope volume envelope_volume	51132 Å³
Hydration-shell volume shell_volume	22203 Å³
Envelope diameter envelope_diameter	61.7 Å
Shell Rg shell_rg	25.73 Å
Envelope Rg envelope_rg	18.76 Å
Shape Rg shape_rg	18.49 Å
Total Rg total_rg	19.22 Å
Total atoms total_atoms	2639
Residues n_residues	356
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	60.7 Å
Rg (real space) rg_real	19.25 Å
Rg uncertainty (real space) rg_real_error	0.27 Å
I(0) (real space) i0_real	4.8830e+07
I(0) uncertainty (real space) i0_real_error	5.3470e+05
Rg (reciprocal space) rg_reciprocal	19.27 Å
I(0) (reciprocal space) i0_reciprocal	48830000.0000
Solution quality estimate total_estimate	0.8919
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	25.6 Å
Skewness Skewness skewness	0.076
Kurtosis Kurtosis kurtosis	-0.470
Angular range angular_range	— – 0.4100 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	11150000.0000
Real-space data points n_real_points	72
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.870; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.994

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Alkaline serine protease
Molecular weight formula_weight	36231.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2932

LAPNDPYYQQYQWHLHNATGGINAPSAWDVSQGEGVVVAVLDTGILPQHPDLVGNLLEGYDFISDAETSRRATNDRVPGAQDYGDWVENDNECYTGSVAEDSSWHGTHVAGTVAEQTNNGVGMAGVAHKAKVLPVRVLGKCGGYLSDIADAITWASGGTVAGVPANANPAEVINMSLGGSGSCDGTYQDAINGAISRGTTVVVAAGNETDNASKYRPASCDGVVTVGATRITGGITYYSNYGSRVDLSGPGGGGSVDGNPGGYVWQSGSDAATTPESGSYSYMGMGGTSMASPHVAAVAALVQSALIAKGKDPLAPAAMRTLLKETARPFPVSIPTATPIGTGIVDAKAALAKALE

来源 Source

来源生物 organism	Stenotrophomonas maltophilia
NCBI Class编号 ncbi_taxonomy_id	40324
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CALCIUM ION
Molecular weight formula_weight	40.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	6

Entity 4 Entity 4 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 5 Entity 5 non-polymer

Description description	;(2~{S})-2-[[(1~{S})-1-[(6~{S})-2-azanyl-1,4,5,6-tetrahydropyrimidin-6-yl]-2-[[(2~{S})-4-methyl-1-oxidanylidene-1-[[(2~{S})-1-oxidanylidene-3-phenyl-propan-2-yl]amino]pentan-2-yl]amino]-2-oxidanylidene-ethyl]carbamoylamino]-3-phenyl-propanoic acid ;
Molecular weight formula_weight	607.7 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	293

▶

8. Citations (1)

▶

Unit-cell length a length_a	60.459 Å
Unit-cell length b length_b	86.514 Å
Unit-cell length c length_c	132.329 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	C 2 2 21
Space-group number int_tables_number	20
Crystal system crystal_system	—

Resolution resolution	1.990 Å
Low-resolution limit resolution_low	29.490 Å
R factor r_factor	0.1543
R_work r_work	0.1514
R_free r_free	0.2126

fit	/app/data/saxs_computation/i6/9i67/9i67.fit
pddf	/app/data/pr_computation/i6/9i67/9i67.pr.out
profile	/app/data/saxs_computation/i6/9i67/9i67.dat

StmPr1, Stenotrophomonas maltophilia Protease 1, 36 kDa alkine serine protease in complex with Chymostatin

1. Protein Identity and Related Structures Protein Identity & Related Structures

Alkaline serine protease

State in the Current Structure

Other States of the Same Protein in the Database

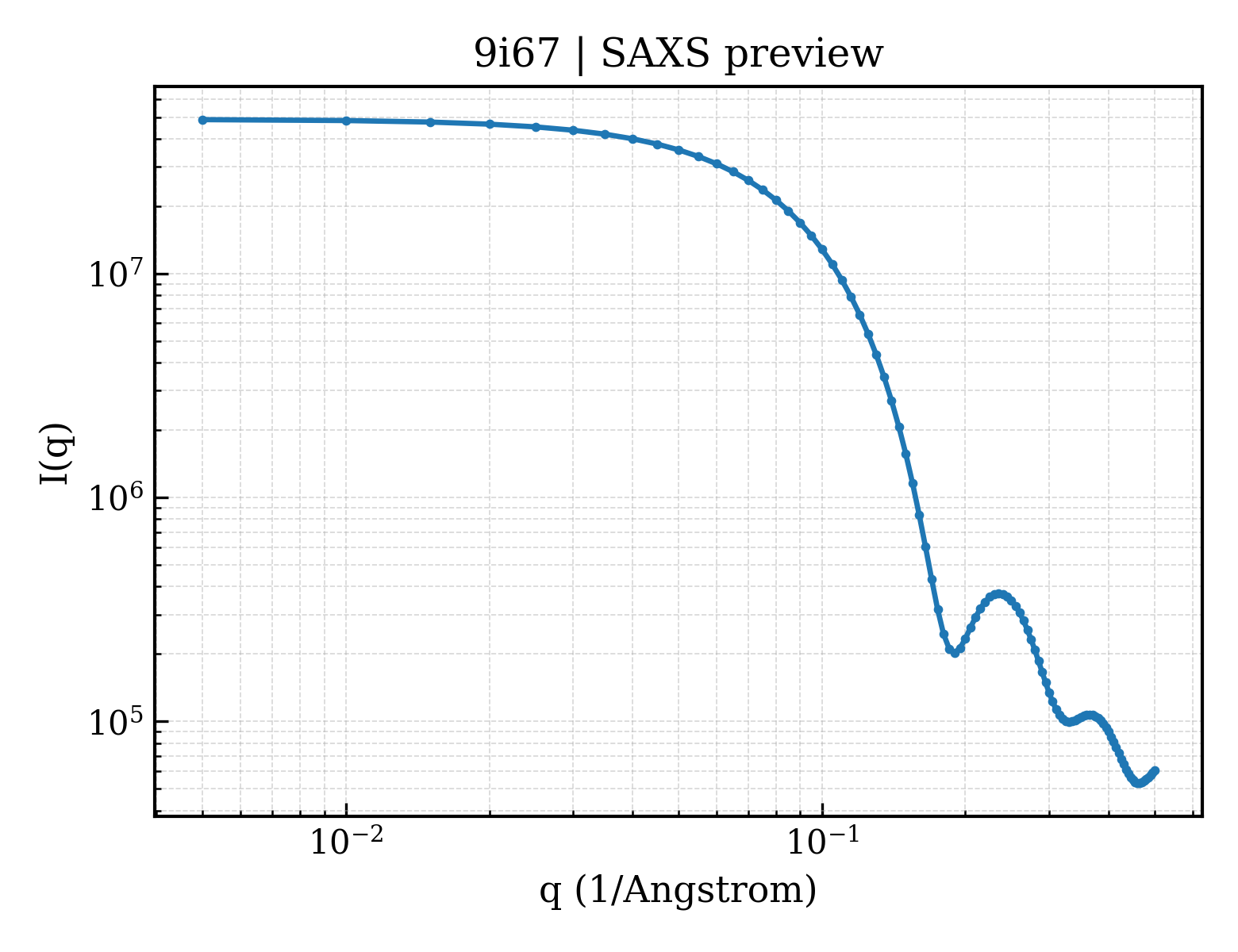

SAXS scattering curve SAXS Profile
