9ih9

KEAP1 complexed to linear peptide 6

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Kelch-like ECH-associated protein 1

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 2	Designed peptide × 1 GLYCEROL × 1 DI(HYDROXYETHYL)ETHER × 1 MAGNESIUM ION × 1 1,2-ETHANEDIOL × 1 CHLORIDE ION × 1 2-AMINO-ETHANETHIOL × 1 water × 2	Consistent with protein count
2	Protein heterocomplex	Heteromer	Protein 2	Designed peptide × 1 GLYCEROL × 1 DI(HYDROXYETHYL)ETHER × 1 MAGNESIUM ION × 1 1,2-ETHANEDIOL × 1 CHLORIDE ION × 1 2-AMINO-ETHANETHIOL × 1 water × 2	Consistent with protein count
3	Protein heterocomplex	Heteromer	Protein 2	Designed peptide × 1 GLYCEROL × 3 DI(HYDROXYETHYL)ETHER × 1 MAGNESIUM ION × 2 CHLORIDE ION × 1 2-AMINO-ETHANETHIOL × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	KEAP1_HUMAN
Isoform	—
PDB entities	1, 2, 3
Chains and sequence ranges	Author chain C； PDBConstruct 2–290； UniProt 321–609 Author chain B； PDBConstruct 2–290； UniProt 321–609 Author chain A； PDBConstruct 2–290； UniProt 321–609

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9ih9
Deposition date deposition_date	2025-02-20
Structure title title	KEAP1 complexed to linear peptide 6
Keywords keywords	Cyclic peptide, Protein-protein interaction, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9ih9__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9ih9__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

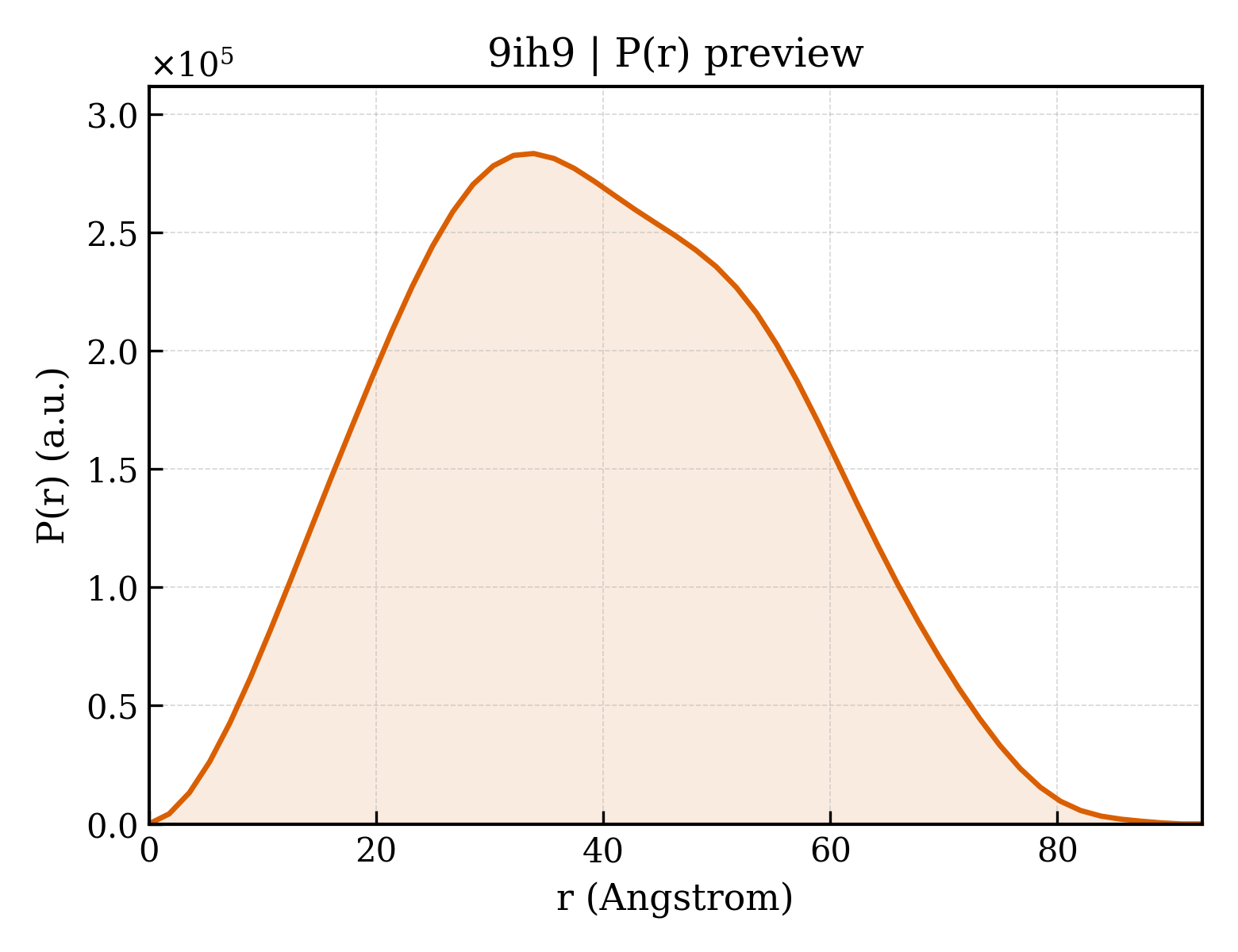

9ih9__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.71 Å
Rg (electron density)	17.50 Å
Total Rg	18.42 Å
Atom count	4392
Residues	284
Excluded volume	39262 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9ih9__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
2	1	`9ih9__assembly_2__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download
3	1	`9ih9__assembly_3__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (11)

Entity 1 Entity 1 polymer

Description description	Kelch-like ECH-associated protein 1
Molecular weight formula_weight	31657.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	13923

SAPKVGRLIYTAGGYFRQSLSYLEAYNPSDGTWLRLADLQVPRSGLAGCVVGGLLYAVGGRNNSPDGNTDSSALDCYNPMTNQWSPCAPMSVPRNRIGVGVIDGHIYAVGGSHGCIHHNSVERYEPERDEWHLVAPMLTRRIGVGVAVLNRLLYAVGGFDGTNRLNSAECYYPERNEWRMITAMNTIRSGAGVCVLHNCIYAAGGYDGQDQLNSVERYDVATATWTFVAPMKHRRSALGITVHQGRIYVLGGYDGHTFLDSVECYDPDTDTWSEVTRMTSGRSGVGVAVT

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Kelch-like ECH-associated protein 1
Molecular weight formula_weight	31641.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Kelch-like ECH-associated protein 1
Molecular weight formula_weight	31701.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Designed peptide
Molecular weight formula_weight	527.6 kDa
Source method src_method	syn
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	X,Y,Z

XANA

Entity 5 Entity 5 non-polymer

Description description	GLYCEROL
Molecular weight formula_weight	92.1 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 6 Entity 6 non-polymer

Description description	DI(HYDROXYETHYL)ETHER
Molecular weight formula_weight	106.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 7 Entity 7 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	4

Entity 8 Entity 8 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 9 Entity 9 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 10 Entity 10 non-polymer

Description description	2-AMINO-ETHANETHIOL
Molecular weight formula_weight	77.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 11 Entity 11 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	670

▶

Unit-cell length a length_a	78.758 Å
Unit-cell length b length_b	133.933 Å
Unit-cell length c length_c	82.320 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	101.36 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	monoclinic

Resolution resolution	1.700 Å
Low-resolution limit resolution_low	19.740 Å
R factor r_factor	0.1626
R_work r_work	0.1605
R_free r_free	0.2029
