9iqs

Cryo-EM structure of MT3-Muscarinic acetylcholine receptor 4

Method: ELECTRON MICROSCOPY D_max: 81.3 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Muscarinic toxin 3

Dendroaspis angusticeps

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–65	Not recorded	Muscarinic acetylcholine receptor M4,Soluble cytochrome b562 × 1 （P08173）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen NITROGEN	Resolution 3.60 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9IQS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
9IQR Cryo-EM structure of MT3-alpha2AAR Deposited 2024-07-13	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–65（65 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.40 Å
9IQV Cryo-EM structure of MT3-alpha1AAR Deposited 2024-07-13	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–65（65 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen NITROGEN	Resolution 3.30 Å

2 other PDB entries and 2 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	3SIM3_DENAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–65； UniProt 1–65

Muscarinic acetylcholine receptor M4,Soluble cytochrome b562

Homo sapiens

UniProt P08173

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 24–226 Chain B； UniProt 391–469	Not recorded	Muscarinic toxin 3 × 1 （P81031）	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.5 cryo-EM vitrification conditions：Cryogen NITROGEN	Resolution 3.60 Å

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9IQS	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
5DSG Structure of the M4 muscarinic acetylcholine receptor (M4-mT4L) bound to tiotropium Deposited 2015-09-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–226（205 aa） Chain A 390–478（89 aa）	Not recorded	0HK (1R,2R,4S,5S,7S)-7-{[hydroxy(dithiophen-2-yl)acetyl]oxy}-9,9-dimethyl-3-oxa-9-azoniatricyclo[3.3.1.0~2,4~]nonane × 1 OLA OLEIC ACID × 3 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 P6G HEXAETHYLENE GLYCOL × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 3	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；Reconstituted in 10:1 monoolein:cholesterol mix. Precipitant solution: 20 - 40% PEG300, 100 mM MES, pH 5.5 - 7.5, and 10 - 150 mM EDTA, pH 8.0	Resolution 2.60 Å R-free 0.240
5DSG Structure of the M4 muscarinic acetylcholine receptor (M4-mT4L) bound to tiotropium Deposited 2015-09-17	Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 22–226（205 aa） Chain B 390–478（89 aa）	Not recorded	0HK (1R,2R,4S,5S,7S)-7-{[hydroxy(dithiophen-2-yl)acetyl]oxy}-9,9-dimethyl-3-oxa-9-azoniatricyclo[3.3.1.0~2,4~]nonane × 1 OLA OLEIC ACID × 2 P6G HEXAETHYLENE GLYCOL × 1 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 2 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；Reconstituted in 10:1 monoolein:cholesterol mix. Precipitant solution: 20 - 40% PEG300, 100 mM MES, pH 5.5 - 7.5, and 10 - 150 mM EDTA, pH 8.0	Resolution 2.60 Å R-free 0.240
5DSG Structure of the M4 muscarinic acetylcholine receptor (M4-mT4L) bound to tiotropium Deposited 2015-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric	Chain A 22–226（205 aa） Chain A 390–478（89 aa） Chain B 22–226（205 aa） Chain B 390–478（89 aa）	Not recorded	0HK (1R,2R,4S,5S,7S)-7-{[hydroxy(dithiophen-2-yl)acetyl]oxy}-9,9-dimethyl-3-oxa-9-azoniatricyclo[3.3.1.0~2,4~]nonane × 2 OLA OLEIC ACID × 5 EDT {[-(BIS-CARBOXYMETHYL-AMINO)-ETHYL]-CARBOXYMETHYL-AMINO}-ACETIC ACID × 1 P6G HEXAETHYLENE GLYCOL × 2 OLC (2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate × 5 PG6 1-(2-METHOXY-ETHOXY)-2-{2-[2-(2-METHOXY-ETHOXY]-ETHOXY}-ETHANE × 1	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；293 K；Reconstituted in 10:1 monoolein:cholesterol mix. Precipitant solution: 20 - 40% PEG300, 100 mM MES, pH 5.5 - 7.5, and 10 - 150 mM EDTA, pH 8.0	Resolution 2.60 Å R-free 0.240
6D9H Cryo-EM structure of the human adenosine A1 receptor-Gi2-protein complex bound to its endogenous agonist Deposited 2018-04-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain R 2–23（22 aa）	Not recorded	ADN ADENOSINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.60 Å
6KP6 The structural study of mutation induced inactivation of Human muscarinic receptor M4 Deposited 2019-08-14	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 22–227（206 aa） Chain A 390–479（90 aa）	Mutation：I93T G150A I187A S219Y N449R T459E Mutation：I93T G150A I187A S219Y N449R T459E	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions LIPIDIC CUBIC PHASE；pH 7.8；293.15 K；300 mM diammonium hydrogen phosphate, 22-26% PEG 300, 0.1M HEPES sodium pH 7.6-8.2	Resolution 3.00 Å R-free 0.264
7LD3 Cryo-EM structure of the human adenosine A1 receptor-Gi2-protein complex bound to its endogenous agonist and an allosteric ligand Deposited 2021-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain R 2–23（22 aa）	Not recorded	ADN ADENOSINE × 1 XTD {2-amino-4-[3,5-bis(trifluoromethyl)phenyl]thiophen-3-yl}(4-chlorophenyl)methanone × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.20 Å
7LD4 Cryo-EM structure of the human adenosine A1 receptor-Gi2-protein complex bound to its endogenous agonist Deposited 2021-01-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain R 2–23（22 aa）	Not recorded	ADN ADENOSINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.30 Å
7TRK Human M4 muscarinic acetylcholine receptor complex with Gi1 and the agonist iperoxo Deposited 2022-01-29	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–241（241 aa） Fragment：UNP residues 1-241,388-479 Chain R 388–479（92 aa） Fragment：UNP residues 1-241,388-479	Not recorded	IXO 4-(4,5-dihydro-1,2-oxazol-3-yloxy)-N,N,N-trimethylbut-2-yn-1-aminium × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7TRP Human M4 muscarinic acetylcholine receptor complex with Gi1 and the agonist iperoxo and positive allosteric modulator LY2033298 Deposited 2022-01-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–241（241 aa） Fragment：UNP residues 1-241,388-479 Chain R 388–479（92 aa） Fragment：UNP residues 1-241,388-479	Not recorded	IUE 3-amino-5-chloro-N-cyclopropyl-6-methoxy-4-methylthieno[2,3-b]pyridine-2-carboxamide × 1 IXO 4-(4,5-dihydro-1,2-oxazol-3-yloxy)-N,N,N-trimethylbut-2-yn-1-aminium × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.40 Å
7TRQ Human M4 muscarinic acetylcholine receptor complex with Gi1 and the agonist iperoxo and positive allosteric modulator VU0467154 Deposited 2022-01-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–241（241 aa） Fragment：UNP residues 1-241,388-479 Chain R 388–479（92 aa） Fragment：UNP residues 1-241,388-479	Not recorded	IXO 4-(4,5-dihydro-1,2-oxazol-3-yloxy)-N,N,N-trimethylbut-2-yn-1-aminium × 1 IUI 5-amino-3,4-dimethyl-N-{[4-(trifluoromethanesulfonyl)phenyl]methyl}thieno[2,3-c]pyridazine-6-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.50 Å
7TRS Human M4 muscarinic acetylcholine receptor complex with Gi1 and the endogenous agonist acetylcholine Deposited 2022-01-30	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–241（241 aa） Fragment：UNP residues 1-241,388-479 Chain R 388–479（92 aa） Fragment：UNP residues 1-241,388-479	Not recorded	ACH ACETYLCHOLINE × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.80 Å
7V68 An Agonist and PAM-bound Class A GPCR with Gi protein complex structure Deposited 2021-08-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–479（479 aa）	Not recorded	IXO 4-(4,5-dihydro-1,2-oxazol-3-yloxy)-N,N,N-trimethylbut-2-yn-1-aminium × 1 2CU 3-amino-5-chloro-N-cyclopropyl-4-methyl-6-[2-(4-methylpiperazin-1-yl)-2-oxoethoxy]thieno[2,3-b]pyridine-2-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7V69 Cryo-EM structure of a class A GPCR-G protein complex Deposited 2021-08-20	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–479（479 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
7V6A Cry-EM structure of M4-c110-G protein complex Deposited 2021-08-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–479（479 aa）	Not recorded	5XI methyl 4-[4-(3-methyl-2-oxidanylidene-benzimidazol-1-yl)piperidin-1-yl]piperidine-1-carboxylate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.60 Å
8E9X CryoEM structure of miniGo-coupled hM4Di in complex with DCZ Deposited 2022-08-27	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 1–243（243 aa） Chain A 375–479（105 aa）	Mutation：Y113C, A203G Mutation：Y113C, A203G	WEC 11-(4-methylpiperazin-1-yl)-5H-dibenzo[b,e][1,4]diazepine × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 2.70 Å
8FX5 Human M4 muscarinic acetylcholine receptor complex with Gi1 and xanomeline Deposited 2023-01-23	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 1–241（241 aa） Chain R 388–479（92 aa）	Not recorded	XNO xanomeline × 2	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.45 Å
8IY9 Structure of Niacin-GPR109A-G protein complex Deposited 2023-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 2–23（22 aa）	Not recorded	NIO NICOTINIC ACID × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.37 Å
8IYH Structure of MK6892-GPR109A-G-protein complex Deposited 2023-04-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 2–23（22 aa）	Not recorded	FI7 2-[[2,2-dimethyl-3-[3-(5-oxidanylpyridin-2-yl)-1,2,4-oxadiazol-5-yl]propanoyl]amino]cyclohexene-1-carboxylic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
8IYW Structure of GSK256073-GPR109A-G-protein complex Deposited 2023-04-06	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 2–23（22 aa）	Not recorded	OKL 8-chloranyl-3-pentyl-7H-purine-2,6-dione × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.45 Å
8JER Structure of Acipimox-GPR109A-G protein complex Deposited 2023-05-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 2–23（22 aa）	Not recorded	OJX 5-methyl-4-oxidanyl-pyrazin-4-ium-2-carboxylic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.45 Å
8JHN Structure of MMF-GPR109A-G protein complex Deposited 2023-05-24	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain D 2–23（22 aa）	Not recorded	UR9 Monomethyl fumarate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.75 Å
9KUG Structure of EP67 bound to human C5aR1 in complex with Go Deposited 2024-12-03	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.07 Å
9KUT Structure of JR14a bound to human C3aR in complex with Go Deposited 2024-12-04	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 2–23（22 aa）	Not recorded	A1D9A (2~{S})-5-[bis(azanyl)methylideneamino]-2-[[5-[bis(4-chlorophenyl)methyl]-3-methyl-thiophen-2-yl]carbonylamino]pentanoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.29 Å
9KV6 Structure of mouse TLQP21 bound to mouse C3aR in complex with Go Deposited 2024-12-04	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.88 Å
9KV8 Structure of human TLQP21 bound to mouse C3aR in complex with Go Deposited 2024-12-04	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.17 Å
9KVP Structure of SB290157 bound to human C3aR in complex with Go (Full map) Deposited 2024-12-05	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain C 2–23（22 aa）	Not recorded	A1L6Y (2S)-5-[bis(azanyl)methylideneamino]-2-[2-(2,2-diphenylethoxy)ethanoylamino]pentanoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.79 Å
9KVS Structure of SB290157 bound to human C3aR in complex with Go (Receptor Ligand Focused map) Deposited 2024-12-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain C 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY mmCIF provides none of the parsed conditions	Resolution 2.81 Å
9KWG Structure of mouse C5a bound mouse C5aR1 in complex with Go Deposited 2024-12-05	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.15 Å
9KWX Structure of mouse C5a-desArg bound mouse C5aR1 in complex with Go Deposited 2024-12-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.13 Å
9KX6 Structure of human C5a-desArg bound mouse C5aR1 in complex with Go Deposited 2024-12-06	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.11 Å
9KXS Structure of EP67 bound mouse C5aR1 in complex with Go Deposited 2024-12-07	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.31 Å
9KZ2 Structure of EP67 bound human C3aR in complex with Go Deposited 2024-12-09	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.43 Å
9KZ8 Structure of EP67 bound mouse C3aR in complex with Go Deposited 2024-12-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.30 Å
9KZK Structure of mouse C3a bound mouse C3aR in complex with Go Deposited 2024-12-10	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain E 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.54 Å
9L0H Structure of JR14a bound mouse C3aR in complex with Go Deposited 2024-12-12	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric	Chain E 2–23（22 aa）	Not recorded	A1D9A (2~{S})-5-[bis(azanyl)methylideneamino]-2-[[5-[bis(4-chlorophenyl)methyl]-3-methyl-thiophen-2-yl]carbonylamino]pentanoic acid × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.57 Å
9N09 Human M4 muscarinic acetylcholine receptor Gi1 complex (mini-Gsi chimera) bound to the bitopic agonist C110 Deposited 2025-01-23	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain R 2–479（478 aa）	Not recorded	5XI methyl 4-[4-(3-methyl-2-oxidanylidene-benzimidazol-1-yl)piperidin-1-yl]piperidine-1-carboxylate × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.57 Å
9UMJ Structure of EP54 bound mouse C3aR in complex with Go Deposited 2025-04-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.38 Å
9UMR Structure of C5a-pep bound human C5aR1 in complex with Go Deposited 2025-04-22	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain D 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.15 Å
9UMX Structure of EP54 bound human C5aR1 in complex with Go Deposited 2025-04-23	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–23（22 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.20 Å

37 other PDB entries and 39 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ACM4_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–203； UniProt 24–226 Author chain B； PDBConstruct 304–382； UniProt 391–469

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

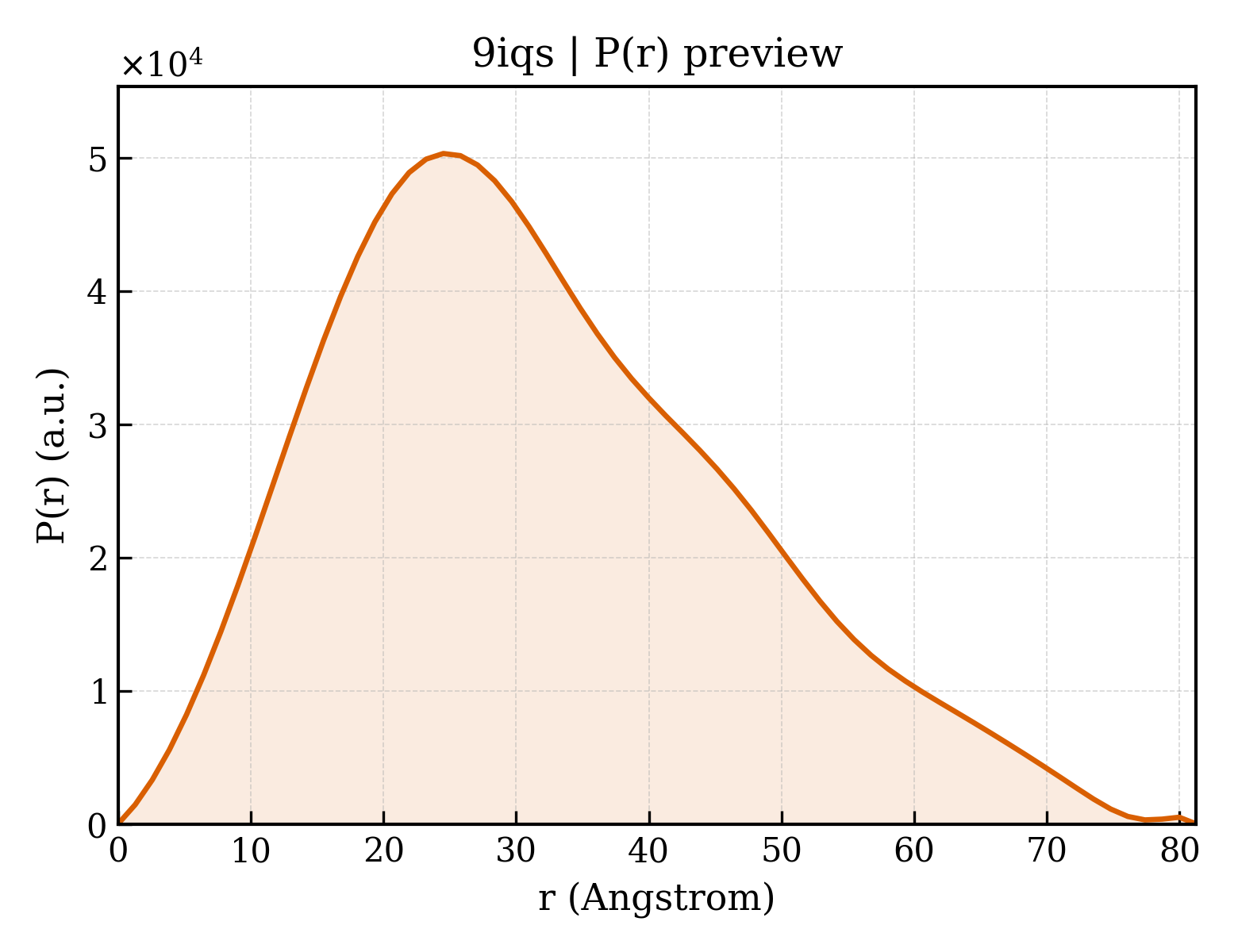

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9iqs
Deposition date deposition_date	2024-07-13
Structure title title	Cryo-EM structure of MT3-Muscarinic acetylcholine receptor 4
Keywords keywords	complex, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	24.60 Å
Radius of gyration Rg (electron density) rg_electron	23.57 Å
Forward intensity I(0) i0	22724700.00
Molecular weight molecular_weight	38981.0 kDa
Excluded volume excluded_volume	49970 Å³
Envelope volume envelope_volume	60644 Å³
Hydration-shell volume shell_volume	22660 Å³
Envelope diameter envelope_diameter	83.5 Å
Shell Rg shell_rg	29.37 Å
Envelope Rg envelope_rg	23.93 Å
Shape Rg shape_rg	23.47 Å
Total Rg total_rg	24.68 Å
Total atoms total_atoms	2738
Residues n_residues	345
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	81.3 Å
Rg (real space) rg_real	24.78 Å
Rg uncertainty (real space) rg_real_error	0.63 Å
I(0) (real space) i0_real	2.2720e+07
I(0) uncertainty (real space) i0_real_error	2.9890e+05
Rg (reciprocal space) rg_reciprocal	24.74 Å
I(0) (reciprocal space) i0_reciprocal	22720000.0000
Solution quality estimate total_estimate	0.8679
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	2
Primary peak position r_peak_primary	24.5 Å
Skewness Skewness skewness	0.505
Kurtosis Kurtosis kurtosis	-0.274
Angular range angular_range	— – 0.3250 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	3005000.0000
Real-space data points n_real_points	64
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.832; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.866; Smooth: 0.915

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Muscarinic toxin 3
Molecular weight formula_weight	7396.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2738

LTCVTKNTIFGITTENCPAGQNLCFKRWHYVIPRYTEITRGCAATCPIPENYDSIHCCKTDKCNE

来源 Source

来源生物 organism	Dendroaspis angusticeps
通用名 common_name	eastern green mamba
NCBI Class编号 ncbi_taxonomy_id	8618
宿主生物 host_organism	Homo sapiens

Entity 2 Entity 2 polymer

Description description	Muscarinic acetylcholine receptor M4,Soluble cytochrome b562
Molecular weight formula_weight	48768.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

HNRYETVEMVFIATVTGSLSLVTVVGNILVMLSIKVNRQLQTVNNYFLFSLACADLIIGAFSMNLYTVYIIKGYWPLGAVVCDLWLALDYVVSNASVMNLLIISFDRYFCVTKPLTYPARRTTKMAGLMIAAAWVLSFVLWAPAILFWQFVVGKRTVPDNQCFIQFLSNPAVTFGTAIAAFYLPVVIMTVLYIHISLASRSRVADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKASGSGSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLRMAARERKVTRTIFAILLAFILTWTPYNVMVLVNTFCQSCIPDTVWSIGYWLCYVNSTINPACYALCNATFKKTFRHLLLKIAALKEKIAALKEKIAALKEAEEKRASRLEEELRRRLTEGSHHHHHHHH

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Homo sapiens

▶

8. Citations (1)

▶

Resolution resolution	3.60 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	5747771

fit	/app/data/saxs_computation/iq/9iqs/9iqs.fit
pddf	/app/data/pr_computation/iq/9iqs/9iqs.pr.out
profile	/app/data/saxs_computation/iq/9iqs/9iqs.dat
