SAXSdb — 9j4t

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

HLA class I histocompatibility antigen, B alpha chain

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	Beta-2-microglobulin × 1 （P61769） Nucleoprotein × 1 （P0DTC9） SPR epitope specific TCR CLB1 ALPHA × 1 SPR epitope specific TCR CLB1 BETA × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	HLAB_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–276； UniProt 25–299

Beta-2-microglobulin

Homo sapiens

UniProt P61769

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	HLA class I histocompatibility antigen, B alpha chain × 1 （P01889） Nucleoprotein × 1 （P0DTC9） SPR epitope specific TCR CLB1 ALPHA × 1 SPR epitope specific TCR CLB1 BETA × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	B2MG_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 2–100； UniProt 21–119

Nucleoprotein

OrganismNot specified

UniProt P0DTC9

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 5	HLA class I histocompatibility antigen, B alpha chain × 1 （P01889） Beta-2-microglobulin × 1 （P61769） SPR epitope specific TCR CLB1 ALPHA × 1 SPR epitope specific TCR CLB1 BETA × 1 water × 5	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NCAP_SARS2
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain C； PDBConstruct 1–9； UniProt 105–113

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9j4t
Deposition date deposition_date	2024-08-10
Structure title title	Structural basis for recognition of SARS-CoV-2 conserved nucleocapside epitopes by dominant T cell receptors
Keywords keywords	TCR, T cell receptor, SARS-CoV-2, Nucleocapside, HLA-B7, VIRAL PROTEIN/IMMUNE SYSTEM, VIRAL PROTEIN-IMMUNE SYSTEM complex; VIRAL PROTEIN/IMMUNE SYSTEM
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9j4t__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9j4t__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

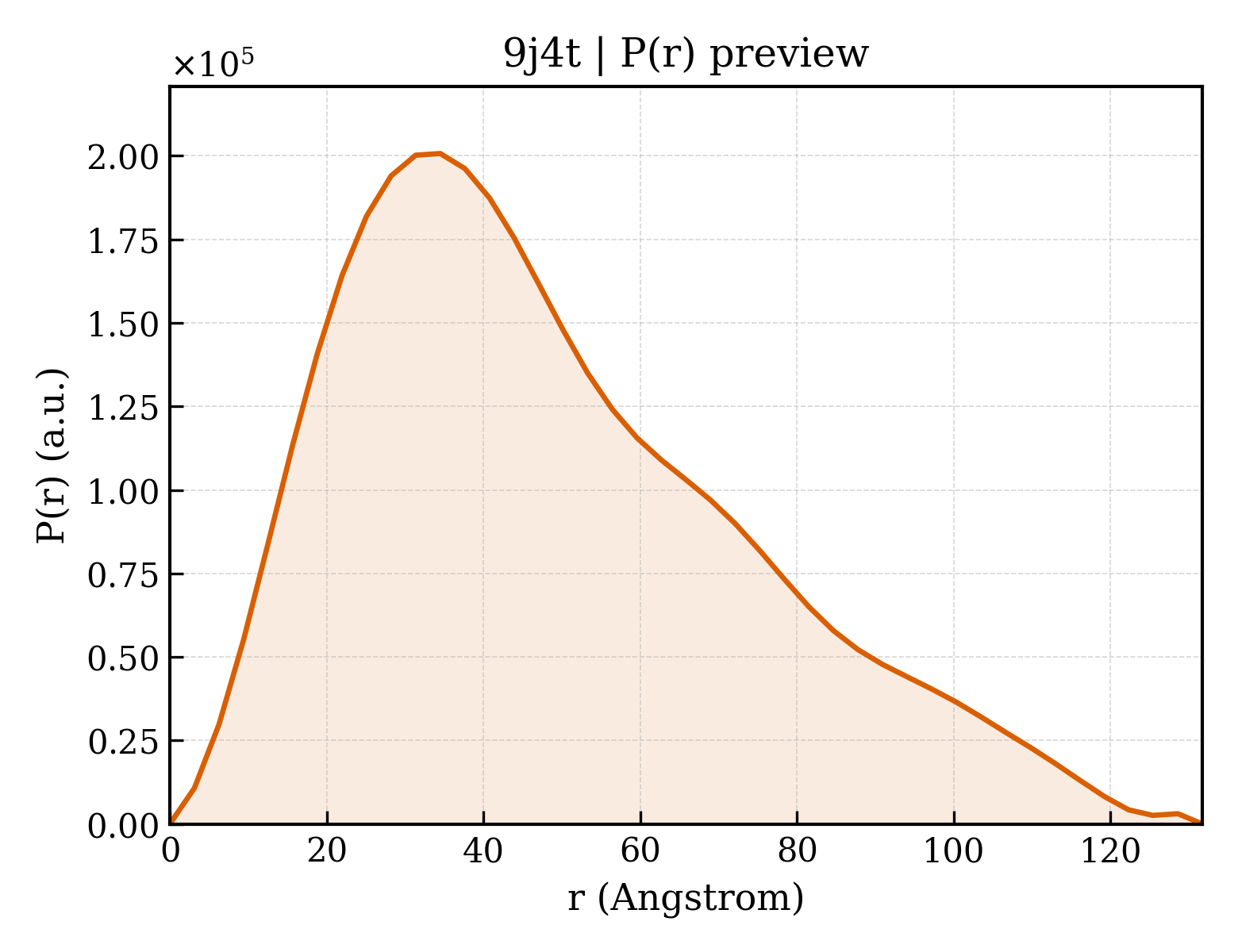

9j4t__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	37.89 Å
Rg (electron density)	38.27 Å
Total Rg	38.33 Å
Atom count	6586
Residues	817
Excluded volume	115240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9j4t__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	HLA class I histocompatibility antigen, B alpha chain
Molecular weight formula_weight	32093.2 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	7308

MGSHSMRYFYTSVSRPGRGEPRFISVGYVDDTQFVRFDSDAASPREEPRAPWIEQEGPEYWDRNTQIYKAQAQTDRESLRNLRGYYNQSEAGSHTLQSMYGCDVGPDGRLLRGHDQYAYDGKDYIALNEDLRSWTAADTAAQITQRKWEAAREAEQRRAYLEGECVEWLRRYLENGKDKLERADPPKTHVTHHPISDHEATLRCWALGFYPAEITLTWQRDGEDQTQDTELVETRPAGDRTFQKWAAVVVPSGEEQRYTCHVQHEGLPKPLTLRWE

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Beta-2-microglobulin
Molecular weight formula_weight	11879.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MIQRTPKIQVYSRHPAENGKSNFLNCYVSGFHPSDIEVDLLKNGERIEKVEHSDLSFSKDWSFYLLYYTEFTPTEKDEYACRVNHVTLSQPKIVKWDRDM

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 polymer

Description description	Nucleoprotein
Molecular weight formula_weight	1295.5 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C

SPRWYFYYL

Entity 4 Entity 4 polymer

Description description	SPR epitope specific TCR CLB1 ALPHA
Molecular weight formula_weight	22687.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D

MSQQGEEDPQALSIQEGENATMNCSYKTSINNLQWYRQNSGRGLVHLILIRSNEREKHSGRLRVTLDTSKKSSSLLITASRAADTASYFCATDAGPEKLVFGKGTKLTVNPNIQNPDPAVYQLRDSKSSDKSVCLFTDFDSQTNVSQSKDSDVYITDKCVLDMRSMDFKSNSAVAWSNKSDFACANAFNNSIIPEDTFFPSPESS

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 5 Entity 5 polymer

Description description	SPR epitope specific TCR CLB1 BETA
Molecular weight formula_weight	27666.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	E

MNAGVTQTPKFRILKIGQSMTLQCTQDMNHNYMYWYRQDPGMGLKLIYYSVGAGITDKGEVPNGYNVSRSTTEDFPLRLELAAPSQTSVYFCASRQLAGFYEQYFGPGTRLTVTEDLKNVFPPEVAVFEPSEAEISHTQKATLVCLATGFYPDHVELSWWVNGKEVHSGVCTDPQPLKEQPALNDSRYALSSRLRVSATFWQNPRNHFRCQVQFYGLSENDEWTQDRAKPVTQIVSAEAWGRAD

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 6 Entity 6 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	722

▶

Unit-cell length a length_a	58.105 Å
Unit-cell length b length_b	102.725 Å
Unit-cell length c length_c	160.147 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	2.040 Å
Low-resolution limit resolution_low	48.900 Å
R factor r_factor	0.1897
R_work r_work	0.1875
R_free r_free	0.2316
