SAXSdb — 9j8g

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Z-DNA-binding protein 1

Mus musculus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Other combination	Homooligomer	Protein 2 DNA 2 RNA 2	;DNA (5'-D(PCPAPCPGPCPA)-3') ; × 2 ;RNA (5'-R(PUPGPCPGPUPG)-3') ; × 2 water × 6	Consistent with all polymers

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ZBP1_MOUSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–59； UniProt 12–70

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9j8g
Deposition date deposition_date	2024-08-21
Last revision last_revision	2025-06-25
Structure title title	mouse zbp1 hybrid complex
Keywords keywords	zbp1, DNA BINDING PROTEIN/DNA/RNA, DNA BINDING PROTEIN-DNA-RNA complex; DNA BINDING PROTEIN/DNA/RNA
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9j8g__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

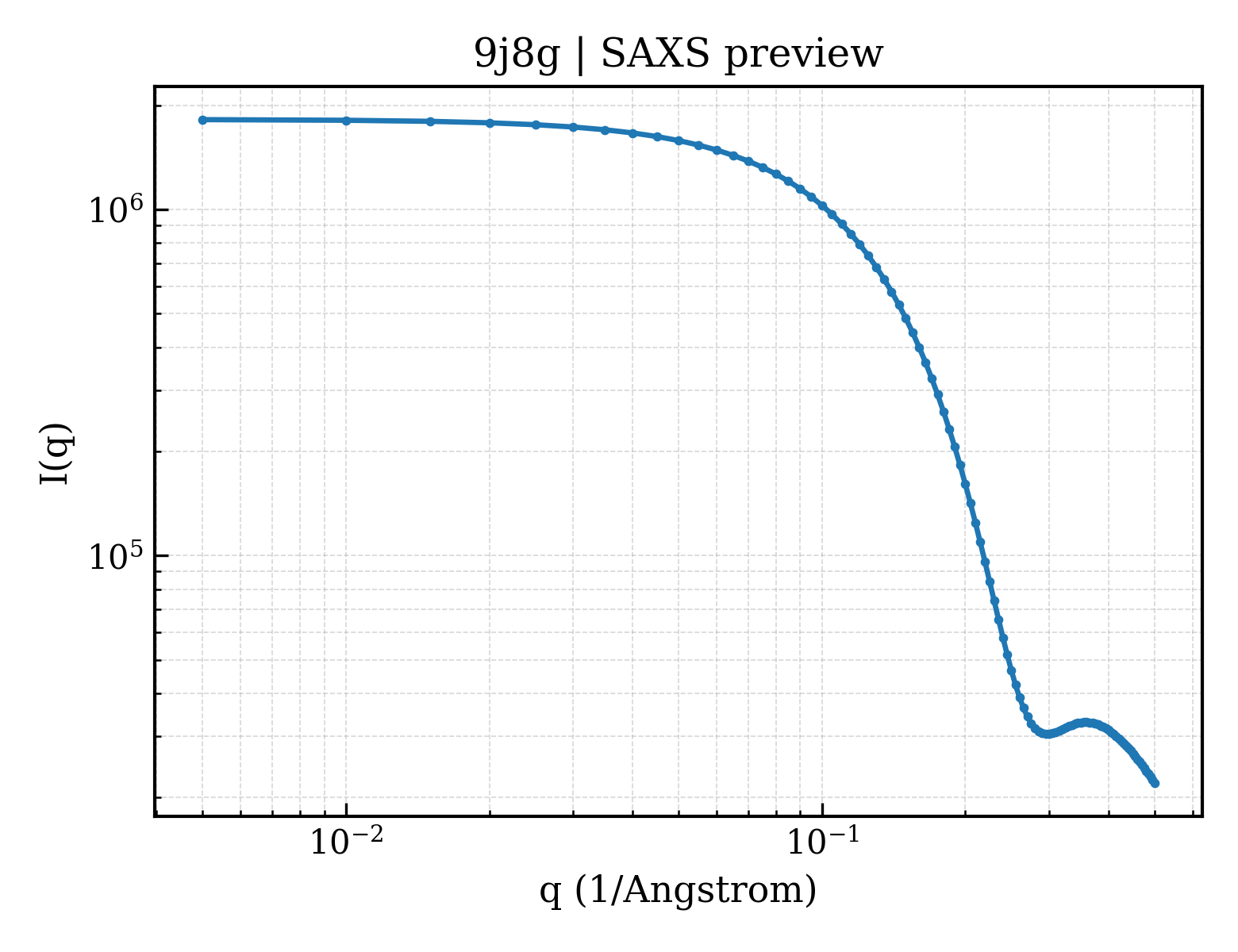

9j8g__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9j8g__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.17 Å
Rg (electron density)	18.33 Å
Total Rg	18.89 Å
Atom count	1140
Residues	128
Excluded volume	19741 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9j8g__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Z-DNA-binding protein 1
Molecular weight formula_weight	6556.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	735

DNLEQKILQVLSDDGGPVKIGQLVKKCQVPKKTLNQVLYRLKKEDRVSSPEPATWSIGG

Source Source

Source organism organism	Mus musculus
Common name common_name	house mouse
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	;DNA (5'-D(PCPAPCPGPCPA)-3') ;
Molecular weight formula_weight	1778.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polydeoxyribonucleotide
Chain IDs strand_id	C

CACGCA

Entity 3 Entity 3 polymer

Description description	;RNA (5'-R(PUPGPCPGPUPG)-3') ;
Molecular weight formula_weight	1908.2 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polyribonucleotide
Chain IDs strand_id	B

UGCGUG

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	36

▶

Unit-cell length a length_a	63.381 Å
Unit-cell length b length_b	63.381 Å
Unit-cell length c length_c	71.150 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	12

Space group space_group	P 65 2 2
Space-group number int_tables_number	179
Crystal system crystal_system	—

Resolution resolution	1.800 Å
Low-resolution limit resolution_low	43.460 Å
R factor r_factor	0.2025
R_work r_work	0.2008
R_free r_free	0.2344
