Crystal structure of GABARAPL1 in complex with ATG16L1

Method: X-RAY DIFFRACTION D_max: 71.8 Å Quality: GOOD

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Gamma-aminobutyric acid receptor-associated protein-like 1

Homo sapiens

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain A； UniProt 1–117	Not recorded	Autophagy-related protein 16-1 × 1 （Q676U5） MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；0.1 M Sodium cacodylate (pH 6.5), 40% v/v MPD, 5% w/v PEG 8000	Resolution 1.76 Å R-free 0.215
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain B； UniProt 1–117	Not recorded	Autophagy-related protein 16-1 × 1 （Q676U5）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；0.1 M Sodium cacodylate (pH 6.5), 40% v/v MPD, 5% w/v PEG 8000	Resolution 1.76 Å R-free 0.215

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9JF2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
2L8J GABARAPL-1 NBR1-LIR complex structure Deposited 2011-01-17	Different construct Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–115（114 aa）	Not recorded	No recorded non-water small molecule	SOLUTION NMR NMR measurement conditions pH 7；298 K；Ionic strength (raw mmCIF value) 0.1；Pressure ambient NMR sample composition 0.6 mM [U-98% 15N] GABARAPL-1, 0.9 mM NBR1-LIR, 50 mM sodium phosphate, 100 mM sodium chloride, 4.6 mM sodium azide, 1 mM protease inhibitor cocktail, 0.3 mM DSS, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.6 mM [U-98% 13C; U-98% 15N] GABARAPL-1, 0.9 mM NBR1-LIR, 50 mM sodium phosphate, 100 mM sodium chloride, 4.6 mM sodium azide, 1 mM protease inhibitor cocktail, 0.3 mM DSS, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.9 mM GABARAPL-1, 0.6 mM [U-98% 15N] NBR1-LIR, 50 mM sodium phosphate, 100 mM sodium chloride, 4.6 mM sodium azide, 1 mM protease inhibitor cocktail, 0.3 mM DSS, 95% H2O/5% D2O \| 95% H2O/5% D2O NMR sample composition 0.9 mM GABARAPL-1, 0.6 mM [U-98% 13C; U-98% 15N] NBR1-LIR, 50 mM sodium phosphate, 100 mM sodium chloride, 4.6 mM sodium azide, 1 mM protease inhibitor cocktail, 0.3 mM DSS, 95% H2O/5% D2O \| 95% H2O/5% D2O	Resolution not provided
2R2Q Crystal structure of human Gamma-Aminobutyric Acid Receptor-Associated Protein-like 1 (GABARAP1), Isoform CRA_a Deposited 2007-08-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 3–111（109 aa）	Not recorded	UNX UNKNOWN LIGAND × 3	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；25% PEG 3350, 0.2M Sodium chloride, 0.1M Hepes, 5% MPD, pH 7.5, VAPOR DIFFUSION, temperature 291K	Resolution 1.65 Å R-free 0.234
2R2Q Crystal structure of human Gamma-Aminobutyric Acid Receptor-Associated Protein-like 1 (GABARAP1), Isoform CRA_a Deposited 2007-08-27	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 3–111（109 aa）	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；291 K；25% PEG 3350, 0.2M Sodium chloride, 0.1M Hepes, 5% MPD, pH 7.5, VAPOR DIFFUSION, temperature 291K	Resolution 1.65 Å R-free 0.234
5DPT Crystal structure of PLEKHM1 LIR-fused human GABARAPL1_2-117 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain A 2–117（116 aa） Fragment：UNP Q9Y4G2 627-638, UNP Q9H0R8 2-117	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；278 K；20% w/v Polyethylene glycol 3,350, 0.2 M NaCl, 8% MPD pH 7.2	Resolution 2.90 Å R-free 0.260
5DPT Crystal structure of PLEKHM1 LIR-fused human GABARAPL1_2-117 Deposited 2015-09-14	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric	Chain B 2–117（116 aa） Fragment：UNP Q9Y4G2 627-638, UNP Q9H0R8 2-117	Not recorded	MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.2；278 K；20% w/v Polyethylene glycol 3,350, 0.2 M NaCl, 8% MPD pH 7.2	Resolution 2.90 Å R-free 0.260
5LXH GABARAP-L1 ATG4B LIR Complex Deposited 2016-09-21	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–117（117 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.17 M AMSO4, 40 % PEG 4000, 15 % glycerol	Resolution 1.58 Å R-free 0.237
5LXH GABARAP-L1 ATG4B LIR Complex Deposited 2016-09-21	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–117（117 aa）	Not recorded	SO4 SULFATE ION × 3 GOL GLYCEROL × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.17 M AMSO4, 40 % PEG 4000, 15 % glycerol	Resolution 1.58 Å R-free 0.237
5LXH GABARAP-L1 ATG4B LIR Complex Deposited 2016-09-21	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–117（117 aa）	Not recorded	SO4 SULFATE ION × 3 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.17 M AMSO4, 40 % PEG 4000, 15 % glycerol	Resolution 1.58 Å R-free 0.237
5LXI GABARAP-L1 ATG4B LIR Complex Deposited 2016-09-21	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–117（117 aa） Chain D 1–117（117 aa）	Not recorded	MG MAGNESIUM ION × 3 PGE TRIETHYLENE GLYCOL × 2 EDO 1,2-ETHANEDIOL × 1 PER PEROXIDE ION × 2 PEG DI(HYDROXYETHYL)ETHER × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M MgCl2, 24.6 % PEG 400, 29.5 % PEG 8000, 0.1M TRIS 8.5	Resolution 1.44 Å R-free 0.230
6HOI Structure of Beclin1 LIR motif bound to GABARAPL1 Deposited 2018-09-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–117（117 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 1 ACT ACETATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M sodium acetate, 0.1M Hepes pH 7.5, 12% PEG 4000	Resolution 1.14 Å R-free 0.166
6HOI Structure of Beclin1 LIR motif bound to GABARAPL1 Deposited 2018-09-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–117（117 aa）	Not recorded	ACT ACETATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1M sodium acetate, 0.1M Hepes pH 7.5, 12% PEG 4000	Resolution 1.14 Å R-free 0.166
6HOL Structure of ATG14 LIR motif bound to GABARAPL1 Deposited 2018-09-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–117（117 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；289 K；1M LiCl, 0.1M HEPES pH7, 20% PEG 6000	Resolution 1.40 Å R-free 0.203
6HOL Structure of ATG14 LIR motif bound to GABARAPL1 Deposited 2018-09-17	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–117（117 aa）	Not recorded	SO4 SULFATE ION × 2 GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；289 K；1M LiCl, 0.1M HEPES pH7, 20% PEG 6000	Resolution 1.40 Å R-free 0.203
6YOO Structure of SAMM50 LIR bound to GABARAPL1 Deposited 2020-04-14	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–117（117 aa）	Not recorded	EDO 1,2-ETHANEDIOL × 2 ZN ZINC ION × 2 CL CHLORIDE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；24% w/v PEG 6000, 10 mM ZnCl2 and 0.1 M Tris pH 7.5	Resolution 1.06 Å R-free 0.147
7AA7 Structure of SCOC pS12/pS18 LIR motif bound to GABARAPL1 Deposited 2020-09-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–117（117 aa）	Not recorded	SAT sulfoacetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1M MES pH 6.5, 3.5M AMSO4, 1% MPD	Resolution 1.45 Å R-free 0.189
7AA7 Structure of SCOC pS12/pS18 LIR motif bound to GABARAPL1 Deposited 2020-09-03	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–117（117 aa）	Not recorded	SAT sulfoacetic acid × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；293 K；0.1M MES pH 6.5, 3.5M AMSO4, 1% MPD	Resolution 1.45 Å R-free 0.189
7AA9 Structure of SCOC pT13/pT15 LIR motif bound to GABARAPL1 Deposited 2020-09-03	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–117（117 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 1500 0.1M TRIS 8	Resolution 1.72 Å R-free 0.261
7AA9 Structure of SCOC pT13/pT15 LIR motif bound to GABARAPL1 Deposited 2020-09-03	Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–117（117 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 1500 0.1M TRIS 8	Resolution 1.72 Å R-free 0.261
7AA9 Structure of SCOC pT13/pT15 LIR motif bound to GABARAPL1 Deposited 2020-09-03	Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–117（117 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 1500 0.1M TRIS 8	Resolution 1.72 Å R-free 0.261
7AA9 Structure of SCOC pT13/pT15 LIR motif bound to GABARAPL1 Deposited 2020-09-03	Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1–117（117 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 1500 0.1M TRIS 8	Resolution 1.72 Å R-free 0.261
7AA9 Structure of SCOC pT13/pT15 LIR motif bound to GABARAPL1 Deposited 2020-09-03	Different experimental conditions Different structure-quality metrics	Assembly 5 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain I 1–117（117 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 1500 0.1M TRIS 8	Resolution 1.72 Å R-free 0.261
7AA9 Structure of SCOC pT13/pT15 LIR motif bound to GABARAPL1 Deposited 2020-09-03	Different experimental conditions Different structure-quality metrics	Assembly 6 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain K 1–117（117 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 1500 0.1M TRIS 8	Resolution 1.72 Å R-free 0.261
7JHX Crystal structure of hEPG5 LIR/GABARAPL1 complex Deposited 2020-07-21	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–117（117 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；0.2 M ammonium sulfate, 0.1 MES buffer pH 5.5, 29% (w/v) PEG 4000	Resolution 1.91 Å R-free 0.245
7JHX Crystal structure of hEPG5 LIR/GABARAPL1 complex Deposited 2020-07-21	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–117（117 aa）	Not recorded	SO4 SULFATE ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；298 K；0.2 M ammonium sulfate, 0.1 MES buffer pH 5.5, 29% (w/v) PEG 4000	Resolution 1.91 Å R-free 0.245
8X8A Crystal structure of STBD1 LIR motif in complex with GABARAPL1 Deposited 2023-11-27	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–117（117 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；25% w/v Pentaerythritol Propoxylate (5/4 PO/OH), 0.1 M Sodium acetate pH 4.6, 0.05 M Magnesium chloride	Resolution 1.53 Å R-free 0.187
9HGC Crystal structure of human GABARAPL1 in complex with cyclic peptide GAB_D8 Deposited 2024-11-19	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 1–117（117 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.17 M ammonium sulfate, 25.5% PEG 4000, 15% glycerol	Resolution 2.52 Å R-free 0.259
9HGC Crystal structure of human GABARAPL1 in complex with cyclic peptide GAB_D8 Deposited 2024-11-19	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain C 1–117（117 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.17 M ammonium sulfate, 25.5% PEG 4000, 15% glycerol	Resolution 2.52 Å R-free 0.259
9HGC Crystal structure of human GABARAPL1 in complex with cyclic peptide GAB_D8 Deposited 2024-11-19	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain E 1–117（117 aa）	Not recorded	GOL GLYCEROL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.17 M ammonium sulfate, 25.5% PEG 4000, 15% glycerol	Resolution 2.52 Å R-free 0.259
9HGC Crystal structure of human GABARAPL1 in complex with cyclic peptide GAB_D8 Deposited 2024-11-19	Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain G 1–117（117 aa）	Not recorded	SO4 SULFATE ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；0.17 M ammonium sulfate, 25.5% PEG 4000, 15% glycerol	Resolution 2.52 Å R-free 0.259

13 other PDB entries and 29 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	GBRL1_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 5–121； UniProt 1–117 Author chain B； PDBConstruct 5–121； UniProt 1–117

Autophagy-related protein 16-1

OrganismNot specified

UniProt Q676U5

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain D； UniProt 235–247	Not recorded	Gamma-aminobutyric acid receptor-associated protein-like 1 × 1 （Q9H0R8） MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；0.1 M Sodium cacodylate (pH 6.5), 40% v/v MPD, 5% w/v PEG 8000	Resolution 1.76 Å R-free 0.215
2	Protein heterocomplex Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count	Chain C； UniProt 235–247	Not recorded	Gamma-aminobutyric acid receptor-associated protein-like 1 × 1 （Q9H0R8）	X-RAY DIFFRACTION X-ray crystallization conditions：VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；0.1 M Sodium cacodylate (pH 6.5), 40% v/v MPD, 5% w/v PEG 8000	Resolution 1.76 Å R-free 0.215

Other States of the Same Protein in the Database

Other PDB	Difference from Current Entry 9JF2	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4GDK Crystal Structure of Human Atg12~Atg5 Conjugate in Complex with an N-terminal Fragment of Atg16L1 Deposited 2012-07-31	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain C 11–43（33 aa） Chain F 11–43（33 aa）	Not recorded	NA SODIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PROTEIN: 10 MG/ML in 0.01M HEPES pH 7.0, 0.3 M NaCl, 0.001 M DTT; RESERVOIR: 0.1M Hepes pH7.5, 0.2 M lithium citrate, 20% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.70 Å R-free 0.236
4GDL Crystal Structure of Human Atg12~Atg5 Conjugate in Complex with an N-terminal Fragment of Atg16L1 Deposited 2012-07-31	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric	Chain C 11–43（33 aa）	Not recorded	NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PROTEIN: 10 MG/ML in 0.01M HEPES pH 7.0, 0.3 M NaCl, 0.001 M DTT; RESERVOIR: 0.1M BICINE pH9.0, 0.2 M sodium phosphate dibasic, 18% PEG 3350, vapor diffusion, hanging drop, temperature 293K, VAPOR DIFFUSION, HANGING DROP	Resolution 2.88 Å R-free 0.254
4NAW Crystal Structure of Human ATG12~ATG5-ATG16N in complex with a fragment of ATG3 Deposited 2013-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 11–43（33 aa） Fragment：UNP residues 11-43	Not recorded	SO4 SULFATE ION × 2 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PROTEIN - 10 MG/ML in 0.01M HEPES pH 7.0, 0.15 M NaCl, 0.001 M DTT, RESERVOIR - 0.1M MES pH6.0-6.75, 0.2 M ammonium sulfate, 10-16% PEG 5000 MME, vapor diffusion, sitting drop, temperature 293K	Resolution 2.19 Å R-free 0.215
4NAW Crystal Structure of Human ATG12~ATG5-ATG16N in complex with a fragment of ATG3 Deposited 2013-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain G 11–43（33 aa） Fragment：UNP residues 11-43	Not recorded	SO4 SULFATE ION × 2 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PROTEIN - 10 MG/ML in 0.01M HEPES pH 7.0, 0.15 M NaCl, 0.001 M DTT, RESERVOIR - 0.1M MES pH6.0-6.75, 0.2 M ammonium sulfate, 10-16% PEG 5000 MME, vapor diffusion, sitting drop, temperature 293K	Resolution 2.19 Å R-free 0.215
4NAW Crystal Structure of Human ATG12~ATG5-ATG16N in complex with a fragment of ATG3 Deposited 2013-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain K 11–43（33 aa） Fragment：UNP residues 11-43	Not recorded	SO4 SULFATE ION × 4 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PROTEIN - 10 MG/ML in 0.01M HEPES pH 7.0, 0.15 M NaCl, 0.001 M DTT, RESERVOIR - 0.1M MES pH6.0-6.75, 0.2 M ammonium sulfate, 10-16% PEG 5000 MME, vapor diffusion, sitting drop, temperature 293K	Resolution 2.19 Å R-free 0.215
4NAW Crystal Structure of Human ATG12~ATG5-ATG16N in complex with a fragment of ATG3 Deposited 2013-10-22	Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain O 11–43（33 aa） Fragment：UNP residues 11-43	Not recorded	SO4 SULFATE ION × 3 NA SODIUM ION × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PROTEIN - 10 MG/ML in 0.01M HEPES pH 7.0, 0.15 M NaCl, 0.001 M DTT, RESERVOIR - 0.1M MES pH6.0-6.75, 0.2 M ammonium sulfate, 10-16% PEG 5000 MME, vapor diffusion, sitting drop, temperature 293K	Resolution 2.19 Å R-free 0.215
4TQ0 Crystal structure of human ATG5-ATG16N69 Deposited 2014-06-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 1–69（69 aa） Fragment：UNP residues 1-69	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 400, MgCl2, KCl, Tris-HCl	Resolution 2.70 Å R-free 0.274
4TQ0 Crystal structure of human ATG5-ATG16N69 Deposited 2014-06-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 1–69（69 aa） Fragment：UNP residues 1-69	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 400, MgCl2, KCl, Tris-HCl	Resolution 2.70 Å R-free 0.274
4TQ0 Crystal structure of human ATG5-ATG16N69 Deposited 2014-06-10	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 1–69（69 aa） Fragment：UNP residues 1-69	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 400, MgCl2, KCl, Tris-HCl	Resolution 2.70 Å R-free 0.274
5D7G Structure of human ATG5 E122D-ATG16L1 complex at 3.0 Angstroms Deposited 2015-08-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 1–69（69 aa） Fragment：UNP residues 1-69 Chain D 1–69（69 aa） Fragment：UNP residues 1-69	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；Micro crystal: 37.5 mM MES, pH 5.2 to pH 5.8, 0.2 M sodium tartrate, and 11 to 13% polyethylene glycol 3350; Micor seeding condition:40 mM MES, pH 5.5, 0.2M sodium tartrate, 8.5% PEG3350, 10 mM DTT	Resolution 3.00 Å R-free 0.244
5D7G Structure of human ATG5 E122D-ATG16L1 complex at 3.0 Angstroms Deposited 2015-08-13	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain F 1–69（69 aa） Fragment：UNP residues 1-69 Chain H 1–69（69 aa） Fragment：UNP residues 1-69	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；Micro crystal: 37.5 mM MES, pH 5.2 to pH 5.8, 0.2 M sodium tartrate, and 11 to 13% polyethylene glycol 3350; Micor seeding condition:40 mM MES, pH 5.5, 0.2M sodium tartrate, 8.5% PEG3350, 10 mM DTT	Resolution 3.00 Å R-free 0.244
5NPV Structure of human ATG5-ATG16L1(ATG5BD) complex (I4) Deposited 2017-04-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 11–307（297 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.76；293 K；0.1 M MES pH 5.76, 0.378 M KCl, 21.7 % PEG 3350	Resolution 3.10 Å R-free 0.278
5NPV Structure of human ATG5-ATG16L1(ATG5BD) complex (I4) Deposited 2017-04-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 11–307（297 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.76；293 K；0.1 M MES pH 5.76, 0.378 M KCl, 21.7 % PEG 3350	Resolution 3.10 Å R-free 0.278
5NPW Structure of human ATG5-ATG16L1(ATG5BD) complex (C2) Deposited 2017-04-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 11–307（297 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4 M KCl and 18 % PEG 3350	Resolution 3.10 Å R-free 0.264
5NPW Structure of human ATG5-ATG16L1(ATG5BD) complex (C2) Deposited 2017-04-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain D 11–307（297 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4 M KCl and 18 % PEG 3350	Resolution 3.10 Å R-free 0.264
5NPW Structure of human ATG5-ATG16L1(ATG5BD) complex (C2) Deposited 2017-04-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain F 11–307（297 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4 M KCl and 18 % PEG 3350	Resolution 3.10 Å R-free 0.264
5NPW Structure of human ATG5-ATG16L1(ATG5BD) complex (C2) Deposited 2017-04-19	Different construct Different experimental conditions Different structure-quality metrics	Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain H 11–307（297 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4 M KCl and 18 % PEG 3350	Resolution 3.10 Å R-free 0.264
5NUV Structure of the WD40-domain of human ATG16L1 Deposited 2017-05-02	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 303–607（305 aa）	Mutation：E354A/K355A/Y607P	BU3 (R,R)-2,3-BUTANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION；pH 6.3；303 K；1.61 M (NH4)2SO4, 0.09 M NaCl, 0.1 M MES pH 6.3	Resolution 1.55 Å R-free 0.197
7W36 Crystal structure of human Atg5 complexed with a stapled peptide Deposited 2021-11-25	Different construct Different mutation/modification Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 13–33（21 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 3350, 0.2M MgCl2, 0.1M Tris-HCl pH8.5	Resolution 3.00 Å R-free 0.287
7XFR Crystal structure of WIPI2b in complex with the second site of ATG16L1 Deposited 2022-04-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 124–188（65 aa） Chain D 124–188（65 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；0.1 M MES monohydrate(pH 6.5), 12% w/v Polyethylene glycol 20000	Resolution 1.76 Å R-free 0.193
8ZQG Crystal structure of WIPI3 in complex with ATG16L1 Deposited 2024-06-02	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 124–188（65 aa） Chain D 124–188（65 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.8；289 K；0.02 M Citric acid, 0.08 M BIS-TRIS propane (pH 8.8); 16% w/v Polyethylene glycol 3350	Resolution 2.77 Å R-free 0.233
9H2Q Stabilized complex of Chlamydia trachomatic efector CT622 in complex with human WD40 domain of ATG16L1 Deposited 2024-10-14	Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric	Chain B 303–607（305 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 6 cryo-EM vitrification conditions Cryogen ETHANE-PROPANE	Resolution 3.80 Å
9J54 Crystal structure of FIP200 Claw in complex with ATG16L1 Deposited 2024-08-11	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain B 235–247（13 aa） Chain D 235–247（13 aa）	Not recorded	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；10% v/v 2-Propanol, 0.1 M BICINE (pH 8.5), 30% w/v Polyethylene glycol 1500	Resolution 1.61 Å R-free 0.216

13 other PDB entries and 23 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	A16L1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain C； PDBConstruct 1–13； UniProt 235–247 Author chain D； PDBConstruct 1–13； UniProt 235–247

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

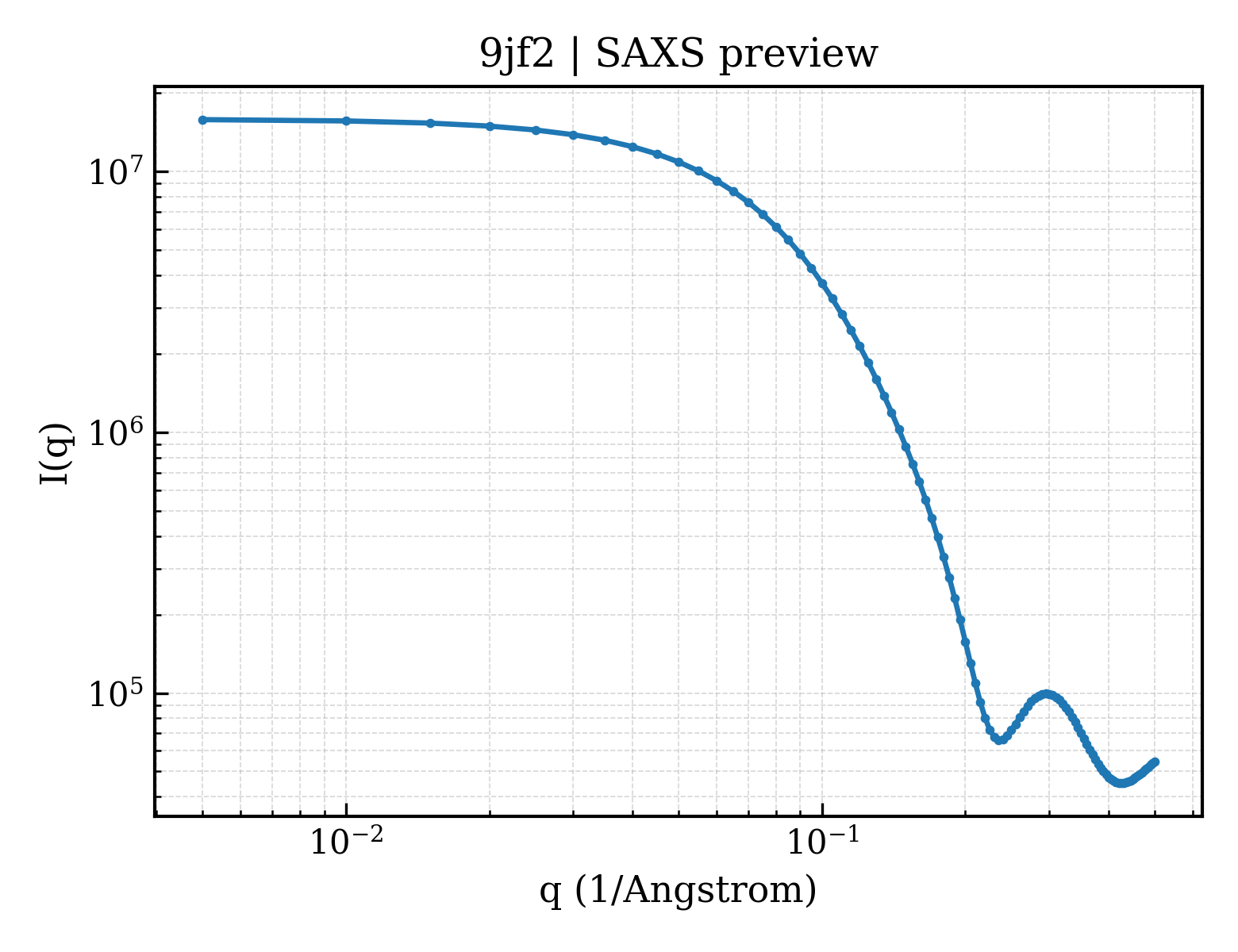

SAXS scattering curve SAXS Profile

P(r) Distance Distribution P(r) Distribution

Download Download SAXS (.dat) P(r) (.pr.out) CIF

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9jf2
Deposition date deposition_date	2024-09-03
Structure title title	Crystal structure of GABARAPL1 in complex with ATG16L1
Keywords keywords	GABARAPL1, ATG16L1, PROTEIN BINDING; PROTEIN BINDING
Experimental Method method	X-RAY DIFFRACTION

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	21.32 Å
Radius of gyration Rg (electron density) rg_electron	20.65 Å
Forward intensity I(0) i0	15871900.00
Molecular weight molecular_weight	31009.0 kDa
Excluded volume excluded_volume	39138 Å³
Envelope volume envelope_volume	45791 Å³
Hydration-shell volume shell_volume	19236 Å³
Envelope diameter envelope_diameter	74.3 Å
Shell Rg shell_rg	26.37 Å
Envelope Rg envelope_rg	20.91 Å
Shape Rg shape_rg	20.61 Å
Total Rg total_rg	21.59 Å
Total atoms total_atoms	4309
Residues n_residues	264
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

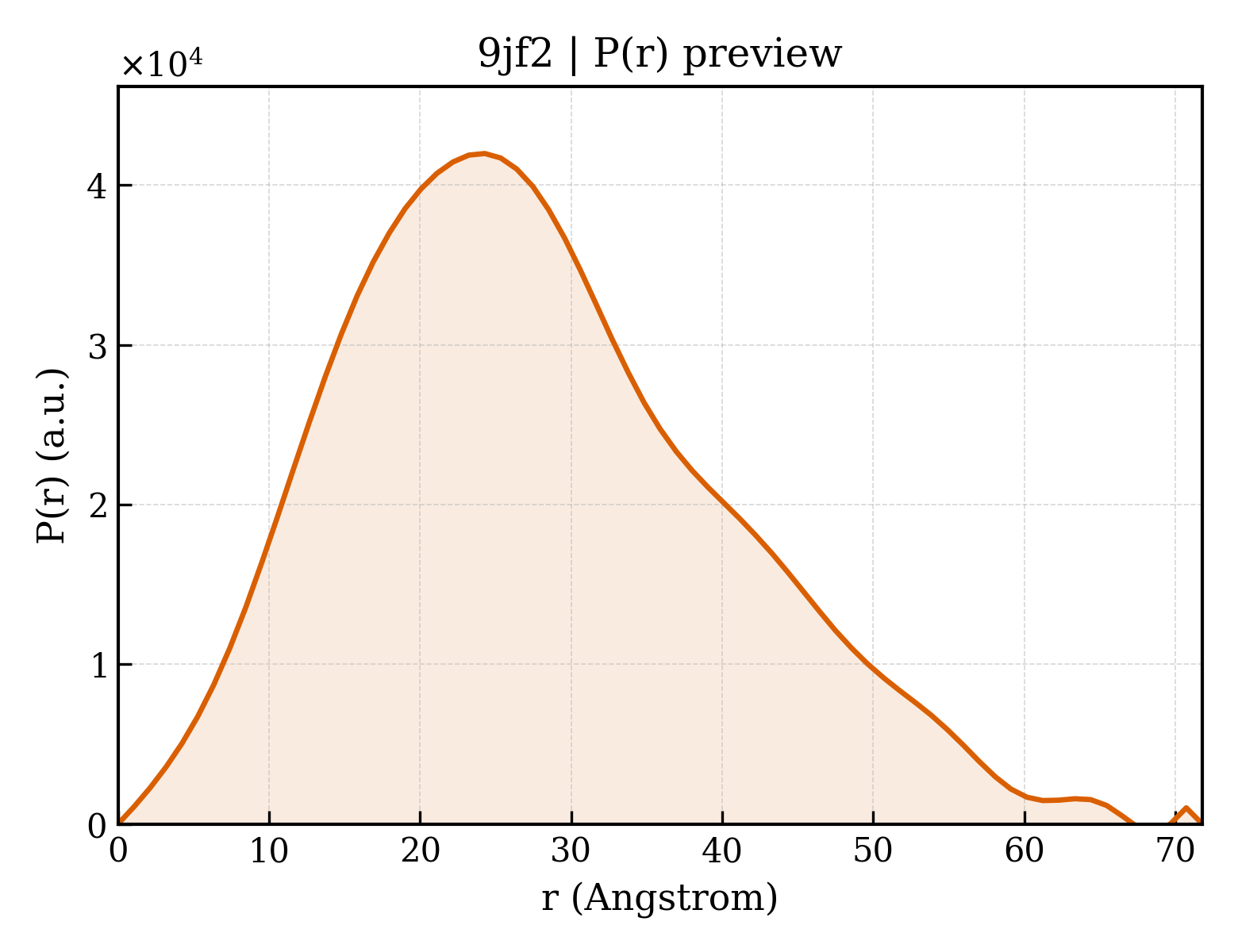

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	71.8 Å
Rg (real space) rg_real	21.38 Å
Rg uncertainty (real space) rg_real_error	0.52 Å
I(0) (real space) i0_real	1.5870e+07
I(0) uncertainty (real space) i0_real_error	2.1050e+05
Rg (reciprocal space) rg_reciprocal	21.37 Å
I(0) (reciprocal space) i0_reciprocal	15870000.0000
Solution quality estimate total_estimate	0.7838
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	3
Primary peak position r_peak_primary	24.3 Å
Skewness Skewness skewness	0.467
Kurtosis Kurtosis kurtosis	-0.200
Angular range angular_range	— – 0.3750 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	4217000.0000
Real-space data points n_real_points	69
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.746; Stabil: 0.999; Sysdev: 1.000; Positv: 1.000; Valcen: 0.949; Smooth: 0.000

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Gamma-aminobutyric acid receptor-associated protein-like 1
Molecular weight formula_weight	14366.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	4548

GPGSMKFQYKEDHPFEYRKKEGEKIRKKYPDRVPVIVEKAPKARVPDLDKRKYLVPSDLTVGQFYFLIRKRIHLRPEDALFFFVNNTIPPTSATMGQLYEDNHEEDYFLYVAYSDESVYGK

来源 Source

来源生物 organism	Homo sapiens
通用名 common_name	human
NCBI Class编号 ncbi_taxonomy_id	9606
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	Autophagy-related protein 16-1
Molecular weight formula_weight	1519.5 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,D

EQDDDIEVIVDET

Entity 3 Entity 3 non-polymer

Description description	(4S)-2-METHYL-2,4-PENTANEDIOL
Molecular weight formula_weight	118.2 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	188

▶

8. Citations (1)

▶

Unit-cell length a length_a	38.147 Å
Unit-cell length b length_b	65.426 Å
Unit-cell length c length_c	109.804 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	8

Space group space_group	P 2 21 21
Space-group number int_tables_number	18
Crystal system crystal_system	orthorhombic

Resolution resolution	1.760 Å
Low-resolution limit resolution_low	19.070 Å
R factor r_factor	0.1908
R_work r_work	0.1895
R_free r_free	0.2148

fit	/app/data/saxs_computation/jf/9jf2/9jf2.fit
pddf	/app/data/pr_computation/jf/9jf2/9jf2.pr.out
profile	/app/data/saxs_computation/jf/9jf2/9jf2.dat
