9h2q

Stabilized complex of Chlamydia trachomatic efector CT622 in complex with human WD40 domain of ATG16L1

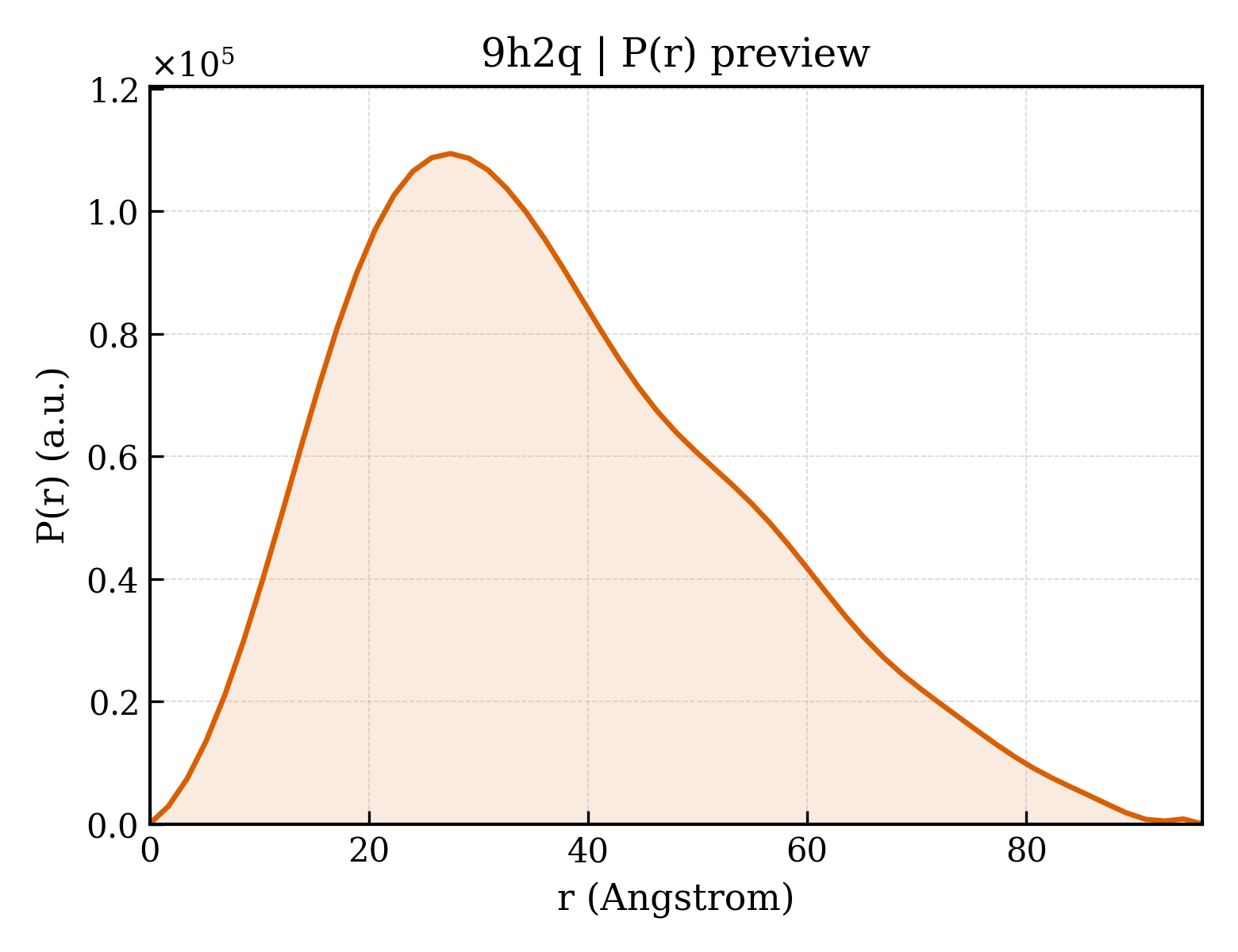

Method: ELECTRON MICROSCOPY Dmax: 96.1 Å Quality: GOOD
▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Maltose/maltodextrin-binding periplasmic protein,CHLPN 76 kD protein-like

Chlamydia trachomatis

UniProt A0A0H2X2S1

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 361–651 Not recorded Autophagy-related protein 16-1 × 1 （Q676U5） ELECTRON MICROSCOPY cryo-EM buffer：pH 6 cryo-EM vitrification conditions：Cryogen ETHANE-PROPANE Resolution 3.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

No other PDB entry for the same UniProt protein was found.

View Construct and Data Evidence
UniProt name A0A0H2X2S1_CHLTA
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 384–674； UniProt 361–651

Maltose/maltodextrin-binding periplasmic protein,CHLPN 76 kD protein-like

Chlamydia trachomatis

UniProt P0AEY0

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain A； UniProt 27–395 Not recorded Autophagy-related protein 16-1 × 1 （Q676U5） ELECTRON MICROSCOPY cryo-EM buffer：pH 6 cryo-EM vitrification conditions：Cryogen ETHANE-PROPANE Resolution 3.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9H2Q Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
1HSJ SARR MBP FUSION STRUCTURE Deposited 2000-12-26 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 27–387（361 aa）
Chain B 27–387（361 aa）
Not recorded GLC alpha-D-glucopyranose × 4 X-RAY DIFFRACTION mmCIF provides none of the parsed conditions Resolution 2.30 Å R-free 0.304
2V93 EQUILLIBRIUM MIXTURE OF OPEN AND PARTIALLY-CLOSED SPECIES IN THE APO STATE OF MALTODEXTRIN-BINDING PROTEIN BY PARAMAGNETIC RELAXATION ENHANCEMENT NMR Deposited 2007-08-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–396（370 aa）
Mutation：YES MXT 1-(1-HYDROXY-2,2,6,6-TETRAMETHYLPIPERIDIN-4-YL)PYRROLIDINE-2,5-DIONE × 2 SOLUTION NMR
NMR measurement conditions pH 7.4；310 K；Ionic strength (raw mmCIF value) 0MM NACL；Pressure 1.0
NMR sample composition 10MM TRIS-HCL
Resolution not provided
3IO4 Huntingtin amino-terminal region with 17 Gln residues - Crystal C90 Deposited 2009-08-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 27–384（358 aa） Fragment：Fusion protein, see remark 999
Chain B 27–384（358 aa） Fragment：Fusion protein, see remark 999
Chain C 27–384（358 aa） Fragment：Fusion protein, see remark 999
Not recorded ZN ZINC ION × 8 CA CALCIUM ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；277 K；12% polyethylene glycol, 200 mM Zn Acetate, 200 mM Sodium Acetate, 100 mM Sodium Cacodylate pH 6.5 to 7.4, VAPOR DIFFUSION, HANGING DROP, temperature 277K
Resolution 3.63 Å R-free 0.304
3IO6 Huntingtin amino-terminal region with 17 Gln residues - crystal C92-a Deposited 2009-08-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 27–384（358 aa） Fragment：FUSION PROTEIN, SEE REMARK 999
Chain B 27–384（358 aa） Fragment：FUSION PROTEIN, SEE REMARK 999
Chain C 27–384（358 aa） Fragment：FUSION PROTEIN, SEE REMARK 999
Not recorded ZN ZINC ION × 5 CA CALCIUM ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.2；pH 7.2, VAPOR DIFFUSION, HANGING DROP
Resolution 3.70 Å R-free 0.293
3OSQ Maltose-bound maltose sensor engineered by insertion of circularly permuted green fluorescent protein into E. coli maltose binding protein at position 175 Deposited 2010-09-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–199（173 aa） Fragment：GFP P42212 residues 2-146, 147-238, MBP P0AEX9 residues 27-199, 201-396
Chain A 200–396（197 aa） Fragment：GFP P42212 residues 2-146, 147-238, MBP P0AEX9 residues 27-199, 201-396
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) SO4 SULFATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.6；296 K；0.5 M Ammonium sulfate, 0.1M Sodium citrate tribasic dihydrate pH 5.6, 1.0 M Lithium sulfate monohydrate, VAPOR DIFFUSION, HANGING DROP, temperature 296K
Resolution 1.90 Å R-free 0.199
3OSR Maltose-bound maltose sensor engineered by insertion of circularly permuted green fluorescent protein into E. coli maltose binding protein at position 311 Deposited 2010-09-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–337（311 aa） Fragment：GFP P42212 residues 2-146, 147-238, MBP P0AEX9 residues 27-199, 201-396
Chain A 338–396（59 aa） Fragment：GFP P42212 residues 2-146, 147-238, MBP P0AEX9 residues 27-199, 201-396
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 4.6；296 K；0.1 M Sodium acetate pH 4.6, 8% w/v polyethylene glycol 4000, VAPOR DIFFUSION, temperature 296K
Resolution 2.00 Å R-free 0.226
3OSR Maltose-bound maltose sensor engineered by insertion of circularly permuted green fluorescent protein into E. coli maltose binding protein at position 311 Deposited 2010-09-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–337（311 aa） Fragment：GFP P42212 residues 2-146, 147-238, MBP P0AEX9 residues 27-199, 201-396
Chain B 338–396（59 aa） Fragment：GFP P42212 residues 2-146, 147-238, MBP P0AEX9 residues 27-199, 201-396
Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 4.6；296 K；0.1 M Sodium acetate pH 4.6, 8% w/v polyethylene glycol 4000, VAPOR DIFFUSION, temperature 296K
Resolution 2.00 Å R-free 0.226
3VD8 Crystal structure of human AIM2 PYD domain with MBP fusion Deposited 2012-01-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–384（358 aa） Fragment：PYD domain (UNP Residues 1-107)
Mutation：D82A, K83A, E172A, N173A, K239A EDO 1,2-ETHANEDIOL × 4 K POTASSIUM ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4；298 K；20% PEG3350, 0.1M Potassium Acetate, pH 4.0, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.07 Å R-free 0.221
4FEB Crystal Structure of Htt36Q3H-EX1-X1-C2(Beta) Deposited 2012-05-29 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 3 PDB declaration: trimeric
Chain A 27–384（358 aa）
Chain B 27–384（358 aa）
Chain C 27–384（358 aa）
Mutation：HQHQH Mutation：HQHQH Mutation：HQHQH ZN ZINC ION × 38 NA SODIUM ION × 6 X-RAY DIFFRACTION
X-ray crystallization conditions hanging drop；pH 6.5；278 K；PEG12K, Na Acetate, Zn Acetate, Na Cacodylate, pH 6.5, hanging drop, temperature 278K
Resolution 2.80 Å R-free 0.275
4MY2 Crystal Structure of Norrin in fusion with Maltose Binding Protein Deposited 2013-09-27 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 26–392（367 aa） Fragment：Maltose binding protein (UNP residues 26-392), Norrin (UNP residues 30-133) fusion protein
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；15% PEG 3350, 0.1 M sodium acetate, pH 4.6, 0.2 M ammonium acetate, VAPOR DIFFUSION, HANGING DROP, temperature 298K
Resolution 2.40 Å R-free 0.237
4WGI A Single Diastereomer of a Macrolactam Core Binds Specifically to Myeloid Cell Leukemia 1 (MCL1) Deposited 2014-09-18 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa） Fragment：unp residues 27-392,unp residues 173-291
Mutation：K194A, K197A, R201A 3M6 (2S)-2-[(2S,3R)-10-{[(4-fluorophenyl)sulfonyl]amino}-3-methyl-2-[(methyl{[4-(trifluoromethyl)phenyl]carbamoyl}amino)methyl]-6-oxo-3,4-dihydro-2H-1,5-benzoxazocin-5(6H)-yl]propanoic acid × 1 MG MAGNESIUM ION × 1 FMT FORMIC ACID × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；298 K；10 MG/ML MBP-MCL1 VCID 9272, 200MM MG FORMATE, 20% PEG3350, 0.5M BRD-0611, 1MM MALTOSE, CRYOPROTECTANT 20% ETHYLENE GLYCOL
Resolution 1.85 Å R-free 0.213
4WRN Crystal structure of the polymerization region of human uromodulin/Tamm-Horsfall protein Deposited 2014-10-24 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 27–393（367 aa）
Chain B 27–393（367 aa）
Mutation：;I28T, D108A, K109A, E198A, N199A, A241H, K245H, K265A, A338V, I343V, E385A, E388A, D389A, R393N,R586A, R588A,I28T, D108A, K109A, E198A, N199A, A241H, K245H, K265A, A338V, I343V, E385A, E388A, D389A, R393N,R586A, R588A ; Mutation：;I28T, D108A, K109A, E198A, N199A, A241H, K245H, K265A, A338V, I343V, E385A, E388A, D389A, R393N,R586A, R588A,I28T, D108A, K109A, E198A, N199A, A241H, K245H, K265A, A338V, I343V, E385A, E388A, D389A, R393N,R586A, R588A ; NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 3 ZN ZINC ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8.2；293 K；Sodium/potassium tartrate, Tris-HCl
Resolution 3.20 Å R-free 0.246
4WTH Ataxin-3 Carboxy Terminal Region - Crystal C2 (triclinic) Deposited 2014-10-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa） Fragment：MBP residues 27-392 (UNP) + Ataxin-3 C-terminal region (UNP residues 278-324)
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；24% PEG5000 MME, 0.9 M sodium acetate, 0.06 M imidazole, pH 8.0, 0.1 M zinc acetate
Resolution 2.25 Å R-free 0.250
4WTH Ataxin-3 Carboxy Terminal Region - Crystal C2 (triclinic) Deposited 2014-10-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–392（366 aa） Fragment：MBP residues 27-392 (UNP) + Ataxin-3 C-terminal region (UNP residues 278-324)
Not recorded ZN ZINC ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；277 K；24% PEG5000 MME, 0.9 M sodium acetate, 0.06 M imidazole, pH 8.0, 0.1 M zinc acetate
Resolution 2.25 Å R-free 0.250
4WVG Crystal structure of the Type-I signal peptidase from Staphylococcus aureus (SpsB). Deposited 2014-11-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 33–392（360 aa） Fragment：UNP RESIDUES 33-393, UNP RESIDUES 26-191
Mutation：S36A, R393N No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；296 K；12 % PEG 8000, 20 % ethylene glycol, 0.2 M amino acids mix (0.2 M sodium-L-glutamate, 0.2 M DL-alanine, 0.2 M glycine, 0.2 M DL-lysine, 0.2 M DL-serine), 100 mM Tris.Cl pH 8.5
Resolution 2.05 Å R-free 0.242
4WVH Crystal structure of the Type-I signal peptidase from Staphylococcus aureus (SpsB) in complex with a substrate peptide (pep1). Deposited 2014-11-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 33–392（360 aa） Fragment：unp residues 33-382, unp reisdues 26-175
Mutation：K143G, Q78C,K143G, Q78C No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；296 K；12 % PEG 8000, 20 % ethylene glycol, 100 mM sodium acetate pH 5.3 - 5.5
Resolution 2.10 Å R-free 0.248
4WVI Crystal structure of the Type-I signal peptidase from Staphylococcus aureus (SpsB) in complex with a substrate peptide (pep2). Deposited 2014-11-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 33–392（360 aa） Fragment：unp residues 33-393, unp residues 26-175
Mutation：K143G, Q78C, R393N No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；290 K；12 % PEG 8000, 20 % ethylene glycol, 100 mM sodium acetate pH 5.3 - 5.5
Resolution 1.90 Å R-free 0.219
4WVJ Crystal structure of the Type-I signal peptidase from Staphylococcus aureus (SpsB) in complex with an inhibitor peptide (pep3). Deposited 2014-11-05 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 33–392（360 aa） Fragment：UNP RESIDUES 33-393, unp residues 26-175
Mutation：K143G, Q78C No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions BATCH MODE；290 K；12 % PEG 8000, 20 % ethylene glycol, 100 mM sodium acetate pH 5.3 - 5.5
Resolution 1.95 Å R-free 0.229
4XA2 Structure of the Major Type IV pilin of Acinetobacter baumannii Deposited 2014-12-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–393（367 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；0.1M Bis-Tris, 22.5% PEG 3350, 0.3M 1,6 Hexandediol
Resolution 1.98 Å R-free 0.241
4XA2 Structure of the Major Type IV pilin of Acinetobacter baumannii Deposited 2014-12-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–393（367 aa）
Not recorded EDO 1,2-ETHANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.5；298 K；0.1M Bis-Tris, 22.5% PEG 3350, 0.3M 1,6 Hexandediol
Resolution 1.98 Å R-free 0.241
4XAI Crystal Structure of red flour beetle NR2E1/TLX Deposited 2014-12-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 27–392（366 aa） Fragment：maltose binding protein fused ligand binding domain,maltose binding protein fused ligand binding domain
Chain B 27–392（366 aa） Fragment：maltose binding protein fused ligand binding domain,maltose binding protein fused ligand binding domain
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.4；298 K；PEG 3350
Resolution 2.60 Å R-free 0.262
4XAJ Crystal structure of human NR2E1/TLX Deposited 2014-12-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 26–392（367 aa） Fragment：maltose binding protein fused ligand binding domain
Chain C 26–392（367 aa） Fragment：maltose binding protein fused ligand binding domain
Mutation：K257R, N259T, K260L, C338V,K257R, N259T, K260L, C338V Mutation：K257R, N259T, K260L, C338V,K257R, N259T, K260L, C338V No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；PEG3350
Resolution 3.55 Å R-free 0.314
4XAJ Crystal structure of human NR2E1/TLX Deposited 2014-12-14 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 26–392（367 aa） Fragment：maltose binding protein fused ligand binding domain
Chain D 26–392（367 aa） Fragment：maltose binding protein fused ligand binding domain
Mutation：K257R, N259T, K260L, C338V,K257R, N259T, K260L, C338V Mutation：K257R, N259T, K260L, C338V,K257R, N259T, K260L, C338V No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；292 K；PEG3350
Resolution 3.55 Å R-free 0.314
4XHS Crystal structure of human NLRP12 PYD domain and implication in homotypic interaction Deposited 2015-01-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 27–392（366 aa） Fragment：UNP P0AEY0 residues 27-392, UNP P59046 residues 10-106
Chain B 27–392（366 aa） Fragment：UNP P0AEY0 residues 27-392, UNP P59046 residues 10-106
Not recorded FMT FORMIC ACID × 4 NA SODIUM ION × 7 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；298 K；3.5 M Sodium Formate, 0.1 M Sodium Acetate pH 4.6
Resolution 1.70 Å R-free 0.190
4YS9 Ataxin-3 Carboxy-Terminal Region - Crystal C1 (tetragonal) Deposited 2015-03-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–392（366 aa） Fragment：MBP residues 27-392 (UNP) + Ataxin-3 C-terminal region (UNP residues 278-324)
Not recorded ZN ZINC ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；278 K；25% PEG5000 MME, 1.0 M sodium acetate, 0.1 M imidazole, pH 8.0, 0.1 M zinc acetate
Resolution 2.00 Å R-free 0.223
5BJZ Crystal structure of maltose binding protein in complex with an allosteric synthetic antibody Deposited 2017-09-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 26–393（368 aa）
Not recorded GOL GLYCEROL × 3 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；283 K；0.1 M HEPES: pH 7.0 and 15% PEG4000
Resolution 1.95 Å R-free 0.229
5BJZ Crystal structure of maltose binding protein in complex with an allosteric synthetic antibody Deposited 2017-09-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 26–393（368 aa）
Not recorded GOL GLYCEROL × 2 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；283 K；0.1 M HEPES: pH 7.0 and 15% PEG4000
Resolution 1.95 Å R-free 0.229
5BMY Crystal structure of hPin1 WW domain (5-21) fused with maltose-binding protein Deposited 2015-05-25 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–393（367 aa）
Mutation：R393N No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；293 K；2.1 M DL-malic acid
Resolution 2.00 Å R-free 0.194
5C7R Revealing surface waters on an antifreeze protein by fusion protein crystallography Deposited 2015-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–384（358 aa） Fragment：UNP P0AEY0 residues 27-384, UNP P19614 residues 1-63
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.4；298 K；1.75 M (NH4)2SO4, 100 mM NaOAC (pH 4.4)
Resolution 1.94 Å R-free 0.234
5C7R Revealing surface waters on an antifreeze protein by fusion protein crystallography Deposited 2015-06-24 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–384（358 aa） Fragment：UNP P0AEY0 residues 27-384, UNP P19614 residues 1-63
Not recorded SO4 SULFATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.4；298 K；1.75 M (NH4)2SO4, 100 mM NaOAC (pH 4.4)
Resolution 1.94 Å R-free 0.234
5CL1 Complex structure of Norrin with human Frizzled 4 Deposited 2015-07-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 26–392（367 aa） Fragment：UNP Q00604 residues 31-133
Chain B 26–392（367 aa） Fragment：UNP Q00604 residues 31-133
Not recorded NAG 2-acetamido-2-deoxy-beta-D-glucopyranose × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；298 K；200 mM ammonium sulfate, 100 mM sodium cacodylate trihydrate (pH 6.5), 15% w/v polyethylene glycol 8,000
Resolution 3.80 Å R-free 0.310
5DFM Structure of Tetrahymena telomerase p19 fused to MBP Deposited 2015-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–384（358 aa）
Not recorded SO4 SULFATE ION × 5 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；12 mg/ml MBP-P19 protein, 0.1 M Sodium Acetate, 2.0 M Ammonium Sulfate
Resolution 2.30 Å R-free 0.226
5DFM Structure of Tetrahymena telomerase p19 fused to MBP Deposited 2015-08-27 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–384（358 aa）
Not recorded SO4 SULFATE ION × 10 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；12 mg/ml MBP-P19 protein, 0.1 M Sodium Acetate, 2.0 M Ammonium Sulfate
Resolution 2.30 Å R-free 0.226
5DFM Structure of Tetrahymena telomerase p19 fused to MBP Deposited 2015-08-27 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Homooligomer；Protein × 6 PDB declaration: hexameric
Chain A 27–384（358 aa）
Chain B 27–384（358 aa）
Not recorded SO4 SULFATE ION × 45 GOL GLYCEROL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；12 mg/ml MBP-P19 protein, 0.1 M Sodium Acetate, 2.0 M Ammonium Sulfate
Resolution 2.30 Å R-free 0.226
5E24 Structure of the Su(H)-Hairless-DNA Repressor Complex Deposited 2015-09-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 27–396（370 aa）
Mutation：D82A, K83A, E172A, N173A, K239A, N367R EDO 1,2-ETHANEDIOL × 73 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8；277 K；Tris, PEG3350, (NH4)2SO4
Resolution 2.14 Å R-free 0.193
5E24 Structure of the Su(H)-Hairless-DNA Repressor Complex Deposited 2015-09-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 3 PDB declaration: pentameric
Chain C 27–396（370 aa）
Mutation：D82A, K83A, E172A, N173A, K239A, N367R EDO 1,2-ETHANEDIOL × 40 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8；277 K；Tris, PEG3350, (NH4)2SO4
Resolution 2.14 Å R-free 0.193
5E24 Structure of the Su(H)-Hairless-DNA Repressor Complex Deposited 2015-09-30 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein–DNA Heteromer；Protein × 6 PDB declaration: octameric
Chain A 27–396（370 aa）
Chain C 27–396（370 aa）
Mutation：D82A, K83A, E172A, N173A, K239A, N367R Mutation：D82A, K83A, E172A, N173A, K239A, N367R EDO 1,2-ETHANEDIOL × 113 X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 8；277 K；Tris, PEG3350, (NH4)2SO4
Resolution 2.14 Å R-free 0.193
5E7U MBP-MamC loop structure, a magnetite biomineralizing protein from Magnetospirillium magneticum AMB-1 Deposited 2015-10-13 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–389（363 aa）
Chain A 390–392（3 aa）
Not recorded SO4 SULFATE ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.1 M sodium acetate , 2 M Ammonium sulfate
Resolution 2.80 Å R-free 0.307
5EDU Crystal structure of human histone deacetylase 6 catalytic domain 2 in complex with trichostatin A Deposited 2015-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–392（366 aa） Fragment：MBP + HD6 catalytic domain 2 (UNP residues 479-835)
Not recorded TSN TRICHOSTATIN A × 1 ZN ZINC ION × 1 K POTASSIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M potassium sodium tartrate, 20% PEG3350
Resolution 2.79 Å R-free 0.275
5EDU Crystal structure of human histone deacetylase 6 catalytic domain 2 in complex with trichostatin A Deposited 2015-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa） Fragment：MBP + HD6 catalytic domain 2 (UNP residues 479-835)
Not recorded TSN TRICHOSTATIN A × 1 ZN ZINC ION × 1 K POTASSIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；0.2 M potassium sodium tartrate, 20% PEG3350
Resolution 2.79 Å R-free 0.275
5FIO DARPins as a new tool for experimental phasing in protein crystallography Deposited 2015-09-30 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 29–392（364 aa） Fragment：UNP RESIDUES 29-392
Not recorded HG MERCURY (II) ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions pH 8；30.55% W/V PEG 6000, 0.1M TRIS-CL, PH 8.0
Resolution 2.10 Å R-free 0.253
5GPP Crystal structure of zebrafish ASC PYD domain Deposited 2016-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–384（358 aa） Fragment：UNP residues 27-384,UNP residues 3-88
Mutation：D83A,K84A,E173A,N174A,K240A SO4 SULFATE ION × 2 ACT ACETATE ION × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；20% PEG2000MME, 0.1 M NaAcO
Resolution 2.00 Å R-free 0.252
5GPP Crystal structure of zebrafish ASC PYD domain Deposited 2016-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–384（358 aa） Fragment：UNP residues 27-384,UNP residues 3-88
Mutation：D83A,K84A,E173A,N174A,K240A SO4 SULFATE ION × 3 ACT ACETATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；20% PEG2000MME, 0.1 M NaAcO
Resolution 2.00 Å R-free 0.252
5GPQ Crystal Structure of zebrafish ASC CARD Domain Deposited 2016-08-04 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–384（358 aa） Fragment：UNP residues 27-384,UNP residues 119-201
Mutation：D83A,K84A,E173A,N174A,K240A CIT CITRIC ACID × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；291 K；2.0 M Ammonium Citrate, 0.1 M HEPES
Resolution 2.10 Å R-free 0.199
5II4 Crystal structure of red abalone VERL repeat 1 with linker at 2.0 A resolution Deposited 2016-03-01 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–393（367 aa）
Mutation：N4115Q, N4122T, N4142Y, N4171Q,N4115Q, N4122T, N4142Y, N4171Q,N4115Q, N4122T, N4142Y, N4171Q,N4115Q, N4122T, N4142Y, N4171Q PGE TRIETHYLENE GLYCOL × 5 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 9.5；293 K；40% PEG 600, 0.1M CHES
Resolution 2.00 Å R-free 0.247
5JJ4 Crystal Structure of a Variant Human Activation-induced Deoxycytidine Deaminase as an MBP fusion protein Deposited 2016-04-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain C 27–393（367 aa） Fragment：unp residues 27-384, unp residues 3-183
Not recorded ZN ZINC ION × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100mM MES pH 6.5, 200mM Calcium Acetate, 15%PEG8000
Resolution 2.81 Å R-free 0.232
5JJ4 Crystal Structure of a Variant Human Activation-induced Deoxycytidine Deaminase as an MBP fusion protein Deposited 2016-04-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–393（367 aa） Fragment：unp residues 27-384, unp residues 3-183
Not recorded ZN ZINC ION × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100mM MES pH 6.5, 200mM Calcium Acetate, 15%PEG8000
Resolution 2.81 Å R-free 0.232
5JJ4 Crystal Structure of a Variant Human Activation-induced Deoxycytidine Deaminase as an MBP fusion protein Deposited 2016-04-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–393（367 aa） Fragment：unp residues 27-384, unp residues 3-183
Not recorded ZN ZINC ION × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；100mM MES pH 6.5, 200mM Calcium Acetate, 15%PEG8000
Resolution 2.81 Å R-free 0.232
5JON Crystal structure of the unliganded form of HCN2 CNBD Deposited 2016-05-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded NO3 NITRATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；34-36% dimethyl PEG 500, 240 mM potassium nitrate, 20 mM magnesium chloride, 100 mM BIS-TRIS, pH 6.0
Resolution 2.04 Å R-free 0.221
5JON Crystal structure of the unliganded form of HCN2 CNBD Deposited 2016-05-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–392（366 aa）
Not recorded NO3 NITRATE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；34-36% dimethyl PEG 500, 240 mM potassium nitrate, 20 mM magnesium chloride, 100 mM BIS-TRIS, pH 6.0
Resolution 2.04 Å R-free 0.221
5JTQ The structure of chaperone SecB in complex with unstructured MBP binding site d Deposited 2016-05-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain E 108–149（42 aa） Fragment：residues 108-149
Chain F 108–149（42 aa） Fragment：residues 108-149
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；301 K；Ionic strength (raw mmCIF value) 150；Pressure 1
NMR sample composition 300 uM [U-100% 13C; U-100% 15N] E.coli Chaperone SecB, 300 uM [U-100% 13C; U-100% 15N] E.coli Maltose Binding Protein (MBP) binding site d, 150 mM potassium chloride, 50 mM potassium phosphate, 50 mM sodium phosphate, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
5JTR The structure of chaperone SecB in complex with unstructured MBP binding site e Deposited 2016-05-09 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric
Chain E 168–207（40 aa） Fragment：residues 168-207
Chain F 168–207（40 aa） Fragment：residues 168-207
Chain G 168–207（40 aa） Fragment：residues 168-207
Chain H 168–207（40 aa） Fragment：residues 168-207
Not recorded No recorded non-water small molecule SOLUTION NMR
NMR measurement conditions pH 7；301 K；Ionic strength (raw mmCIF value) 150；Pressure 1
NMR sample composition 300 uM [U-100% 13C; U-100% 15N] E.coli Chaperone SecB, 300 uM [U-100% 13C; U-100% 15N] E.coli Maltose Binding Protein (MBP) binding site e, 150 mM potassium chloride, 50 mM sodium phosphate, 50 mM potassium phosphate, 90% H2O/10% D2O | 90% H2O/10% D2O
Resolution not provided
5K94 Deletion-Insertion Chimera of MBP with the Preprotein Cross-Linking Domain of the SecA ATPase Deposited 2016-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–197（171 aa）
Chain A 202–396（195 aa）
Not recorded B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；50 mM PCB buffer (Qiagen; sodium propionate, sodium cacodylate, bis-tris propane), pH 7.0; 19.5 % PEG 1500; 10% glycerol; 28 mg/mL protein concentration
Resolution 2.10 Å R-free 0.230
5K94 Deletion-Insertion Chimera of MBP with the Preprotein Cross-Linking Domain of the SecA ATPase Deposited 2016-05-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–197（171 aa）
Chain B 202–396（195 aa）
Not recorded B3P 2-[3-(2-HYDROXY-1,1-DIHYDROXYMETHYL-ETHYLAMINO)-PROPYLAMINO]-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；50 mM PCB buffer (Qiagen; sodium propionate, sodium cacodylate, bis-tris propane), pH 7.0; 19.5 % PEG 1500; 10% glycerol; 28 mg/mL protein concentration
Resolution 2.10 Å R-free 0.230
5LDF Maltose binding protein genetically fused to dodecameric glutamine synthetase Deposited 2016-06-25 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 24 PDB declaration: 24-meric
Chain M 27–396（370 aa）
Chain N 27–396（370 aa）
Chain O 27–396（370 aa）
Chain P 27–396（370 aa）
Chain Q 27–396（370 aa）
Chain R 27–396（370 aa）
Chain S 27–396（370 aa）
Chain T 27–396（370 aa）
Chain U 27–396（370 aa）
Chain V 27–396（370 aa）
Chain W 27–396（370 aa）
Chain X 27–396（370 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 6.20 Å
5LEL Crystal structure of DARPin-DARPin rigid fusion, variant DD_Off7_10_3G124 in complex with Maltose-binding Protein and Green Fluorescent Protein Deposited 2016-06-30 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 29–392（364 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG3350 23.2% w/v, Sodium acetate 0.2 M, Bis-Tris propane 0.1 M, pH 8.0
Resolution 3.10 Å R-free 0.306
5LEL Crystal structure of DARPin-DARPin rigid fusion, variant DD_Off7_10_3G124 in complex with Maltose-binding Protein and Green Fluorescent Protein Deposited 2016-06-30 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain E 29–392（364 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG3350 23.2% w/v, Sodium acetate 0.2 M, Bis-Tris propane 0.1 M, pH 8.0
Resolution 3.10 Å R-free 0.306
5LEL Crystal structure of DARPin-DARPin rigid fusion, variant DD_Off7_10_3G124 in complex with Maltose-binding Protein and Green Fluorescent Protein Deposited 2016-06-30 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain H 29–392（364 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8；293 K；PEG3350 23.2% w/v, Sodium acetate 0.2 M, Bis-Tris propane 0.1 M, pH 8.0
Resolution 3.10 Å R-free 0.306
5LEM Crystal structure of DARPin-DARPin rigid fusion, variant DD_Off7_11_3G124 in complex with Maltose-binding Protein and Green Fluorescent Protein Deposited 2016-06-30 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain B 29–392（364 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 9；293 K；PEG6000 20% w/v, TAPS 0.02 M, pH 9.0
Resolution 2.98 Å R-free 0.295
5LOF Crystal structure of the MBP-MCL1 complex with highly selective and potent inhibitor of MCL1 Deposited 2016-08-09 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Mutation：K194A, K197A, R201A,K194A, K197A, R201A 70R (2~{R})-2-[5-[3-chloranyl-2-methyl-4-[2-(4-methylpiperazin-1-yl)ethoxy]phenyl]-6-(5-fluoranylfuran-2-yl)thieno[2,3-d]pyrimidin-4-yl]oxy-3-[2-[[2-[2,2,2-tris(fluoranyl)ethyl]pyrazol-3-yl]methoxy]phenyl]propanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；284 K；25% PEG3350, 0.2M Magnesium Formate, 1mM Maltose
Resolution 2.20 Å R-free 0.235
5T03 Crystal structure of heparan sulfate 6-O-sulfotransferase with bound PAP and glucuronic acid containing hexasaccharide substrate Deposited 2016-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Mutation：D82A, K83A, E172A, N173A, K239A, E359A, K362A, D363A A3P ADENOSINE-3'-5'-DIPHOSPHATE × 1 NPO P-NITROPHENOL × 1 EDO 1,2-ETHANEDIOL × 11 CL CHLORIDE ION × 3 NA SODIUM ION × 4 TLA L(+)-TARTARIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100mM Tris pH 7.5, 200mM di-sodium tartrate, 18-19% PEG 3350
Resolution 2.10 Å R-free 0.212
5T03 Crystal structure of heparan sulfate 6-O-sulfotransferase with bound PAP and glucuronic acid containing hexasaccharide substrate Deposited 2016-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–392（366 aa）
Mutation：D82A, K83A, E172A, N173A, K239A, E359A, K362A, D363A A3P ADENOSINE-3'-5'-DIPHOSPHATE × 1 NPO P-NITROPHENOL × 1 EDO 1,2-ETHANEDIOL × 5 CL CHLORIDE ION × 2 NA SODIUM ION × 2 TLA L(+)-TARTARIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100mM Tris pH 7.5, 200mM di-sodium tartrate, 18-19% PEG 3350
Resolution 2.10 Å R-free 0.212
5T05 Crystal structure of heparan sulfate 6-O-sulfotransferase with bound PAP and IdoA2S containing hexasaccharide substrate Deposited 2016-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Mutation：D82A, K83A, E172A, N173A, K239A, E359A, K362A, D363A A3P ADENOSINE-3'-5'-DIPHOSPHATE × 1 NPO P-NITROPHENOL × 1 EDO 1,2-ETHANEDIOL × 9 CL CHLORIDE ION × 3 NA SODIUM ION × 5 TLA L(+)-TARTARIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100mM Tris pH 7.5, 200mM disodium tartrate, 18-19% PEG 3350, 1mM PAP, 5mM maltose, 10mM oligosaccharide ligand
Resolution 1.95 Å R-free 0.212
5T05 Crystal structure of heparan sulfate 6-O-sulfotransferase with bound PAP and IdoA2S containing hexasaccharide substrate Deposited 2016-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–392（366 aa）
Mutation：D82A, K83A, E172A, N173A, K239A, E359A, K362A, D363A A3P ADENOSINE-3'-5'-DIPHOSPHATE × 1 NPO P-NITROPHENOL × 1 EDO 1,2-ETHANEDIOL × 6 CL CHLORIDE ION × 1 NA SODIUM ION × 2 TLA L(+)-TARTARIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；100mM Tris pH 7.5, 200mM disodium tartrate, 18-19% PEG 3350, 1mM PAP, 5mM maltose, 10mM oligosaccharide ligand
Resolution 1.95 Å R-free 0.212
5T0A Crystal Structure of Heparan Sulfate 6-O-Sulfotransferase with bound PAP and heptasaccharide substrate Deposited 2016-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Mutation：D82A, K83A, E172A, N173A, K239A, E359A, K362A, D363A NPO P-NITROPHENOL × 1 A3P ADENOSINE-3'-5'-DIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 11 TLA L(+)-TARTARIC ACID × 2 NA SODIUM ION × 4 CL CHLORIDE ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；25mM Tris pH 7.5 200mM disodium tartrate 18-19% PEG3350 1mM PAP 10mM oligosaccharide 5mM maltose
Resolution 1.95 Å R-free 0.213
5T0A Crystal Structure of Heparan Sulfate 6-O-Sulfotransferase with bound PAP and heptasaccharide substrate Deposited 2016-08-15 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–392（366 aa）
Mutation：D82A, K83A, E172A, N173A, K239A, E359A, K362A, D363A NPO P-NITROPHENOL × 1 A3P ADENOSINE-3'-5'-DIPHOSPHATE × 1 EDO 1,2-ETHANEDIOL × 4 TLA L(+)-TARTARIC ACID × 1 NA SODIUM ION × 2 CL CHLORIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；25mM Tris pH 7.5 200mM disodium tartrate 18-19% PEG3350 1mM PAP 10mM oligosaccharide 5mM maltose
Resolution 1.95 Å R-free 0.213
5TTD Minor pilin FctB from S. pyogenes with engineered intramolecular isopeptide bond Deposited 2016-11-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 33–392（360 aa） Fragment：UNP residues 33-392,UNP residues 26-148
Not recorded FMT FORMIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；12.5% PEG 1000, 10% PEG 3350, 12.5% MPD, 0.1M MES/imidazole pH 6.5, 0.02 M sodium formate, 0.02 M ammonium acetate, 0.02 M trisodium citrate, 0.02 M sodium potassium L-tartrate, 0.02 M sodium oxamate
Resolution 2.00 Å R-free 0.230
5TTD Minor pilin FctB from S. pyogenes with engineered intramolecular isopeptide bond Deposited 2016-11-02 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 33–392（360 aa） Fragment：UNP residues 33-392,UNP residues 26-148
Not recorded FMT FORMIC ACID × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；291 K；12.5% PEG 1000, 10% PEG 3350, 12.5% MPD, 0.1M MES/imidazole pH 6.5, 0.02 M sodium formate, 0.02 M ammonium acetate, 0.02 M trisodium citrate, 0.02 M sodium potassium L-tartrate, 0.02 M sodium oxamate
Resolution 2.00 Å R-free 0.230
5V6Y Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer with bound high-affinity and altered selectivity adrenomedullin variant Deposited 2017-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 26–392（367 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；15% PEG3350, 0.1 M Sodium Malonate pH 6.0, 50 mM Potassium/Sodium tartrate, 1% Cadaverine
Resolution 2.80 Å R-free 0.244
5V6Y Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer with bound high-affinity and altered selectivity adrenomedullin variant Deposited 2017-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 26–392（367 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；15% PEG3350, 0.1 M Sodium Malonate pH 6.0, 50 mM Potassium/Sodium tartrate, 1% Cadaverine
Resolution 2.80 Å R-free 0.244
5V6Y Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer with bound high-affinity and altered selectivity adrenomedullin variant Deposited 2017-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 26–392（367 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；15% PEG3350, 0.1 M Sodium Malonate pH 6.0, 50 mM Potassium/Sodium tartrate, 1% Cadaverine
Resolution 2.80 Å R-free 0.244
5V6Y Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer with bound high-affinity and altered selectivity adrenomedullin variant Deposited 2017-03-17 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 26–392（367 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；293 K；15% PEG3350, 0.1 M Sodium Malonate pH 6.0, 50 mM Potassium/Sodium tartrate, 1% Cadaverine
Resolution 2.80 Å R-free 0.244
5W0R Crystal structure of MBP fused activation-induced cytidine deaminase (AID) in complex with cacodylic acid Deposited 2017-05-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–392（366 aa） Fragment：UNP P0AEY0 residues 27-392, UNP Q9GZX7 residues 13-181
Not recorded ZN ZINC ION × 1 CAC CACODYLATE ION × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.05 M sodium cacodylate at pH 5.5, 20 mM MgCl2, 10 mM CaCl2, 10 mM spermidine, 5% PEG3350
Resolution 2.40 Å R-free 0.239
5W0R Crystal structure of MBP fused activation-induced cytidine deaminase (AID) in complex with cacodylic acid Deposited 2017-05-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa） Fragment：UNP P0AEY0 residues 27-392, UNP Q9GZX7 residues 13-181
Not recorded ZN ZINC ION × 1 CAC CACODYLATE ION × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；289 K；0.05 M sodium cacodylate at pH 5.5, 20 mM MgCl2, 10 mM CaCl2, 10 mM spermidine, 5% PEG3350
Resolution 2.40 Å R-free 0.239
5W0U Crystal structure of MBP fused activation-induced cytidine deaminase (AID) in complex with dCMP Deposited 2017-05-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: trimeric
Chain B 27–392（366 aa） Fragment：UNP residues 27-392,UNP residues 13-181
Not recorded ZN ZINC ION × 1 DCM 2'-DEOXYCYTIDINE-5'-MONOPHOSPHATE × 1 CA CALCIUM ION × 1 GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；289 K；0.1 M MES at pH 6.2, 3%PEG3350, 10 mM CaCl2, 20mM dCMP
Resolution 2.90 Å R-free 0.281
5W0U Crystal structure of MBP fused activation-induced cytidine deaminase (AID) in complex with dCMP Deposited 2017-05-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa） Fragment：UNP residues 27-392,UNP residues 13-181
Not recorded ZN ZINC ION × 1 DCM 2'-DEOXYCYTIDINE-5'-MONOPHOSPHATE × 1 CA CALCIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；289 K；0.1 M MES at pH 6.2, 3%PEG3350, 10 mM CaCl2, 20mM dCMP
Resolution 2.90 Å R-free 0.281
5W0Z Crystal structure of MBP fused activation-induced cytidine deaminase (AID) Deposited 2017-06-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa） Fragment：UNP P0AEY0 residues 27-392,UNP Q9GZX7 residues 13-181
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；0.26 M NaCl, 0.1 M MES pH 6.0, 12% PEG3350
Resolution 3.61 Å R-free 0.307
5W0Z Crystal structure of MBP fused activation-induced cytidine deaminase (AID) Deposited 2017-06-01 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–392（366 aa） Fragment：UNP P0AEY0 residues 27-392,UNP Q9GZX7 residues 13-181
Not recorded ZN ZINC ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6；298 K；0.26 M NaCl, 0.1 M MES pH 6.0, 12% PEG3350
Resolution 3.61 Å R-free 0.307
5W1C Crystal structure of MBP fused activation-induced cytidine deaminase (AID) in complex with cytidine Deposited 2017-06-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 27–392（366 aa）
Chain B 27–392（366 aa）
Not recorded ZN ZINC ION × 2 CTN 4-AMINO-1-BETA-D-RIBOFURANOSYL-2(1H)-PYRIMIDINONE × 2 CA CALCIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.2；289 K；0.1 M MES at pH 6.2, 3% PEG3350, 10 mM CaCl2 and 20mM Cytidine
Resolution 3.18 Å R-free 0.270
5ZD4 Crystal structure of MBP-fused BIL1/BZR1 in complex with double-stranded DNA Deposited 2018-02-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain C 27–392（366 aa）
Chain D 27–392（366 aa）
Mutation：D108A,K109A,E198A,N199A,K265A,E385A,K388A,D389A Mutation：D108A,K109A,E198A,N199A,K265A,E385A,K388A,D389A EDO 1,2-ETHANEDIOL × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；50mM sodium cacodylate (pH 6.5), 200mM potassium chloride, 10% (w/v) polyethylene glycol (PEG) 4000
Resolution 2.17 Å R-free 0.244
5ZD4 Crystal structure of MBP-fused BIL1/BZR1 in complex with double-stranded DNA Deposited 2018-02-22 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Homooligomer；Protein × 2 PDB declaration: tetrameric
Chain A 27–392（366 aa）
Chain B 27–392（366 aa）
Mutation：D108A,K109A,E198A,N199A,K265A,E385A,K388A,D389A Mutation：D108A,K109A,E198A,N199A,K265A,E385A,K388A,D389A EDO 1,2-ETHANEDIOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；50mM sodium cacodylate (pH 6.5), 200mM potassium chloride, 10% (w/v) polyethylene glycol (PEG) 4000
Resolution 2.17 Å R-free 0.244
6AEO TssL periplasmic domain Deposited 2018-08-06 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG MME 2000, KSCN
Resolution 2.30 Å R-free 0.229
6AEO TssL periplasmic domain Deposited 2018-08-06 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–392（366 aa）
Not recorded GOL GLYCEROL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；277 K；PEG MME 2000, KSCN
Resolution 2.30 Å R-free 0.229
6ANV Crystal structure of anti-CRISPR protein AcrF1 Deposited 2017-08-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–396（370 aa）
Not recorded MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 PGE TRIETHYLENE GLYCOL × 1 EDO 1,2-ETHANEDIOL × 3 PEG DI(HYDROXYETHYL)ETHER × 4 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.2；293 K；0.1 M MES (pH 6.2), 2.5% PEG 3000 (v/v), and 42% PEG400 (v/v)
Resolution 2.27 Å R-free 0.223
6ANV Crystal structure of anti-CRISPR protein AcrF1 Deposited 2017-08-14 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–396（370 aa）
Not recorded MES 2-(N-MORPHOLINO)-ETHANESULFONIC ACID × 1 PGE TRIETHYLENE GLYCOL × 2 EDO 1,2-ETHANEDIOL × 4 PEG DI(HYDROXYETHYL)ETHER × 3 X-RAY DIFFRACTION
X-ray crystallization conditions EVAPORATION；pH 6.2；293 K；0.1 M MES (pH 6.2), 2.5% PEG 3000 (v/v), and 42% PEG400 (v/v)
Resolution 2.27 Å R-free 0.223
6BUZ Cryo-EM structure of CENP-A nucleosome in complex with kinetochore protein CENP-N Deposited 2017-12-11 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 9 PDB declaration: undecameric
Chain N 26–394（369 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.92 Å
6D1U Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer in complex with adrenomedullin 2/intermedin Deposited 2018-04-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 26–392（367 aa）
Not recorded NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；13% v/v PEG 3,350 0.1 M Na cacodylate, pH 6.5 0.15 M DL-malic acid
Resolution 2.05 Å R-free 0.223
6D1U Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer in complex with adrenomedullin 2/intermedin Deposited 2018-04-12 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 26–392（367 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；13% v/v PEG 3,350 0.1 M Na cacodylate, pH 6.5 0.15 M DL-malic acid
Resolution 2.05 Å R-free 0.223
6D1U Crystal structure of the human CLR:RAMP1 extracellular domain heterodimer in complex with adrenomedullin 2/intermedin Deposited 2018-04-12 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 26–392（367 aa）
Not recorded NA SODIUM ION × 3 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；13% v/v PEG 3,350 0.1 M Na cacodylate, pH 6.5 0.15 M DL-malic acid
Resolution 2.05 Å R-free 0.223
6DD5 Crystal Structure of the Cas6 Domain of Marinomonas mediterranea MMB-1 Cas6-RT-Cas1 Fusion Protein Deposited 2018-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–384（358 aa）
Not recorded GOL GLYCEROL × 1 SO4 SULFATE ION × 9 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.2；295 K；0.1 M Sodium Acetate, 2.5 M Ammonium Sulfate
Resolution 2.85 Å R-free 0.225
6DD5 Crystal Structure of the Cas6 Domain of Marinomonas mediterranea MMB-1 Cas6-RT-Cas1 Fusion Protein Deposited 2018-05-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–384（358 aa）
Not recorded GOL GLYCEROL × 1 SO4 SULFATE ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.2；295 K；0.1 M Sodium Acetate, 2.5 M Ammonium Sulfate
Resolution 2.85 Å R-free 0.225
6DKS Structure of the Rbpj-SHARP-DNA Repressor Complex Deposited 2018-05-30 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein–DNA Heteromer；Protein × 4 PDB declaration: octameric
Chain D 28–392（365 aa） Fragment：residues 28-392
Chain H 28–392（365 aa） Fragment：residues 28-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.6；277 K；Bis-Tris pH6.6 100mM NaCl 40% PEG400 200mM NDSB-256
Resolution 2.78 Å R-free 0.228
6DKS Structure of the Rbpj-SHARP-DNA Repressor Complex Deposited 2018-05-30 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain D 28–392（365 aa） Fragment：residues 28-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.6；277 K；Bis-Tris pH6.6 100mM NaCl 40% PEG400 200mM NDSB-256
Resolution 2.78 Å R-free 0.228
6DKS Structure of the Rbpj-SHARP-DNA Repressor Complex Deposited 2018-05-30 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein–DNA Heteromer；Protein × 2 PDB declaration: tetrameric
Chain H 28–392（365 aa） Fragment：residues 28-392
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions MICROBATCH；pH 6.6；277 K；Bis-Tris pH6.6 100mM NaCl 40% PEG400 200mM NDSB-256
Resolution 2.78 Å R-free 0.228
6EG2 Crystal structure of human BRM in complex with compound 16 Deposited 2018-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain A 27–392（366 aa）
Not recorded J7J N-(5-amino-2-chloropyridin-4-yl)-N'-(4-bromo-3-{[3-(hydroxymethyl)phenyl]ethynyl}-1,2-thiazol-5-yl)urea × 2 IPA ISOPROPYL ALCOHOL × 4 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；100mM Hepes pH7.5, 200mM sodium chloride, 8% isopropanol
Resolution 2.98 Å R-free 0.304
6EG3 Crystal structure of human BRM in complex with compound 15 Deposited 2018-08-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded J7G 3-[(4-{[(2-chloropyridin-4-yl)carbamoyl]amino}pyridin-2-yl)ethynyl]benzoic acid × 1 EOH ETHANOL × 6 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7；277 K；100mM Tris pH7, 14% Ethanol
Resolution 2.84 Å R-free 0.267
6EQZ A MamC-MIC insertion in MBP scaffold at position K170 Deposited 2017-10-16 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–195（169 aa）
Chain A 207–392（186 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；1,86 M Tris-Ammonium citrate
Resolution 2.29 Å R-free 0.274
6EQZ A MamC-MIC insertion in MBP scaffold at position K170 Deposited 2017-10-16 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain B 27–195（169 aa）
Chain B 207–392（186 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；1,86 M Tris-Ammonium citrate
Resolution 2.29 Å R-free 0.274
6EQZ A MamC-MIC insertion in MBP scaffold at position K170 Deposited 2017-10-16 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain D 27–195（169 aa）
Chain D 207–392（186 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；1,86 M Tris-Ammonium citrate
Resolution 2.29 Å R-free 0.274
6EQZ A MamC-MIC insertion in MBP scaffold at position K170 Deposited 2017-10-16 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain G 27–195（169 aa）
Chain G 207–392（186 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；1,86 M Tris-Ammonium citrate
Resolution 2.29 Å R-free 0.274
6N84 MBP-fusion protein of transducin-alpha residues 327-350 Deposited 2018-11-28 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Mutation：D83A, K84A, E173A, N174A, A216H, K220H, K240A SO4 SULFATE ION × 8 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 4.6；291 K；2 M Ammonium Sulphate, 0.1 M sodium acetate, pH 4.6
Resolution 1.75 Å R-free 0.185
6N85 Resistance to inhibitors of cholinesterase 8A (Ric8A) protein in complex with MBP-tagged transducin-alpha residues 327-350 Deposited 2018-11-28 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain M 27–392（366 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 8；291 K；0.1 M MIB buffer, 25 % PEG3350pH 8.0
Resolution 2.50 Å R-free 0.249
6QGD Structure of human Mcl-1 in complex with thienopyrimidine inhibitor Deposited 2019-01-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded J1N 2-[(6-ethyl-5-phenyl-thieno[2,3-d]pyrimidin-4-yl)amino]-3-oxidanyl-propanoic acid × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；284 K；25% PEG3350, 0.2M MAGNESIUM FORMATE, 1MM MALTOSE
Resolution 1.80 Å R-free 0.208
6QXJ Structure of MBP-Mcl-1 in complex with compound 6a Deposited 2019-03-07 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Mutation：K194A, K197A, R201A,K194A, K197A, R201A JKQ (2~{R})-2-[[6-ethyl-5-(1~{H}-indol-5-yl)thieno[2,3-d]pyrimidin-4-yl]amino]propanoic acid × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；279 K；25% PEG3350, 0.2M MAGNESIUM FORMATE,1MM MALTOSE
Resolution 1.70 Å R-free 0.203
6QYK Structure of MBP-Mcl-1 in complex with compound 7a Deposited 2019-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded JLB (2~{R})-2-[6-ethyl-5-(1~{H}-indol-5-yl)thieno[2,3-d]pyrimidin-4-yl]oxypropanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；284 K；25% PEG3350, 0.2M MAGNESIUM FORMATE, 1MM MALTOSE
Resolution 2.30 Å R-free 0.266
6QYL Structure of MBP-Mcl-1 in complex with compound 8a Deposited 2019-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded JLE (2~{R})-2-[[6-ethyl-5-(1~{H}-indol-4-yl)thieno[2,3-d]pyrimidin-4-yl]amino]-3-phenyl-propanoic acid × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；284 K；25% PEG3350, 0.2M MAGNESIUM FORMATE, 1MM MALTOSE
Resolution 2.20 Å R-free 0.235
6QYN Structure of MBP-Mcl-1 in complex with compound 10d Deposited 2019-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded JL8 (2~{R})-2-[5-(3-chloranyl-2-methyl-4-oxidanyl-phenyl)-6-ethyl-thieno[2,3-d]pyrimidin-4-yl]oxy-3-phenyl-propanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；284 K；25% PEG3350, 0.2M MAGNESIUM FORMATE, 1MM MALTOSE
Resolution 2.50 Å R-free 0.251
6QYO Structure of MBP-Mcl-1 in complex with compound 18a Deposited 2019-03-09 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded JLH (2~{R})-2-[5-[3-chloranyl-2-methyl-4-[2-(4-methylpiperazin-1-yl)ethoxy]phenyl]-6-ethyl-thieno[2,3-d]pyrimidin-4-yl]oxy-3-phenyl-propanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；284 K；25% PEG3350, 0.2M MAGNESIUM FORMATE, 1MM MALTOSE
Resolution 2.10 Å R-free 0.221
6QZ7 Structure of MBP-Mcl-1 in complex with compound 8b Deposited 2019-03-11 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded JLE (2~{R})-2-[[6-ethyl-5-(1~{H}-indol-4-yl)thieno[2,3-d]pyrimidin-4-yl]amino]-3-phenyl-propanoic acid × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；284 K；25% PEG3350, 0.2M MAGNESIUM FORMATE, 1MM MALTOSE
Resolution 2.20 Å R-free 0.211
6YBJ Structure of MBP-Mcl-1 in complex with compound 3e Deposited 2020-03-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Mutation：K194A,K197A,R201A CL CHLORIDE ION × 1 OJW (2~{R})-2-[5-[3-chloranyl-2-methyl-4-[2-(4-methylpiperazin-1-yl)ethoxy]phenyl]-6-(5-fluoranylfuran-2-yl)thieno[2,3-d]pyrimidin-4-yl]oxy-3-[2-[(2-methylpyrazol-3-yl)methoxy]phenyl]propanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M BisTris buffer pH 6.5, 20% PegMME5K
Resolution 2.50 Å R-free 0.237
6YBK Structure of MBP-Mcl-1 in complex with compound 4d Deposited 2020-03-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Mutation：K194A,K197A,R201A CL CHLORIDE ION × 1 OK2 (2~{R})-2-[5-[3-chloranyl-2-methyl-4-[2-(4-methylpiperazin-1-yl)ethoxy]phenyl]-6-(4-fluorophenyl)thieno[2,3-d]pyrimidin-4-yl]oxy-3-[2-(pyrazin-2-ylmethoxy)phenyl]propanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；292 K；0.1M BisTris buffer pH 6.5, 20% PegMME5K
Resolution 2.00 Å R-free 0.235
6YBL Structure of MBP-Mcl-1 in complex with compound 9m Deposited 2020-03-17 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Mutation：K194A,K197A,R201A OK5 (2~{R})-2-[5-[3-chloranyl-2-methyl-4-[2-(4-methylpiperazin-1-yl)ethoxy]phenyl]-6-(4-fluorophenyl)thieno[2,3-d]pyrimidin-4-yl]oxy-3-[2-[[2-(2-methoxyphenyl)pyrimidin-4-yl]methoxy]phenyl]propanoic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；293 K；0.1M BisTris buffer pH 6.5, 20% PegMME5K
Resolution 2.10 Å R-free 0.228
7ZNJ Structure of an ALYREF-exon junction complex hexamer Deposited 2022-04-21 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 24 PDB declaration: 30-meric
Chain D 23–392（370 aa）
Chain I 23–392（370 aa）
Chain N 23–392（370 aa）
Chain d 23–392（370 aa）
Chain i 23–392（370 aa）
Chain n 23–392（370 aa）
Not recorded MG MAGNESIUM ION × 6 ANP PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER × 6 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.9
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.40 Å
8C8F Crystal structure of the E. coli maltodextrin-binding protein Deposited 2023-01-19 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 1–396（396 aa）
Not recorded PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293.15 K；0.1 M Tris pH 7.4, 30 % PEG Smear Broad, 0.1 M NaBr and 0.1 M KSCN
Resolution 1.15 Å R-free 0.152
8ETB the crystal structure of a rationally designed zinc sensor based on maltose binding protein - Zn binding conformation Deposited 2022-10-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded ZN ZINC ION × 1 ACT ACETATE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；0.2M MgCl2 , 0.1 M Bis-Tris, pH 6.5, 25% PEG 3350.
Resolution 1.63 Å R-free 0.234
8F23 The crystal structure of a rationally designed zinc sensor based on maltose binding protein - Apo conformation Deposited 2022-11-06 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7；293 K；0.2M sodium formate, pH 7.0, 20% PEG 3350
Resolution 1.93 Å R-free 0.229
8GCR HPV16 E6-E6AP-p53 complex Deposited 2023-03-02 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric
Chain A 27–396（370 aa）
Mutation：C87S,C104S,C118S,C147S ZN ZINC ION × 3 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.38 Å
8H68 Crystal structure of Caenorhabditis elegans NMAD-1 in complex with NOG and Mg(II) Deposited 2022-10-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded TRS 2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL × 1 GLY GLYCINE × 1 OGA N-OXALYLGLYCINE × 1 MG MAGNESIUM ION × 1 EPE 4-(2-HYDROXYETHYL)-1-PIPERAZINE ETHANESULFONIC ACID × 1 PEG DI(HYDROXYETHYL)ETHER × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；289 K；0.1 M HEPES, pH 7.5, 10% (w/v) PEG 6000, 10% (v/v) MPD
Resolution 2.20 Å R-free 0.242
8SOJ Cryo-EM structure of human CST bound to POT1(ESDL)/TPP1 in the absence of telomeric ssDNA Deposited 2023-04-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 27–392（366 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.80 Å
8SOK Cryo-EM structure of human CST bound to POT1(ESDL)/TPP1 in the presence of telomeric ssDNA Deposited 2023-04-28 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: hexameric
Chain A 27–392（366 aa）
Not recorded ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.10 Å
8SQA The cryo-EM structure of the EcBAM/EspP(beta8-12) complex Deposited 2023-05-04 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric
Chain F 26–392（367 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 4.20 Å
8SVY MBP-Mcl1 in complex with ligand 10 Deposited 2023-05-17 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded EDO 1,2-ETHANEDIOL × 4 GOL GLYCEROL × 1 WUC (15P)-17-chloro-33-fluoro-12-[(2-methoxyethoxy)methyl]-5,14,22-trimethyl-28-oxa-9-thia-5,6,13,14,22-pentaazaheptacyclo[27.7.1.1~4,7~.0~11,15~.0~16,21~.0~20,24~.0~30,35~]octatriaconta-1(36),4(38),6,11(15),12,16,18,20,23,29(37),30,32,34-tridecaene-23-carboxylic acid × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 7.5；285 K；19% (w/v) PEG3350, 0.17M Mg formate
Resolution 1.47 Å R-free 0.206
8T2I Negative stain EM assembly of MYC, JAZ, and NINJA complex Deposited 2023-06-06 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain M 27–392（366 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.8
Resolution 10.40 Å
8W23 Cryo-EM structure of human tankyrase 2 SAM-PARP filament bound to compound, TDI-2804 (consensus map). Deposited 2024-02-19 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 20 PDB declaration: eicosameric
Chain A 28–392（365 aa）
Chain B 28–392（365 aa）
Chain C 28–392（365 aa）
Chain D 28–392（365 aa）
Chain E 28–392（365 aa）
Chain F 28–392（365 aa）
Chain G 28–392（365 aa）
Chain H 28–392（365 aa）
Chain I 28–392（365 aa）
Chain K 28–392（365 aa）
Chain L 28–392（365 aa）
Chain M 28–392（365 aa）
Chain N 28–392（365 aa）
Chain O 28–392（365 aa）
Chain P 28–392（365 aa）
Chain Q 28–392（365 aa）
Chain R 28–392（365 aa）
Chain S 28–392（365 aa）
Chain T 28–392（365 aa）
Chain U 28–392（365 aa）
Not recorded ZN ZINC ION × 20 A1AE4 N-{2-[4-(2-hydroxypropan-2-yl)phenyl]-4-oxo-1,4-dihydroquinazolin-7-yl}-4-methoxy-6-phenylpyridine-3-carboxamide × 20 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Sample was purified and concentrated in the above buffer but exchanged prior to vitrification to a low-salt (minimal) buffer composed of 20 millimolar HEPES pH 7.5. Sample buffer was exchanged on grid via manual side-blotting.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.28 Å
8W25 Cryo-EM structure of human tankyrase 2 SAM-PARP filament bound to compound, TDI-2804 (focused refinement map). Deposited 2024-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain D 28–392（365 aa）
Chain Q 28–392（365 aa）
Not recorded ZN ZINC ION × 2 A1AE4 N-{2-[4-(2-hydroxypropan-2-yl)phenyl]-4-oxo-1,4-dihydroquinazolin-7-yl}-4-methoxy-6-phenylpyridine-3-carboxamide × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Sample was purified and concentrated in the above buffer but exchanged prior to vitrification to a low-salt (minimal) buffer composed of 20 millimolar HEPES pH 7.5. Sample buffer was exchanged on grid via manual side-blotting.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.42 Å
8W27 Cryo-EM structure of human tankyrase 2 SAM-PARP filament bound to compound, XAV (consensus map). Deposited 2024-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 20 PDB declaration: 20-meric
Chain A 28–392（365 aa）
Chain B 28–392（365 aa）
Chain C 28–392（365 aa）
Chain D 28–392（365 aa）
Chain E 28–392（365 aa）
Chain F 28–392（365 aa）
Chain G 28–392（365 aa）
Chain H 28–392（365 aa）
Chain I 28–392（365 aa）
Chain J 28–392（365 aa）
Chain L 28–392（365 aa）
Chain M 28–392（365 aa）
Chain N 28–392（365 aa）
Chain O 28–392（365 aa）
Chain P 28–392（365 aa）
Chain Q 28–392（365 aa）
Chain R 28–392（365 aa）
Chain S 28–392（365 aa）
Chain T 28–392（365 aa）
Chain U 28–392（365 aa）
Not recorded XAV 2-[4-(trifluoromethyl)phenyl]-7,8-dihydro-5H-thiopyrano[4,3-d]pyrimidin-4-ol × 20 ZN ZINC ION × 20 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Sample was purified and concentrated in the above buffer but exchanged prior to vitrification to a low-salt (minimal) buffer composed of 20 millimolar HEPES pH 7.5. Sample buffer was exchanged on grid via manual side-blotting.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.21 Å
8W28 Cryo-EM structure of human tankyrase 2 SAM-PARP filament bound to compound, XAV (focused refinement map). Deposited 2024-02-20 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 2 PDB declaration: dimeric
Chain D 28–392（365 aa）
Chain Q 28–392（365 aa）
Not recorded XAV 2-[4-(trifluoromethyl)phenyl]-7,8-dihydro-5H-thiopyrano[4,3-d]pyrimidin-4-ol × 2 ZN ZINC ION × 2 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5；Sample was purified and concentrated in the above buffer but exchanged prior to vitrification to a low-salt (minimal) buffer composed of 20 millimolar HEPES pH 7.5. Sample buffer was exchanged on grid via manual side-blotting.
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.19 Å
8Y20 Crystal structure of the Mcl-1 in complex with A-1210477 Deposited 2024-01-25 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Mutation：E173A,N174A,K240A,K391A,K394A,R398A A1LXV A-1210477 × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；25% PEG 3350, 0.2M Magnesium Formate, 1mM Maltose
Resolution 2.23 Å R-free 0.243
9GIV Structure of the human mitochondrial pyruvate carrier inhibited by a UK5099-derivative Deposited 2024-08-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 33–392（360 aa）
Not recorded A1IL4 (2E)-2-cyano-3-[(5M)-5-(2-nitrophenyl)furan-2-yl]prop-2-enoic acid × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.65 Å
9GIW Structure of the human mitochondrial pyruvate carrier inhibited by zaprinast Deposited 2024-08-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 33–392（360 aa）
Not recorded A1IL3 5-(2-propoxyphenyl)-3,4-dihydro-[1,2,3]triazolo[4,5-d]pyrimidin-7-one × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.92 Å
9GIX Structure of the human mitochondrial pyruvate carrier in the apo-state Deposited 2024-08-19 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 33–392（360 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.65 Å
9GIY Structure of the human mitochondrial pyruvate carrier inhibited by mitoglitazone Deposited 2024-08-19 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 33–392（360 aa）
Not recorded LO7 Mitoglitazone × 1 A1IMZ Mitoglitazone (R-form) × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.79 Å
9I3P CryoEM structure of the Themis:Grb2 complex with bound ProMacrobody 256 Deposited 2025-01-23 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Other combination Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 33–392（360 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；25 mM Tris pH8, 100 mM NaCl, 2 mM DTT with added 8 mM CHAPSO for cryogrid sample preparation
cryo-EM vitrification conditions Cryogen ETHANE；Leica EM GP2, 5 s blotting time
Resolution 3.30 Å
9IAZ CryoEM structure of the Themis:Grb2 complex with bound ProMacrobody 256, local refinement Deposited 2025-02-11 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 33–392（360 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 8；25 mM Tris pH8, 100 mM NaCl, 2 mM DTT with added 8 mM CHAPSO for cryogrid sample preparation
cryo-EM vitrification conditions Cryogen ETHANE；Leica EM GP2, 5 s blotting time
Resolution 3.20 Å
9MAN Structure of Norrin in complex with human Tspan12 large extracellular loop (Tspan12 LEL) Deposited 2025-03-14 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric
Chain A 26–392（367 aa）
Chain B 26–392（367 aa）
Chain C 26–392（367 aa）
Chain D 26–392（367 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.78 Å
9ME8 Co-crystal structure of maltose binding protein (MBP)-human SENP3 fusion protein in complex with PELP1 peptide Deposited 2024-12-06 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 2 PDB declaration: dimeric
Chain A 27–384（358 aa）
Mutation：C532S NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；277 K；0.085M HEPES pH 7.5, 17-20% (v/v) PEG8000
Resolution 2.93 Å R-free 0.232
9P0X Nanodisc-embedded human TF/FVIIa/XK1 in complex with 10H10 Fab (nanodisc-subtracted) Deposited 2025-06-07 Different construct Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 7 PDB declaration: heptameric
Chain T 27–392（366 aa）
Not recorded MG MAGNESIUM ION × 4 CA CALCIUM ION × 12 BGC beta-D-glucopyranose × 1 FUC alpha-L-fucopyranose × 1 ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.70 Å
9QBJ Legobody dimer Deposited 2025-03-03 Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 8 PDB declaration: octameric
Chain I 27–384（358 aa）
Chain J 27–384（358 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.5
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.20 Å
9UYY Crystal structure of the indoleamine 2,3-dioxygenagse 2 (IDO2) complexed with L-Trp Deposited 2025-05-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded PEG DI(HYDROXYETHYL)ETHER × 1 EDO 1,2-ETHANEDIOL × 5 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 TRP TRYPTOPHAN × 1 CYN CYANIDE ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；PEG 3350, Sodium citrate tribasic dihydrate
Resolution 2.25 Å R-free 0.300
9UYZ Crystal structure of the indoleamine 2,3-dioxygenagse 2 (IDO2) complexed with 5-HT Deposited 2025-05-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded SRO SEROTONIN × 1 EDO 1,2-ETHANEDIOL × 3 PEG DI(HYDROXYETHYL)ETHER × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CYN CYANIDE ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；PEG 3350, Sodium citrate tribasic dihydrate
Resolution 2.45 Å R-free 0.264
9UZ0 Crystal structure of the indoleamine 2,3-dioxygenagse 2 (IDO2) as resting state Deposited 2025-05-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded EDO 1,2-ETHANEDIOL × 2 CIT CITRIC ACID × 1 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；PEG 3350, Sodium citrate tribasic dihydrate
Resolution 2.45 Å R-free 0.248
9UZ1 Crystal structure of the indoleamine 2,3-dioxygenagse 2 (IDO2) H143Y mutant complexed with L-Trp Deposited 2025-05-16 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Mutation：H143Y TRP TRYPTOPHAN × 1 PEG DI(HYDROXYETHYL)ETHER × 1 CIT CITRIC ACID × 1 EDO 1,2-ETHANEDIOL × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CYN CYANIDE ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；PEG 3350, Sodium citrate tribasic dihydrate
Resolution 2.35 Å R-free 0.236
9UZ2 Crystal structure of the indoleamine 2,3-dioxygenagse 2 (IDO2) complexed with Cyanide ion Deposited 2025-05-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded CIT CITRIC ACID × 1 EDO 1,2-ETHANEDIOL × 2 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CYN CYANIDE ION × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；PEG 3350, Sodium citrate tribasic dihydrate
Resolution 2.55 Å R-free 0.238
9UZ3 Crystal structure of the indoleamine 2,3-dioxygenagse 2 (IDO2) complexed with D-Trp Deposited 2025-05-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CYN CYANIDE ION × 1 DTR D-TRYPTOPHAN × 1 EDO 1,2-ETHANEDIOL × 4 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；277 K；PEG 3350, Sodium citrate tribasic dihydrate
Resolution 2.50 Å R-free 0.275
9UZ4 Crystal structure of the indoleamine 2,3-dioxygenagse 2 (IDO2) complexed with 5-methoxy-L-Trp Deposited 2025-05-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded A1A2Y 5-methoxy-L-tryptophan × 1 EDO 1,2-ETHANEDIOL × 12 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CYN CYANIDE ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；PEG 3350, Sodium citrate tribasic dihydrate
Resolution 2.50 Å R-free 0.280
9UZ5 Crystal structure of the indoleamine 2,3-dioxygenagse 2 (IDO2) complexed with 5-methyl-L-Trp Deposited 2025-05-16 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Monomer；Protein × 1 PDB declaration: monomeric
Chain A 27–392（366 aa）
Not recorded EDO 1,2-ETHANEDIOL × 5 HEM PROTOPORPHYRIN IX CONTAINING FE × 1 CYN CYANIDE ION × 1 D0Q 5-methyl-L-tryptophan × 1 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；PEG 3350, Sodium citrate tribasic dihydrate
Resolution 2.50 Å R-free 0.229
9VFI Structure of hTRPC3 solubilized with 4F peptide at 2.72 angstrom Deposited 2025-06-11 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Homooligomer；Protein × 4 PDB declaration: tetrameric
Chain A 27–392（366 aa）
Chain B 27–392（366 aa）
Chain C 27–392（366 aa）
Chain D 27–392（366 aa）
Not recorded CA CALCIUM ION × 8 ZN ZINC ION × 4 A1L5I [(2~{S})-2-[(~{E})-octadec-9-enoyl]oxy-3-oxidanyl-propyl] octadec-9-enoate × 4 ELECTRON MICROSCOPY
cryo-EM buffer pH 8
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 2.72 Å
9W3K GPR151-Legobody complex Deposited 2025-07-29 Different construct Different oligomeric state Different experimental conditions Different structure-quality metrics Assembly 1 Insufficient information Heteromer；Protein × 5 PDB declaration: pentameric
Chain C 27–394（368 aa）
Not recorded No recorded non-water small molecule ELECTRON MICROSCOPY
cryo-EM buffer pH 7.4
cryo-EM vitrification conditions Cryogen ETHANE
Resolution 3.08 Å

109 other PDB entries and 148 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name MALE_ECO57
Isoform —
PDB entities 1
Chains and sequence ranges Author chain A； PDBConstruct 7–375； UniProt 27–395

Autophagy-related protein 16-1

Homo sapiens

UniProt Q676U5

State in the Current Structure

Assembly Oligomeric State Construct Mutations and Modifications Ligands, Ions and Associated Components Method and Experimental Conditions Structure Quality
1 Insufficient information Heteromer Protein × 2 PDB declaration: dimeric（2） Consistent with protein copy count Chain B； UniProt 303–607 Not recorded Maltose/maltodextrin-binding periplasmic protein,CHLPN 76 kD protein-like × 1 （P0AEY0,A0A0H2X2S1） ELECTRON MICROSCOPY cryo-EM buffer：pH 6 cryo-EM vitrification conditions：Cryogen ETHANE-PROPANE Resolution 3.80 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB Difference from Current Entry 9H2Q Assembly / Oligomeric State Construct Mutations and Modifications Ligands, Ions and Non-polymers Method and Experimental Conditions Structure Quality
4GDK Crystal Structure of Human Atg12~Atg5 Conjugate in Complex with an N-terminal Fragment of Atg16L1 Deposited 2012-07-31 Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric
Chain C 11–43（33 aa）
Chain F 11–43（33 aa）
Not recorded NA SODIUM ION × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；PROTEIN: 10 MG/ML in 0.01M HEPES pH 7.0, 0.3 M NaCl, 0.001 M DTT; RESERVOIR: 0.1M Hepes pH7.5, 0.2 M lithium citrate, 20% PEG 3350, VAPOR DIFFUSION, HANGING DROP, temperature 293K
Resolution 2.70 Å R-free 0.236
4GDL Crystal Structure of Human Atg12~Atg5 Conjugate in Complex with an N-terminal Fragment of Atg16L1 Deposited 2012-07-31 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 3 PDB declaration: trimeric
Chain C 11–43（33 aa）
Not recorded NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 6.5；293 K；PROTEIN: 10 MG/ML in 0.01M HEPES pH 7.0, 0.3 M NaCl, 0.001 M DTT; RESERVOIR: 0.1M BICINE pH9.0, 0.2 M sodium phosphate dibasic, 18% PEG 3350, vapor diffusion, hanging drop, temperature 293K, VAPOR DIFFUSION, HANGING DROP
Resolution 2.88 Å R-free 0.254
4NAW Crystal Structure of Human ATG12~ATG5-ATG16N in complex with a fragment of ATG3 Deposited 2013-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 11–43（33 aa） Fragment：UNP residues 11-43
Not recorded SO4 SULFATE ION × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PROTEIN - 10 MG/ML in 0.01M HEPES pH 7.0, 0.15 M NaCl, 0.001 M DTT, RESERVOIR - 0.1M MES pH6.0-6.75, 0.2 M ammonium sulfate, 10-16% PEG 5000 MME, vapor diffusion, sitting drop, temperature 293K
Resolution 2.19 Å R-free 0.215
4NAW Crystal Structure of Human ATG12~ATG5-ATG16N in complex with a fragment of ATG3 Deposited 2013-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain G 11–43（33 aa） Fragment：UNP residues 11-43
Not recorded SO4 SULFATE ION × 2 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PROTEIN - 10 MG/ML in 0.01M HEPES pH 7.0, 0.15 M NaCl, 0.001 M DTT, RESERVOIR - 0.1M MES pH6.0-6.75, 0.2 M ammonium sulfate, 10-16% PEG 5000 MME, vapor diffusion, sitting drop, temperature 293K
Resolution 2.19 Å R-free 0.215
4NAW Crystal Structure of Human ATG12~ATG5-ATG16N in complex with a fragment of ATG3 Deposited 2013-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain K 11–43（33 aa） Fragment：UNP residues 11-43
Not recorded SO4 SULFATE ION × 4 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PROTEIN - 10 MG/ML in 0.01M HEPES pH 7.0, 0.15 M NaCl, 0.001 M DTT, RESERVOIR - 0.1M MES pH6.0-6.75, 0.2 M ammonium sulfate, 10-16% PEG 5000 MME, vapor diffusion, sitting drop, temperature 293K
Resolution 2.19 Å R-free 0.215
4NAW Crystal Structure of Human ATG12~ATG5-ATG16N in complex with a fragment of ATG3 Deposited 2013-10-22 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain O 11–43（33 aa） Fragment：UNP residues 11-43
Not recorded SO4 SULFATE ION × 3 NA SODIUM ION × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；293 K；PROTEIN - 10 MG/ML in 0.01M HEPES pH 7.0, 0.15 M NaCl, 0.001 M DTT, RESERVOIR - 0.1M MES pH6.0-6.75, 0.2 M ammonium sulfate, 10-16% PEG 5000 MME, vapor diffusion, sitting drop, temperature 293K
Resolution 2.19 Å R-free 0.215
4TQ0 Crystal structure of human ATG5-ATG16N69 Deposited 2014-06-10 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 1–69（69 aa） Fragment：UNP residues 1-69
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 400, MgCl2, KCl, Tris-HCl
Resolution 2.70 Å R-free 0.274
4TQ0 Crystal structure of human ATG5-ATG16N69 Deposited 2014-06-10 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 1–69（69 aa） Fragment：UNP residues 1-69
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 400, MgCl2, KCl, Tris-HCl
Resolution 2.70 Å R-free 0.274
4TQ0 Crystal structure of human ATG5-ATG16N69 Deposited 2014-06-10 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 1–69（69 aa） Fragment：UNP residues 1-69
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；293 K；PEG 400, MgCl2, KCl, Tris-HCl
Resolution 2.70 Å R-free 0.274
5D7G Structure of human ATG5 E122D-ATG16L1 complex at 3.0 Angstroms Deposited 2015-08-13 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 1–69（69 aa） Fragment：UNP residues 1-69
Chain D 1–69（69 aa） Fragment：UNP residues 1-69
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；Micro crystal: 37.5 mM MES, pH 5.2 to pH 5.8, 0.2 M sodium tartrate, and 11 to 13% polyethylene glycol 3350; Micor seeding condition:40 mM MES, pH 5.5, 0.2M sodium tartrate, 8.5% PEG3350, 10 mM DTT
Resolution 3.00 Å R-free 0.244
5D7G Structure of human ATG5 E122D-ATG16L1 complex at 3.0 Angstroms Deposited 2015-08-13 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain F 1–69（69 aa） Fragment：UNP residues 1-69
Chain H 1–69（69 aa） Fragment：UNP residues 1-69
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 5.5；277 K；Micro crystal: 37.5 mM MES, pH 5.2 to pH 5.8, 0.2 M sodium tartrate, and 11 to 13% polyethylene glycol 3350; Micor seeding condition:40 mM MES, pH 5.5, 0.2M sodium tartrate, 8.5% PEG3350, 10 mM DTT
Resolution 3.00 Å R-free 0.244
5NPV Structure of human ATG5-ATG16L1(ATG5BD) complex (I4) Deposited 2017-04-19 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 11–307（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.76；293 K；0.1 M MES pH 5.76, 0.378 M KCl, 21.7 % PEG 3350
Resolution 3.10 Å R-free 0.278
5NPV Structure of human ATG5-ATG16L1(ATG5BD) complex (I4) Deposited 2017-04-19 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 11–307（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 5.76；293 K；0.1 M MES pH 5.76, 0.378 M KCl, 21.7 % PEG 3350
Resolution 3.10 Å R-free 0.278
5NPW Structure of human ATG5-ATG16L1(ATG5BD) complex (C2) Deposited 2017-04-19 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 11–307（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4 M KCl and 18 % PEG 3350
Resolution 3.10 Å R-free 0.264
5NPW Structure of human ATG5-ATG16L1(ATG5BD) complex (C2) Deposited 2017-04-19 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 11–307（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4 M KCl and 18 % PEG 3350
Resolution 3.10 Å R-free 0.264
5NPW Structure of human ATG5-ATG16L1(ATG5BD) complex (C2) Deposited 2017-04-19 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 3 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain F 11–307（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4 M KCl and 18 % PEG 3350
Resolution 3.10 Å R-free 0.264
5NPW Structure of human ATG5-ATG16L1(ATG5BD) complex (C2) Deposited 2017-04-19 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 4 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain H 11–307（297 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；0.4 M KCl and 18 % PEG 3350
Resolution 3.10 Å R-free 0.264
5NUV Structure of the WD40-domain of human ATG16L1 Deposited 2017-05-02 Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric
Chain A 303–607（305 aa）
Mutation：E354A/K355A/Y607P BU3 (R,R)-2,3-BUTANEDIOL × 1 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION；pH 6.3；303 K；1.61 M (NH4)2SO4, 0.09 M NaCl, 0.1 M MES pH 6.3
Resolution 1.55 Å R-free 0.197
7W36 Crystal structure of human Atg5 complexed with a stapled peptide Deposited 2021-11-25 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain B 13–33（21 aa）
Non-standard monomer：Yes (specific site not provided by mmCIF) No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；293 K；20% PEG 3350, 0.2M MgCl2, 0.1M Tris-HCl pH8.5
Resolution 3.00 Å R-free 0.287
7XFR Crystal structure of WIPI2b in complex with the second site of ATG16L1 Deposited 2022-04-02 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 124–188（65 aa）
Chain D 124–188（65 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；0.1 M MES monohydrate(pH 6.5), 12% w/v Polyethylene glycol 20000
Resolution 1.76 Å R-free 0.193
8ZQG Crystal structure of WIPI3 in complex with ATG16L1 Deposited 2024-06-02 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain C 124–188（65 aa）
Chain D 124–188（65 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.8；289 K；0.02 M Citric acid, 0.08 M BIS-TRIS propane (pH 8.8); 16% w/v Polyethylene glycol 3350
Resolution 2.77 Å R-free 0.233
9J54 Crystal structure of FIP200 Claw in complex with ATG16L1 Deposited 2024-08-11 Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric
Chain B 235–247（13 aa）
Chain D 235–247（13 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 8.5；289 K；10% v/v 2-Propanol, 0.1 M BICINE (pH 8.5), 30% w/v Polyethylene glycol 1500
Resolution 1.61 Å R-free 0.216
9JF2 Crystal structure of GABARAPL1 in complex with ATG16L1 Deposited 2024-09-03 Different construct Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain D 235–247（13 aa）
Not recorded MPD (4S)-2-METHYL-2,4-PENTANEDIOL × 2 X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；0.1 M Sodium cacodylate (pH 6.5), 40% v/v MPD, 5% w/v PEG 8000
Resolution 1.76 Å R-free 0.215
9JF2 Crystal structure of GABARAPL1 in complex with ATG16L1 Deposited 2024-09-03 Different construct Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics Assembly 2 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric
Chain C 235–247（13 aa）
Not recorded No recorded non-water small molecule X-RAY DIFFRACTION
X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 6.5；289 K；0.1 M Sodium cacodylate (pH 6.5), 40% v/v MPD, 5% w/v PEG 8000
Resolution 1.76 Å R-free 0.215

13 other PDB entries and 24 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence
UniProt name A16L1_HUMAN
Isoform —
PDB entities 2
Chains and sequence ranges Author chain B； PDBConstruct 5–309； UniProt 303–607

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

SAXS scattering curve SAXS Profile

SAXS profile for 9h2q

P(r) Distance Distribution P(r) Distribution

P(r) distribution for 9h2q
Download Download
▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id9h2q
Deposition date deposition_date2024-10-14
Structure title titleStabilized complex of Chlamydia trachomatic efector CT622 in complex with human WD40 domain of ATG16L1
Keywords keywordsEffector protein, autophagy, xenophagy, infection, PROTEIN TRANSPORT; PROTEIN TRANSPORT
Experimental Method methodELECTRON MICROSCOPY
▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier28.45 Å
Radius of gyration Rg (electron density) rg_electron28.17 Å
Forward intensity I(0) i058017800.00
Molecular weight molecular_weight58324.0 kDa
Excluded volume excluded_volume72509 ų
Envelope volume envelope_volume91149 ų
Hydration-shell volume shell_volume28491 ų
Envelope diameter envelope_diameter99.0 Å
Shell Rg shell_rg33.80 Å
Envelope Rg envelope_rg28.26 Å
Shape Rg shape_rg28.19 Å
Total Rg total_rg28.68 Å
Total atoms total_atoms4102
Residues n_residues542
Spherical-harmonic order n_harmonics20
q range q_range— – 0.5000 Å−1
Data points n_points101
Shell type shell_typedirectional
Solvent electron density solvent_density0.3340 e/ų
Shell contrast contrast_shell0.0300 e/ų
CRYSOL version crysol_version4.1.3
▼

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax96.1 Å
Rg (real space) rg_real28.71 Å
Rg uncertainty (real space) rg_real_error0.82 Å
I(0) (real space) i0_real5.8020e+07
I(0) uncertainty (real space) i0_real_error9.5180e+05
Rg (reciprocal space) rg_reciprocal28.63 Å
I(0) (reciprocal space) i0_reciprocal58010000.0000
Solution quality estimate total_estimate0.8388
Solution quality rating solution_quality GOOD a GOOD solution
P(r) peaks n_peaks2
Primary peak position r_peak_primary27.4 Å
Skewness Skewness skewness0.534
Kurtosis Kurtosis kurtosis-0.281
Angular range angular_range— – 0.2800 Å−1
Current regularization parameter α current_alpha0.0000
Highest regularization parameter α highest_alpha16160000.0000
Real-space data points n_real_points57
GNOM version gnom_version4.1.3
Quality Criteria quality_criteria AN1: 0.000; Oscil: 0.769; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.823; Smooth: 0.771
▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (2)

▶

8. Citations (2)

▶

9. Files and Curves (10)
