9uz2

Crystal structure of the indoleamine 2,3-dioxygenagse 2 (IDO2) complexed with Cyanide ion

Method: X-RAY DIFFRACTION D_max: 107.3 Å Quality: REASONABLE

SAXS Profile

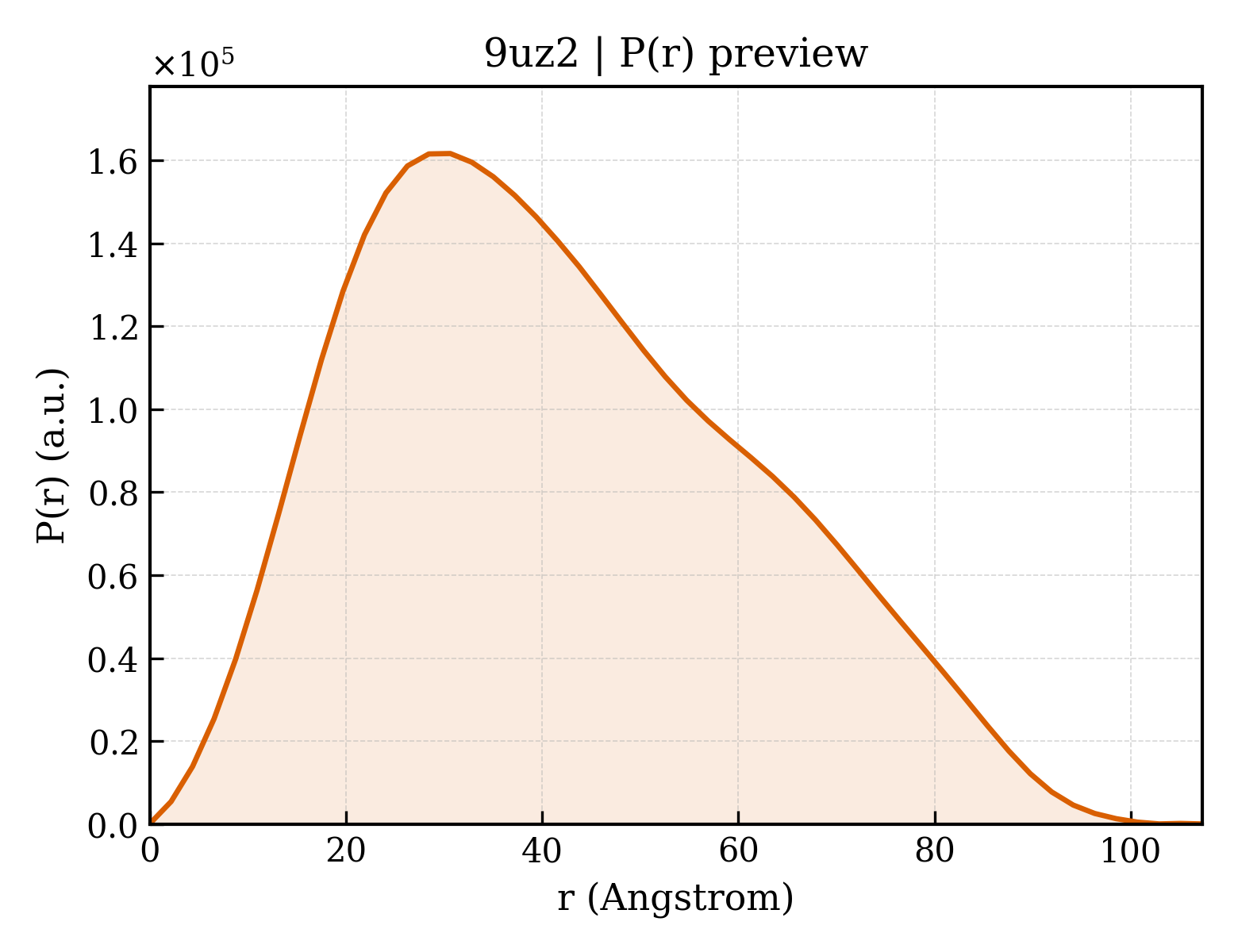

P(r) Distribution

▼

1. Structure Basics

entry_id	9uz2
deposition_date	2025-05-16
last_revision	2026-04-08
title	Crystal structure of the indoleamine 2,3-dioxygenagse 2 (IDO2) complexed with Cyanide ion
keywords	HEM protein, Complex, OXIDOREDUCTASE; OXIDOREDUCTASE
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	32.48 Å
rg_electron	32.17 Å
i0	102144000.00
molecular_weight	83497.0 kDa
excluded_volume	105660 Å³
envelope_volume	129100 Å³
shell_volume	34506 Å³
envelope_diameter	111.6 Å
shell_rg	37.87 Å
envelope_rg	31.92 Å
shape_rg	32.16 Å
total_rg	32.71 Å
total_atoms	5895
n_residues	742
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	107.3 Å
rg_real	32.65 Å
rg_real_error	0.92 Å
i0_real	1.0210e+08
i0_real_error	1.6260e+06
rg_reciprocal	32.58 Å
i0_reciprocal	102100000.0000
total_estimate	0.6616
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	30.6 Å
skewness	0.399
kurtosis	-0.587
angular_range	— – 0.2450 Å⁻¹
current_alpha	0.0000
highest_alpha	41320000.0000
n_real_points	50
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.835; Stabil: 1.000; Sysdev: 0.096; Positv: 1.000; Valcen: 0.893; Smooth: 0.911

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (8)

Entity 1 polymer

description	Maltose/maltodextrin-binding periplasmic protein,Indoleamine 2,3-dioxygenase 2
formula_weight	86825.9 kDa
ec_number	1.13.11.-
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	6071

MGSSHHHHHHENLYFQGMKIEEGKLVIWINGDKGYNGLAEVGKKFEKDTGIKVTVEHPDKLEEKFPQVAATGDGPDIIFWAHDRFGGYAQSGLLAEITPDKAFQDKLYPFTWDAVRYNGKLIAYPIAVEALSLIYNKDLLPNPPKTWEEIPALDKELKAKGKSALMFNLQEPYFTWPLIAADGGYAFKYENGKYDIKDVGVDNAGAKAGLTFLVDLIKNKHMNADTDYSIAEAAFNKGETAMTINGPWAWSNIDTSKVNYGVTVLPTFKGQPSKPFVGVLSAGINAASPNKELAKEFLENYLLTDEGLEAVNKDKPLGAVALKSYEEELVKDPRIAATMENAQKGEIMPNIPQMSAFWYAVRTAVINAASGRQTVDEALKDAQTTAVPLSLESYHISEEYGFLLPDSLKELPDHYRPWMEIANKLPQLIDAHQLQAHVDKMPLLSCQFLKGHREQRLAHLVLSFLTMGYVWQEGEAQPAEVLPRNLALPFVEVSRNLGLPPILVHSDLVLTNWTKKDPDGFLEIGNLETIISFPGGESLHGFILVTALVEKEAVPGIKALVQATNAILQPNQEALLQALQRLRLSIQDITKTLGQMHDYVDPDIFYAGIRIFLSGWKDNPAMPAGLMYEGVSQEPLKYSGGSAAQSTVLHAFDEFLGIRHSKESGDFLYRMRDYMPPSHKAFIEDIHSAPSLRDYILSSGQDHLLTAYNQCVQALAELRSYHITMVTKYLITAAAKAKHGKPNHLPGPPQALKDRGTGGTAVMSFLKSVRDKTLESILHPRG

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Escherichia coli BL21(DE3)

Entity 2 branched

description	alpha-D-glucopyranose-(1-4)-alpha-D-glucopyranose
formula_weight	342.3 kDa
src_method	man
entity_count	1

Entity 3 non-polymer

description	CITRIC ACID
formula_weight	192.1 kDa
src_method	syn
entity_count	1

Entity 4 non-polymer

description	1,2-ETHANEDIOL
formula_weight	62.1 kDa
src_method	syn
entity_count	2

Entity 5 non-polymer

description	PROTOPORPHYRIN IX CONTAINING FE
formula_weight	616.5 kDa
src_method	syn
entity_count	1

Entity 6 non-polymer

description	CYANIDE ION
formula_weight	26.0 kDa
src_method	syn
entity_count	1

Entity 7 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

Entity 8 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	155

▶

6. Citations (1)

▶

length_a	197.505 Å
length_b	197.505 Å
length_c	93.634 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	120.00 °
z_pdb	6

space_group	P 31 2 1
int_tables_number	152
crystal_system	—

resolution	2.550 Å
resolution_low	48.700 Å
r_factor	0.2067
r_work	0.2051
r_free	0.2378
