9jt8

Chito oligosaccharide deacetylase from vibrio campbellii (VhCOD) in complex with Triacetyl-Chitotriose (GlcNAc)3

Method: X-RAY DIFFRACTION D_max: 119.4 Å Quality: GOOD

SAXS 散射曲线 SAXS Profile

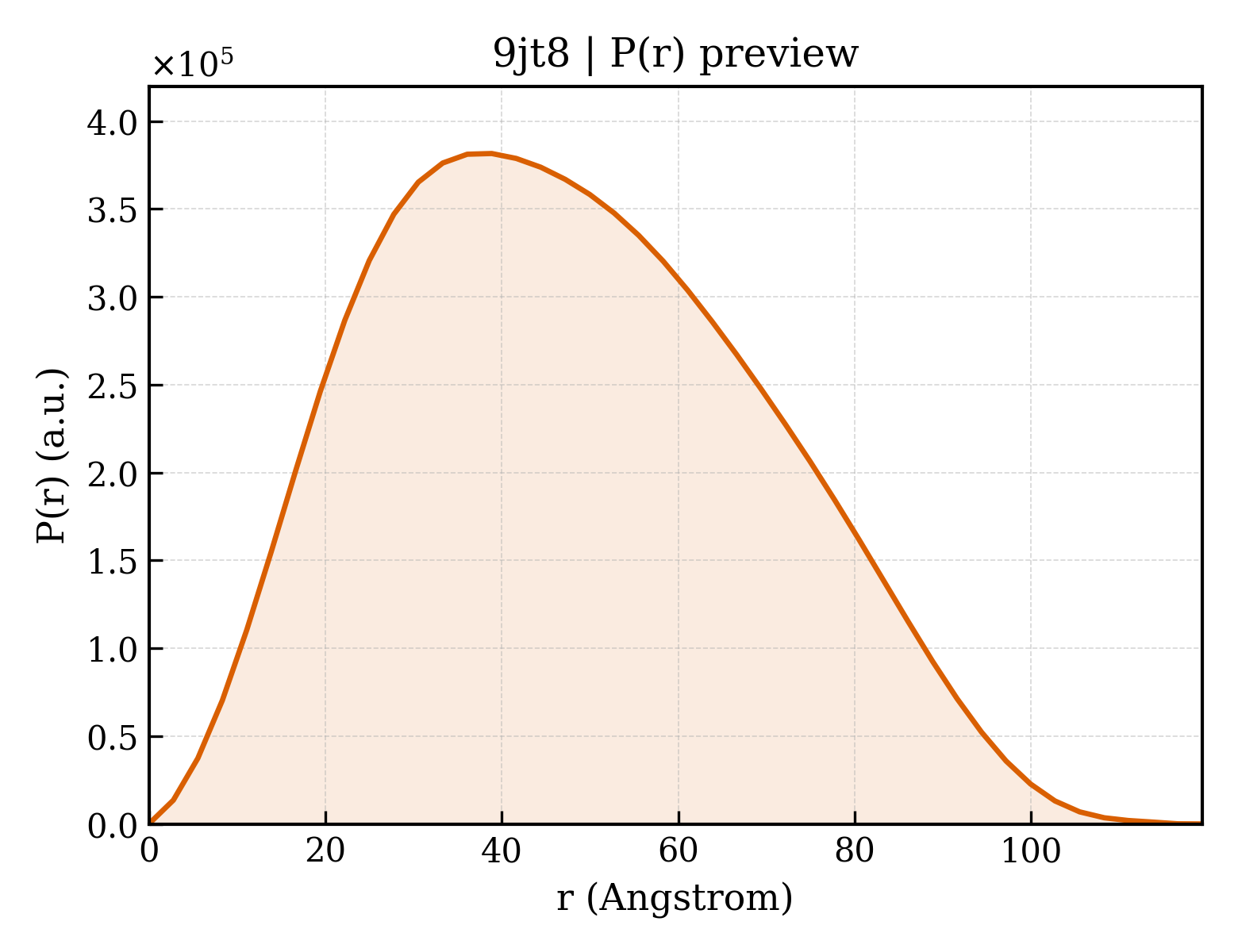

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	9jt8
沉积日期 deposition_date	2024-10-03
结构标题 title	Chito oligosaccharide deacetylase from vibrio campbellii (VhCOD) in complex with Triacetyl-Chitotriose (GlcNAc)3
关键词 keywords	Vibrio campbellii, Chito oligosaccharide deacetylase, Deacetylase Enzyme, CE4 family member, HYDROLASE; HYDROLASE
实验方法 method	X-RAY DIFFRACTION

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	37.00 Å
回转半径 Rg (电子) rg_electron	36.72 Å
零角强度 I(0) i0	286493000.00
分子量 molecular_weight	134860.0 kDa
排除体积 excluded_volume	167180 Å³
包络体积 envelope_volume	209860 Å³
水化壳体积 shell_volume	48203 Å³
包络直径 envelope_diameter	121.7 Å
壳层 Rg shell_rg	42.41 Å
包络 Rg envelope_rg	36.09 Å
形状 Rg shape_rg	36.69 Å
总 Rg total_rg	37.17 Å
总原子数 total_atoms	9530
残基数 n_residues	1211
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	119.4 Å
Rg (实空间) rg_real	37.00 Å
Rg 误差 (实空间) rg_real_error	1.00 Å
I(0) (实空间) i0_real	2.8650e+08
I(0) 误差 (实空间) i0_real_error	4.9090e+06
Rg (倒空间) rg_reciprocal	37.00 Å
I(0) (倒空间) i0_reciprocal	286500000.0000
解质量估计 total_estimate	0.8984
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	38.9 Å
偏度 Skewness skewness	0.262
峰度 Kurtosis kurtosis	-0.637
角度范围 angular_range	— – 0.2150 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	57340000.0000
实空间数据点数 n_real_points	44
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.932; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.964; Smooth: 0.914

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (4)

Entity 1 polymer

描述 description	NodB homology domain-containing protein
分子量 formula_weight	44522.9 kDa
来源方法 src_method	man
拷贝数 entity_count	3

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A,B,C
原子数 atom_count	9537

QTAPKGTIYLTFDDGPINASIDVINVLNEQGVKGTFYFNAWHLDGIGDENEDRALEALKLALDTGHVVANHSYAHMVHNCVDEFGPTSGAECNATGDHQINAYQDPVYDASTFADNLVVFERYLPNINSYPNYFGEELARLPYTNGWRITKDFKADGLCATSDDLKPWEPGYVCDLDNPSNSVKASIEVQNILANKGYQTHGWDVDWSPENWGIPMPANSLTEAEAFLGYVDAALNSCAPTTINPINSKAHGFPCGTPLHADKVVVLTHEFLYEDGKRGMGATQNLPKLAKFLRIAKEAGYVFDTIDNYTPVWQVGNAYAAGDYVTHSGTVYKAVTAHIAQQDWAPSSTSSLWTNADPATNWTLNVSYEAGDVVTYQGLRYLVNVPHVSQADWTPNTQNTLFTAL

来源 Source

来源生物 organism	Vibrio campbellii ATCC BAA-1116
NCBI 分类编号 ncbi_taxonomy_id	2902295
宿主生物 host_organism	Escherichia coli M15

Entity 2 branched

描述 description	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-amino-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
分子量 formula_weight	585.6 kDa
来源方法 src_method	man
拷贝数 entity_count	3

Entity 3 non-polymer

描述 description	ZINC ION
分子量 formula_weight	65.4 kDa
来源方法 src_method	syn
拷贝数 entity_count	3

Entity 4 water

描述 description	water
分子量 formula_weight	18.0 kDa
来源方法 src_method	nat
拷贝数 entity_count	7

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	107.881 Å
晶胞边长 b length_b	107.881 Å
晶胞边长 c length_c	260.731 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	120.00 °
晶胞分子数 Z z_pdb	18

空间群 space_group	P 31 1 2
空间群编号 int_tables_number	151
晶系 crystal_system	—

分辨率 resolution	2.850 Å
最低分辨率 resolution_low	29.240 Å
R 因子 r_factor	0.1847
R_work r_work	0.1818
R_free r_free	0.2392
