SAXSdb — 9jzk

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoprotein

Borna disease virus 1

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 5	No other associated polymer	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	NCAP_BDV1
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 24–393； UniProt 1–370 Author chain B； PDBConstruct 24–393； UniProt 1–370 Author chain C； PDBConstruct 24–393； UniProt 1–370 Author chain D； PDBConstruct 24–393； UniProt 1–370 Author chain E； PDBConstruct 24–393； UniProt 1–370

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9jzk
Deposition date deposition_date	2024-10-14
Structure title title	Pentameric complex of the Borna disease virus 1 nucleoprotein
Keywords keywords	nucleoprotein, complex, VIRAL PROTEIN; VIRAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9jzk__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

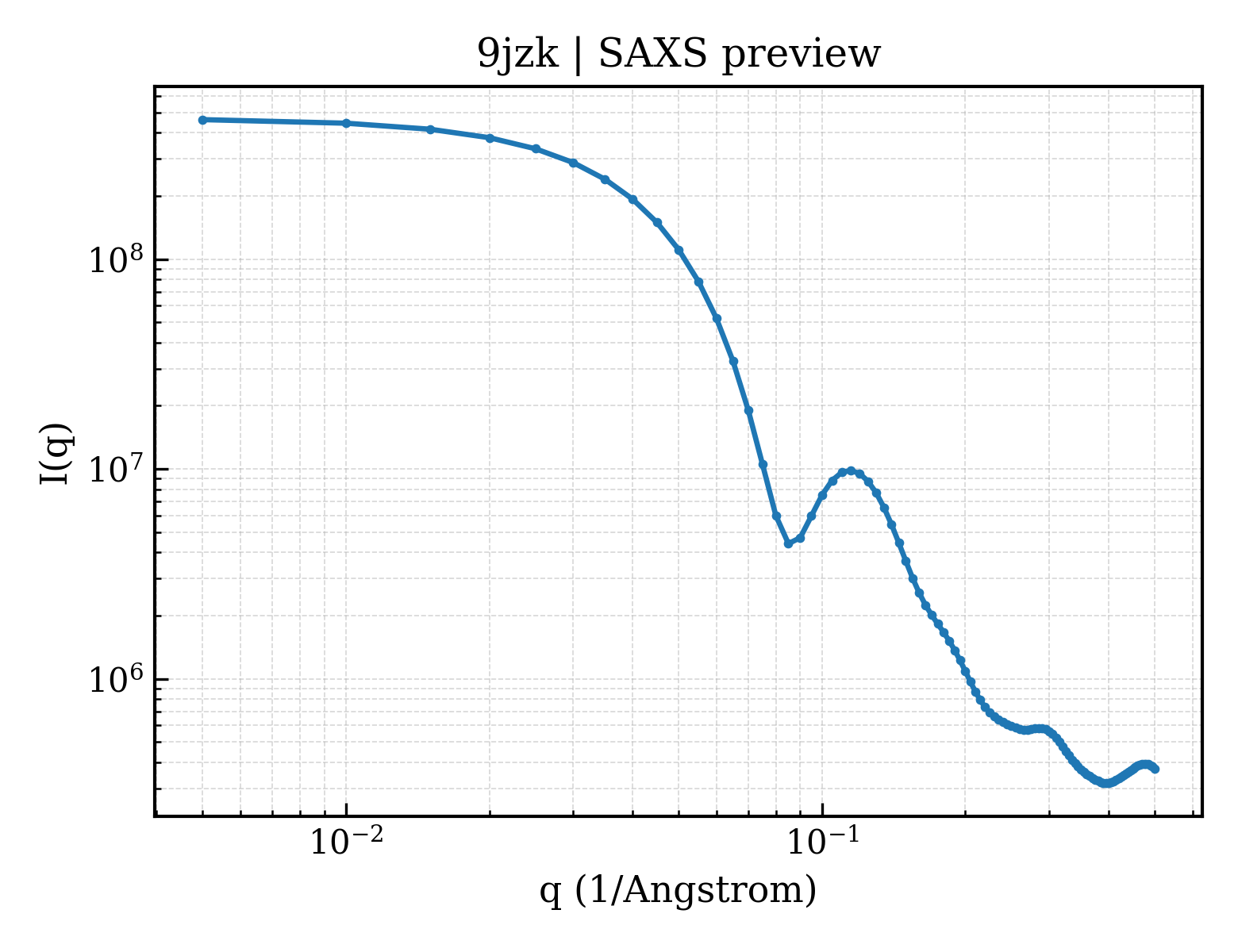

9jzk__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

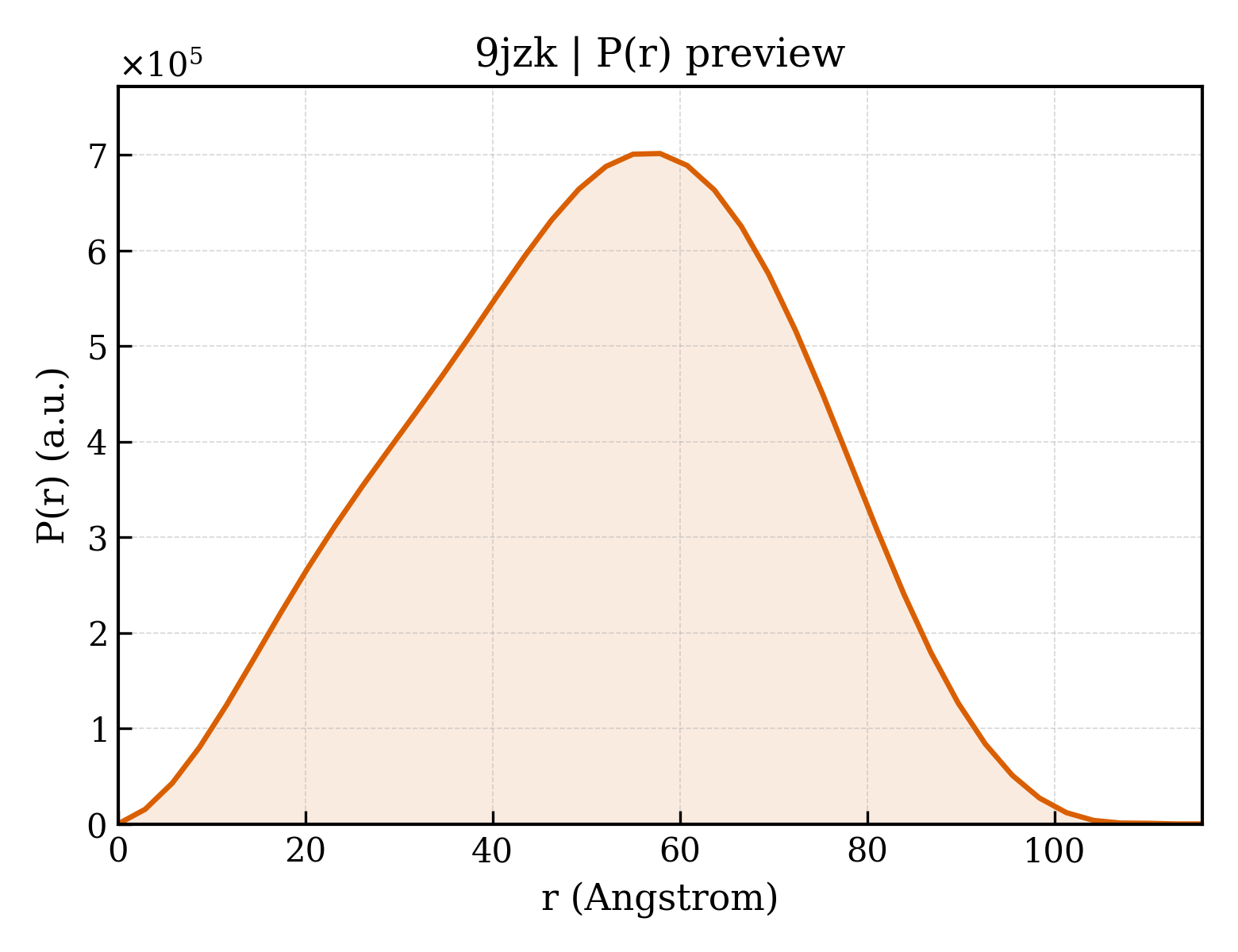

9jzk__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	39.94 Å
Rg (electron density)	39.01 Å
Total Rg	39.51 Å
Atom count	12633
Residues	1622
Excluded volume	226350 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9jzk__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.840 Å
Low-resolution limit resolution_low	3.840 Å
R factor r_factor	0.2943
R_work r_work	0.2943
R_free r_free	—

Resolution resolution	3.84 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	141710

Description description	Nucleoprotein
Molecular weight formula_weight	43576.8 kDa
Source method src_method	man
Copy count entity_count	5

Pentameric complex of the Borna disease virus 1 nucleoprotein

1. Protein Identity and Related Structures Protein Identity & Related Structures

Nucleoprotein

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

9jzk__assembly_1__model_1

9jzk__assembly_1__model_1 | I(q)

9jzk__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

冷冻电镜 EM 3D

5. Entities and Polymers Entities & Polymers (1)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

7. Citations (1)

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,A,B,C,E
Atom count atom_count	12633

Source organism organism	Borna disease virus 1
NCBI taxonomy ID ncbi_taxonomy_id	1714621
Host organism host_organism	Escherichia coli
