9kn8

Crystal structure of Horse spleen L-ferritin mutant (E53F/E56F/E57F/R59F/E60F/E63F) with Coumarin 153

Method: X-RAY DIFFRACTION

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Ferritin light chain

Equus caballus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 24	CADMIUM ION × 120 SULFATE ION × 24 Coumarin 153 × 24 1,2-ETHANEDIOL × 72 CHLORIDE ION × 24 water × 24	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	FRIL_HORSE
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–174； UniProt 2–175

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9kn8
Deposition date deposition_date	2024-11-18
Structure title title	Crystal structure of Horse spleen L-ferritin mutant (E53F/E56F/E57F/R59F/E60F/E63F) with Coumarin 153
Keywords keywords	24mer cage, Phenyl Alanine mutant, Coumarin 153, METAL BINDING PROTEIN; METAL BINDING PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9kn8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9kn8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

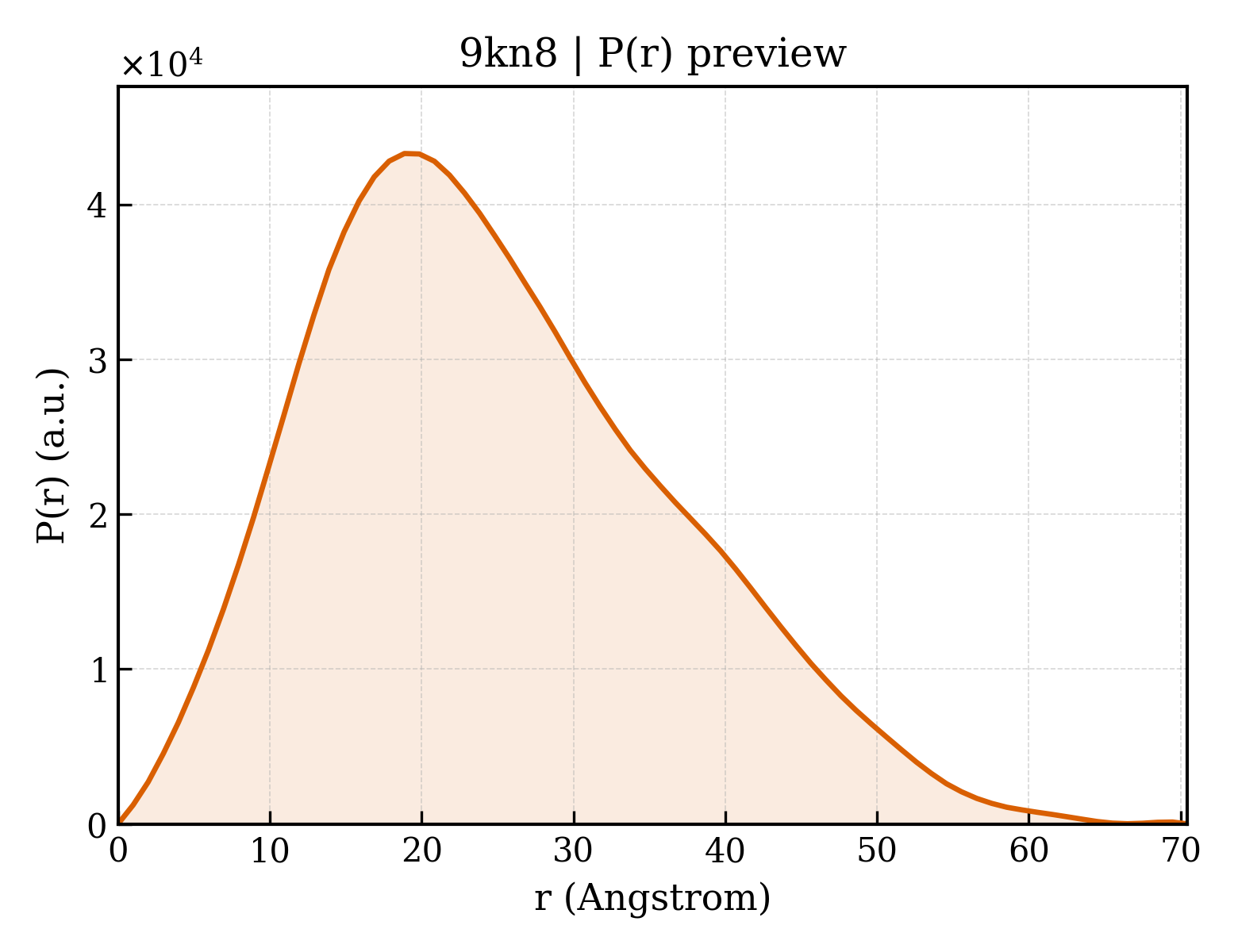

9kn8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	54.06 Å
Rg (electron density)	52.79 Å
Total Rg	53.36 Å
Atom count	34420
Residues	4176
Excluded volume	613500 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9kn8__assembly_1__model_1`	24-meric （24）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (7)

Entity 1 Entity 1 polymer

Description description	Ferritin light chain
Molecular weight formula_weight	19952.7 kDa
Mutation mutation	E53F/E56F/E57F/R59F/E60F/E63F
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	1692

SSQIRQNYSTEVEAAVNRLVNLYLRASYTYLSLGFYFDRDDVALEGVCHFFRFLAFFKFFGAFRLLKMQNQRGGRALFQDLQKPSQDEWGTTLDAMKAAIVLEKSLNQALLDLHALGSAQADPHLCDFLESHFLDEEVKLIKKMGDHLTNIQRLVGSQAGLGEYLFERLTLKHD

Source Source

Source organism organism	Equus caballus
Common name common_name	horse
NCBI taxonomy ID ncbi_taxonomy_id	9796
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CADMIUM ION
Molecular weight formula_weight	112.4 kDa
Source method src_method	syn
Copy count entity_count	5

Entity 3 Entity 3 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 non-polymer

Description description	Coumarin 153
Molecular weight formula_weight	309.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 5 Entity 5 non-polymer

Description description	1,2-ETHANEDIOL
Molecular weight formula_weight	62.1 kDa
Source method src_method	syn
Copy count entity_count	3

Entity 6 Entity 6 non-polymer

Description description	CHLORIDE ION
Molecular weight formula_weight	35.5 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 7 Entity 7 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	197

▶

Unit-cell length a length_a	181.158 Å
Unit-cell length b length_b	181.158 Å
Unit-cell length c length_c	181.158 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	96

Space group space_group	F 4 3 2
Space-group number int_tables_number	209
Crystal system crystal_system	—

Resolution resolution	1.640 Å
Low-resolution limit resolution_low	18.210 Å
R factor r_factor	0.1933
R_work r_work	0.1925
R_free r_free	0.2082
