SAXSdb — 9knv

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

RNA-directed RNA polymerase L

Measles virus strain Ichinose-B95a

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	Phosphoprotein × 3 （Q9WMB4） ZINC ION × 2 2-methyl-~{N}-(4-piperidin-1-ylsulfonylphenyl)-5-(trifluoromethyl)pyrazole-3-carboxamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	L_MEASC
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–2183； UniProt 1–2183

Phosphoprotein

Measles virus strain Ichinose-B95a

UniProt Q9WMB4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 4	RNA-directed RNA polymerase L × 1 （Q9WMB3） ZINC ION × 2 2-methyl-~{N}-(4-piperidin-1-ylsulfonylphenyl)-5-(trifluoromethyl)pyrazole-3-carboxamide × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	PHOSP_MEASC
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain B； PDBConstruct 1–507； UniProt 1–507 Author chain C； PDBConstruct 1–507； UniProt 1–507 Author chain D； PDBConstruct 1–507； UniProt 1–507

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9knv
Deposition date deposition_date	2024-11-19
Structure title title	AS-136A-bound measles virus L-P complex
Keywords keywords	Complex, Transcription, AS-136A, Measles virus, L-P complex, polymerase complex; TRANSCRIPTION
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9knv__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

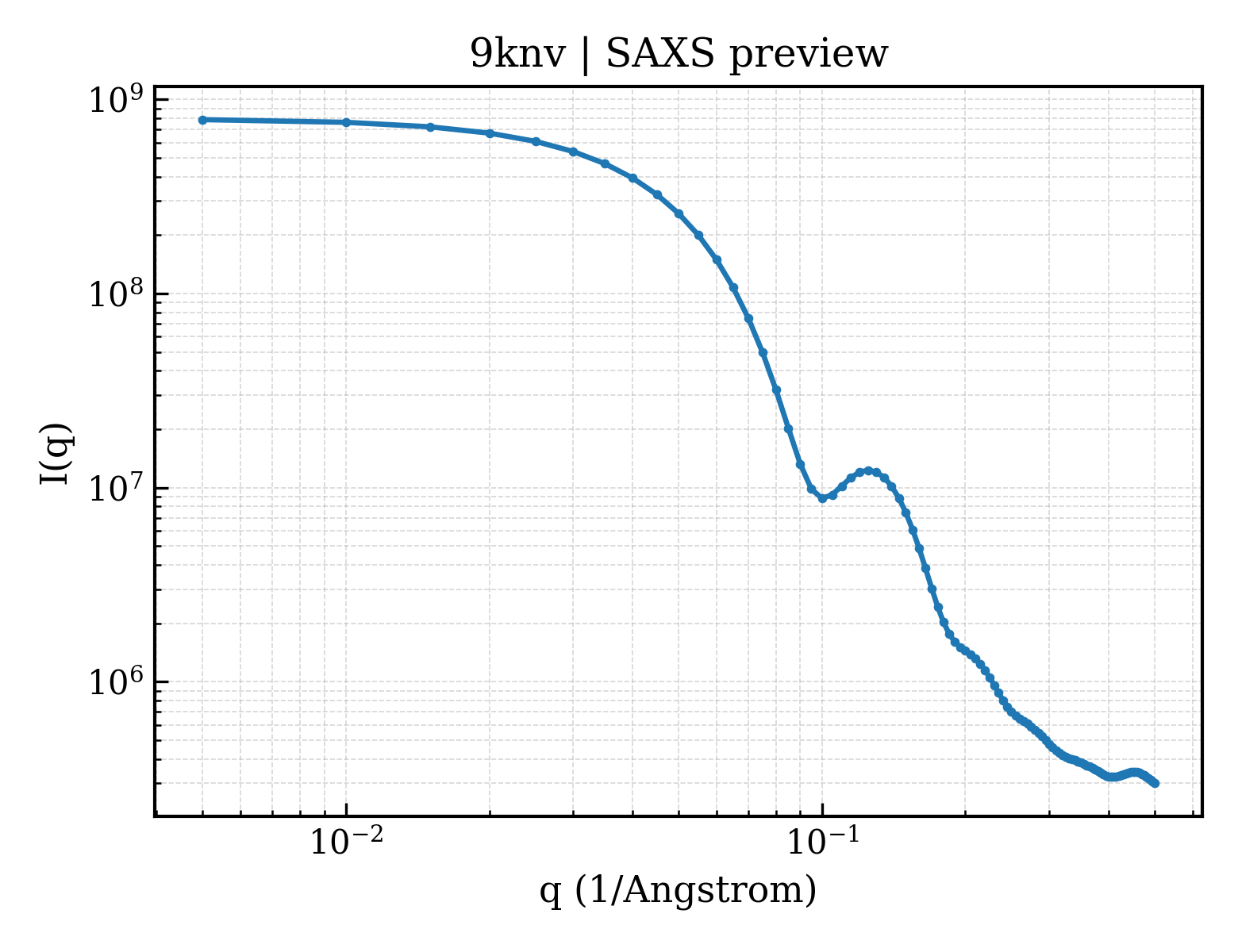

9knv__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

9knv__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.08 Å
Rg (electron density)	34.96 Å
Total Rg	35.66 Å
Atom count	11528
Residues	1438
Excluded volume	206340 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9knv__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	RNA-directed RNA polymerase L
Molecular weight formula_weight	248057.0 kDa
EC 编号 ec_number	2.7.7.48,3.6.1.-,2.7.7.88,2.1.1.375
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	11528

MDSLSVNQILYPEVHLDSPIVTNKIVAILEYARVPHAYSLEDPTLCQNIKHRLKNGFSNQMIINNVEVGNVIKSKLRSYPAHSHIPYPNCNQDLFNIEDKESTRKIRELLKKGNSLYSKVSDKVFQCLRDTNSRLGLGSELREDIKEKIINLGVYMHSSQWFEPFLFWFTVKTEMRSVIKSQTHTCHRRRHTPVFFTGSSVELLISRDLVAIISKESQHVYYLTFELVLMYCDVIEGRLMTETAMTIDARYAELLGRVRYMWKLIDGFFPALGNPTYQIVAMLEPLSLAYLQLRDITVELRGAFLNHCFTEIHDVLDQNGFSDEGTYHELIEALDYIFITDDIHLTGEIFSFFRSFGHPRLEAVTAAENVRKYMNQPKVIVYETLMKGHAIFCGIIINGYRDRHGGSWPPLTLPLHAADTIRNAQASGEGLTHEQCVDNWKSFAGVRFGCFMPLSLDSDLTMYLKDKALAALQREWDSVYPKEFLRYDPPKGTGSRRLVDVFLNDSSFDPYDMIMYVVSGAYLHDPEFNLSYSLKEKEIKETGRLFAKMTYKMRACQVIAENLISNGIGKYFKDNGMAKDEHDLTKALHTLAVSGVPKDLKESHRGGPVLKTYSRSPVHTSTRNVKAEKGFVGFPHVIRQNQDTDHPENIETYETVSAFITTDLKKYCLNWRYETISLFAQRLNEIYGLPSFFQWLHKRLETSVLYVSDPHCPPDLDAHVPLCKVPNDQIFIKYPMGGIEGYCQKLWTISTIPYLYLAAYESGVRIASLVQGDNQTIAVTKRVPSTWPYNLKKREAARVTRDYFVILRQRLHDIGHHLKANETIVSSHFFVYSKGIYYDGLLVSQSLKSIARCVFWSETIVDETRAACSNIATTMAKSIERGYDRYLAYSLNVLKVIQQILISLGFTINSTMTRDVVIPLLTNNDLLIRMALLPAPIGGMNYLNMSRLFVRNIGDPVTSSIADLKRMILASLMPEETLHQVMTQQPGDSSFLDWASDPYSANLVCVQSITRLLKNITARFVLIHSPNPMLKGLFHDDSKEEDERLAAFLMDRHIIVPRAAHEILDHSVTGARESIAGMLDTTKGLIRASMRKGGLTSRVITRLSNYDYEQFRAGMVLLTGRKRNVLIDKESCSVQLARALRSHMWARLARGRPIYGLEVPDVLESMRGHLIRRHETCVICECGSVNYGWFFVPSGCQLDDIDKETSSLRVPYIGSTTDERTDMKLAFVRAPSRSLRSAVRIATVYSWAYGDDDSSWNEAWLLARQRANVSLEELRVITPISTSTNLAHRLRDRSTQVKYSGTSLVRVARYTTISNDNLSFVISDKKVDTNFIYQQGMLLGLGVLETLFRLEKDTGSSNTVLHLHVETDCCVIPMIDHPRIPSSRKLELRAELCTNPLIYDNAPLIDRDATRLYTQSHRRHLVEFVTWSTPQLYHILAKSTALSMIDLVTKFEKDHMNEISALIGDDDINSFITEFLLIEPRLFTIYLGQCAAINWAFDVHYHRPSGKYQMGELLSSFLSRMSKGVFKVLVNALSHPKIYKKFWHCGIIEPIHGPSLDAQNLHTTVCNMVYTCYMTYLDLLLNEELEEFTFLLCESDEDVVPDRFDNIQAKHLCVLADLYCQPGTCPPIRGLRPVEKCAVLTDHIKAEARLSPAGSSWNINPIIVDHYSCSLTYLRRGSIKQIRLRVDPGFIFDALAEVNVSQPKVGSNNISNMSIKDFRPPHDDVAKLLKDINTSKHNLPISGGSLANYEIHAFRRIGLNSSACYKAVEISTLIRRCLEPGEDGLFLGEGSGSMLITYKEILKLNKCFYNSGVSANSRSGQRELAPYPSEVGLVEHRMGVGNIVKVLFNGRPEVTWVGSIDCFNFIVSNIPTSSVGFIHSDIETLPNKDTIEKLEELAAILSMALLLGKIGSILVIKLMPFSGDFVQGFISYVGSHYREVNLVYPRYSNFISTESYLVMTDLKANRLMNPEKIKQQIIESSVRTSPGLIGHILSIKQLSCIQAIVGGAVSRGDINPILKKLTPIEQVLISCGLAINGPKLCKELIHHDVASGQDGLLNSILILYRELARFKDNQRSQQGMFHAYPVLVSSRQRELVSRITRKFWGHILLYSGNRKLINRFIQNLKSGYLVLDLHQNIFVKNLSKSEKQIIMTGGLKREWVFKVTVKETKEWYKLVGYSALIKD

Source Source

Source organism organism	Measles virus strain Ichinose-B95a
NCBI taxonomy ID ncbi_taxonomy_id	645098
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 polymer

Description description	Phosphoprotein
Molecular weight formula_weight	53961.1 kDa
Source method src_method	man
Copy count entity_count	3

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B,D,C

MAEEQARHVKNGLECIRALKAEPIGSLAVEEAMAAWSEISDNPGQDRATCKEEEAGSSGLSKPCLSAIGSTEGGAPRIRGQGSGESDDDAETLGIPSRNLQASSTGLQCYHVYDHSGEAVKGIQDADSIMVQSGLDGDSTLSGGDDESENSDVDIGEPDTEGYAITDRGSAPISMGFRASDVETAEGGEIHELLKLQSRGNNFPKLGKTLNVPPPPNPSRASTSETPIKKGTDARLASFGTEIASLLTGGATQCARKSPSEPSGPGAPAGNVPECVSNAALIQEWTPESGTTISPRSQNNEEGGDYYDDELFSDVQDIKTALAKIHEDNQKIISKLESLLLLKGEVESIKKQINRQNISISTLEGHLSSIMIAIPGLGKDPNDPTADVELNPDLKPIIGRDSGRALAEVLKKPVASRQLQGMTNGRTSSRGQLLKEFQLKPIGKKVSSAVGFVPDTGPASRSVIRSIIKSSRLEEDRKRYLMTLLDDIKGANDLAKFHQMLMKIIMK

Source Source

Source organism organism	Measles virus strain Ichinose-B95a
NCBI taxonomy ID ncbi_taxonomy_id	645098
Host organism host_organism	Trichoplusia ni

Entity 3 Entity 3 non-polymer

Description description	ZINC ION
Molecular weight formula_weight	65.4 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 4 Entity 4 non-polymer

Description description	2-methyl-~{N}-(4-piperidin-1-ylsulfonylphenyl)-5-(trifluoromethyl)pyrazole-3-carboxamide
Molecular weight formula_weight	416.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.30 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	126133
