SAXSdb — 9kyu

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Beta-arrestin-1

Rattus norvegicus

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain A； UniProt 1–418 Chain D； UniProt 1–418	Not recorded	C5aR1 phosphopeptide × 2 （P30993） Fab30 Heavy Chain × 2 Fab30 Light Chain × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.72 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9KYU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
4JQI Structure of active beta-arrestin1 bound to a G protein-coupled receptor phosphopeptide Deposited 2013-03-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 2 PDB declaration: dimeric	Chain A 2–393（392 aa）	Not recorded	CL CHLORIDE ION × 1 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；17% PEG 3350, 0.1 M HEPES, 0.2 M L-proline , pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.247
4JQI Structure of active beta-arrestin1 bound to a G protein-coupled receptor phosphopeptide Deposited 2013-03-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 3 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 2–393（392 aa）	Not recorded	CL CHLORIDE ION × 2 EDO 1,2-ETHANEDIOL × 6 PRO PROLINE × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, HANGING DROP；pH 7.5；293 K；17% PEG 3350, 0.1 M HEPES, 0.2 M L-proline , pH 7.5, VAPOR DIFFUSION, HANGING DROP, temperature 293K	Resolution 2.60 Å R-free 0.247
6KL7 Beta-arrestin 1 mutant S13D/T275D Deposited 2019-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–418（418 aa）	Mutation：S13D, T275D	BA BARIUM ION × 3 EDO 1,2-ETHANEDIOL × 1	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；0.05 M HEPES 7.5, 70 mM BaCl2, 9% PEG 3550	Resolution 2.79 Å R-free 0.274
6KL7 Beta-arrestin 1 mutant S13D/T275D Deposited 2019-07-29	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–418（418 aa）	Mutation：S13D, T275D	BA BARIUM ION × 2	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；pH 7.5；295 K；0.05 M HEPES 7.5, 70 mM BaCl2, 9% PEG 3550	Resolution 2.79 Å R-free 0.274
6U1N GPCR-Beta arrestin structure in lipid bilayer Deposited 2019-08-16	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 4 PDB declaration: tetrameric	Chain C 2–393（392 aa）	Not recorded	2CU 3-amino-5-chloro-N-cyclopropyl-4-methyl-6-[2-(4-methylpiperazin-1-yl)-2-oxoethoxy]thieno[2,3-b]pyridine-2-carboxamide × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 4.00 Å
8GO8 Structure of beta-arrestin1 in complex with a phosphopeptide corresponding to the human C5a anaphylatoxin chemotactic receptor 1, C5aR1 Deposited 2022-08-24	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–418（418 aa） Chain B 1–418（418 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 3 seconds before plunging.	Resolution 3.41 Å
8GP3 Structure of beta-arrestin1 in complex with a phosphopeptide corresponding to the human C-X-C chemokine receptor type 4, CXCR4 Deposited 2022-08-25	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–418（418 aa） Chain B 1–418（418 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 3 seconds before plunging.	Resolution 4.80 Å
8HST The structure of rat beta-arrestin1 Deposited 2022-12-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain A 1–394（394 aa）	Mutation：C59V,C125S,C140S,C150V,C242V,C251V,C269S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；5% (w/v) PEG 8000, 100mM Imidazole/ Hydrochloric acid pH 8.0, 100mM Calcium acetate	Resolution 2.66 Å R-free 0.248
8HST The structure of rat beta-arrestin1 Deposited 2022-12-20	Different construct Different mutation/modification Different oligomeric state Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 2 Protein monomer Monomer；Protein × 1 PDB declaration: monomeric	Chain B 1–394（394 aa）	Mutation：C59V,C125S,C140S,C150V,C242V,C251V,C269S	No recorded non-water small molecule	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；5% (w/v) PEG 8000, 100mM Imidazole/ Hydrochloric acid pH 8.0, 100mM Calcium acetate	Resolution 2.66 Å R-free 0.248
8HSV The structure of rat beta-arrestin1 in complex with a rat Mdm2 peptide Deposited 2022-12-20	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental method Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 4 PDB declaration: tetrameric	Chain A 1–394（394 aa） Chain B 1–394（394 aa）	Mutation：C59V,C125S,C140S,C150V,C242V,C251V,C269S Mutation：C59V,C125S,C140S,C150V,C242V,C251V,C269S	SO4 SULFATE ION × 5	X-RAY DIFFRACTION X-ray crystallization conditions VAPOR DIFFUSION, SITTING DROP；289 K；1M ammonium sulfate, 0.1M HEPES pH 9.5, 5mM n-dodecyl-b-iminodipropionic acid, monosodium salt	Resolution 3.00 Å R-free 0.208
8I0N Structure of beta-arrestin1 in complex with a phosphopeptide corresponding to the human C5a anaphylatoxin chemotactic receptor 1, C5aR1 (Local refine) Deposited 2023-01-11	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–418（418 aa） Chain B 1–418（418 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 3 seconds before plunging.	Resolution 3.26 Å
8I0Q Structure of beta-arrestin1 in complex with a phosphopeptide corresponding to the human C-X-C chemokine receptor type 4, CXCR4 (Local refine) Deposited 2023-01-11	Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–418（418 aa） Chain B 1–418（418 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE；Blotted for 3 seconds before plunging.	Resolution 4.45 Å
8J8Z Structure of beta-arrestin1 in complex with D6Rpp Deposited 2023-05-02	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–418（418 aa） Chain B 1–418（418 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.40 Å
8JA3 Structure of beta-arrestin1 in complex with C3aRpp Deposited 2023-05-05	Different construct Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain A 1–357（357 aa） Chain B 1–357（357 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.94 Å
9BT8 Structure of Src in complex with beta-arrestin 1 revealing SH3 binding sites Deposited 2024-05-14	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 2–393（392 aa）	Mutation：C59V, P120C, C125S, C140L, C150V, C242V, C251V, C269S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å
9CX3 Structure of SH3 domain of Src in complex with beta-arrestin 1 Deposited 2024-07-30	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain B 2–393（392 aa）	Mutation：C59V, P120C, C125S, C140L, C150V, C242V, C251V, C269S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å
9CX9 Structure of SH3 domain of Src in complex with beta-arrestin 1 Deposited 2024-07-31	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 5 PDB declaration: pentameric	Chain A 2–393（392 aa）	Mutation：C59V, E92C, C125S, C140L, C150V, C242V, C251V, C269S	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.34 Å
9DNG Structure of rat beta-arrestin 1 by fiducial-assisted cryo-EM Deposited 2024-09-17	Different construct Different mutation/modification Different oligomeric state Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–176（175 aa） Chain A 182–393（212 aa）	Mutation：M29W, H124I, R128L Mutation：M29W, H124I, R128L	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.52 Å
9DNM Structure of rat beta-arrestin 1 bound to allosteric inhibitor Deposited 2024-09-17	Different construct Different mutation/modification Different oligomeric state Different ligand/ion Different experimental conditions Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 3 PDB declaration: trimeric	Chain A 2–176（175 aa） Chain A 182–393（212 aa）	Mutation：M29W, H124I, R128L Mutation：M29W, H124I, R128L	ODN (1beta,6beta,7beta,8alpha,9beta,10alpha,13alpha,14R,16beta)-1,6,7,14-tetrahydroxy-7,20-epoxykauran-15-one × 1	ELECTRON MICROSCOPY cryo-EM buffer pH 7.5 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.47 Å

16 other PDB entries and 19 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	ARRB1_RAT
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–418； UniProt 1–418 Author chain D； PDBConstruct 1–418； UniProt 1–418

C5aR1 phosphopeptide

OrganismNot specified

UniProt P30993

State in the Current Structure

Assembly	Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Associated Components	Method and Experimental Conditions	Structure Quality
1	Protein heterocomplex Heteromer Protein × 8 PDB declaration: octameric（8） Consistent with protein copy count	Chain U； UniProt 329–351 Chain X； UniProt 329–351	Non-standard monomer：Yes (specific site not provided by mmCIF)	Beta-arrestin-1 × 2 （P29066） Fab30 Heavy Chain × 2 Fab30 Light Chain × 2	ELECTRON MICROSCOPY cryo-EM buffer：pH 7.4 cryo-EM vitrification conditions：Cryogen ETHANE	Resolution 2.72 Å

Other States of the Same Protein in the Database

Each row is a biological assembly of the same UniProt protein in another PDB entry. The “Difference from current entry” column identifies evidence-level differences; no tag means the currently parsed fields agree.

Other PDB	Difference from Current Entry 9KYU	Assembly / Oligomeric State	Construct	Mutations and Modifications	Ligands, Ions and Non-polymers	Method and Experimental Conditions	Structure Quality
8HPT Structure of C5a-pep bound mouse C5aR1 in complex with Go Deposited 2022-12-13	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–351（350 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.39 Å
8HQC Structure of a GPCR-G protein in complex with a natural peptide agonist Deposited 2022-12-13	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–351（350 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.89 Å
9KWG Structure of mouse C5a bound mouse C5aR1 in complex with Go Deposited 2024-12-05	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–351（350 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.15 Å
9KWX Structure of mouse C5a-desArg bound mouse C5aR1 in complex with Go Deposited 2024-12-06	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–351（350 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.13 Å
9KX6 Structure of human C5a-desArg bound mouse C5aR1 in complex with Go Deposited 2024-12-06	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–351（350 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.11 Å
9KXS Structure of EP67 bound mouse C5aR1 in complex with Go Deposited 2024-12-07	Different construct Different mutation/modification Different oligomeric state Different structure-quality metrics	Assembly 1 Insufficient information Heteromer；Protein × 6 PDB declaration: hexameric	Chain A 2–351（350 aa）	Not recorded	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 3.31 Å
9KY2 Structure of beta-arrestin2 in complex with mouse C5aR1pp Deposited 2024-12-07	Different structure-quality metrics	Assembly 1 Protein heterocomplex Heteromer；Protein × 8 PDB declaration: octameric	Chain U 329–351（23 aa） Chain V 329–351（23 aa）	Non-standard monomer：Yes (specific site not provided by mmCIF) Non-standard monomer：Yes (specific site not provided by mmCIF)	No recorded non-water small molecule	ELECTRON MICROSCOPY cryo-EM buffer pH 7.4 cryo-EM vitrification conditions Cryogen ETHANE	Resolution 2.78 Å

7 other PDB entries and 7 assemblies. Open the comparison page and filter oligomeric states

View Construct and Data Evidence

UniProt name	C5AR1_MOUSE
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain U； PDBConstruct 1–23； UniProt 329–351 Author chain X； PDBConstruct 1–23； UniProt 329–351

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9kyu
Deposition date deposition_date	2024-12-09
最后修订 last_revision	2025-11-26
Structure title title	Structure of beta-arrestin1 in complex with mouse C5aR1pp
Keywords keywords	GPCR, G protein, SIGNALING PROTEIN, beta-arrestin; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. SAXS Parameters (CRYSOL theoretical calculation) 3. SAXS Parameters (CRYSOL)

Radius of gyration Rg (Guinier) rg_guinier	41.45 Å
Radius of gyration Rg (electron density) rg_electron	41.20 Å
Forward intensity I(0) i0	236379000.00
Molecular weight molecular_weight	125590.0 kDa
Excluded volume excluded_volume	157330 Å³
Envelope volume envelope_volume	215030 Å³
Hydration-shell volume shell_volume	45405 Å³
Envelope diameter envelope_diameter	138.2 Å
Shell Rg shell_rg	44.15 Å
Envelope Rg envelope_rg	40.47 Å
Shape Rg shape_rg	41.18 Å
Total Rg total_rg	41.42 Å
Total atoms total_atoms	8834
Residues n_residues	1140
Spherical-harmonic order n_harmonics	20
q range q_range	— – 0.5000 Å⁻¹
Data points n_points	101
Shell type shell_type	directional
Solvent electron density solvent_density	0.3340 e/Å³
Shell contrast contrast_shell	0.0300 e/Å³
CRYSOL version crysol_version	4.1.3

▼

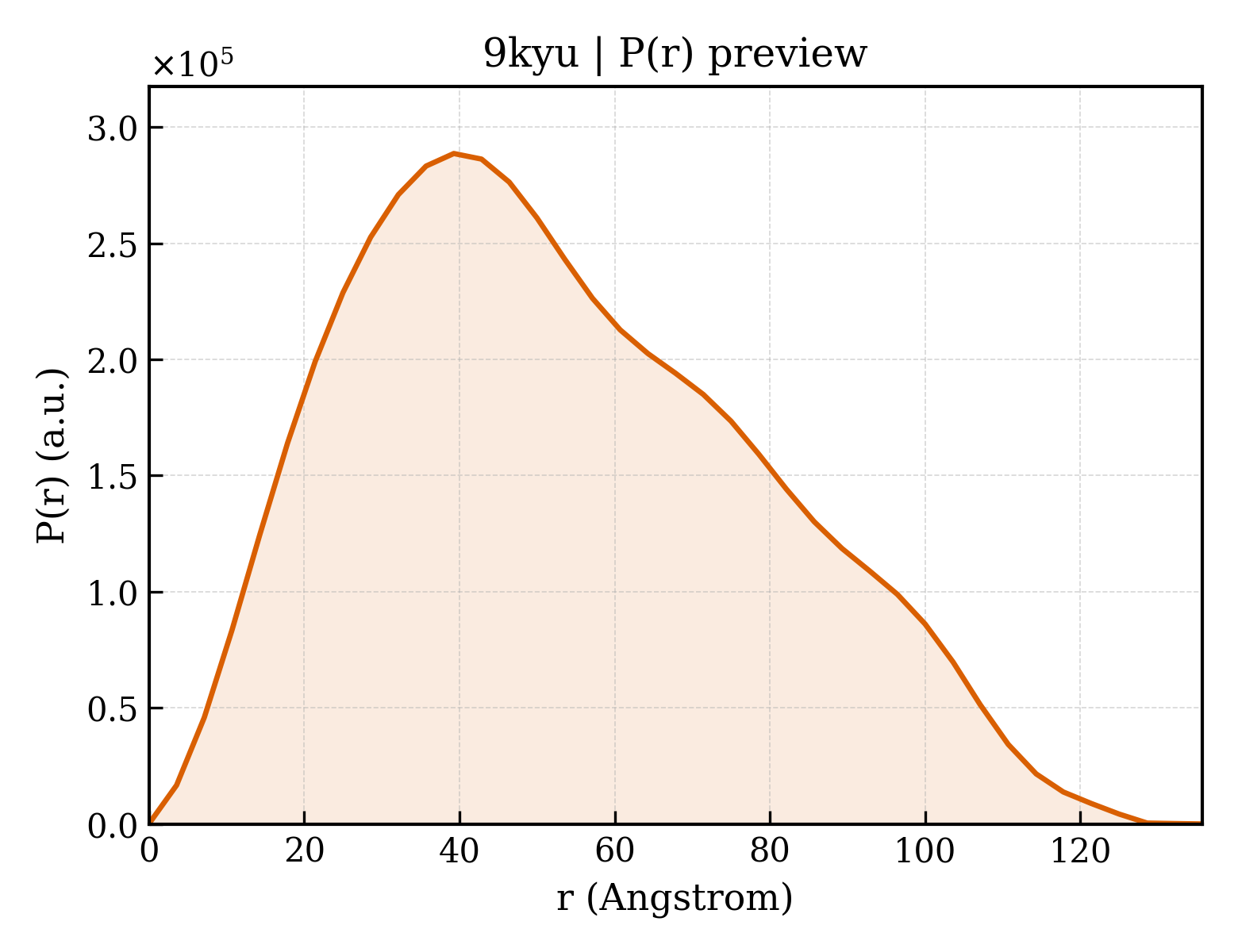

4. P(r) Distance Distribution (GNOM inversion) 4. P(r) Analysis (GNOM)

Maximum dimension Dmax dmax	135.7 Å
Rg (real space) rg_real	41.64 Å
Rg uncertainty (real space) rg_real_error	1.48 Å
I(0) (real space) i0_real	2.3640e+08
I(0) uncertainty (real space) i0_real_error	4.3700e+06
Rg (reciprocal space) rg_reciprocal	41.45 Å
I(0) (reciprocal space) i0_reciprocal	236300000.0000
Solution quality estimate total_estimate	0.8555
Solution quality rating solution_quality	GOOD a GOOD solution
P(r) peaks n_peaks	1
Primary peak position r_peak_primary	39.3 Å
Skewness Skewness skewness	0.385
Kurtosis Kurtosis kurtosis	-0.613
Angular range angular_range	— – 0.1900 Å⁻¹
Current regularization parameter α current_alpha	0.0000
Highest regularization parameter α highest_alpha	16950000.0000
Real-space data points n_real_points	39
GNOM version gnom_version	4.1.3
Quality Criteria quality_criteria	AN1: 0.000; Oscil: 0.881; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.932; Smooth: 0.543

▶

5. Crystallography and Experiment 5. Crystallography & Experiment

▶

6. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Beta-arrestin-1
Molecular weight formula_weight	47088.5 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,D
Atom count atom_count	8834

MGDKGTRVFKKASPNGKLTVYLGKRDFVDHIDLVDPVDGVVLVDPEYLKERRVYVTLTCAFRYGREDLDVLGLTFRKDLFVANVQSFPPAPEDKKPLTRLQERLIKKLGEHAYPFTFEIPPNLPCSVTLQPGPEDTGKACGVDYEVKAFCAENLEEKIHKRNSVRLVIRKVQYAPERPGPQPTAETTRQFLMSDKPLHLEASLDKEIYYHGEPISVNVHVTNNTNKTVKKIKISVRQYADICLFNTAQYKCPVAMEEADDTVAPSSTFCKVYTLTPFLANNREKRGLALDGKLKHEDTNLASSTLLREGANREILGIIVSYKVKVKLVVSRGGLLGDLASSDVAVELPFTLMHPKPKEEPPHREVPESETPVDTNLIELDTNDDDIVFEDFARQRLKGMKDDKDEEDDGTGSPHLNNR

来源 Source

来源生物 organism	Rattus norvegicus
通用名 common_name	Norway rat
NCBI Class编号 ncbi_taxonomy_id	10116
宿主生物 host_organism	Escherichia coli

Entity 2 Entity 2 polymer

Description description	C5aR1 phosphopeptide
Molecular weight formula_weight	2972.3 kDa
Source method src_method	syn
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	U,X

GGGDSKTFTPSTTDTSTRKSQAV

Entity 3 Entity 3 polymer

Description description	Fab30 Heavy Chain
Molecular weight formula_weight	25512.4 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	I,R

EISEVQLVESGGGLVQPGGSLRLSCAASGFNVYSSSIHWVRQAPGKGLEWVASISSYYGYTYYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARSRQFWYSGLDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHHHHHHHH

来源 Source

来源生物 organism	Mus musculus
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

Entity 4 Entity 4 polymer

Description description	Fab30 Light Chain
Molecular weight formula_weight	23435.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	M,Q

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYKYVPVTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

来源 Source

来源生物 organism	Mus musculus
NCBI Class编号 ncbi_taxonomy_id	10090
宿主生物 host_organism	Escherichia coli

▶

8. Citations (1)

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.72 Å
Resolution测定方法 resolution_method	—
颗粒数 num_particles	376105

fit	/app/data/saxs_computation/ky/9kyu/9kyu.fit
pddf	/app/data/pr_computation/ky/9kyu/9kyu.pr.out
profile	/app/data/saxs_computation/ky/9kyu/9kyu.dat
