SAXSdb — 9bt8

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Proto-oncogene tyrosine-protein kinase Src

Gallus gallus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Antibody fragment Fab30, heavy chain × 1 Vasopressin V2 receptor × 1 （P30518） Nanobody 32 × 1 Beta-arrestin-1 × 1 （P29066） Antibody fragment Fab30, light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SRC_CHICK
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 27–477； UniProt 83–533

Vasopressin V2 receptor

OrganismNot specified

UniProt P30518

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Proto-oncogene tyrosine-protein kinase Src × 1 （P00523） Antibody fragment Fab30, heavy chain × 1 Nanobody 32 × 1 Beta-arrestin-1 × 1 （P29066） Antibody fragment Fab30, light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	V2R_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain V； PDBConstruct 1–29； UniProt 343–371

Beta-arrestin-1

Rattus norvegicus

UniProt P29066

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Proto-oncogene tyrosine-protein kinase Src × 1 （P00523） Antibody fragment Fab30, heavy chain × 1 Vasopressin V2 receptor × 1 （P30518） Nanobody 32 × 1 Antibody fragment Fab30, light chain × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	ARRB1_RAT
Isoform	—
PDB entities	5
Chains and sequence ranges	Author chain B； PDBConstruct 1–392； UniProt 2–393

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9bt8
Deposition date deposition_date	2024-05-14
Structure title title	Structure of Src in complex with beta-arrestin 1 revealing SH3 binding sites
Keywords keywords	GPCR signaling, arrestin, Src, SH3, SIGNALING PROTEIN-IMMUNE SYSTEM complex, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9bt8__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9bt8__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

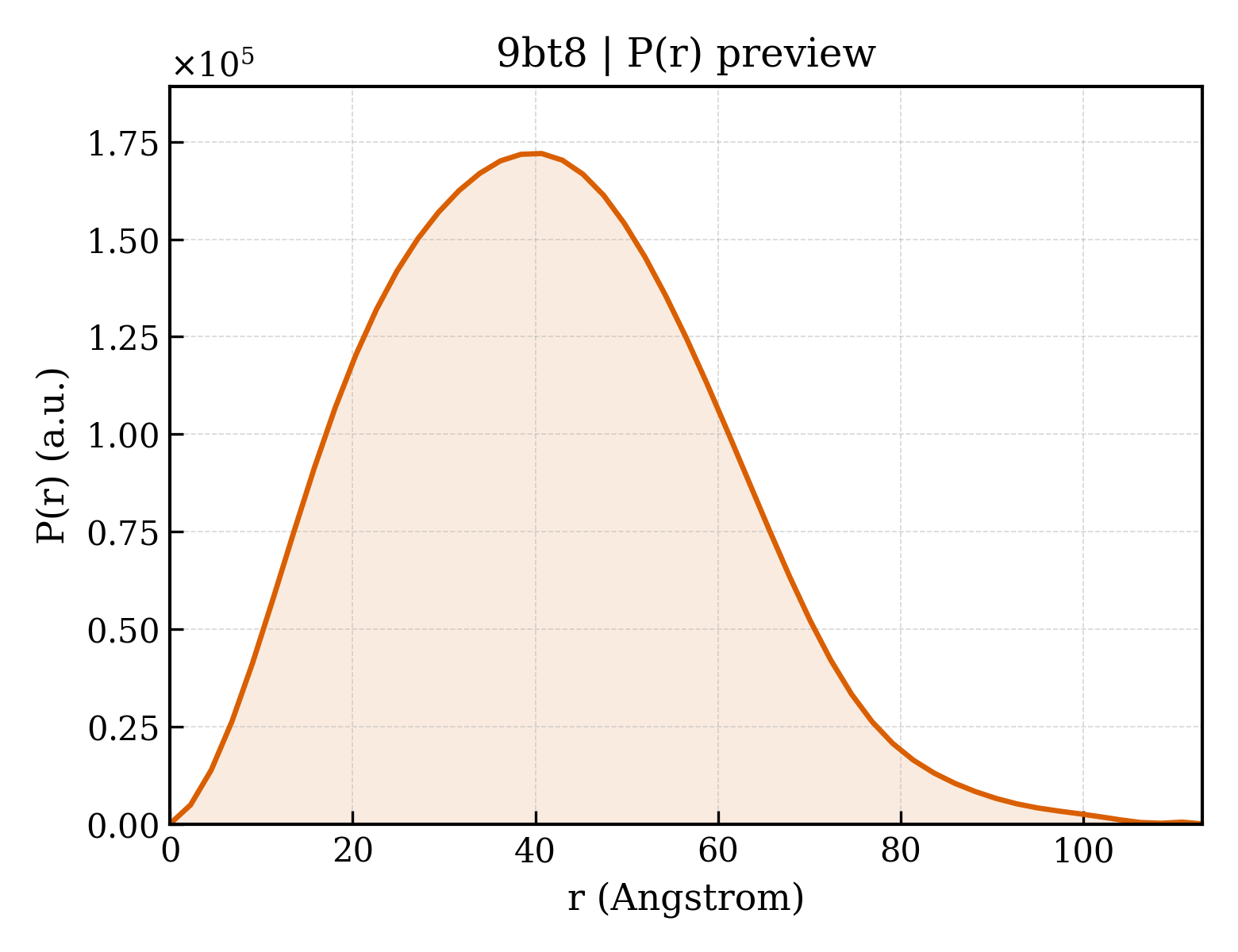

9bt8__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	31.81 Å
Rg (electron density)	31.21 Å
Total Rg	31.84 Å
Atom count	5712
Residues	722
Excluded volume	101510 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9bt8__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (6)

Entity 1 Entity 1 polymer

Description description	Proto-oncogene tyrosine-protein kinase Src
Molecular weight formula_weight	54524.5 kDa
EC 编号 ec_number	2.7.10.2
Mutation mutation	R95C, C185S, C238S, C245S, C277S, C400S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C
Atom count atom_count	5712

MGSSHHHHHHDYDIPTTENLYFQGHMVTTFVALYDYESCTETDLSFKKGERLQIVNNTEGDWWLAHSLTTGQTGYIPSNYVAPSDSIQAEEWYFGKITRRESERLLLNPENPRGTFLVRESETTKGAYSLSVSDFDNAKGLNVKHYKIRKLDSGGFYITSRTQFSSLQQLVAYYSKHADGLSHRLTNVSPTSKPQTQGLAKDAWEIPRESLRLEVKLGQGSFGEVWMGTWNGTTRVAIKTLKPGTMSPEAFLQEAQVMKKLRHEKLVQLYAVVSEEPIYIVTEYMSKGSLLDFLKGEMGKYLRLPQLVDMAAQIASGMAYVERMNYVHRDLRAANILVGENLVSKVADFGLARLIEDNEYTARQGAKFPIKWTAPEAALYGRFTIKSDVWSFGILLTELTTKGRVPYPGMVNREVLDQVERGYRMPCPPECPESLHDLMCQCWRKDPEERPTFEYLQAFLEDYFTSTEPQYQPGENL

Source Source

Source organism organism	Gallus gallus
Common name common_name	chicken
NCBI taxonomy ID ncbi_taxonomy_id	9031
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 2 Entity 2 polymer

Description description	Antibody fragment Fab30, heavy chain
Molecular weight formula_weight	25512.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H

EISEVQLVESGGGLVQPGGSLRLSCAASGFNVYSSSIHWVRQAPGKGLEWVASISSYYGYTYYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARSRQFWYSGLDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHHHHHHHH

Source Source

Source organism organism	Bacteriophage sp.
NCBI taxonomy ID ncbi_taxonomy_id	38018
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	Vasopressin V2 receptor
Molecular weight formula_weight	3550.9 kDa
Source method src_method	syn
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	V

ARGRTPPSLGPQDESCTTASSSLAKDTSS

Entity 4 Entity 4 polymer

Description description	Nanobody 32
Molecular weight formula_weight	13665.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

QVQLQESGGGLVQAGGSLRLSCVVSGFFFDTVTMAWYRRAPGKHRELVASATAGGTTTYADSVKDRFTISRDNAKNTVYLQMNSLKPEDTAVYYCNTFVRSLSWGQGTQVTVSSHHHHHHEPEA

Source Source

Source organism organism	Lama glama
NCBI taxonomy ID ncbi_taxonomy_id	9844
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 5 Entity 5 polymer

Description description	Beta-arrestin-1
Molecular weight formula_weight	44081.2 kDa
Mutation mutation	C59V, P120C, C125S, C140L, C150V, C242V, C251V, C269S
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

GDKGTRVFKKASPNGKLTVYLGKRDFVDHIDLVDPVDGVVLVDPEYLKERRVYVTLTVAFRYGREDLDVLGLTFRKDLFVANVQSFPPAPEDKKPLTRLQERLIKKLGEHAYPFTFEICPNLPSSVTLQPGPEDTGKALGVDYEVKAFVAENLEEKIHKRNSVRLVIRKVQYAPERPGPQPTAETTRQFLMSDKPLHLEASLDKEIYYHGEPISVNVHVTNNTNKTVKKIKISVRQYADIVLFNTAQYKVPVAMEEADDTVAPSSTFSKVYTLTPFLANNREKRGLALDGKLKHEDTNLASSTLLREGANREILGIIVSYKVKVKLVVSRGGLLGDLASSDVAVELPFTLMHPKPKEEPPHREVPESETPVDTNLIELDTNDDDIVFEDFAR

Source Source

Source organism organism	Rattus norvegicus
Common name common_name	Norway rat
NCBI taxonomy ID ncbi_taxonomy_id	10116
Host organism host_organism	;Escherichia coli 'BL21-Gold(DE3)pLysS AG' ;

Entity 6 Entity 6 polymer

Description description	Antibody fragment Fab30, light chain
Molecular weight formula_weight	23435.1 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYKYVPVTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Bacteriophage sp.
NCBI taxonomy ID ncbi_taxonomy_id	38018
Host organism host_organism	Escherichia coli

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.34 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	140156
