9u80

Cryo-EM structure of conivaptan-bound human vasopressin V2 receptor complex with Fab

Method: ELECTRON MICROSCOPY D_max: 139.6 Å Quality: REASONABLE

SAXS Profile

P(r) Distribution

▼

1. Structure Basics

entry_id	9u80
deposition_date	2025-03-25
last_revision	2025-12-10
title	Cryo-EM structure of conivaptan-bound human vasopressin V2 receptor complex with Fab
keywords	GPCR, vasopressin V2 receptor, antagonist, conivaptan, MEMBRANE PROTEIN/IMMUNE SYSTEM, MEMBRANE PROTEIN-IMMUNE SYSTEM complex; MEMBRANE PROTEIN/IMMUNE SYSTEM
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	41.07 Å
rg_electron	41.74 Å
i0	114399000.00
molecular_weight	88563.0 kDa
excluded_volume	111550 Å³
envelope_volume	158720 Å³
shell_volume	34147 Å³
envelope_diameter	142.7 Å
shell_rg	42.59 Å
envelope_rg	41.30 Å
shape_rg	41.81 Å
total_rg	41.57 Å
total_atoms	12416
n_residues	816
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

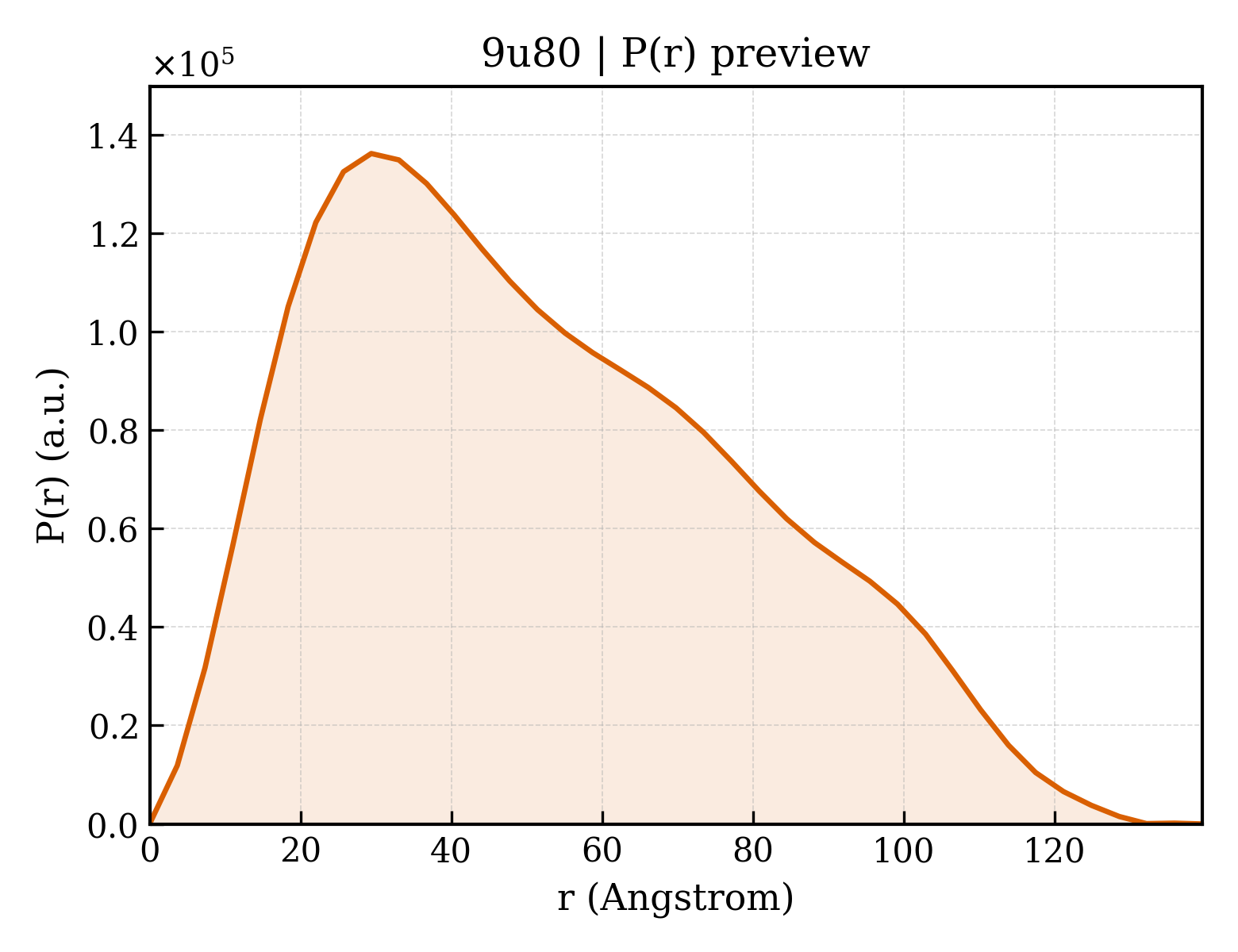

3. P(r) Analysis (GNOM)

dmax	139.6 Å
rg_real	41.44 Å
rg_real_error	1.73 Å
i0_real	1.1440e+08
i0_real_error	2.4240e+06
rg_reciprocal	41.07 Å
i0_reciprocal	114400000.0000
total_estimate	0.5662
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	29.4 Å
skewness	0.452
kurtosis	-0.659
angular_range	— – 0.1900 Å⁻¹
current_alpha	0.0000
highest_alpha	8948000.0000
n_real_points	39
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.688; Stabil: 1.000; Sysdev: 0.046; Positv: 1.000; Valcen: 0.599; Smooth: 0.555

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	anti-BRIL Fab heavy chain
formula_weight	24321.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H
atom_count	12416

EISEVQLVESGGGLVQPGGSLRLSCAASGFNVVDFSLHWVRQAPGKGLEWVAYISSSSGSTSYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARWGYWPGEPWWKAFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 2 polymer

description	anti-BRIL Fab light chain
formula_weight	23586.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYLYYSLVTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 3 polymer

description	Vasopressin V2 receptor,Soluble cytochrome b562
formula_weight	50571.6 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R

MLMASTTSAVPGHPSLPSLPSNSSQERPLDTRDPLLARAELALLSIVFVAVALSNGLVLAALARRGRRGHWAPIHVFIGHLCLADLAVALFQVLPQLAWKATDRFRGPDALCRAVKYLQMVGMYASSYMILAMTLDRHRAICRPMLAYRHGSGAHWNRPVLVAWAFSLLLSLPQLFIFAQRNVEGGSGVTDCWACFAEPWGRRTYVTWIALMVFVAPTLGIAACQVLIFREIHAARRQLADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLERARSTLAAVAKTVRMTLVIVVVYVLCWAPFFLVQLWAAWDPEAPLEGAPFVLLMLLASLNSCTNPWIYASFSSSVSSELRSLLCCARGRTPPSLGPQDESCTTASSSLAKDTSS

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Trichoplusia ni

Entity 4 non-polymer

description	Conivaptan
formula_weight	498.6 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.940 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.94 Å
resolution_method	—
num_particles	189727

fit	/app/data/saxs_computation/u8/9u80/9u80.fit
pddf	/app/data/pr_computation/u8/9u80/9u80.pr.out
profile	/app/data/saxs_computation/u8/9u80/9u80.dat
