SAXSdb — 24xz

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Rattus rattus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Guanine nucleotide-binding protein G(i) subunit alpha-1 × 2 （P63096） Soluble cytochrome b562,P2Y purinoceptor 14,LgBiT tag,GFP × 1 （A0A5P9VSM6,P0ABE7,Q15391） scFv16 × 1 URIDINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain B； PDBConstruct 7–345； UniProt 2–340

Guanine nucleotide-binding protein G(i) subunit alpha-1

Homo sapiens

UniProt P63096

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62871） Soluble cytochrome b562,P2Y purinoceptor 14,LgBiT tag,GFP × 1 （A0A5P9VSM6,P0ABE7,Q15391） scFv16 × 1 URIDINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GNAI1_HUMAN
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 82–433； UniProt 3–354 Author chain G； PDBConstruct 82–433； UniProt 3–354

Soluble cytochrome b562,P2Y purinoceptor 14,LgBiT tag,GFP

human respiratory syncytial virus

UniProt A0A5P9VSM6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62871） Guanine nucleotide-binding protein G(i) subunit alpha-1 × 2 （P63096） scFv16 × 1 URIDINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A5P9VSM6_HRSV
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain R； PDBConstruct 669–906； UniProt 2–239

Soluble cytochrome b562,P2Y purinoceptor 14,LgBiT tag,GFP

human respiratory syncytial virus

UniProt P0ABE7

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62871） Guanine nucleotide-binding protein G(i) subunit alpha-1 × 2 （P63096） scFv16 × 1 URIDINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C562_ECOLX
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain R； PDBConstruct 25–130； UniProt 23–128

Soluble cytochrome b562,P2Y purinoceptor 14,LgBiT tag,GFP

human respiratory syncytial virus

UniProt Q15391

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 5	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 1 （P62871） Guanine nucleotide-binding protein G(i) subunit alpha-1 × 2 （P63096） scFv16 × 1 URIDINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	P2Y14_HUMAN
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain R； PDBConstruct 131–467； UniProt 2–338

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	24xz
Deposition date deposition_date	2026-03-24
Structure title title	P2Y14R-Gi complex bound to UDP
Keywords keywords	GPCR, Nucleotide, G protein, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

24xz__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

24xz__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

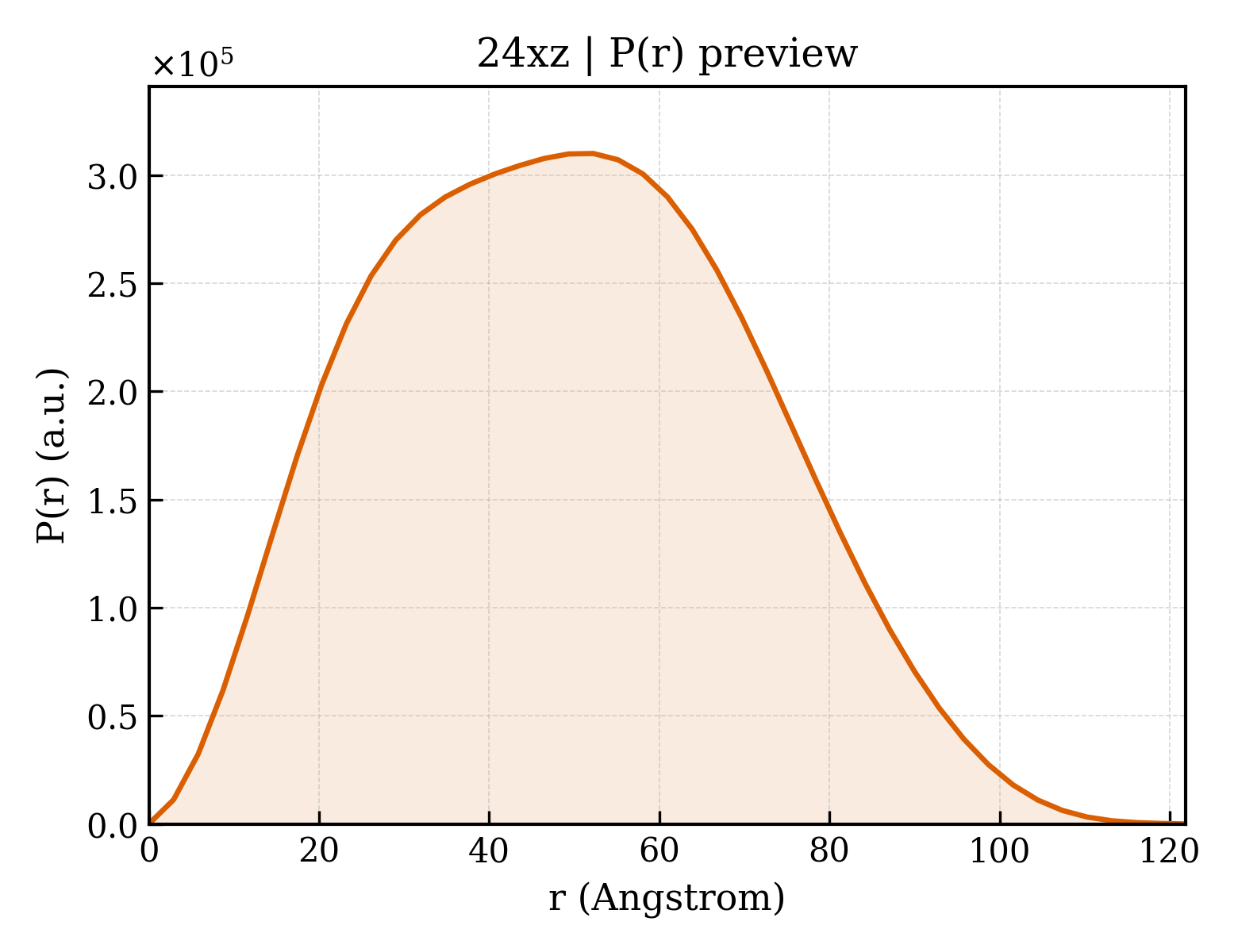

24xz__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	38.02 Å
Rg (electron density)	37.63 Å
Total Rg	38.07 Å
Atom count	9002
Residues	1137
Excluded volume	161240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`24xz__assembly_1__model_1`	pentameric （5）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	40586.3 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B
Atom count atom_count	9002

MGSLLQSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWNGASGGGSGGNSGSSGGSSGVSGWRLFKKIS

Source Source

Source organism organism	Rattus rattus
Common name common_name	black rat
NCBI taxonomy ID ncbi_taxonomy_id	10117
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	Guanine nucleotide-binding protein G(i) subunit alpha-1
Molecular weight formula_weight	48846.7 kDa
EC 编号 ec_number	3.6.5.-
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	G,A

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAILGSAGSAGSAMCTLSAEDKAAVERSKMIDRNLREDGEKAAREVKLLLLGAGESGKSTIVKQMKIIHEAGYSEEECKQYKAVVYSNTIQSIIAIIRAMGRLKIDFGDSARADDARQLFVLAGAAEEGFMTAELAGVIKRLWKDSGVQACFNRSREYQLNDSAAYYLNDLDRIAQPNYIPTQQDVLRTRVKTTGIVETHFTFKDLHFKMFDVGGQRSERKKWIHCFEGVTAIIFCVALSDYDLVLAEDEEMNRMHESMKLFDSICNNKWFTDTSIILFLNKKDLFEEKIKKSPLTICYPEYAGSNTYEEAAAYIQCQFEDLNKRKDTKEIYTHFTCATDTKNVQFVFDAVTDVIIKNNLKDCGLF

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Soluble cytochrome b562,P2Y purinoceptor 14,LgBiT tag,GFP
Molecular weight formula_weight	102814.0 kDa
Mutation mutation	mutation
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MKTIIALSYIFCLVFADYKDDDDKADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLINSTSTQPPDESCSQNLLITQQIIPVLYCMVFIAGILLNGVSGWIFFYVPSSKSFIIYLKNIVIADFVMSLTFPFKILGDSGLGPWQLNVFVCRVSAVLFYVNMYVSIVFFGLISFDRYYKIVKPLWTSFIQSVSYSKLLSVIVWMLMLLLAVPNIILTNQSVREVTQIKCIELKSELGRKWHKASNYIFVAIFWIVFLLLIVFYTAITKKIFKSHLKSSRNSTSVKKKSSRNIFSIVFVFFVCFVPYHIARIPYTKSQTEAHYSCQSKEILRYMKEFTLLLSAANVCLDPIIYFFLCQPFREILCKKLHIPLKAQNDLDISRIKRGNTTLESTDTLGSGGGGSGGSSSGGVFTLEDFVGDWEQTAAYNLDQVLEQGGVSSLLQNLAVSVTPIQRIVRSGENALKIDIHVIIPYEGLSADQMAQIEEVFKVVYPVDDHHFKVILPYGTLVIDGVTPNMLNYFGRPYEGIAVFDGKKITVTGTLWNGNKIIDERLITPDGSMLFRVTINSGGSGGGGSGGSSSGGLEVLFQGPGSAAAAVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKSGLRSHHHHHHHH

Source Source

Source organism organism	human respiratory syncytial virus
NCBI taxonomy ID ncbi_taxonomy_id	11250
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	scFv16
Molecular weight formula_weight	27720.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	S

DVQLVESGGGLVQPGGSRKLSCSASGFAFSSFGMHWVRQAPEKGLEWVAYISSGSGTIYYADTVKGRFTISRDDPKNTLFLQMTSLRSEDTAMYYCVRSIYYYGSSPFDFWGQGTTLTVSSGGGGSGGGGSGGGGSDIVMTQATSSVPVTPGESVSISCRSSKSLLHSNGNTYLYWFLQRPGQSPQLLIYRMSNLASGVPDRFSGSGSGTAFTLTISRLEAEDVGVYYCMQHLEYPLTFGAGTKLELKAAAASSEDLYFQ

Source Source

Source organism organism	Mus musculus
NCBI taxonomy ID ncbi_taxonomy_id	10090
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 non-polymer

Description description	URIDINE-5'-DIPHOSPHATE
Molecular weight formula_weight	404.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.93 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	170129
