SAXSdb — 8soe

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1

Bos taurus

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	phosphatidylinositol-4,5-bisphosphate 3-kinase × 1 （A0A8D1WUA4） Phosphoinositide 3-kinase regulatory subunit 5 × 1 （A0A8D0T2D6） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 2 （P63212） ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBB1_BOVIN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain C； PDBConstruct 1–340； UniProt 1–340 Author chain E； PDBConstruct 1–340； UniProt 1–340

phosphatidylinositol-4,5-bisphosphate 3-kinase

Sus scrofa

UniProt A0A8D1WUA4

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 2 （P62871） Phosphoinositide 3-kinase regulatory subunit 5 × 1 （A0A8D0T2D6） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 2 （P63212） ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8D1WUA4_PIG
Isoform	—
PDB entities	2
Chains and sequence ranges	Author chain A； PDBConstruct 8–1108； UniProt 2–1102

Phosphoinositide 3-kinase regulatory subunit 5

Sus scrofa

UniProt A0A8D0T2D6

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 2 （P62871） phosphatidylinositol-4,5-bisphosphate 3-kinase × 1 （A0A8D1WUA4） Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2 × 2 （P63212） ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A8D0T2D6_PIG
Isoform	—
PDB entities	3
Chains and sequence ranges	Author chain B； PDBConstruct 1–877； UniProt 1–877

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2

Bos taurus

UniProt P63212

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein heterocomplex	Heteromer	Protein 6	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1 × 2 （P62871） phosphatidylinositol-4,5-bisphosphate 3-kinase × 1 （A0A8D1WUA4） Phosphoinositide 3-kinase regulatory subunit 5 × 1 （A0A8D0T2D6） ADENOSINE-5'-DIPHOSPHATE × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GBG2_BOVIN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain D； PDBConstruct 7–77； UniProt 1–71 Author chain F； PDBConstruct 7–77； UniProt 1–71

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8soe
Deposition date deposition_date	2023-04-28
Structure title title	Phosphoinositide phosphate 3 kinase gamma bound with ADP and two Gbetagamma subunits in State 2
Keywords keywords	Phosphoinositide 3-Kinase, Chemotaxis, Cancer, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8soe__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8soe__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

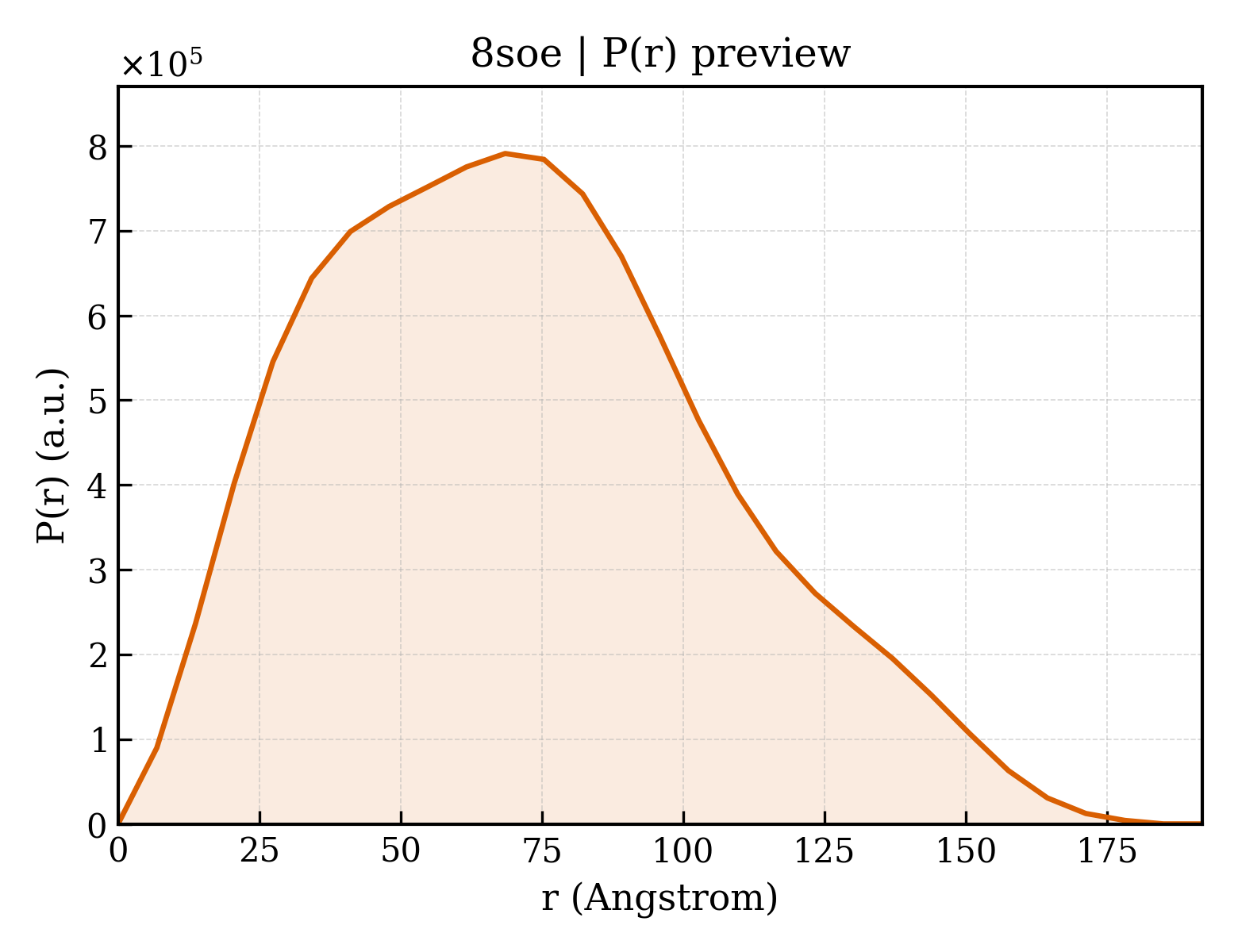

8soe__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	55.93 Å
Rg (electron density)	55.67 Å
Total Rg	55.75 Å
Atom count	35543
Residues	2238
Excluded volume	317160 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8soe__assembly_1__model_1`	hexameric （6）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
Molecular weight formula_weight	37416.9 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	C,E
Atom count atom_count	35543

MSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source Source

Source organism organism	Bos taurus
Common name common_name	cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Spodoptera frugiperda

Entity 2 Entity 2 polymer

Description description	phosphatidylinositol-4,5-bisphosphate 3-kinase
Molecular weight formula_weight	127573.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A

MHHHHHHELENYEQPVVLREDNRRRRRRMKPRSTAASLSSMELIPIEFVLPTSQRNTKTPETALLHVAGHGNVEQMKAQVWLRALETSVSADFYHRLGPDHFLLLYQKKGQWYEIYDKYQVVQTLDCLRYWKVLHRSPGQIHVVQRHAPSEETLAFQRQLNALIGYDVTDVSNVHDDELEFTRRRLVTPRMAEVAGRDPKLYAMHPWVTSKPLPEYLLKKITNNCVFIVIHRSTTSQTIKVSADDTPGTILQSFFTKMAKKKSLMDIPESQNERDFVLRVCGRDEYLVGETPIKNFQWVRQCLKNGEEIHLVLDTPPDPALDEVRKEEWPLVDDCTGVTGYHEQLTIHGKDHESVFTVSLWDCDRKFRVKIRGIDIPVLPRTADLTVFVEANIQYGQQVLCQRRTSPKPFTEEVLWNVWLEFSIKIKDLPKGALLNLQIYCGKAPALSGKTSAEMPSPESKGKAQLLYYVNLLLIDHRFLLRHGEYVLHMWQLSGKGEDQGSFNADKLTSATNPDKENSMSISILLDNYCHPIALPKHRPTPDPEGDRVRAEMPNQLRKQLEAIIATDPLNPLTAEDKELLWHFRYESLKDPKAYPKLFSSVKWGQQEIVAKTYQLLAKREVWDQSALDVGLTMQLLDCNFSDENVRAIAVQKLESLEDDDVLHYLLQLVQAVKFEPYHDSALARFLLKRGLRNKRIGHFLFWFLRSEIAQSRHYQQRFAVILEAYLRGCGTAMLHDFTQQVQVIDMLQKVTIDIKSLSAEKYDVSSQVISQLKQKLENLQNLNLPQSFRVPYDPGLKAGALVIEKCKVMASKKKPLWLEFKCADPTALSNETIGIIFKHGDDLRQDMLILQILRIMESIWETESLDLCLLPYGCISTGDKIGMIEIVKDATTIAKIQQSTVGNTGAFKDEVLSHWLKEKCPIEEKFQAAVERFVYSCAGYCVATFVLGIGDRHNDNIMISETGNLFHIDFGHILGNYKSFLGINKERVPFVLTPDFLFVMGTSGKKTSLHFQKFQDVCVKAYLALRHHTNLLIILFSMMLMTGMPQLTSKEDIEYIRDALTVGKSEEDAKKYFLDQIEVCRDKGWTVQFNWFLHLVLGIKQGEKHSA

Source Source

Source organism organism	Sus scrofa
Common name common_name	pig
NCBI taxonomy ID ncbi_taxonomy_id	9823
Host organism host_organism	Spodoptera frugiperda

Entity 3 Entity 3 polymer

Description description	Phosphoinositide 3-kinase regulatory subunit 5
Molecular weight formula_weight	98497.8 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

MQPGATTCTEDRIQHALERCLHGLSLSRRSTSWSAGLCLNCWSLQELVSRDPGHFLILLEQILQKTREVQEKGTYDLLAPLALLFYSTVLCTPHFPPDSDLLLKAARTYHRFLTWPVPYCSICQELLTFIDAELKAPGISYQRLVRAEQGLSTRSHRSSTVTVLLLNPVEVQAEFLDVADKLSTPGPSPHSAYITLLLHAFQATFGAHCDLSGLHRRLQSKTLAELEAIFTETAEAQELASGIGDAAEARQWLRTKLQAVGEKAGFPGVLDTAKPGKLRTIPIPVARCYTYSWNQDSFDILQEILLKEQELLQPEILDDEEDEDEEDEEEDLDADGHCAERDSVLSTGSAASHASTLSLASSQASGPTLSRQLLTSFVSGLSDGVDSGYMEDIEESAYERPRRPGGHERRGHRRPGQKFNRIYKLFKSTSQMVLRRDSRSLEGSPDSGPPLRRAGSLCSPLDSPTLPPSRAQRSRSLPQPKLSPQLPGWLLAPASRHQRRRPFLSGDEDPKASTLRVVVFGSDRISGKVARAYSNLRRLENNRPLLTRFFKLQFFYVPVKRSRGTGTPTSPAPRSQTPPLPTDAPRHPGPAELGAAPWEESTNDISHYLGMLDPWYERNVLGLMHLPPEVLCQSLKAEPRPLEGSPAQLPILADMLLYYCRFAARPVLLQVYQTELTFITGEKTTEIFIHSLELGHSAATRAIKASGPGSKRLGIDGDREAVPLTLQIIYSKGAISGRSRWSNMEKLCTSVNLSKACRQQEELDSSTEALTLNLTEVVKRQTPKSKKGFNQISTSQIKVDKVQIIGSNSCPFAVCLDQDERKILQSVIRCEVSPCYKPEKSSLCPPPQRPSYPPAPATPDLCSLLCLPIMTFSGALPGGGGSDYKDDDDK

Source Source

Source organism organism	Sus scrofa
Common name common_name	pig
NCBI taxonomy ID ncbi_taxonomy_id	9823
Host organism host_organism	Spodoptera frugiperda

Entity 4 Entity 4 polymer

Description description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
Molecular weight formula_weight	8674.0 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	D,F

HHHHHHMASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFSAIL

Source Source

Source organism organism	Bos taurus
Common name common_name	cattle
NCBI taxonomy ID ncbi_taxonomy_id	9913
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 non-polymer

Description description	ADENOSINE-5'-DIPHOSPHATE
Molecular weight formula_weight	427.2 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.60 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	181939

Phosphoinositide phosphate 3 kinase gamma bound with ADP and two Gbetagamma subunits in State 2
