SAXSdb — 9w32

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Somatostatin receptor type 5,Soluble cytochrome b562

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 2	1-[2-[[3,5-diethoxy-4-(4-fluorophenyl)phenyl]methyl]-5-oxa-2,6-diazaspiro[3.4]oct-6-en-7-yl]piperidine-4-carboxylic acid × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C562_ECOLX
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 202–300； UniProt 23–127 Author chain B； PDBConstruct 202–300； UniProt 23–127

Somatostatin receptor type 5,Soluble cytochrome b562

Homo sapiens

UniProt P35346

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Homooligomer	Protein 2	1-[2-[[3,5-diethoxy-4-(4-fluorophenyl)phenyl]methyl]-5-oxa-2,6-diazaspiro[3.4]oct-6-en-7-yl]piperidine-4-carboxylic acid × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SSR5_HUMAN
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–197； UniProt 35–231 Author chain A； PDBConstruct 309–389； UniProt 241–321 Author chain B； PDBConstruct 1–197； UniProt 35–231 Author chain B； PDBConstruct 309–389； UniProt 241–321

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	9w32
Deposition date deposition_date	2025-07-28
Structure title title	antagonist 1-bound inactive SSTR5 structure
Keywords keywords	GPCR, antagonist, inactive structure, SSTR5, STRUCTURAL PROTEIN; STRUCTURAL PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

9w32__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

9w32__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

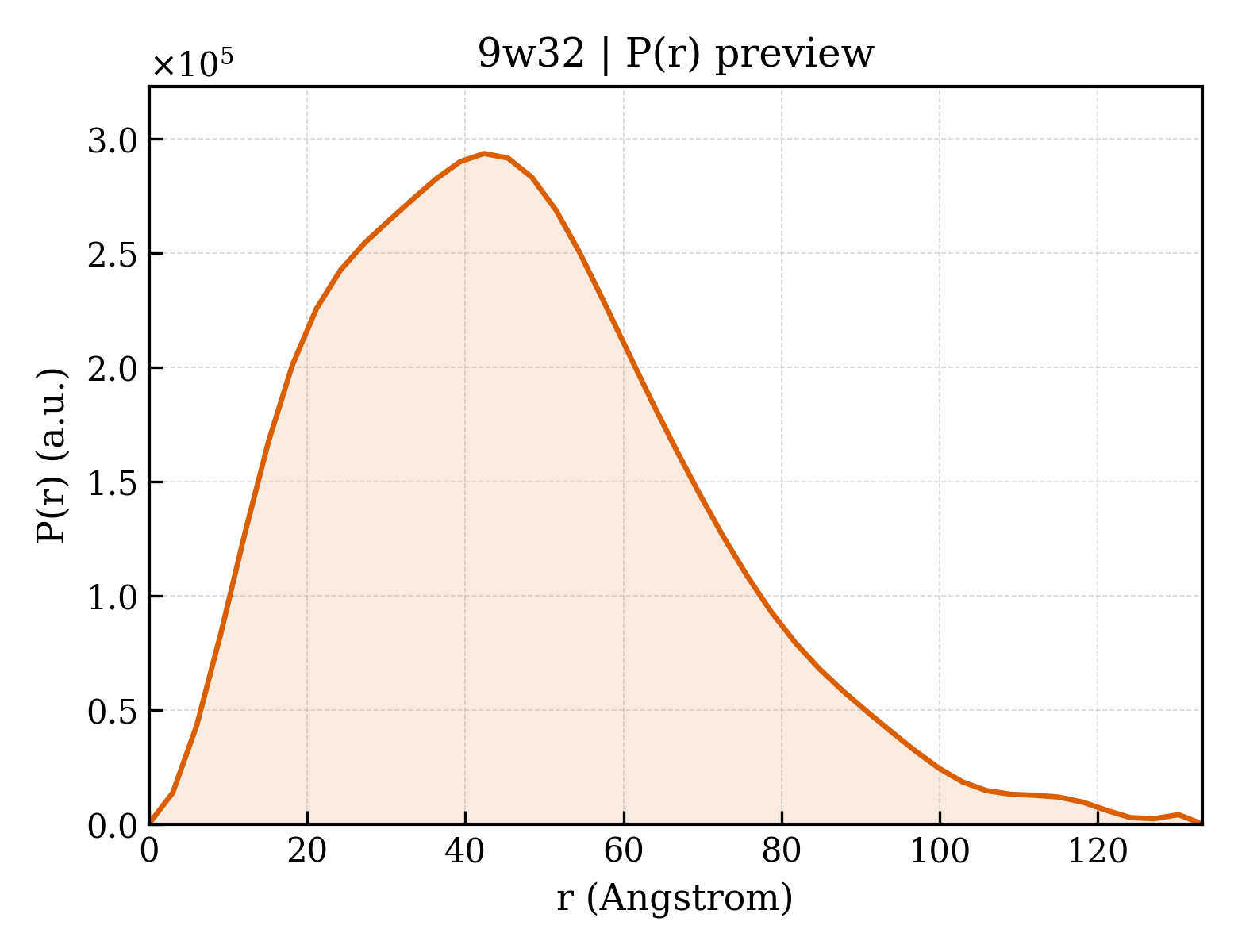

9w32__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	36.31 Å
Rg (electron density)	35.61 Å
Total Rg	36.02 Å
Atom count	6078
Residues	778
Excluded volume	110240 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`9w32__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Description description	Somatostatin receptor type 5,Soluble cytochrome b562
Molecular weight formula_weight	42680.1 kDa
Source method src_method	man
Copy count entity_count	2

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B
Atom count atom_count	6078

SAGARAVLVPVLYLLVCAAGLGGNTLVIYVVLRFAKMKTVTNIYILNLAVADVLYMLGLPFLATQNAASFWPFGPVLCRLVMTLDGVNQFTSVFCLTVMSVDRYLAVVHPLSSARWRRPRVAKLASAAAWVLSLCMSLPLLVFADVQEGGTCNASWPEPVGLWGAVFIIYTAVLGFFAPLLVICLCYLLIVVKVRAARRQLADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKGGSGGRSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLERARSTLRSERKVTRMVLVVVLVFAGCWLPFFTVNIVNLAVALPQEPASAGLYFFVVILSYANSCANPVLYGFLSDNFRQSFQKVLCL

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Trichoplusia ni

Entity 2 Entity 2 non-polymer

Description description	1-[2-[[3,5-diethoxy-4-(4-fluorophenyl)phenyl]methyl]-5-oxa-2,6-diazaspiro[3.4]oct-6-en-7-yl]piperidine-4-carboxylic acid
Molecular weight formula_weight	511.6 kDa
Source method src_method	syn
Copy count entity_count	2

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	2.59 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	128653
