SAXSdb — 11tl

▼

1. Structure Basics

entry_id	11tl
deposition_date	2026-03-12
title	Structure of human CCR4 in complex with GSK2239633A
keywords	G protein coupled receptor, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	37.14 Å
rg_electron	37.54 Å
i0	137971000.00
molecular_weight	65145.0 kDa
excluded_volume	64052 Å³
envelope_volume	120760 Å³
shell_volume	28619 Å³
envelope_diameter	133.0 Å
shell_rg	40.35 Å
envelope_rg	36.94 Å
shape_rg	37.53 Å
total_rg	37.70 Å
total_atoms	4949
n_residues	620
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	123.0 Å
rg_real	37.62 Å
rg_real_error	1.30 Å
i0_real	1.3800e+08
i0_real_error	2.3160e+06
rg_reciprocal	37.33 Å
i0_reciprocal	137900000.0000
total_estimate	0.7429
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	25.8 Å
skewness	0.459
kurtosis	-0.707
angular_range	— – 0.2150 Å⁻¹
current_alpha	0.0000
highest_alpha	9087000.0000
n_real_points	44
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.581; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.355; Smooth: 0.554

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (4)

Entity 1 polymer

description	C-C chemokine receptor type 4,Soluble cytochrome b562
formula_weight	54284.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R
atom_count	4949

MNPTDIADTTLDESIYSNYYLYESIPKPCTKEGIKAFGELFLPPLYSLVFVFGLLGNSVVVLVLFKYKRLRSMTDVYLLNLAISDLLFVFSLPFWGYYAADQWVFGLGLCKMISWMYLVGFYSGIFFVMLMSIDRYLAIVHAVFSLRARTLTYGVITSLATWSVAVFASLPGFLFSTCYTERNHTYCKTKYSLNSTTWKVLSSLEINILGLVIPLGIMLFCYSMIIRTLQHARRQLADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLERARSTLNEKNKAVKMIFAVVVLFLGFWTPYNIVLFLETLVELEVLQDCTFERYLDYAIQATETLAFVHCCLNPIIYFFLGEKFRKYILQLFKTCRGLFVLCQYCGLLQIYSADTPSSSYTQSTMDHDLHDAL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Homo sapiens

Entity 2 polymer

description	Anti-BRIL Fab heavy chain
formula_weight	24321.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	H

EISEVQLVESGGGLVQPGGSLRLSCAASGFNVVDFSLHWVRQAPGKGLEWVAYISSSSGSTSYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARWGYWPGEPWWKAFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKS

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 3 polymer

description	Anti-BRIL Fab light chain
formula_weight	23353.9 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	L

SDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYLYYSLVTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRG

Source

organism	Homo sapiens
ncbi_taxonomy_id	9606
host_organism	Escherichia coli

Entity 4 non-polymer

description	N-[(3-{[3-(5-chlorothiophene-2-sulfonamido)-4-methoxy-1H-indazol-1-yl]methyl}phenyl)methyl]-2-hydroxy-2-methylpropanamide
formula_weight	549.1 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.900 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.90 Å
resolution_method	—
num_particles	171380

fit	/app/data/saxs_computation/1t/11tl/11tl.fit
pddf	/app/data/pr_computation/1t/11tl/11tl.pr.out
profile	/app/data/saxs_computation/1t/11tl/11tl.dat

Structure of human CCR4 in complex with GSK2239633A

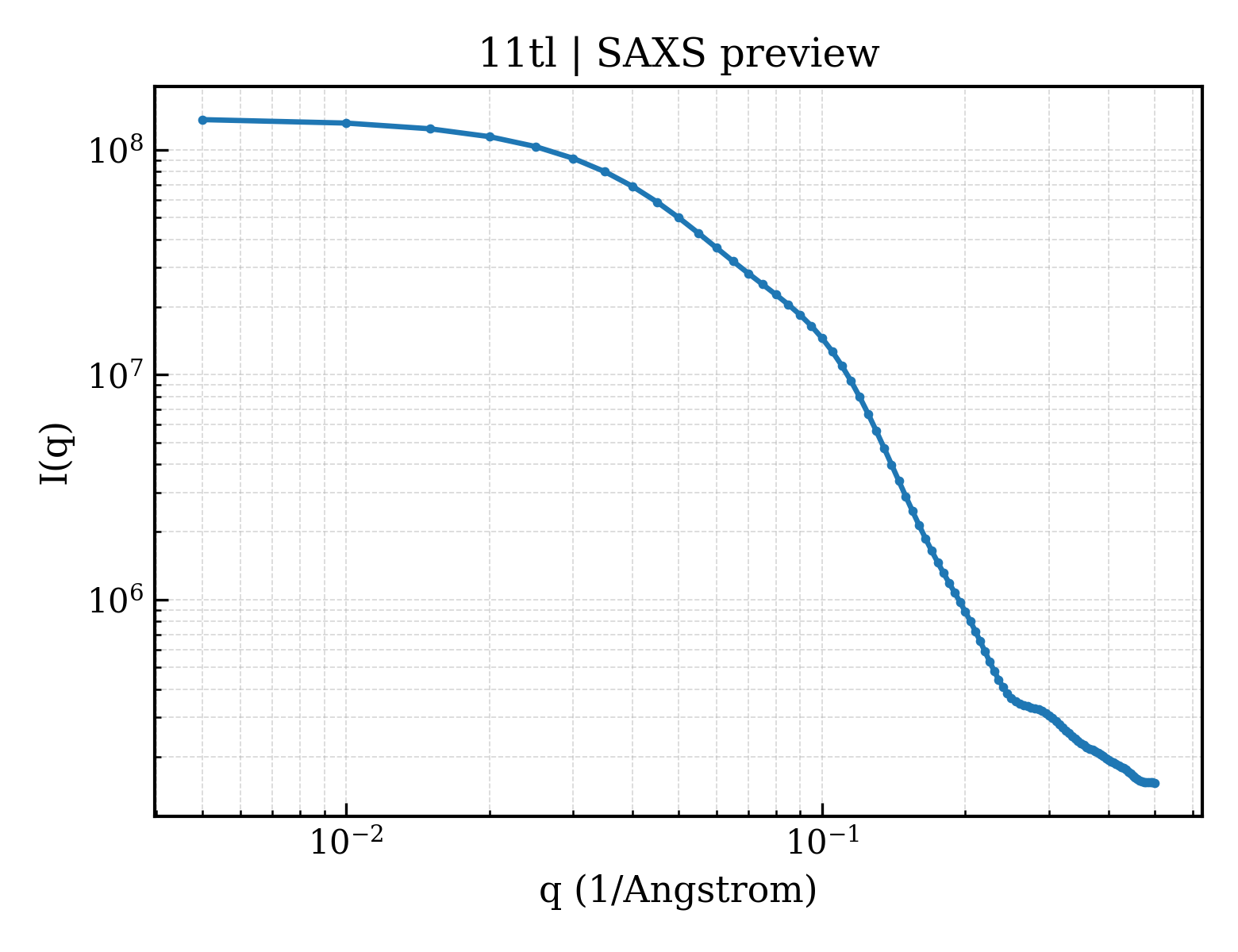

SAXS Profile

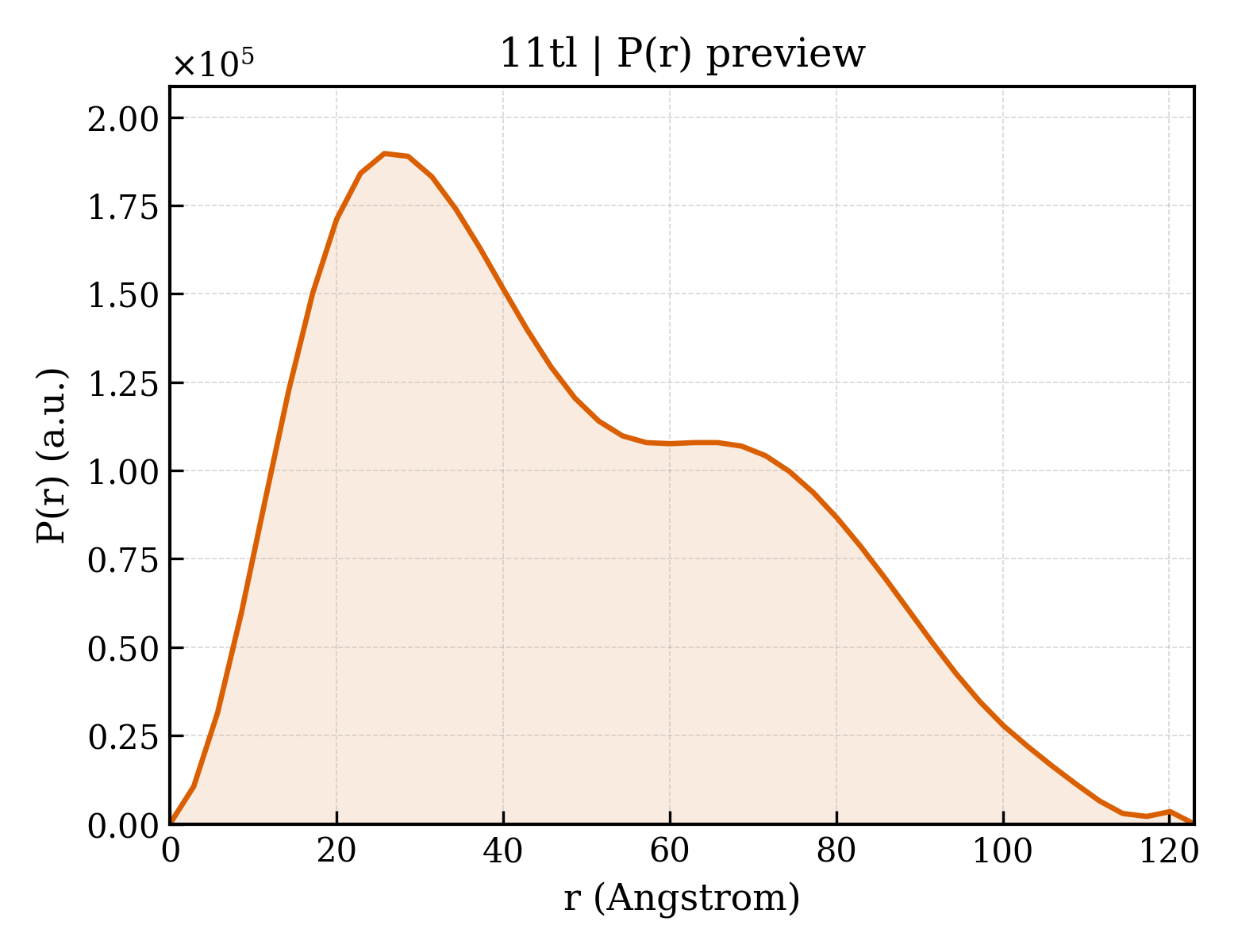

P(r) Distribution
