9ppr

Zn- and Bi-bound structure of the H77C variant of TriCyt2

Method: X-RAY DIFFRACTION D_max: 61.1 Å Quality: EXCELLENT

SAXS Profile

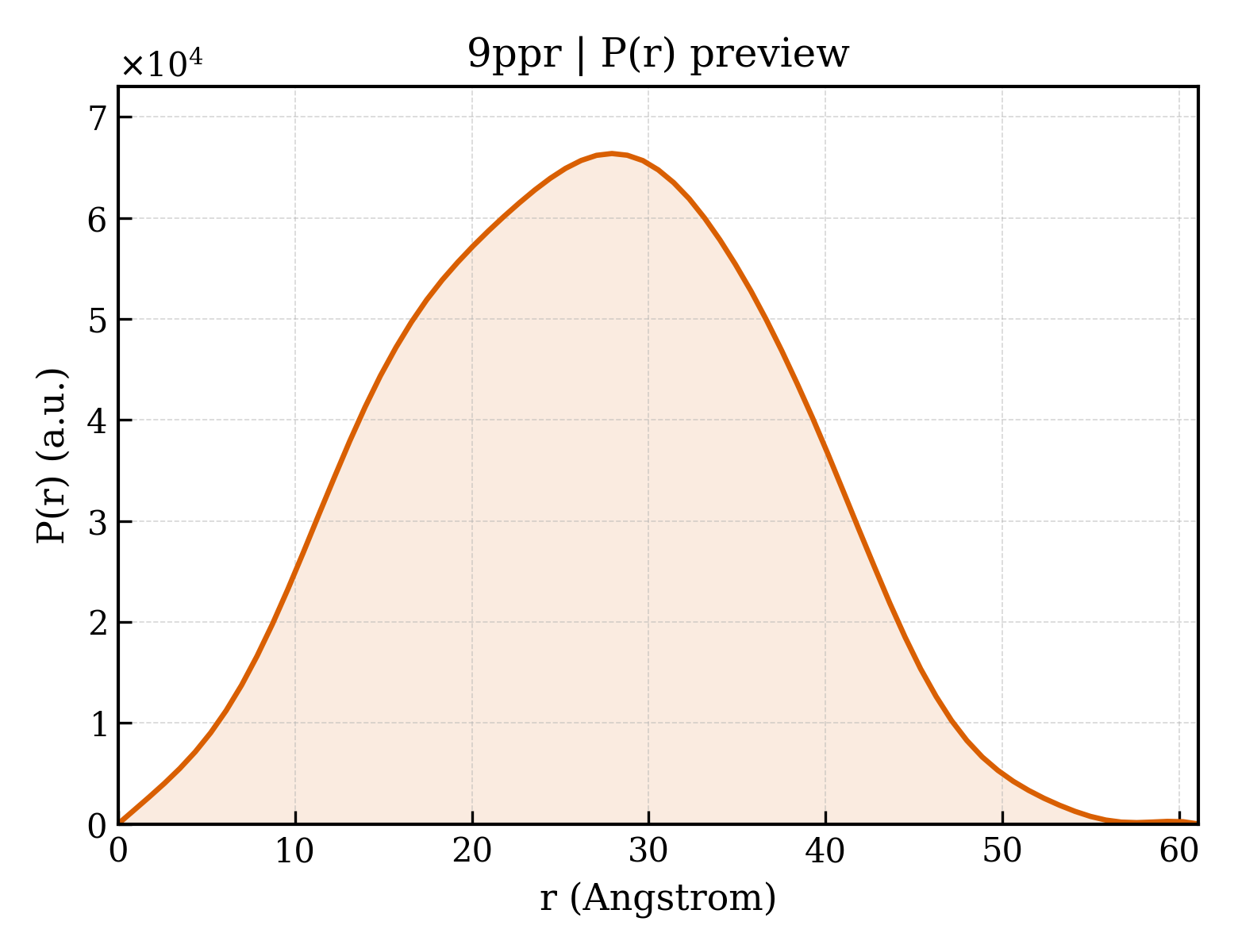

P(r) Distribution

▼

1. Structure Basics

entry_id	9ppr
deposition_date	2025-07-21
last_revision	2025-10-22
title	Zn- and Bi-bound structure of the H77C variant of TriCyt2
keywords	Bi- and Zn-binding protein, assembly, METAL BINDING PROTEIN; METAL BINDING PROTEIN
method	X-RAY DIFFRACTION

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	20.36 Å
rg_electron	19.28 Å
i0	23925200.00
molecular_weight	36118.0 kDa
excluded_volume	44653 Å³
envelope_volume	51496 Å³
shell_volume	21770 Å³
envelope_diameter	60.6 Å
shell_rg	26.15 Å
envelope_rg	19.56 Å
shape_rg	19.31 Å
total_rg	20.08 Å
total_atoms	2508
n_residues	318
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	61.1 Å
rg_real	20.20 Å
rg_real_error	0.24 Å
i0_real	2.3930e+07
i0_real_error	2.7920e+05
rg_reciprocal	20.23 Å
i0_reciprocal	23930000.0000
total_estimate	0.9061
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	27.9 Å
skewness	0.025
kurtosis	-0.555
angular_range	— – 0.3900 Å⁻¹
current_alpha	0.0000
highest_alpha	6841000.0000
n_real_points	71
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.933; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.979; Smooth: 0.996

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (6)

Entity 1 polymer

description	Soluble cytochrome b562
formula_weight	11879.5 kDa
src_method	man
entity_count	3

Polymer

type	polypeptide(L)
strand_id	A,B,C
atom_count	2949

ADWEDNMETLNDNLKVIEKADNAAQVKDALTKMRAAALDAKKATPPKLEDKSPASPEMIDFRVGFDILLWQIHDALCLANEGKVKEAQAAAEQLKTTVNAHWQKYR

Source

organism	Escherichia coli BL21(DE3)
ncbi_taxonomy_id	469008
host_organism	Escherichia coli BL21(DE3)

Entity 2 non-polymer

description	ZINC ION
formula_weight	65.4 kDa
src_method	syn
entity_count	2

Entity 3 non-polymer

description	CHLORIDE ION
formula_weight	35.5 kDa
src_method	syn
entity_count	5

Entity 4 non-polymer

description	Bismuth(III) ION
formula_weight	209.0 kDa
src_method	syn
entity_count	1

Entity 5 non-polymer

description	SODIUM ION
formula_weight	23.0 kDa
src_method	syn
entity_count	1

Entity 6 water

description	water
formula_weight	18.0 kDa
src_method	nat
entity_count	417

▶

6. Citations (1)

▶

length_a	55.750 Å
length_b	70.860 Å
length_c	75.480 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	12

space_group	P 21 21 21
int_tables_number	19
crystal_system	orthorhombic

resolution	1.570 Å
resolution_low	44.840 Å
r_factor	0.1871
r_work	0.1851
r_free	0.2252
