8rwh

;Dark structure of the human adenosine A2A receptor bound to synthetic photoswitch 'StilSwitch2' determined by serial synchrotron crystallography ;

Method: X-RAY DIFFRACTION Dmax: 107.7 Å Quality: REASONABLE

SAXS 散射曲线 SAXS Profile

SAXS profile for 8rwh

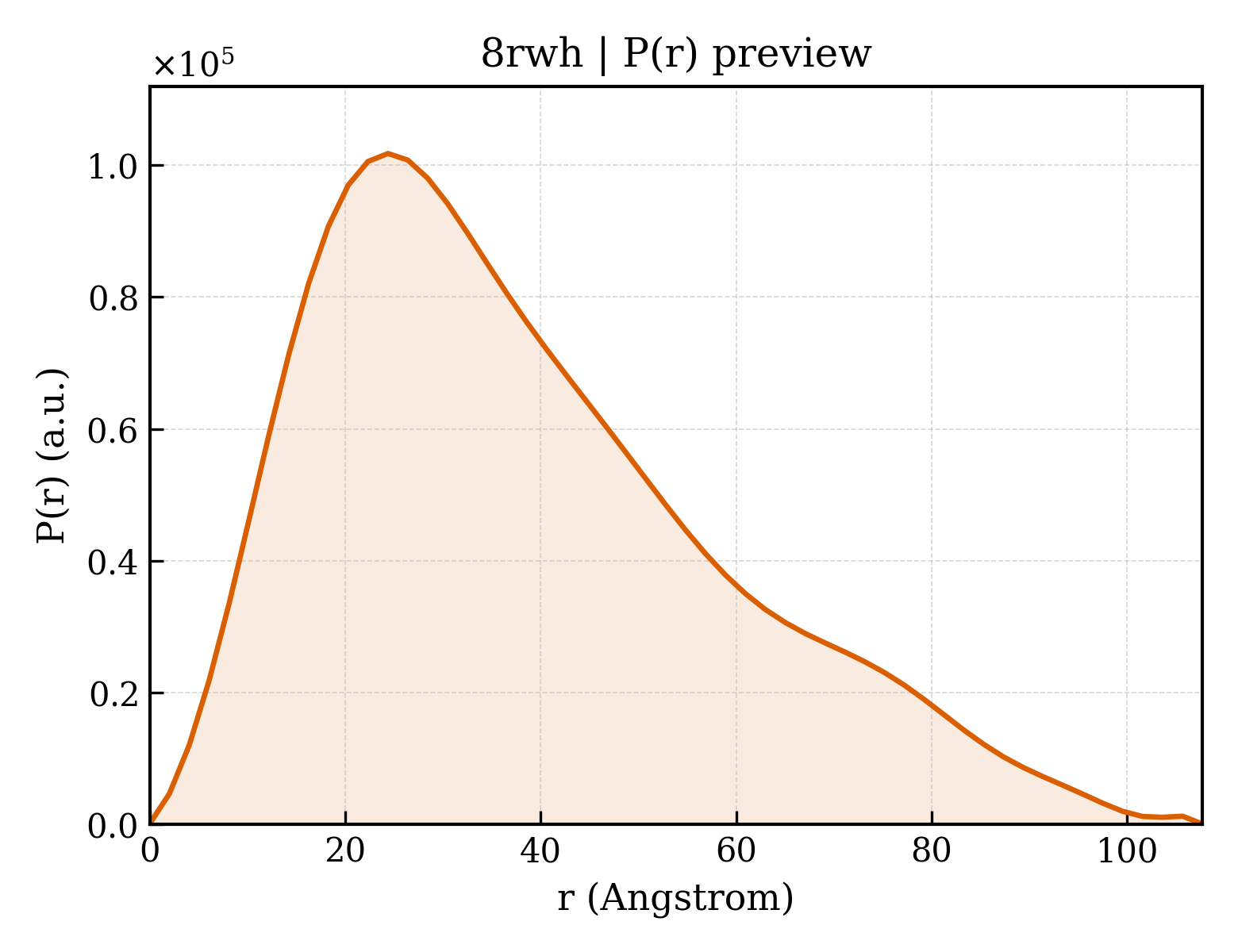

P(r) 距离分布 P(r) Distribution

P(r) distribution for 8rwh
下载 Download

1. 结构基本信息 1. Structure Basics

条目编号 entry_id8rwh
沉积日期 deposition_date2024-02-04
最后修订 last_revision2025-01-08
结构标题 title;Dark structure of the human adenosine A2A receptor bound to synthetic photoswitch 'StilSwitch2' determined by serial synchrotron crystallography ;
关键词 keywords;GPCR, adenosine receptor, synthetic photoswitch, Parkinson's disease, MEMBRANE PROTEIN ;; MEMBRANE PROTEIN
实验方法 methodX-RAY DIFFRACTION

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier29.91
回转半径 Rg (电子) rg_electron29.53
零角强度 I(0) i057342000.00
分子量 molecular_weight43468.0 kDa
排除体积 excluded_volume44173 ų
包络体积 envelope_volume77486 ų
水化壳体积 shell_volume25060 ų
包络直径 envelope_diameter112.7
壳层 Rg shell_rg32.22
包络 Rg envelope_rg29.89
形状 Rg shape_rg29.44
总 Rg total_rg29.95
总原子数 total_atoms3321
残基数 n_residues389
球谐函数阶数 n_harmonics20
q 范围 q_range— – 0.5000 −1
数据点数 n_points101
壳层类型 shell_typedirectional
溶剂电子密度 solvent_density0.3340 e/ų
壳层衬度 contrast_shell0.0300 e/ų
CRYSOL 版本 crysol_version4.1.3

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax107.7
Rg (实空间) rg_real30.44
Rg 误差 (实空间) rg_real_error1.29
I(0) (实空间) i0_real5.7340e+07
I(0) 误差 (实空间) i0_real_error1.0270e+06
Rg (倒空间) rg_reciprocal30.21
I(0) (倒空间) i0_reciprocal57330000.0000
解质量估计 total_estimate0.5501
解质量评级 solution_quality REASONABLE a REASONABLE solution
P(r) 峰数 n_peaks2
主峰位置 r_peak_primary24.4
偏度 Skewness skewness0.706
峰度 Kurtosis kurtosis-0.109
角度范围 angular_range— – 0.2650 −1
当前正则化参数 α current_alpha0.0000
最高正则化参数 α highest_alpha6228000.0000
实空间数据点数 n_real_points54
GNOM 版本 gnom_version4.1.3
质量判据 quality_criteria AN1: 0.000; Oscil: 0.517; Stabil: 1.000; Sysdev: 0.135; Positv: 1.000; Valcen: 0.351; Smooth: 0.841

4. 晶体学与实验 4. Crystallography & Experiment

5. 实体与聚合体信息 (8)

7. 引用文献 (1)

8. 文件与曲线 (10)
