SAXSdb — 8xvl

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Endoglucanase H,Endothelin-1 receptor,Soluble cytochrome b562

Homo sapiens

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	anti-BRIL Fab Heavy chain × 1 anti-Fab Nanobody × 1 anti-BRIL Fab Light chain × 1 Zibotentan × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	C562_ECOLX
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain R； PDBConstruct 564–668； UniProt 23–127

Endoglucanase H,Endothelin-1 receptor,Soluble cytochrome b562

Homo sapiens

UniProt P16218

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	anti-BRIL Fab Heavy chain × 1 anti-Fab Nanobody × 1 anti-BRIL Fab Light chain × 1 Zibotentan × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GUNH_ACET2
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain R； PDBConstruct 41–319； UniProt 26–304

Endoglucanase H,Endothelin-1 receptor,Soluble cytochrome b562

Homo sapiens

UniProt P25101

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Heteromer	Protein 4	anti-BRIL Fab Heavy chain × 1 anti-Fab Nanobody × 1 anti-BRIL Fab Light chain × 1 Zibotentan × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	EDNRA_HUMAN
Isoform	—
PDB entities	4
Chains and sequence ranges	Author chain R； PDBConstruct 327–557； UniProt 50–280 Author chain R； PDBConstruct 676–783； UniProt 298–405

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8xvl
Deposition date deposition_date	2024-01-15
Structure title title	Cryo-EM structure of ETAR bound with Zibotentan
Keywords keywords	GPCR, COMPLEX, ETA, ZIBOTENTAN, SIGNALING PROTEIN; SIGNALING PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8xvl__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8xvl__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

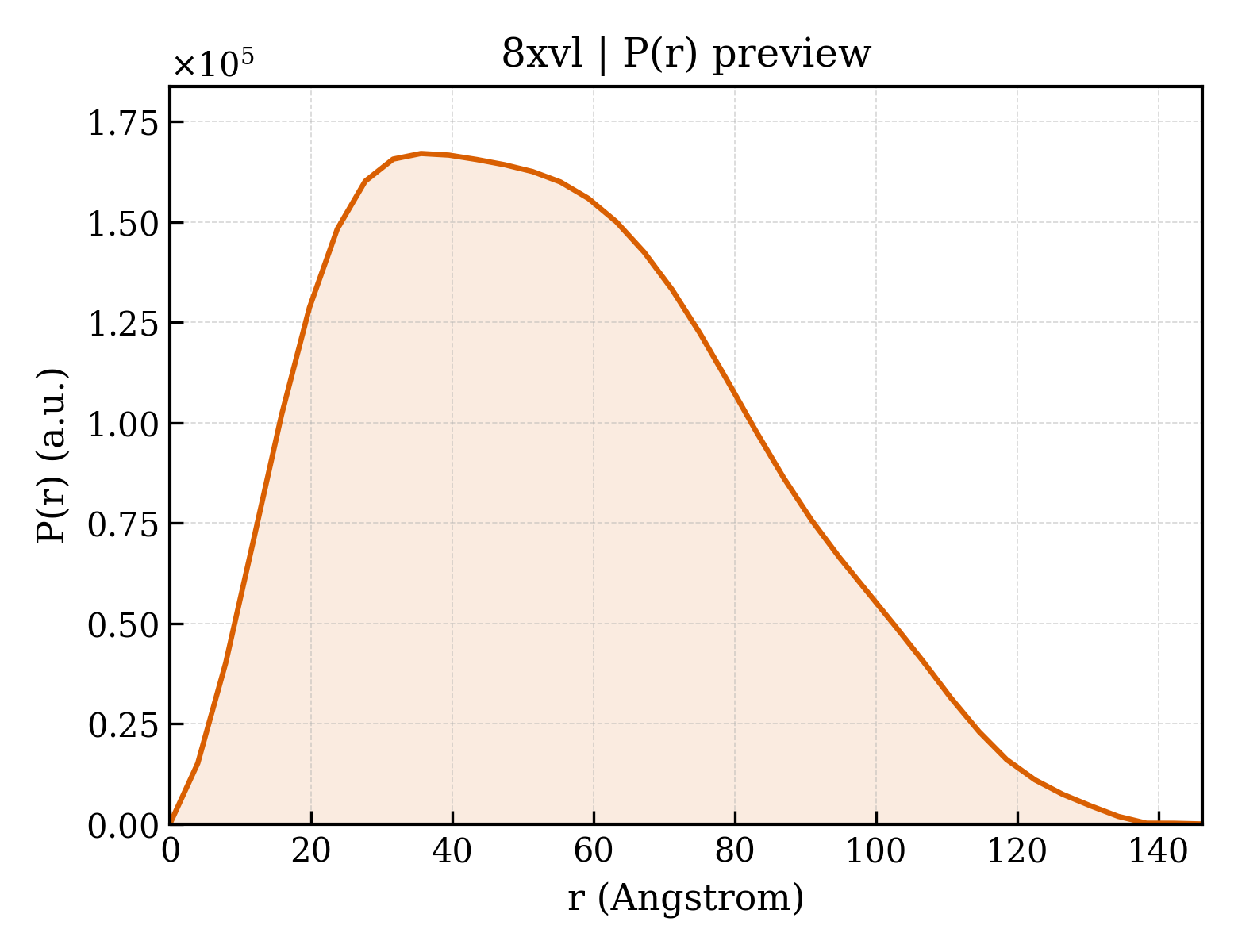

8xvl__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	42.64 Å
Rg (electron density)	43.14 Å
Total Rg	43.42 Å
Atom count	7337
Residues	942
Excluded volume	131040 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8xvl__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (5)

Entity 1 Entity 1 polymer

Description description	anti-BRIL Fab Heavy chain
Molecular weight formula_weight	28577.9 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	H
Atom count atom_count	7337

MGWSCIILFLVATATGVHSEISEVQLVESGGGLVQPGGSLRLSCAASGFNVVDFSLHWVRQAPGKGLEWVAYISSSSGSTSYADSVKGRFTISADTSKNTAYLQMNSLRAEDTAVYYCARWGYWPGEPWWKAFDYWGQGTLVTVSSASTKGPSVFPLAPSSKSTSGGTAALGCLVKDYFPEPVTVSWNSGALTSGVHTFPAVLQSSGLYSLSSVVTVPSSSLGTQTYICNVNHKPSNTKVDKKVEPKSCDKTHENLYFQGHHHHHH

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Mammalian expression vector Flag-MCS-pcDNA3.1

Entity 2 Entity 2 polymer

Description description	anti-Fab Nanobody
Molecular weight formula_weight	15071.4 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	K

HHHHHHGENLYFQGSQVQLQESGGGLVQPGGSLRLSCAASGRTISRYAMSWFRQAPGKEREFVAVARRSGDGAFYADSVQGRFTVSRDDAKNTVYLQMNSLKPEDTAVYYCAIDSDTFYSGSYDYWGQGTQVTVSS

Source Source

Source organism organism	synthetic construct
NCBI taxonomy ID ncbi_taxonomy_id	32630
Host organism host_organism	Escherichia coli

Entity 3 Entity 3 polymer

Description description	anti-BRIL Fab Light chain
Molecular weight formula_weight	25575.6 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	L

MGWSCIILFLVATATGVHSSDIQMTQSPSSLSASVGDRVTITCRASQSVSSAVAWYQQKPGKAPKLLIYSASSLYSGVPSRFSGSRSGTDFTLTISSLQPEDFATYYCQQYLYYSLVTFGQGTKVEIKRTVAAPSVFIFPPSDSQLKSGTASVVCLLNNFYPREAKVQWKVDNALQSGNSQESVTEQDSKDSTYSLSSTLTLSKADYEKHKVYACEVTHQGLSSPVTKSFNRGEC

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Mammalian expression vector Flag-MCS-pcDNA3.1

Entity 4 Entity 4 polymer

Description description	Endoglucanase H,Endothelin-1 receptor,Soluble cytochrome b562
Molecular weight formula_weight	89090.9 kDa
EC 编号 ec_number	3.2.1.4
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	R

MKTIIALSYIFCLVFADYKDDDDAHHHHHHHHHHGRAMASNYNSGLKIGAWVGTQPSESAIKSFQELQGRKLDIVHQFINWSTDFSWVRPYADAVYNNGSILMITWEPWEYNTVDIKNGKADAYITRMAQDMKAYGKEIWLRPLHAANGDWYPWAIGYSSRVNTNETYIAAFRHIVDIFRANGATNVKWVFNVNCDNVGNGTSYLGHYPGDNYVDYTSIDGYNWGTTQSWGSQWQSFDQVFSRAYQALASINKPIIIAEFASAEIGGNKARWITEAYNSIRTSYNKVIAAVWFHENKETDWRINSSPEALAAYREAIGAENLYFQGTTHQPTNLVLPSNGSMHNYCPQQTKITSAFKYINTVISCTIFIVGMVGNATLLRIIYQNKCMRNGPNALIASLALGDLIYVVIDLPINVFKLLAGRWPFDHNDFGVFLCKLFPFLQKSSVGITVLNLCALSVDRYRAVASWSRVQGIGIPLVTAIEIVSIWILSFILAIPEAIGFVMVPFEYRGEQHKTCMLNATSKFMEFYQDVKDWWLFGFYFCMPLVCTAIFYTLMTCEARRQLADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLERARSTLKQRREVAKTVFCLVVIFALCWFPLHLSRILKKTVYNEMDKNRCELLSFLLLMDYIGINLATMNSCINPIALYFVSKKFKNCFQSCLCCCCYQSKSLMTSVPMNGTSI

Source Source

Source organism organism	Homo sapiens
Common name common_name	human
NCBI taxonomy ID ncbi_taxonomy_id	9606
Host organism host_organism	Spodoptera frugiperda

Entity 5 Entity 5 non-polymer

Description description	Zibotentan
Molecular weight formula_weight	424.4 kDa
Source method src_method	syn
Copy count entity_count	1

▶

Unit-cell length a length_a	1.000 Å
Unit-cell length b length_b	1.000 Å
Unit-cell length c length_c	1.000 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	—

Space group space_group	P 1
Space-group number int_tables_number	1
Crystal system crystal_system	—

Resolution resolution	3.22 Å
Resolution测定Method resolution_method	—
颗粒数 num_particles	644807

Cryo-EM structure of ETAR bound with Zibotentan
