SAXSdb — 9py4

▼

1. Structure Basics

entry_id	9py4
deposition_date	2025-08-06
title	Primed-state loperamide-mu opioid receptor-Gi GDPbS complex (rebound)
keywords	G protein coupled receptor, Mu Opioid receptor, Loperamide, MEMBRANE PROTEIN, GDP; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	35.94 Å
rg_electron	36.01 Å
i0	401210000.00
molecular_weight	108200.0 kDa
excluded_volume	104690 Å³
envelope_volume	191900 Å³
shell_volume	45911 Å³
envelope_diameter	130.3 Å
shell_rg	40.64 Å
envelope_rg	36.13 Å
shape_rg	36.04 Å
total_rg	36.20 Å
total_atoms	8164
n_residues	1020
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	120.8 Å
rg_real	36.03 Å
rg_real_error	1.04 Å
i0_real	4.0120e+08
i0_real_error	7.0860e+06
rg_reciprocal	35.97 Å
i0_reciprocal	401200000.0000
total_estimate	0.6615
solution_quality	REASONABLE a REASONABLE solution
n_peaks	2
r_peak_primary	43.9 Å
skewness	0.412
kurtosis	-0.227
angular_range	— – 0.2200 Å⁻¹
current_alpha	0.0000
highest_alpha	50890000.0000
n_real_points	45
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.866; Stabil: 1.000; Sysdev: 0.101; Positv: 1.000; Valcen: 0.961; Smooth: 0.736

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (7)

Entity 1 polymer

description	Guanine nucleotide-binding protein G(i) subunit alpha-1
formula_weight	40415.0 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	8164

MGCTLSAEDKAAVERSKMIDRNLREDGEKAAREVKLLLLGAGESGKSTIVKQMKIIHEAGYSEEECKQYKAVVYSNTIQSIIAIIRAMGRLKIDFGDSARADDARQLFVLAGAAEEGFMTAELAGVIKRLWKDSGVQACFNRSREYQLNDSAAYYLNDLDRIAQPNYIPTQQDVLRTRVKTTGIVETHFTFKDLHFKMFDVGGQRSERKKWIHCFEGVTAIIFCVALSDYDLVLAEDEEMNRMHESMKLFDSICNNKWFTDTSIILFLNKKDLFEEKIKKSPLTICYPEYAGSNTYEEAAAYIQCQFEDLNKRKDTKEIYTHFTCATDTKNVQFVFDAVTDVIIKNNLKDCGLF

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1
formula_weight	39839.5 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

HHHHHHHHHHLEVLFQGPGSSGSELDQLRQEAEQLKNQIRDARKACADATLSQITNNIDPVGRIQMRTRRTLRGHLAKIYAMHWGTDSRLLVSASQDGKLIIWDSYTTNKVHAIPLRSSWVMTCAYAPSGNYVACGGLDNICSIYNLKTREGNVRVSRELAGHTGYLSCCRFLDDNQIVTSSGDTTCALWDIETGQQTTTFTGHTGDVMSLSLAPDTRLFVSGACDASAKLWDVREGMCRQTFTGHESDINAICFFPNGNAFATGSDDATCRLFDLRADQELMTYSHDNIICGITSVSFSKSGRLLLAGYDDFNCNVWDALKADRAGVLAGHDNRVSCLGVTDDGMAVATGSWDSFLKIWN

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 3 polymer

description	Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2
formula_weight	7861.1 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	C

MASNNTASIAQARKLVEQLKMEANIDRIKVSKAAADLMAYCEAHAKEDPLLTPVPASENPFREKKFFCAIL

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 4 polymer

description	Cytochrome b-562/Mu-type opioid receptor chimera protein,Mu-type opioid receptor
formula_weight	69540.4 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	R

MKTIIALSYIFCLVFADYKDHDGDYKDHDIDYKDDDDKLHHHHHHHHHHLEVLFQGPGSGSADLEDNWETLNDNLKVIEKADNAAQVKDALTKMRAAALDAQKATPPKLEDKSPDSPEMKDFRHGFDILVGQIDDALKLANEGKVKEAQAAAEQLKTTRNAYIQKYLGTGSDSSAAPTNASNCTDALAYSSCSPAPSPGSWVNLSHLDGNLSDPCGPNRTDLGGRDSLCPPTGSPSMITAITIMALYSIVCVVGLFGNFLVMYVIVRYTKMKTATNIYIFNLALADALATSTLPFQSVNYLMGTWPFGTILCKIVISIDYYNMFTSIFTLCTMSVDRYIAVCHPVKALDFRTPRNAKIINVCNWILSSAIGLPVMFMATTKYRQGSIDCTLTFSHPTWYWENLLKICVFIFAFIMPVLIITVCYGLMILRLKSVRMLSGSKEKDRNLRRITRMVLVVVAVFIVCWTPIHIYVIIKALVTIPETTFQTVSWHFCIALGYTNSCLNPVLYAFLDENFKRCFREFCIPTSSNIEQQNSTRIRQNTRDHPSTANTVDRTNHQLENLEAETAPLPAAALEVLFQGPGSWSHPQFEKGGGSGGGSGGSSAWSHPQFEKHHHHHHHHHH

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 5 non-polymer

description	5'-O-[(R)-hydroxy(thiophosphonooxy)phosphoryl]guanosine
formula_weight	459.3 kDa
src_method	syn
entity_count	1

Entity 6 non-polymer

description	CHOLESTEROL
formula_weight	386.7 kDa
src_method	syn
entity_count	2

Entity 7 non-polymer

description	4-[4-(4-chlorophenyl)-4-hydroxypiperidin-1-yl]-N,N-dimethyl-2,2-diphenylbutanamide
formula_weight	477.0 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	2.780 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	2.78 Å
resolution_method	—
num_particles	292261

fit	/app/data/saxs_computation/py/9py4/9py4.fit
pddf	/app/data/pr_computation/py/9py4/9py4.pr.out
profile	/app/data/saxs_computation/py/9py4/9py4.dat

Primed-state loperamide-mu opioid receptor-Gi GDPbS complex (rebound)

SAXS Profile

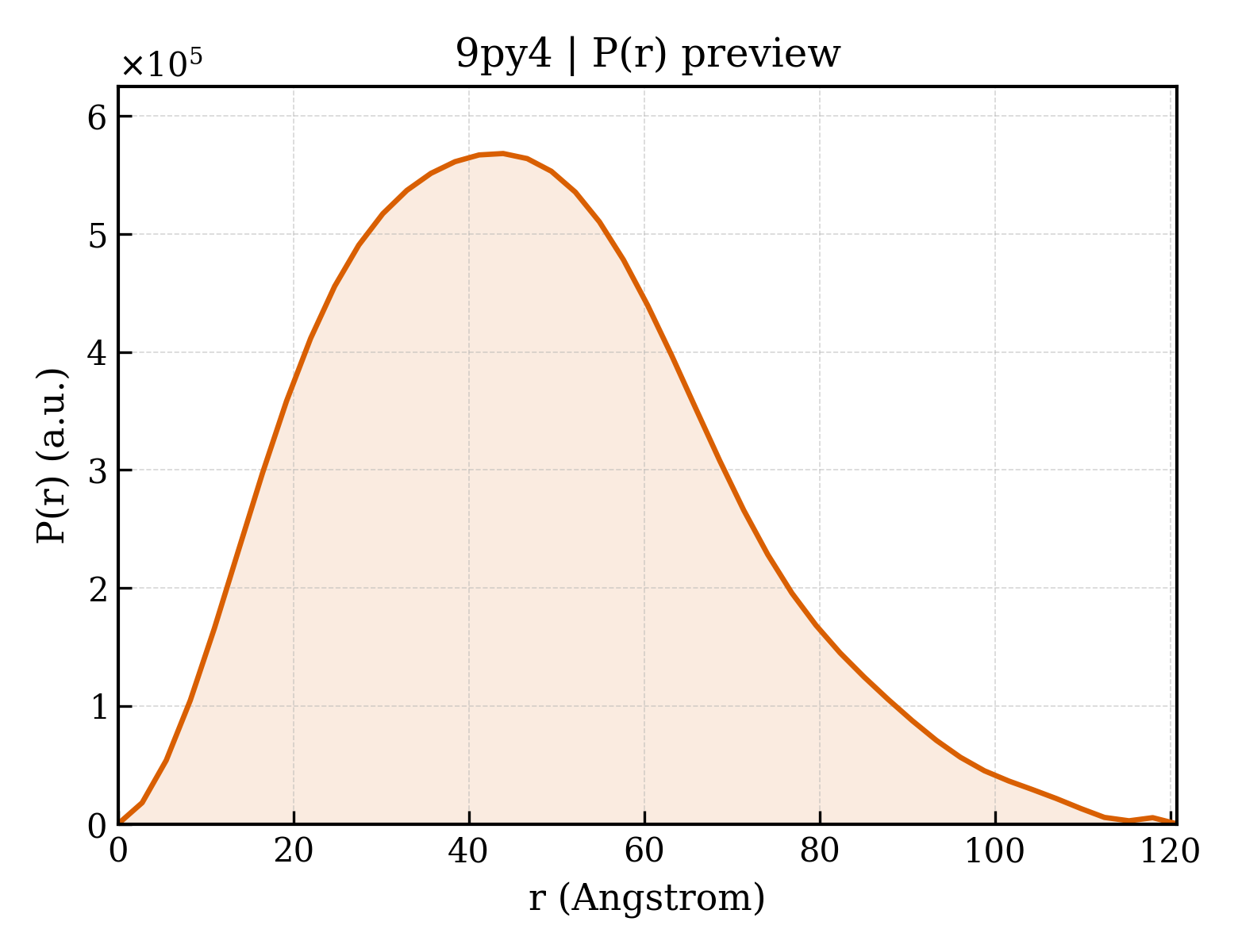

P(r) Distribution
