10tm

Cryo-EM structure of MOR bound with DAMGO

Method: ELECTRON MICROSCOPY D_max: 88.2 Å Quality: EXCELLENT

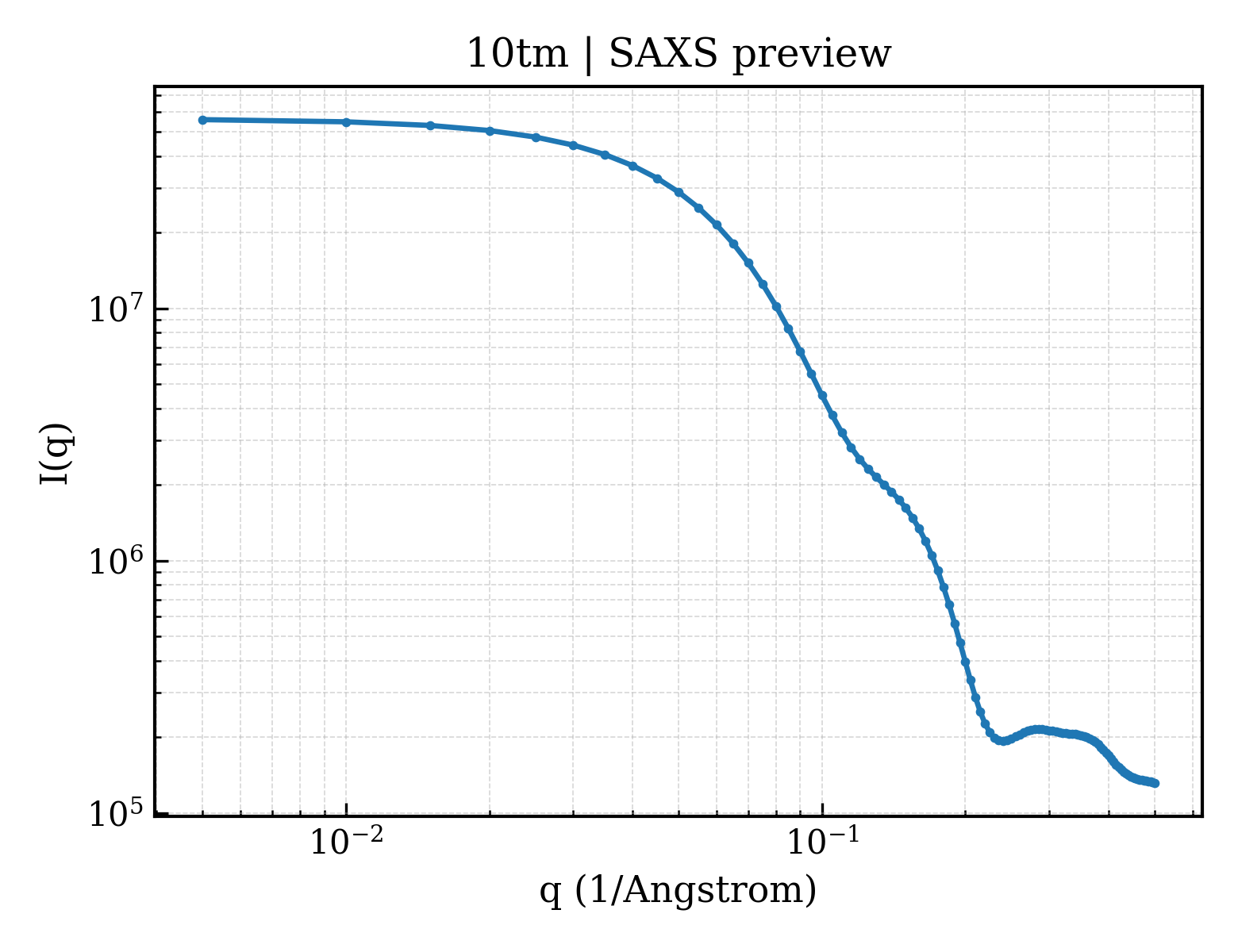

SAXS Profile

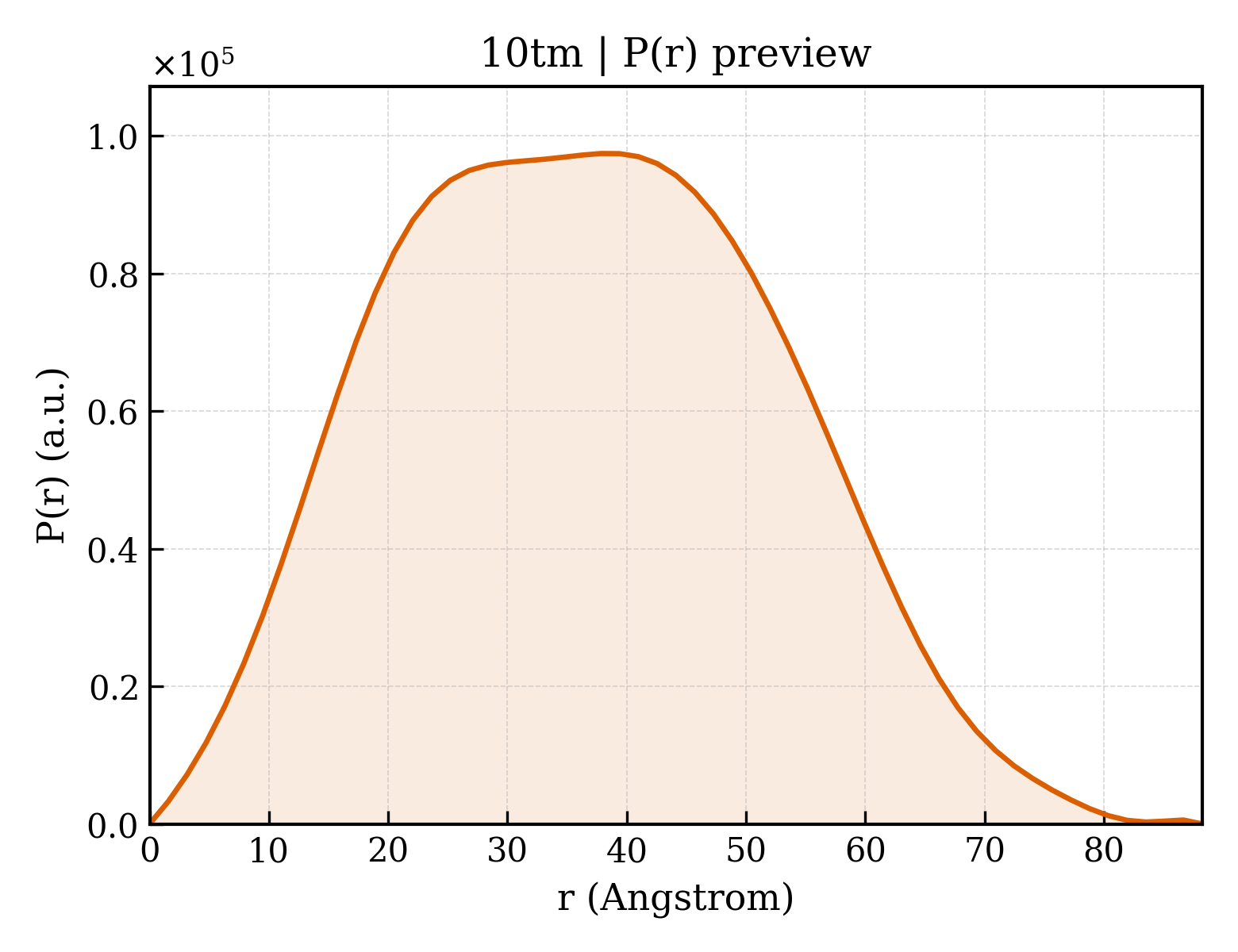

P(r) Distribution

▼

1. Structure Basics

entry_id	10tm
deposition_date	2026-02-08
last_revision	2026-05-27
title	Cryo-EM structure of MOR bound with DAMGO
keywords	GPCR, pain relief, G protein pathway, active state, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	28.24 Å
rg_electron	26.94 Å
i0	56272800.00
molecular_weight	66261.0 kDa
excluded_volume	86281 Å³
envelope_volume	103880 Å³
shell_volume	31843 Å³
envelope_diameter	92.7 Å
shell_rg	34.47 Å
envelope_rg	27.07 Å
shape_rg	26.91 Å
total_rg	27.95 Å
total_atoms	4654
n_residues	568
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	88.2 Å
rg_real	28.13 Å
rg_real_error	0.66 Å
i0_real	5.6270e+07
i0_real_error	8.8360e+05
rg_reciprocal	28.17 Å
i0_reciprocal	56270000.0000
total_estimate	0.9098
solution_quality	EXCELLENT a EXCELLENT solution
n_peaks	2
r_peak_primary	37.8 Å
skewness	0.151
kurtosis	-0.610
angular_range	— – 0.2800 Å⁻¹
current_alpha	0.0000
highest_alpha	10520000.0000
n_real_points	57
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.950; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.997; Smooth: 0.976

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Mu-type opioid receptor
formula_weight	43577.8 kDa
src_method	man
entity_count	2

Polymer

type	polypeptide(L)
strand_id	R,F
atom_count	4654

MDSSAAPTNASNCTDALAYSSCSPAPSPGSWVNLSHLDGNLSDPCGPNRTDLGGRDSLCPPTGSPSMITAITIMALYSIVCVVGLFGNFLVMYVIVRYTKMKTATNIYIFNLALADALATSTLPFQSVNYLMGTWPFGTILCKIVISIDYYNMFTSIWTLCTMSVDRYIAVCHPVKALDFRTPRNAKIINVCNWILSSAIGLPVMFMATTKYRQGSIDCTLTFSHPTWYWENLLKICVFIFAFIMPVLIITVCYGLMILRLKSVRMLSGSKEKDRNLRRITRMVLVVVAVFIVCWTPIHIYVIIKALVTIPETTFQTVSWHFCIALGYTNSCLNPVLYAFLDENFKRCFREFCIPTSSNIEQQNSTRIRQNTRDHPSTANTVDRTNHQ

Source

organism	Homo sapiens
common_name	human
ncbi_taxonomy_id	9606
host_organism	Spodoptera frugiperda

Entity 2 polymer

description	TYR-DAL-GLY-MEA-ETA
formula_weight	513.6 kDa
src_method	syn
entity_count	2

Polymer

type	polypeptide(L)
strand_id	S,H

YAGFX

Entity 3 non-polymer

description	CHOLESTEROL
formula_weight	386.7 kDa
src_method	syn
entity_count	4

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.000 Å
resolution_low	3.000 Å
r_factor	0.3300
r_work	0.3300
r_free	0.3342

resolution	3.00 Å
resolution_method	—
num_particles	791402

fit	/app/data/saxs_computation/0t/10tm/10tm.fit
pddf	/app/data/pr_computation/0t/10tm/10tm.pr.out
profile	/app/data/saxs_computation/0t/10tm/10tm.dat
