9t9p

Adenosine receptor A2a (A2AR)-beta-lactamase fusion bound to beta-lactamase inhibitory protein II (BLIPII) and ZM241385

Method: ELECTRON MICROSCOPY D_max: 131.6 Å Quality: REASONABLE

SAXS Profile

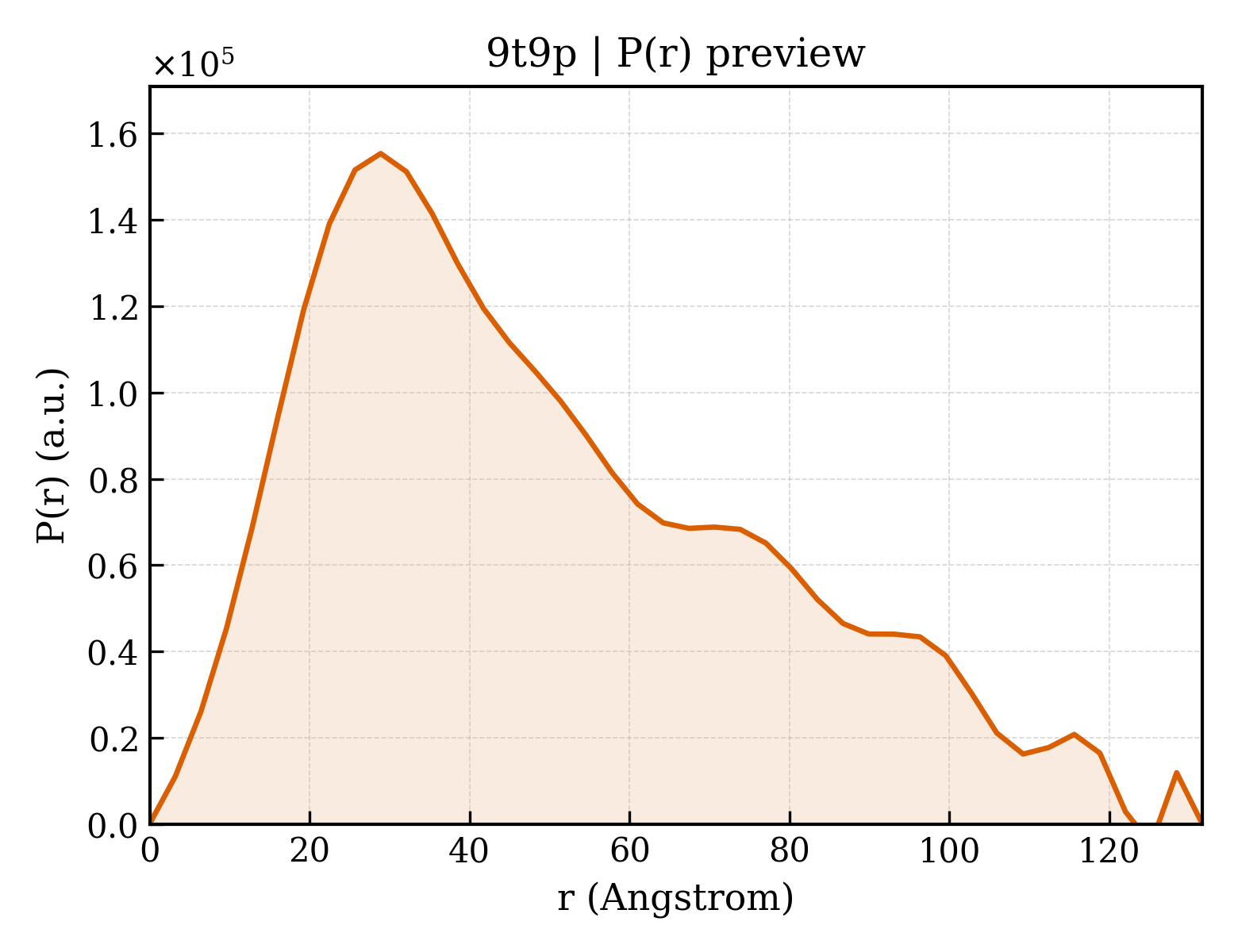

P(r) Distribution

▼

1. Structure Basics

entry_id	9t9p
deposition_date	2025-11-24
title	Adenosine receptor A2a (A2AR)-beta-lactamase fusion bound to beta-lactamase inhibitory protein II (BLIPII) and ZM241385
keywords	G-protein coupled receptor, GPCR, fusion tag, MEMBRANE PROTEIN; MEMBRANE PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	39.00 Å
rg_electron	40.24 Å
i0	109530000.00
molecular_weight	86703.0 kDa
excluded_volume	109550 Å³
envelope_volume	149490 Å³
shell_volume	34971 Å³
envelope_diameter	142.9 Å
shell_rg	40.18 Å
envelope_rg	39.70 Å
shape_rg	40.20 Å
total_rg	40.36 Å
total_atoms	6115
n_residues	803
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	131.6 Å
rg_real	39.87 Å
rg_real_error	1.80 Å
i0_real	1.0950e+08
i0_real_error	2.1280e+06
rg_reciprocal	39.34 Å
i0_reciprocal	109500000.0000
total_estimate	0.6384
solution_quality	REASONABLE a REASONABLE solution
n_peaks	4
r_peak_primary	28.9 Å
skewness	0.643
kurtosis	-0.395
angular_range	— – 0.2050 Å⁻¹
current_alpha	0.0000
highest_alpha	24660000.0000
n_real_points	42
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.296; Stabil: 0.996; Sysdev: 1.000; Positv: 1.000; Valcen: 0.418; Smooth: 0.000

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (3)

Entity 1 polymer

description	Beta-lactamase inhibitory protein II
formula_weight	29044.7 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	A
atom_count	6115

MATSVVAWGGNNDWGEATVPAEAQSGVDAIAGGYFHGLALKGGKVLGWGANLNGQLTMPAATQSGVDAIAAGNYHSLALKDGEVIAWGGNEDGQTTVPAEARSGVDAIAAGAWASYALKDGKVIAWGDDSDGQTTVPAEAQSGVTALDGGVYTALAVKNGGVIAWGDNYFGQTTVPAEAQSGVDDVAGGIFHSLALKDGKVIAWGDNRYKQTTVPTEALSGVSAIASGEWYSLALKNGKVIAWGSSRTAPSSVQSGVSSIEAGPNAAYALKGGSGSGHHHHHHHHHH

Source

organism	Streptomyces exfoliatus
ncbi_taxonomy_id	1905
host_organism	Escherichia coli BL21(DE3)

Entity 2 polymer

description	Adenosine receptor A2a,Small exopenicillinase,Green fluorescent protein
formula_weight	94983.2 kDa
src_method	man
entity_count	1

Polymer

type	polypeptide(L)
strand_id	B

MKTIIALSYIFCLVFADYKDDDDKPIMGSSVYITVELAIAVLAILGNVLVCWAVWLNSNLQNVTNYFVVSLAAADIAVGVLAIPFAITISTGFCAACHGCLFIACFVLVLTQSSIFSLLAIAIDRYIAIRIPLRYNGLVTGTRAKGIIAICWVLSFAIGLTPMLGWNNCGQPKEGKNHSQGCGEGQVACLFEDVVPMNYMVYFNFFACVLVPLLLMLGVYLRIFLAARRQLKQMESQAKDDFAKLEEQFDAKLGIFALDTGTNSTVAYRPDERFAFASTIKALTVGVLLQQKSIEDLNQRITYTRDDLVNYNPITEKHVDTGMTLKELADASLRYSDNAAQNLILKQIGGPESLKKELRKIGDEVTNPERFEPELNEVNPGETQDTSTARALVTSLRAFALEDKLPSEKRELLIDWMKRNTTGDALIRAGVPDGWEVADKTGAASYGTRNDIAIIWPPKGDPVVLAVLSSRDKKDAKYDDKLIAEATKVVMKLLRARSTLQKEVHAAKSLAIIVGLFALCWLPLHIINCFTFFCPDCSHAPLWLMYLAIVLSHTNSVVNPFIYAYRIREFRQTFRKIIRSHVLRQQEPFKAENLYFQGVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSKLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKHHHHHHHHHH

Source

organism	Aequorea victoria
ncbi_taxonomy_id	6100
host_organism	Spodoptera frugiperda

Entity 3 non-polymer

description	4-{2-[(7-amino-2-furan-2-yl[1,2,4]triazolo[1,5-a][1,3,5]triazin-5-yl)amino]ethyl}phenol
formula_weight	337.3 kDa
src_method	syn
entity_count	1

▶

6. Citations (1)

▶

length_a	1.000 Å
length_b	1.000 Å
length_c	1.000 Å
angle_alpha	90.00 °
angle_beta	90.00 °
angle_gamma	90.00 °
z_pdb	—

space_group	P 1
int_tables_number	1
crystal_system	—

resolution	3.000 Å
resolution_low	— Å
r_factor	—
r_work	—
r_free	—

resolution	3.00 Å
resolution_method	—
num_particles	597000

fit	/app/data/saxs_computation/t9/9t9p/9t9p.fit
pddf	/app/data/pr_computation/t9/9t9p/9t9p.pr.out
profile	/app/data/saxs_computation/t9/9t9p/9t9p.dat
