8t6k

Cryo-EM structure of tetradecameric CaMKII beta holoenzyme T287A T306A T307A

Method: ELECTRON MICROSCOPY D_max: 130.7 Å Quality: GOOD

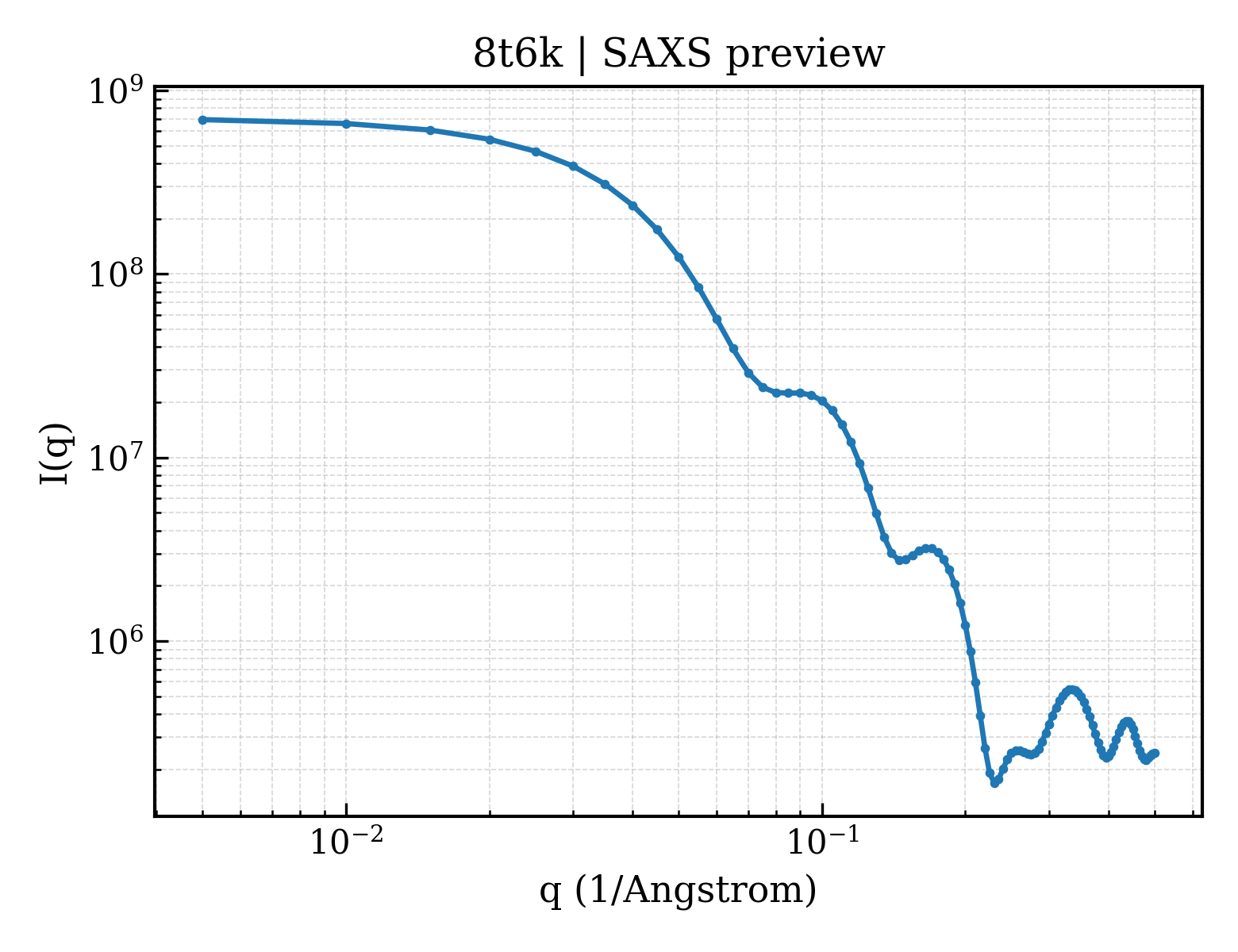

SAXS 散射曲线 SAXS Profile

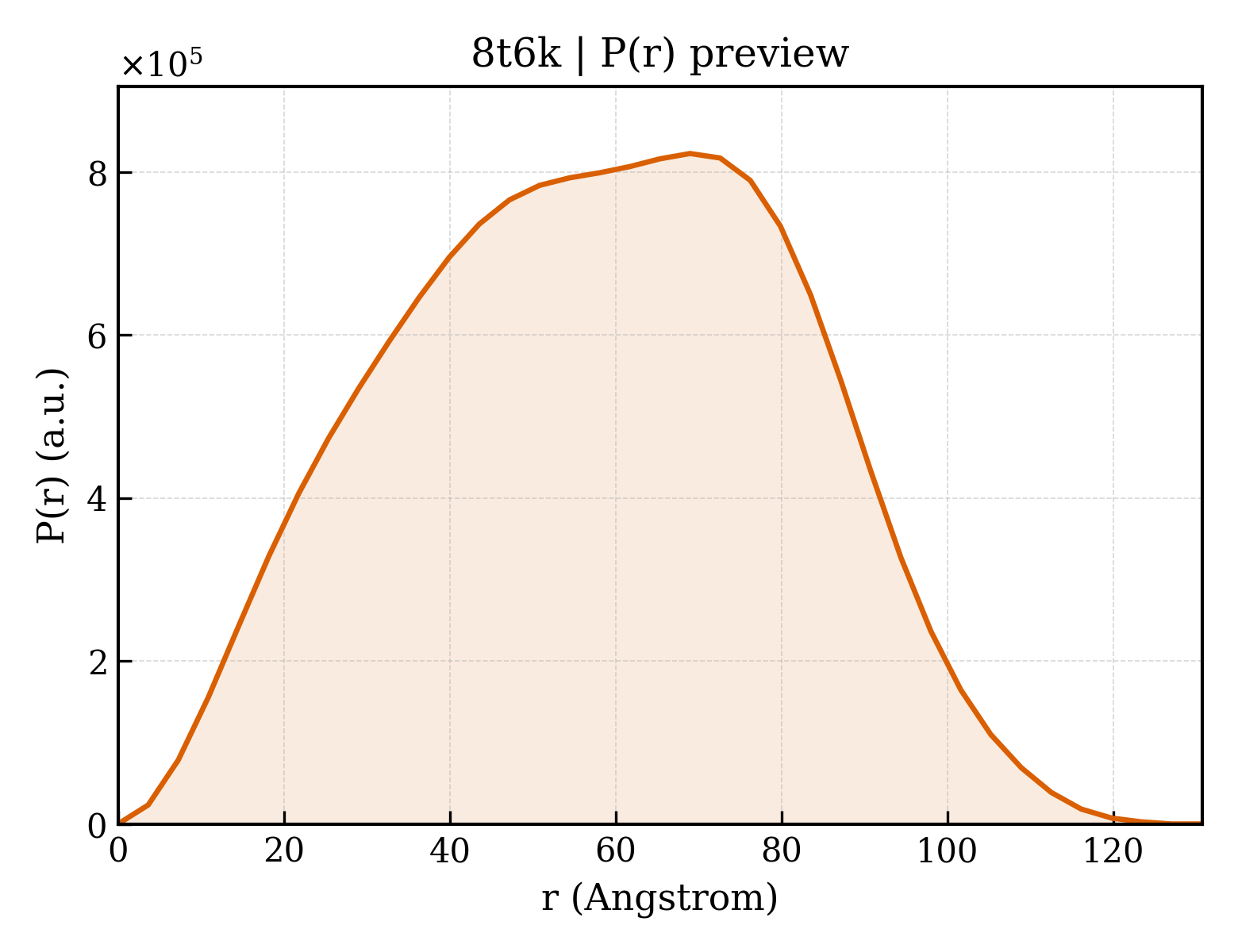

P(r) 距离分布 P(r) Distribution

P(r) distribution for 8t6k

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8t6k
沉积日期 deposition_date	2023-06-16
结构标题 title	Cryo-EM structure of tetradecameric CaMKII beta holoenzyme T287A T306A T307A
关键词 keywords	High-order oligomer, Protein Kinase, Signaling, Memory, SIGNALING PROTEIN; SIGNALING PROTEIN
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	44.34 Å
回转半径 Rg (电子) rg_electron	43.59 Å
零角强度 I(0) i0	704429000.00
分子量 molecular_weight	213940.0 kDa
排除体积 excluded_volume	265880 Å³
包络体积 envelope_volume	414830 Å³
水化壳体积 shell_volume	77928 Å³
包络直径 envelope_diameter	130.8 Å
壳层 Rg shell_rg	51.25 Å
包络 Rg envelope_rg	41.01 Å
形状 Rg shape_rg	43.58 Å
总 Rg total_rg	44.00 Å
总原子数 total_atoms	29722
残基数 n_residues	1890
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	130.7 Å
Rg (实空间) rg_real	44.06 Å
Rg 误差 (实空间) rg_real_error	0.87 Å
I(0) (实空间) i0_real	7.0440e+08
I(0) 误差 (实空间) i0_real_error	1.1610e+07
Rg (倒空间) rg_reciprocal	44.34 Å
I(0) (倒空间) i0_reciprocal	704700000.0000
解质量估计 total_estimate	0.8834
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	1
主峰位置 r_peak_primary	69.0 Å
偏度 Skewness skewness	-0.030
峰度 Kurtosis kurtosis	-0.723
角度范围 angular_range	— – 0.1800 Å⁻¹
当前正则化参数 α current_alpha	0.0000
最高正则化参数 α highest_alpha	66520000.0000
实空间数据点数 n_real_points	37
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.000; Oscil: 0.955; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.631

▶
