SAXSdb — 2jad

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

YELLOW FLUORESCENT PROTEIN GLUTAREDOXIN FUSION PROTEIN

SACCHAROMYCES CEREVISIAE

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	SULFATE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GLRX1_YEAST
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 245–354； UniProt 1–110

YELLOW FLUORESCENT PROTEIN GLUTAREDOXIN FUSION PROTEIN

SACCHAROMYCES CEREVISIAE

UniProt P42212

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	SULFATE ION × 2 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GFP_AEQVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–236； UniProt 1–238

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2jad
Deposition date deposition_date	2006-11-27
Structure title title	Yellow fluorescent protein - glutaredoxin fusion protein
Keywords keywords	YELLOW FLUORESCENT PROTEIN, ELECTRON TRANSPORT, REDOX- ACTIVE CENTER, YEAST, GRX1P, TRANSPORT, GLUTAREDOXIN; ELECTRON TRANSPORT
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2jad__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

2jad__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

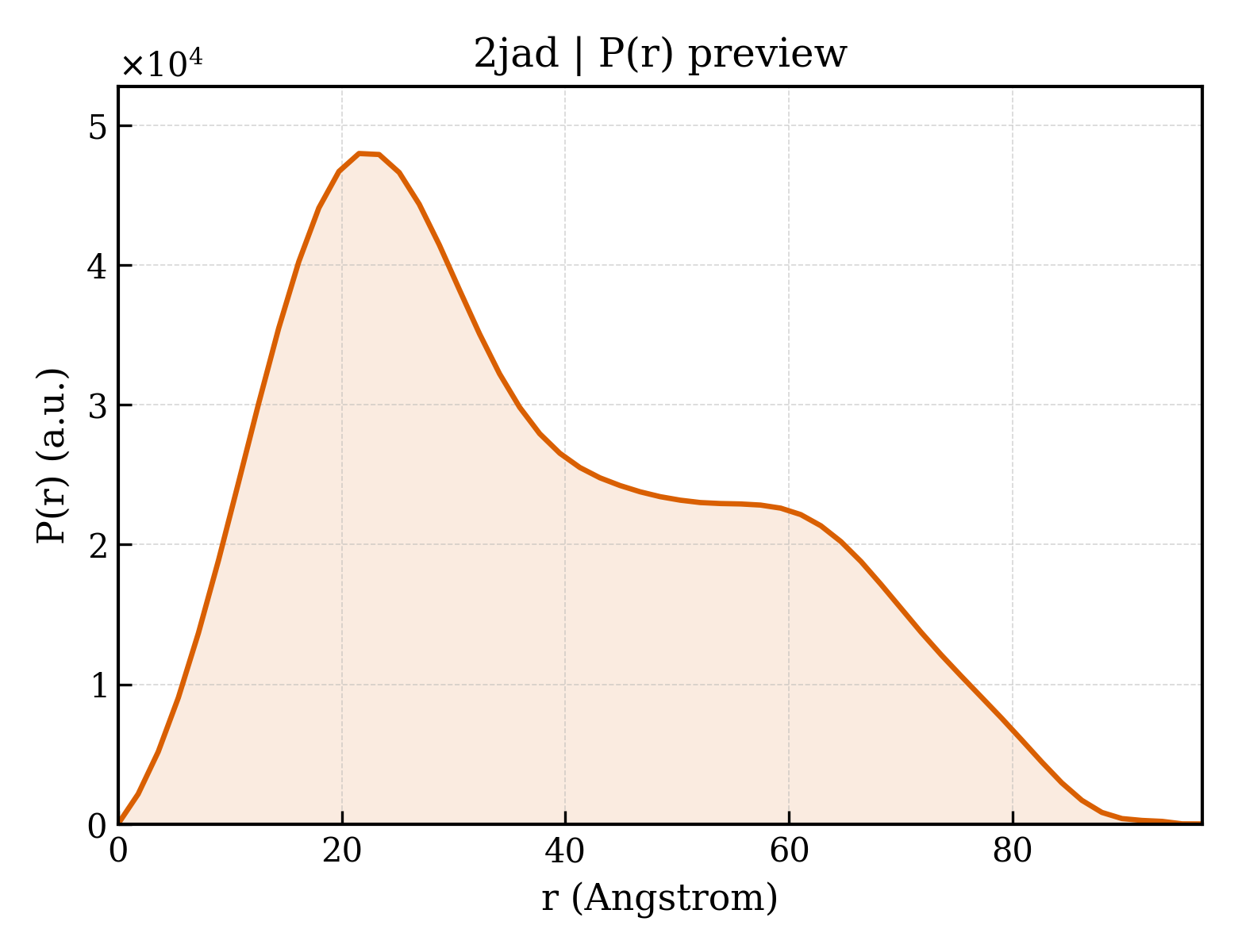

2jad__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.35 Å
Rg (electron density)	29.31 Å
Total Rg	29.86 Å
Atom count	2763
Residues	346
Excluded volume	49046 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2jad__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	YELLOW FLUORESCENT PROTEIN GLUTAREDOXIN FUSION PROTEIN
Molecular weight formula_weight	40975.2 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2818

MSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFIVTTGKLPVPWPTLVTTFAYGLQCFARYPDHMKRHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHCVYIVADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLCYQSALSKDPNEKRDHMVLLEFVTAAGITHGMHELYKSGSGSGSGMVSQETIKHVKDLIAENEIFVASKTYCPYSHAALNTLFEKLKVPRSKVLVLQLNDMKEGADIQAALYEINGQRTVPNIYINGKHIGGNDDLQELRETGELEELLEPILANLEHHHHHH

Source Source

Source organism organism	SACCHAROMYCES CEREVISIAE
NCBI taxonomy ID ncbi_taxonomy_id	4932
Host organism host_organism	ESCHERICHIA COLI

Entity 2 Entity 2 non-polymer

Description description	SULFATE ION
Molecular weight formula_weight	96.1 kDa
Source method src_method	syn
Copy count entity_count	2

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	55

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2jadA01
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	155 — Green Fluorescent Protein
Homologous superfamily homologous superfamily	10 — Green fluorescent protein

Domain ID domain_id	2jadA02
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	30 — Glutaredoxin
Homologous superfamily homologous superfamily	10 — Glutaredoxin

▶

Unit-cell length a length_a	132.111 Å
Unit-cell length b length_b	132.111 Å
Unit-cell length c length_c	58.722 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 64
Space-group number int_tables_number	172
Crystal system crystal_system	—

Resolution resolution	2.700 Å
Low-resolution limit resolution_low	20.000 Å
R factor r_factor	0.2140
R_work r_work	0.2140
R_free r_free	0.2470
