SAXSdb — 2g2s

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Green fluorescent protein

Aequorea victoria

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 2	MAGNESIUM ION × 1 water × 2	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GFP_AEQVI
Isoform	—
PDB entities	1, 2
Chains and sequence ranges	Author chain A； PDBConstruct 3–66； UniProt 2–65 Author chain B； PDBConstruct 1–173； UniProt 66–238

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	2g2s
Deposition date deposition_date	2006-02-16
Structure title title	Structure of S65G Y66S GFP variant after spontaneous peptide hydrolysis
Keywords keywords	chromophore, biosynthesis, dehydroalanine, peptide hydrolysis, post-translational modification, LUMINESCENT PROTEIN; LUMINESCENT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

2g2s__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

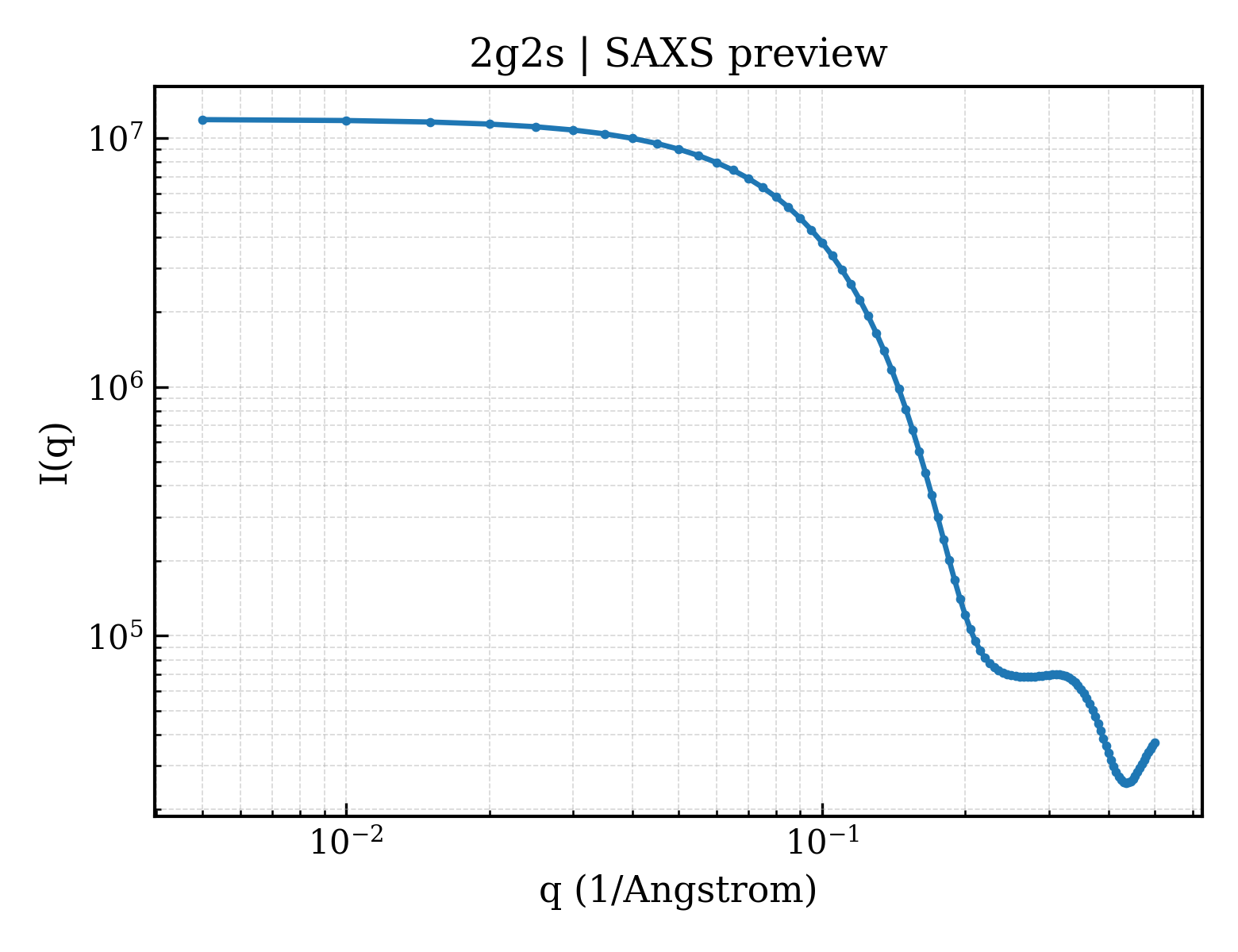

2g2s__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

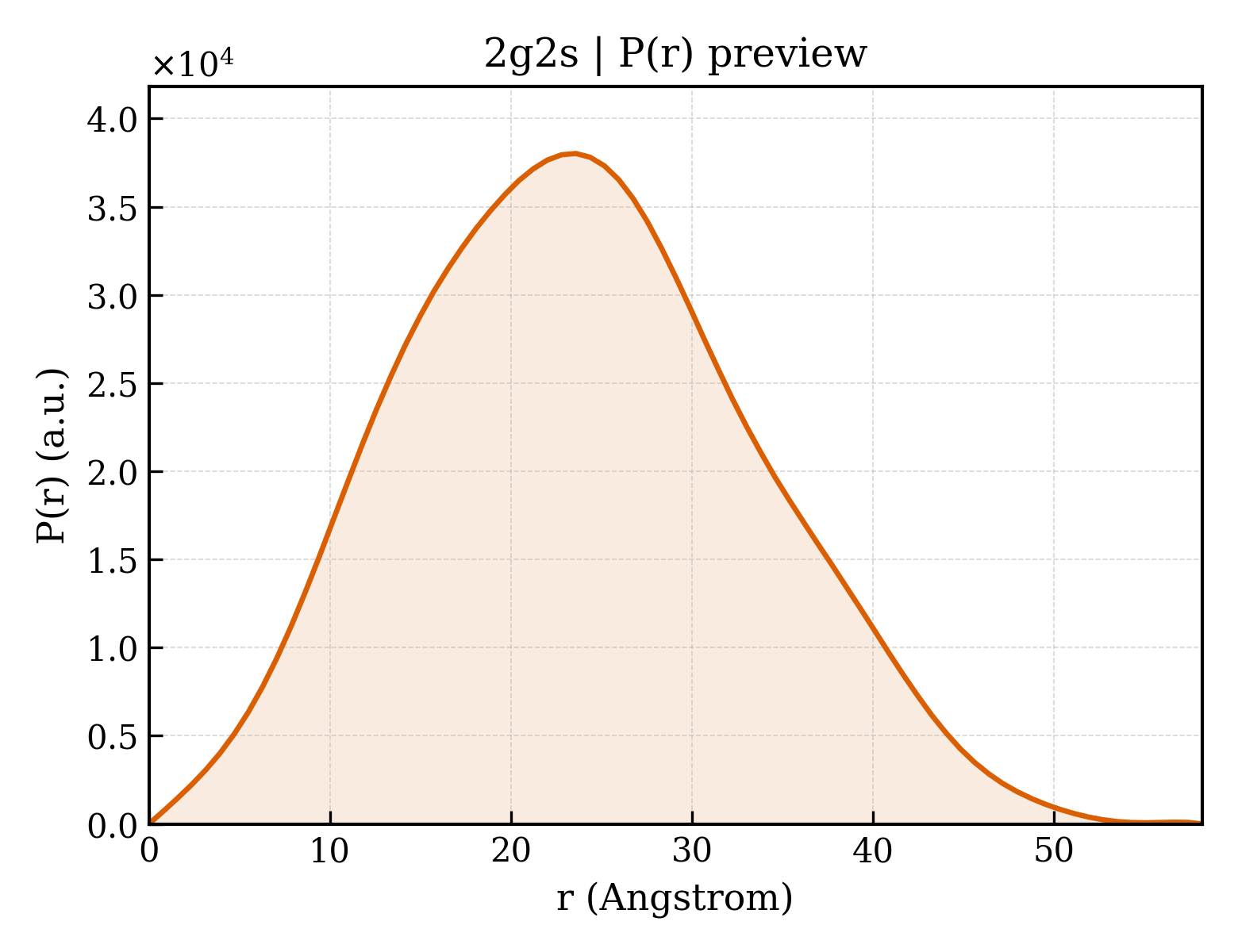

2g2s__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	18.20 Å
Rg (electron density)	16.96 Å
Total Rg	18.01 Å
Atom count	1801
Residues	228
Excluded volume	31850 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`2g2s__assembly_1__model_1`	dimeric （2）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (4)

Entity 1 Entity 1 polymer

Description description	Green fluorescent protein
Molecular weight formula_weight	6928.9 kDa
Mutation mutation	F64L, S65G
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	2156

MASKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLG

Source Source

Source organism organism	Aequorea victoria
NCBI taxonomy ID ncbi_taxonomy_id	6100
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 2 Entity 2 polymer

Description description	Green fluorescent protein
Molecular weight formula_weight	19806.1 kDa
Mutation mutation	Y66S, F99S, M153T, V163A
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	B

SGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTISFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYITADKQKNGIKANFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLLEFVTAAGITHGMDELYK

Source Source

Source organism organism	Aequorea victoria
NCBI taxonomy ID ncbi_taxonomy_id	6100
Host organism host_organism	Escherichia coli BL21(DE3)

Entity 3 Entity 3 non-polymer

Description description	MAGNESIUM ION
Molecular weight formula_weight	24.3 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 4 Entity 4 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	325

▼

6. Fold Classification (SCOP + CATH) 2 domains

CATH v4.4 (2 domains)

Domain ID domain_id	2g2sA00
Class class	3 — Alpha Beta
Architecture architecture	30 — 2-Layer Sandwich
Topology topology	1300 — Pantoate--beta-alanine Ligase; Chain: A,domain 2
Homologous superfamily homologous superfamily	40 —

Domain ID domain_id	2g2sB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	155 — Green Fluorescent Protein
Homologous superfamily homologous superfamily	10 — Green fluorescent protein

▶

Unit-cell length a length_a	51.000 Å
Unit-cell length b length_b	62.300 Å
Unit-cell length c length_c	68.500 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	4

Space group space_group	P 21 21 21
Space-group number int_tables_number	19
Crystal system crystal_system	—

Resolution resolution	1.200 Å
Low-resolution limit resolution_low	17.800 Å
R factor r_factor	—
R_work r_work	—
R_free r_free	0.1740
