1bfp
BLUE VARIANT OF GREEN FLUORESCENT PROTEIN

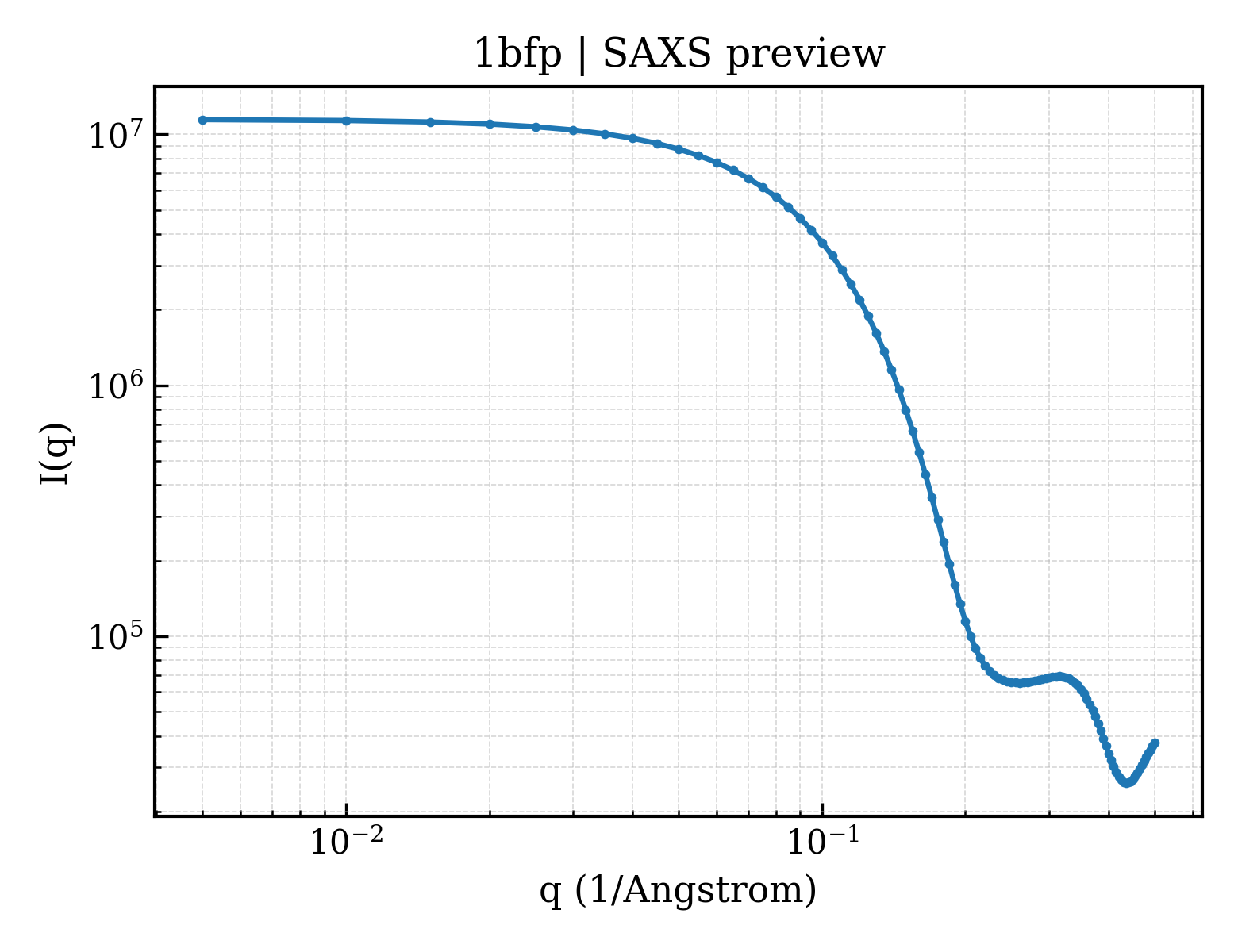

SAXS Profile

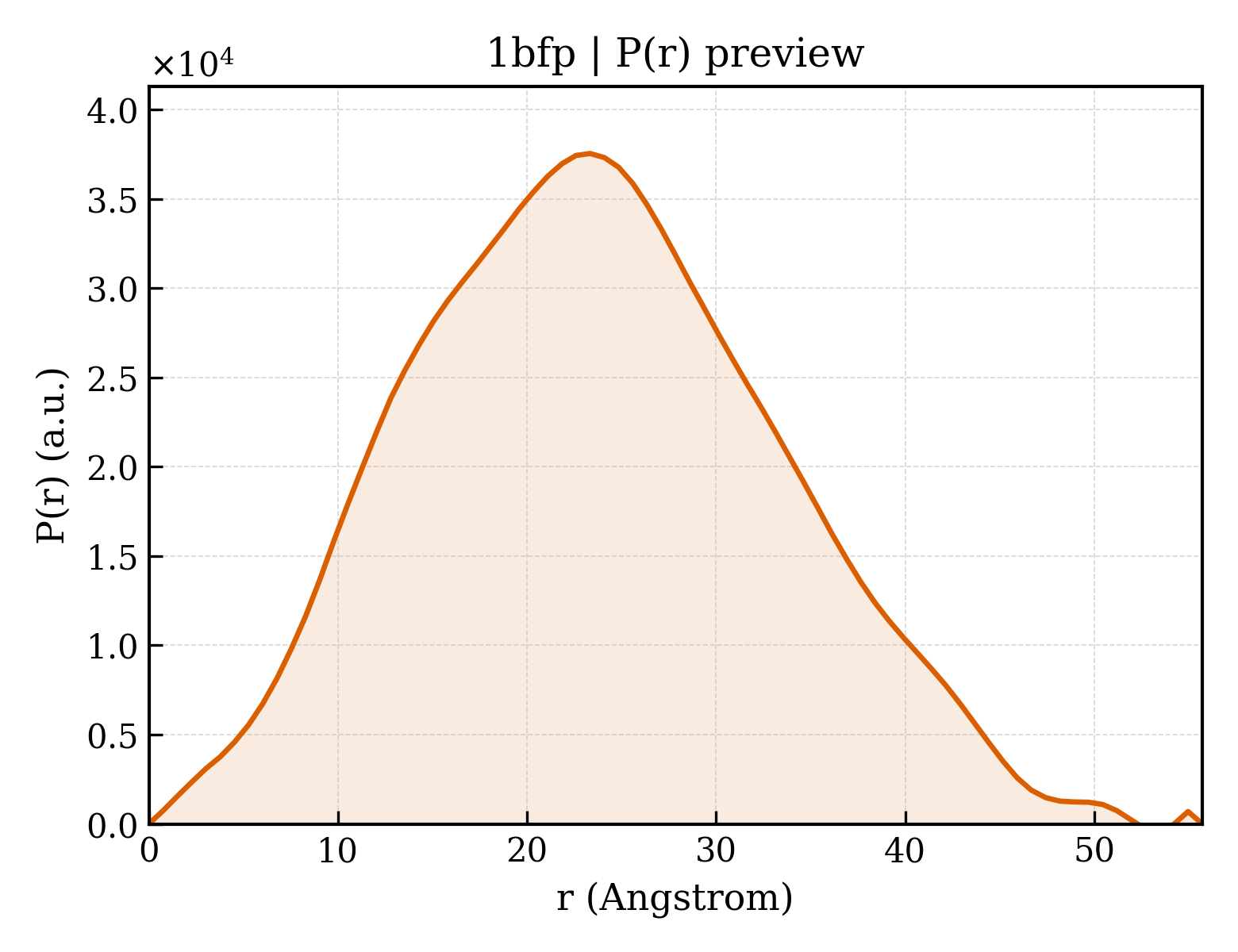

P(r) Distribution
1. Structure Basics
| entry_id | 1bfp |
| deposition_date | 1997-04-09 |
| title | BLUE VARIANT OF GREEN FLUORESCENT PROTEIN |
| keywords | FLUORESCENT PROTEIN, BLUE EMISSION, MUTANT, FLUOROPHORE, BIOLUMINESCENSE, LUMINESCENCE; LUMINESCENCE |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.14 Å |
| rg_electron | 16.88 Å |
| i0 | 11477200.00 |
| molecular_weight | 25234.0 kDa |
| excluded_volume | 31558 ų |
| envelope_volume | 35184 ų |
| shell_volume | 17333 ų |
| envelope_diameter | 57.4 Å |
| shell_rg | 23.11 Å |
| envelope_rg | 17.17 Å |
| shape_rg | 16.86 Å |
| total_rg | 17.91 Å |
| total_atoms | 1784 |
| n_residues | 226 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 55.7 Å |
| rg_real | 18.02 Å |
| rg_real_error | 0.28 Å |
| i0_real | 1.1480e+07 |
| i0_real_error | 1.1340e+05 |
| rg_reciprocal | 18.04 Å |
| i0_reciprocal | 11480000.0000 |
| total_estimate | 0.8186 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.3 Å |
| skewness | 0.191 |
| kurtosis | -0.400 |
| angular_range | — – 0.4400 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3734000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.885; Stabil: 0.998; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.000 |
