1c4f
GREEN FLUORESCENT PROTEIN S65T AT PH 4.6

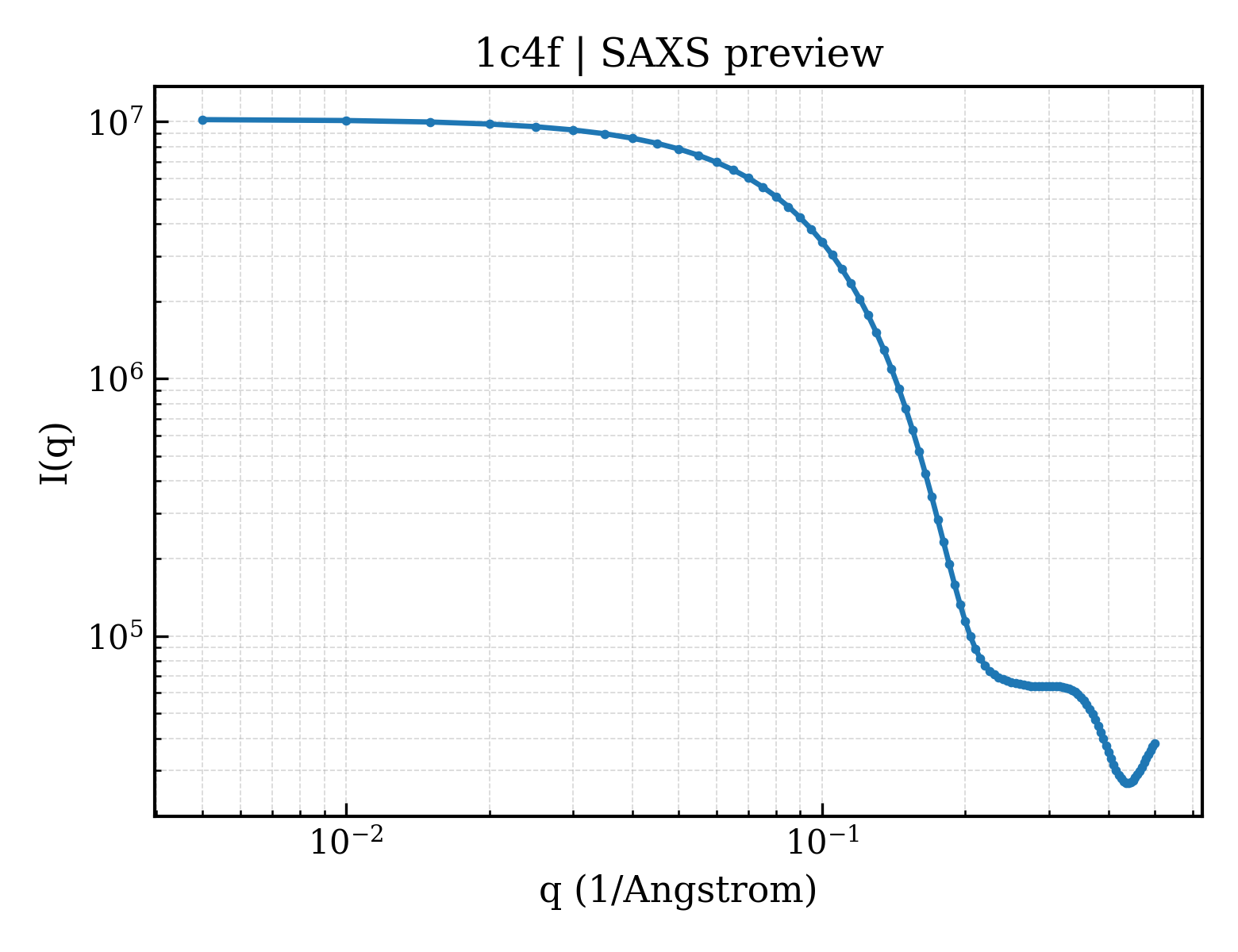

SAXS Profile

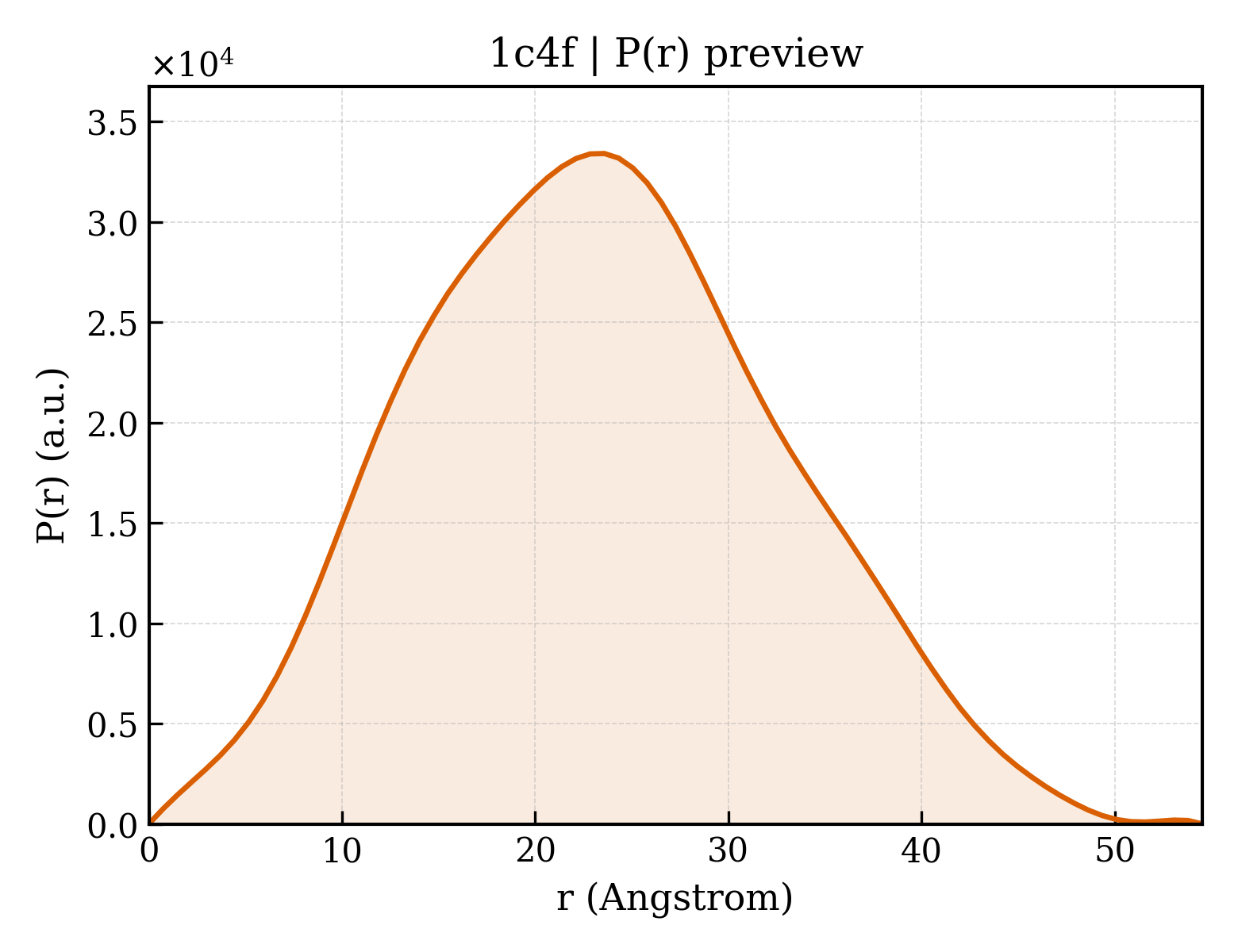

P(r) Distribution
1. Structure Basics
| entry_id | 1c4f |
| deposition_date | 1999-08-21 |
| title | GREEN FLUORESCENT PROTEIN S65T AT PH 4.6 |
| keywords | ;GREEN FLUORESCENT PROTEIN, BIOLUMINESCENCE, PHOTOACTIVE PROTEIN, FLUORESCENT TAG, PH TITRATION, SIGNALING PROTEIN, FLUORESCENT PROTEIN ;; FLUORESCENT PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.86 Å |
| rg_electron | 16.58 Å |
| i0 | 10205300.00 |
| molecular_weight | 24204.0 kDa |
| excluded_volume | 30395 ų |
| envelope_volume | 33754 ų |
| shell_volume | 16928 ų |
| envelope_diameter | 55.0 Å |
| shell_rg | 22.82 Å |
| envelope_rg | 16.85 Å |
| shape_rg | 16.58 Å |
| total_rg | 17.58 Å |
| total_atoms | 1715 |
| n_residues | 224 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 54.5 Å |
| rg_real | 17.74 Å |
| rg_real_error | 0.27 Å |
| i0_real | 1.0210e+07 |
| i0_real_error | 1.3020e+05 |
| rg_reciprocal | 17.76 Å |
| i0_reciprocal | 10210000.0000 |
| total_estimate | 0.9015 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 23.6 Å |
| skewness | 0.170 |
| kurtosis | -0.422 |
| angular_range | — – 0.4450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3030000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.913; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.988; Smooth: 0.990 |
