1emb
GREEN FLUORESCENT PROTEIN (GFP) FROM AEQUOREA VICTORIA, GLN 80 REPLACED WITH ARG

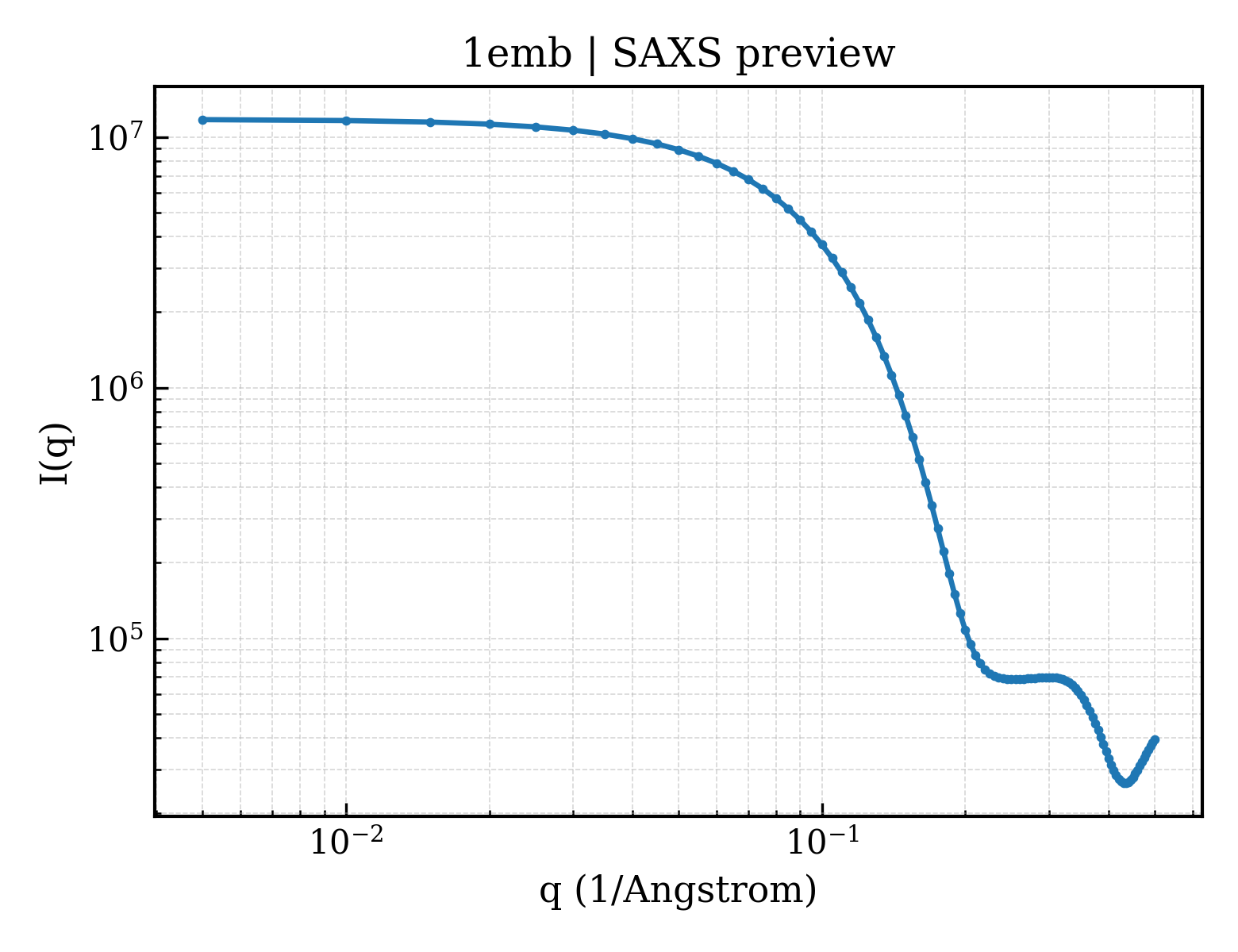

SAXS Profile

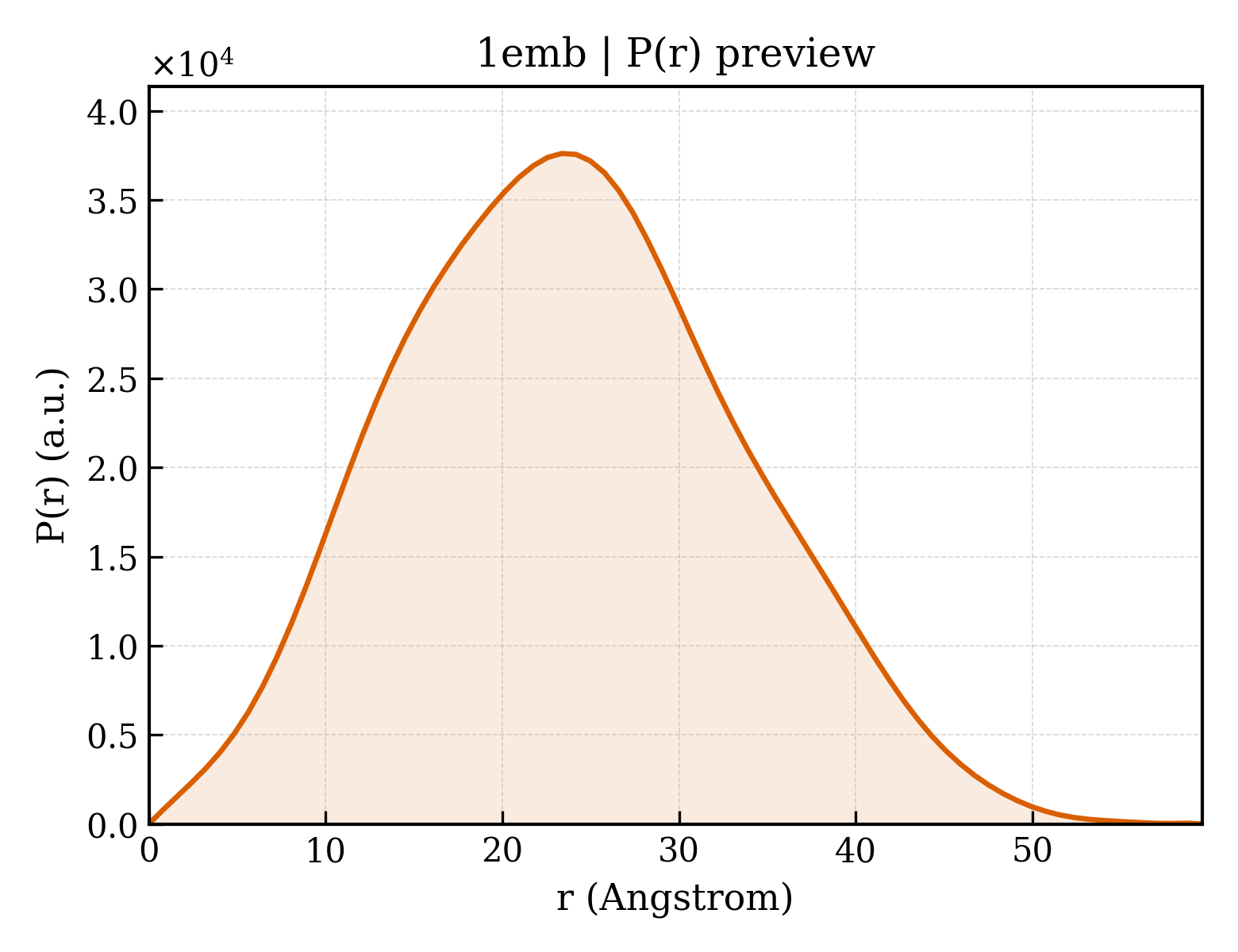

P(r) Distribution
1. Structure Basics
| entry_id | 1emb |
| deposition_date | 1997-01-08 |
| title | GREEN FLUORESCENT PROTEIN (GFP) FROM AEQUOREA VICTORIA, GLN 80 REPLACED WITH ARG |
| keywords | FLUORESCENT PROTEIN, BETA-BARREL; FLUORESCENT PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.29 Å |
| rg_electron | 16.99 Å |
| i0 | 11754300.00 |
| molecular_weight | 25680.0 kDa |
| excluded_volume | 32143 ų |
| envelope_volume | 36533 ų |
| shell_volume | 17749 ų |
| envelope_diameter | 58.5 Å |
| shell_rg | 23.43 Å |
| envelope_rg | 17.40 Å |
| shape_rg | 16.96 Å |
| total_rg | 18.06 Å |
| total_atoms | 1814 |
| n_residues | 225 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 59.6 Å |
| rg_real | 18.20 Å |
| rg_real_error | 0.32 Å |
| i0_real | 1.1750e+07 |
| i0_real_error | 1.2720e+05 |
| rg_reciprocal | 18.21 Å |
| i0_reciprocal | 11750000.0000 |
| total_estimate | 0.8821 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.4 Å |
| skewness | 0.200 |
| kurtosis | -0.373 |
| angular_range | — – 0.4350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3980000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.823; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.996; Smooth: 0.998 |
