1emg
GREEN FLUORESCENT PROTEIN (65-67 REPLACED BY CRO, S65T SUBSTITUTION, Q80R)

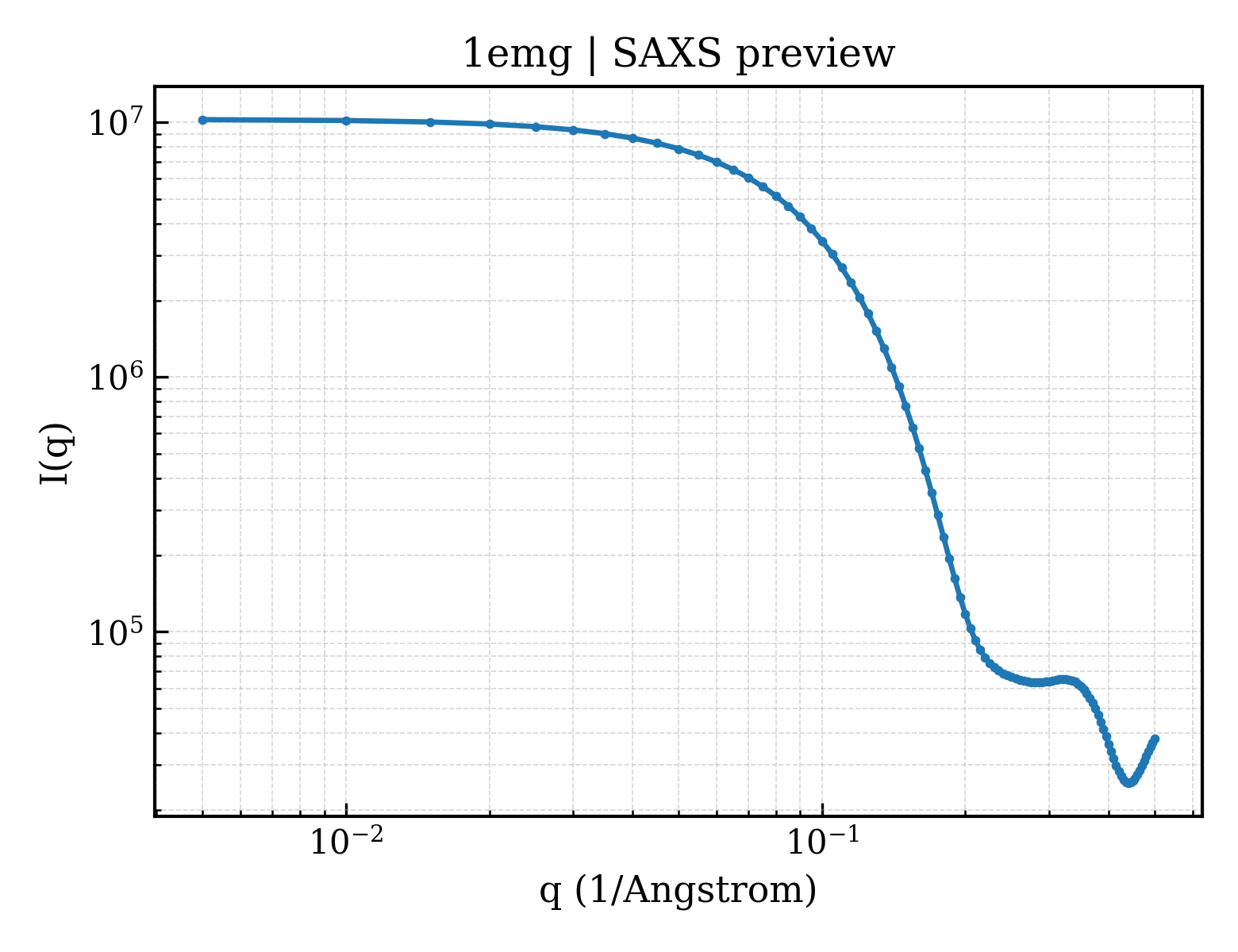

SAXS Profile

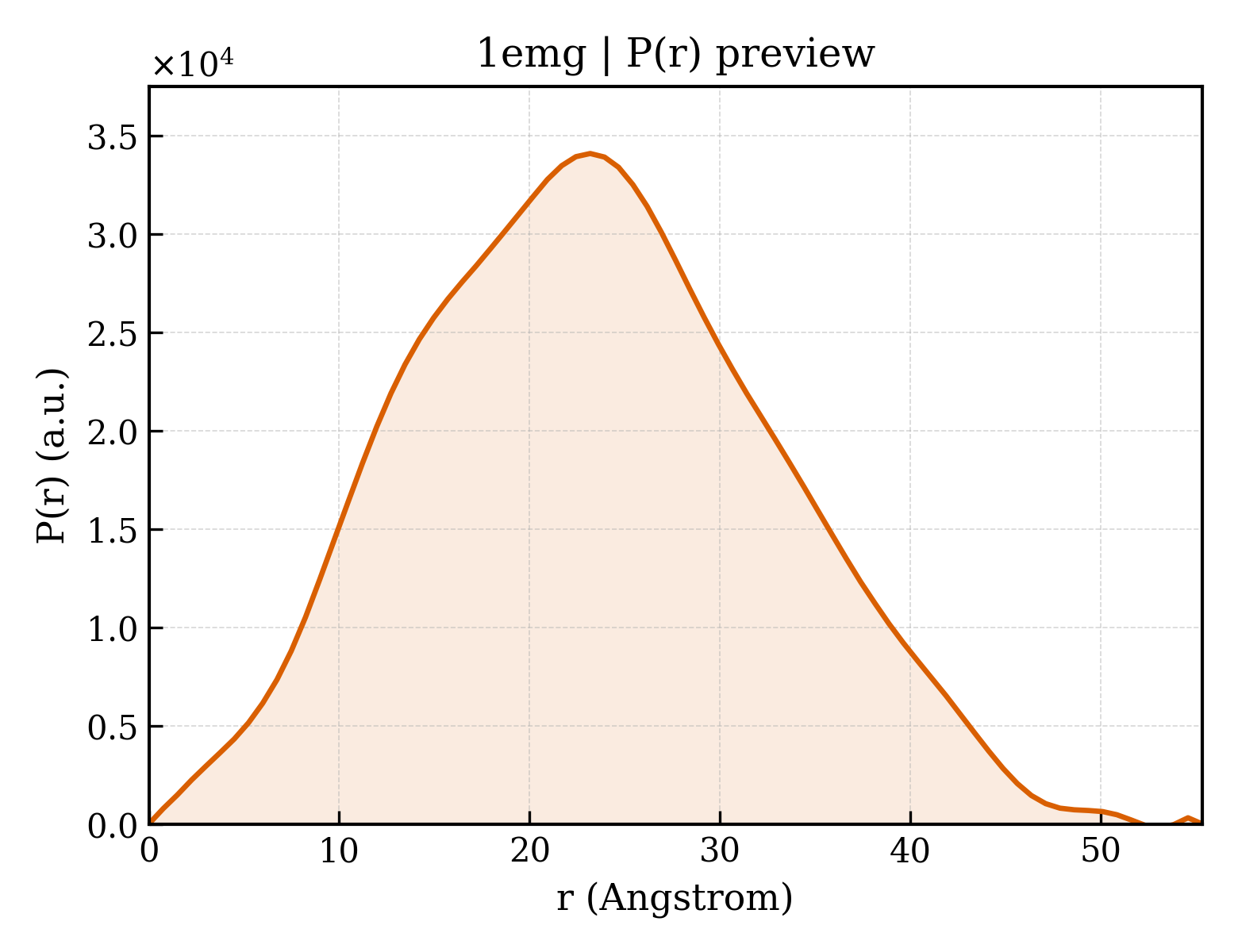

P(r) Distribution
1. Structure Basics
| entry_id | 1emg |
| deposition_date | 1998-11-12 |
| title | GREEN FLUORESCENT PROTEIN (65-67 REPLACED BY CRO, S65T SUBSTITUTION, Q80R) |
| keywords | ;GREEN FLUORESCENT PROTEIN, BIOLUMINESCENCE, PHOTOACTIVE PROTEIN, FLUORESCENT TAG, PH TITRATION, GREENFLUORESCENT PROTEIN, FLUORESCENT PROTEIN ;; FLUORESCENT PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 17.88 Å |
| rg_electron | 16.66 Å |
| i0 | 10267800.00 |
| molecular_weight | 24496.0 kDa |
| excluded_volume | 30843 ų |
| envelope_volume | 34100 ų |
| shell_volume | 17025 ų |
| envelope_diameter | 55.0 Å |
| shell_rg | 22.85 Å |
| envelope_rg | 16.92 Å |
| shape_rg | 16.66 Å |
| total_rg | 17.64 Å |
| total_atoms | 1737 |
| n_residues | 225 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 55.4 Å |
| rg_real | 17.76 Å |
| rg_real_error | 0.32 Å |
| i0_real | 1.0270e+07 |
| i0_real_error | 1.2720e+05 |
| rg_reciprocal | 17.78 Å |
| i0_reciprocal | 10270000.0000 |
| total_estimate | 0.8174 |
| solution_quality | GOOD a GOOD solution |
| n_peaks | 2 |
| r_peak_primary | 23.2 Å |
| skewness | 0.168 |
| kurtosis | -0.430 |
| angular_range | — – 0.4450 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3062000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.880; Stabil: 0.997; Sysdev: 1.000; Positv: 1.000; Valcen: 0.990; Smooth: 0.000 |
