SAXSdb — 1w7t

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

GREEN FLUORESCENT PROTEIN

AEQUOREA VICTORIA

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Protein homooligomer	Homooligomer	Protein 4	water × 4	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GFP_AEQVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–236； UniProt 1–238 Author chain B； PDBConstruct 1–236； UniProt 1–238 Author chain C； PDBConstruct 1–236； UniProt 1–238 Author chain D； PDBConstruct 1–236； UniProt 1–238

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	1w7t
Deposition date deposition_date	2004-09-09
Structure title title	Photoproduct of the Wild-Type Aequorea victoria Green Fluorescent Protein at 100 K
Keywords keywords	LUMINESCENT PROTEIN, BETA-BARREL, BIOLUMINESCENCE, PHOTOPRODUCT; LUMINESCENT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

1w7t__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

1w7t__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

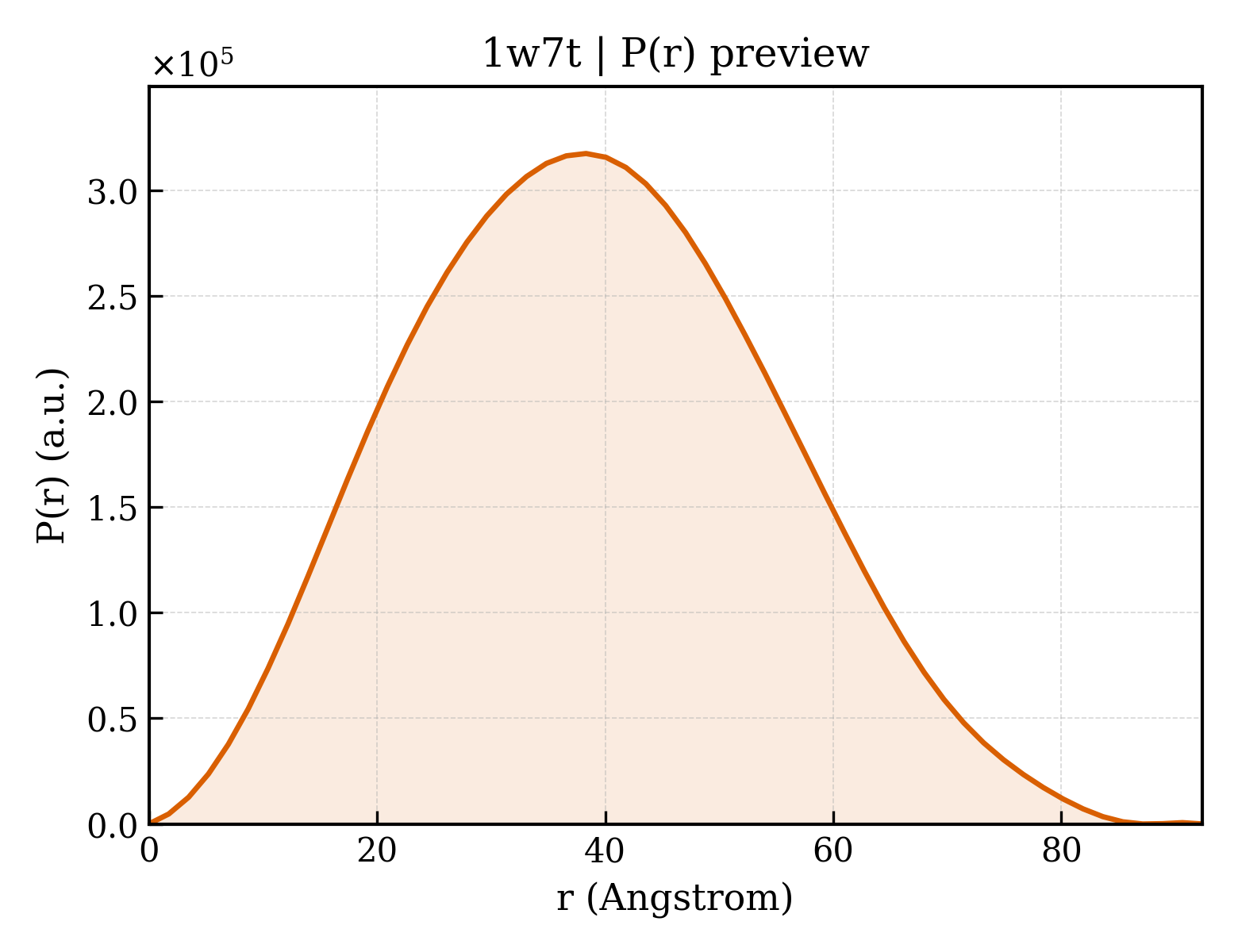

1w7t__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	29.90 Å
Rg (electron density)	28.91 Å
Total Rg	29.78 Å
Atom count	7302
Residues	903
Excluded volume	129370 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`1w7t__assembly_1__model_1`	tetrameric （4）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (2)

▼

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

Domain ID domain_id	d1w7ta_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.22 — GFP-like
Superfamily Superfamily superfamily	d.22.1 — GFP-like
Family Family family	d.22.1.1 — Fluorescent proteins

Domain ID domain_id	d1w7tb_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.22 — GFP-like
Superfamily Superfamily superfamily	d.22.1 — GFP-like
Family Family family	d.22.1.1 — Fluorescent proteins

Domain ID domain_id	d1w7tc_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.22 — GFP-like
Superfamily Superfamily superfamily	d.22.1 — GFP-like
Family Family family	d.22.1.1 — Fluorescent proteins

Domain ID domain_id	d1w7td_
Class class	d — Alpha and beta proteins (a+b)
Fold Fold fold	d.22 — GFP-like
Superfamily Superfamily superfamily	d.22.1 — GFP-like
Family Family family	d.22.1.1 — Fluorescent proteins

CATH v4.4 (4 domains)

Domain ID domain_id	1w7tA00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	155 — Green Fluorescent Protein
Homologous superfamily homologous superfamily	10 — Green fluorescent protein

Domain ID domain_id	1w7tB00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	155 — Green Fluorescent Protein
Homologous superfamily homologous superfamily	10 — Green fluorescent protein

Domain ID domain_id	1w7tC00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	155 — Green Fluorescent Protein
Homologous superfamily homologous superfamily	10 — Green fluorescent protein

Domain ID domain_id	1w7tD00
Class class	2 — Mainly Beta
Architecture architecture	40 — Beta Barrel
Topology topology	155 — Green Fluorescent Protein
Homologous superfamily homologous superfamily	10 — Green fluorescent protein

▶

Unit-cell length a length_a	155.308 Å
Unit-cell length b length_b	52.815 Å
Unit-cell length c length_c	141.944 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	120.07 °
Unit-cell angle γ angle_gamma	90.00 °
Molecules per unit cell Z z_pdb	16

Space group space_group	C 1 2 1
Space-group number int_tables_number	5
Crystal system crystal_system	—

Resolution resolution	1.850 Å
Low-resolution limit resolution_low	119.520 Å
R factor r_factor	0.1820
R_work r_work	0.1800
R_free r_free	0.2200

Description description	GREEN FLUORESCENT PROTEIN
Molecular weight formula_weight	26887.3 kDa
Mutation mutation	YES
Source method src_method	man
Copy count entity_count	4

Polymer type type	polypeptide(L)
Chain IDs strand_id	A,B,C,D
Atom count atom_count	8223

Photoproduct of the Wild-Type Aequorea victoria Green Fluorescent Protein at 100 K

1. Protein Identity and Related Structures Protein Identity & Related Structures

GREEN FLUORESCENT PROTEIN

State in the Current Structure

Other States of the Same Protein in the Database

2. Structure Basics 2. Structure Basics

3. Official assembly/model SAXS Official SAXS Profiles

1w7t__assembly_1__model_1

1w7t__assembly_1__model_1 | I(q)

1w7t__assembly_1__model_1 | P(r) · Pending

4. Crystallography and Experiment 4. Crystallography & Experiment

Unit cell Unit Cell

Symmetry Symmetry

Refinement Refinement

Diffraction experiment Diffraction

5. Entities and Polymers Entities & Polymers (2)

Entity 1 Entity 1 polymer

Polymer Polymer

Source Source

Entity 2 Entity 2 water

6. Fold Classification (SCOP + CATH) 8 domains

SCOP 2.08 (4 domains)

CATH v4.4 (4 domains)

7. Citations (1)

Source organism organism	AEQUOREA VICTORIA
NCBI taxonomy ID ncbi_taxonomy_id	6100
Host organism host_organism	ESCHERICHIA COLI M15

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	909
