1f0b
CRYSTAL STRUCTURE OF THE GREEN FLUORESCENT PROTEIN (GFP) VARIANT YFP-H148Q

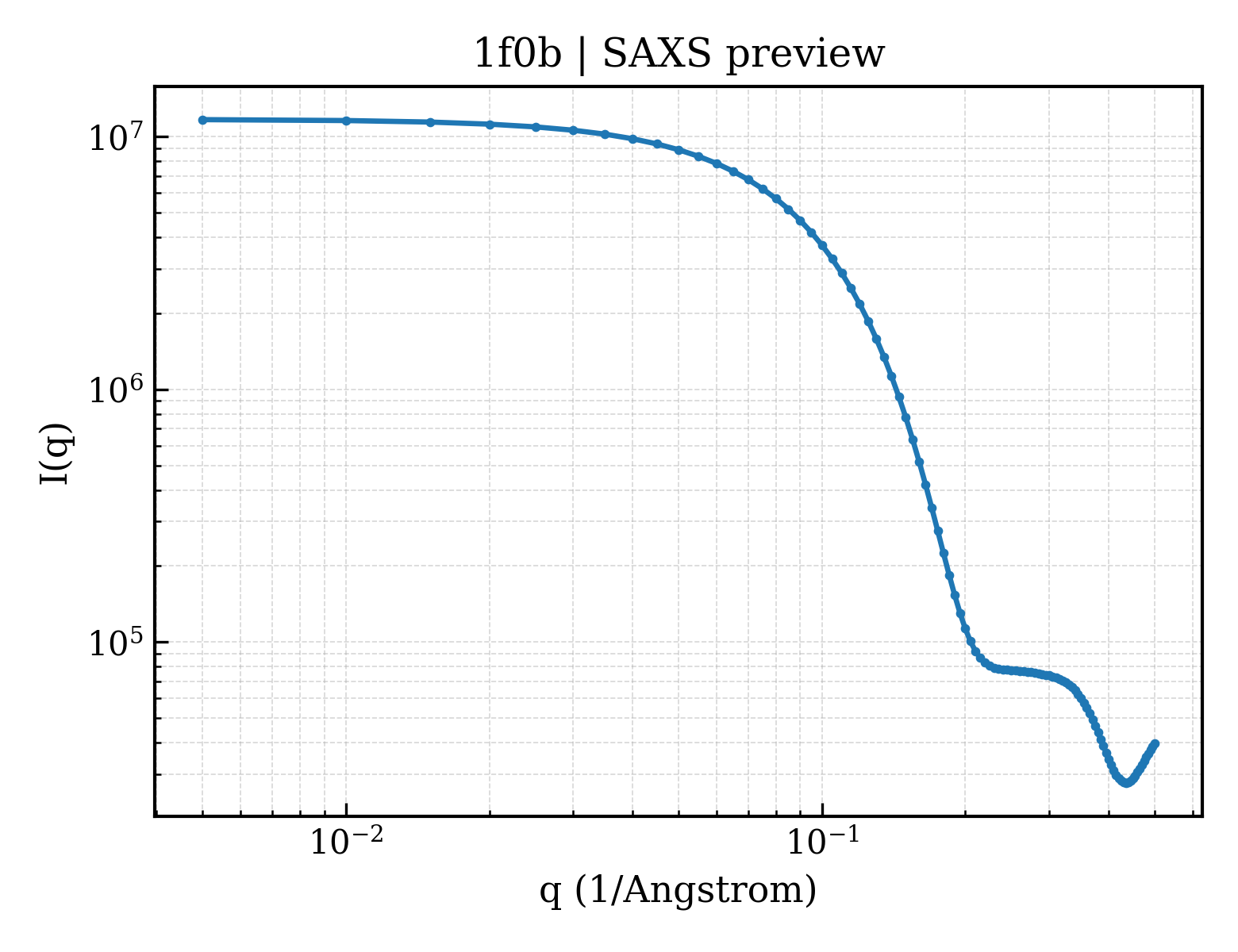

SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 1f0b |
| deposition_date | 2000-05-15 |
| title | CRYSTAL STRUCTURE OF THE GREEN FLUORESCENT PROTEIN (GFP) VARIANT YFP-H148Q |
| keywords | beta barrel, luminescence, bioluminescence, photoactive protein, green fluorescent protein, LUMINESCENT PROTEIN; LUMINESCENT PROTEIN |
| method | X-RAY DIFFRACTION |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 18.24 Å |
| rg_electron | 16.93 Å |
| i0 | 11712400.00 |
| molecular_weight | 25701.0 kDa |
| excluded_volume | 32213 ų |
| envelope_volume | 35702 ų |
| shell_volume | 17492 ų |
| envelope_diameter | 58.5 Å |
| shell_rg | 23.29 Å |
| envelope_rg | 17.27 Å |
| shape_rg | 16.90 Å |
| total_rg | 18.00 Å |
| total_atoms | 1816 |
| n_residues | 225 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 58.1 Å |
| rg_real | 18.14 Å |
| rg_real_error | 0.36 Å |
| i0_real | 1.1710e+07 |
| i0_real_error | 1.4640e+05 |
| rg_reciprocal | 18.16 Å |
| i0_reciprocal | 11710000.0000 |
| total_estimate | 0.7365 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 2 |
| r_peak_primary | 23.6 Å |
| skewness | 0.185 |
| kurtosis | -0.388 |
| angular_range | — – 0.4350 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 3483000.0000 |
| n_real_points | 75 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.863; Stabil: 1.000; Sysdev: 0.330; Positv: 1.000; Valcen: 0.993; Smooth: 0.999 |
