SAXSdb — 8ovn

▼

1. Protein Identity and Related Structures Protein Identity & Related Structures

Putative periplasmic binding transport protein,Green fluorescent protein

Shigella flexneri

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	CITRIC ACID × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	A0A0H2UXX1_SHIFL
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 2–250； UniProt 28–276 Author chain A； PDBConstruct 495–518； UniProt 279–302

Putative periplasmic binding transport protein,Green fluorescent protein

Shigella flexneri

UniProt P42212

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1	CITRIC ACID × 1 water × 1	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GFP_AEQVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 251–342； UniProt 147–238 Author chain A； PDBConstruct 349–494； UniProt 1–148

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8ovn
Deposition date deposition_date	2023-04-26
Structure title title	X-ray structure of the SF-iGluSnFR-S72A
Keywords keywords	aspartate, genetically-encoded biosensor, iAspSnFR, GFP, FLUORESCENT PROTEIN; FLUORESCENT PROTEIN
Experimental Method method	X-RAY DIFFRACTION

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8ovn__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

8ovn__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

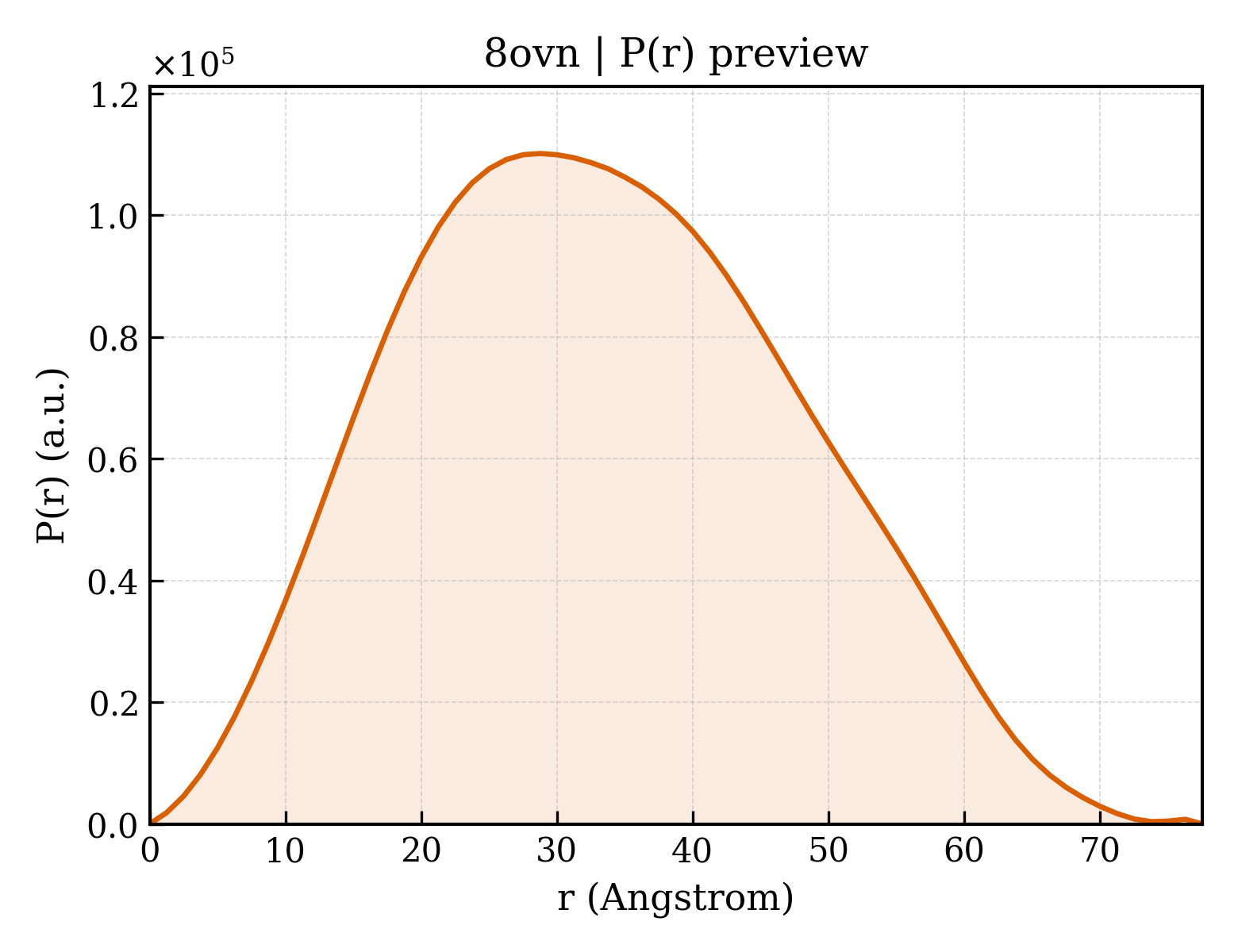

8ovn__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	25.65 Å
Rg (electron density)	24.67 Å
Total Rg	25.64 Å
Atom count	4000
Residues	503
Excluded volume	71090 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8ovn__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶

4. Crystallography and Experiment 4. Crystallography & Experiment

▶

5. Entities and Polymers Entities & Polymers (3)

Entity 1 Entity 1 polymer

Description description	Putative periplasmic binding transport protein,Green fluorescent protein
Molecular weight formula_weight	58015.5 kDa
Source method src_method	man
Copy count entity_count	1

Polymer Polymer

Polymer type type	polypeptide(L)
Chain IDs strand_id	A
Atom count atom_count	4019

GAAGSTLDKIAKNGVIVVGHRESSVPFSYYDNQQKVVGYSQDYSNAIVEAVKKKLNKPDLQVKLIPITAQNRIPLLQNGTFDFECGSTTNNVERQKQAAFSDTIFVVGTRLLTKKGGDIKDFANLKDKAVVVTSGTTSEVLLNKLNEEQKMNMRIISAKDHGDSFRTLESGRAVAFMMDDVLLAGERAKAKKPDNWEIVGKPQSQEAYGCMLRKDDPQFKKLMDDTIAQVQTSGEAEKWFDKWFKNPILVSHNVYITADKQKNGIKANFKIRHNVEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSVLSKDPNEKRDHMVLLEFVTAAGITLGMDELYKGGTGGSMSKGEELFTGVVPILVELDGDVNGHKFSVRGEGEGDATNGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTISFKDDGTYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNFNNPLNMNFELSDEMKALFKEPNDKALK

Source Source

Source organism organism	Shigella flexneri
NCBI taxonomy ID ncbi_taxonomy_id	623
Host organism host_organism	Escherichia coli

Entity 2 Entity 2 non-polymer

Description description	CITRIC ACID
Molecular weight formula_weight	192.1 kDa
Source method src_method	syn
Copy count entity_count	1

Entity 3 Entity 3 water

Description description	water
Molecular weight formula_weight	18.0 kDa
Source method src_method	nat
Copy count entity_count	19

▼

6. Fold Classification (SCOP + CATH) 1 domains

CATH v4.4 (1 domains)

Domain ID domain_id	8ovnA01
Class class	3 — Alpha Beta
Architecture architecture	40 — 3-Layer(aba) Sandwich
Topology topology	190 — D-Maltodextrin-Binding Protein; domain 2
Homologous superfamily homologous superfamily	10 — Periplasmic binding protein-like II

▶

Unit-cell length a length_a	106.140 Å
Unit-cell length b length_b	106.140 Å
Unit-cell length c length_c	108.140 Å
Unit-cell angle α angle_alpha	90.00 °
Unit-cell angle β angle_beta	90.00 °
Unit-cell angle γ angle_gamma	120.00 °
Molecules per unit cell Z z_pdb	6

Space group space_group	P 31 2 1
Space-group number int_tables_number	152
Crystal system crystal_system	trigonal

Resolution resolution	2.600 Å
Low-resolution limit resolution_low	46.600 Å
R factor r_factor	0.2022
R_work r_work	0.1996
R_free r_free	0.2528
