8fck

Structure of the vertebrate augmin complex

Method: ELECTRON MICROSCOPY D_max: 345.2 Å Quality: GOOD

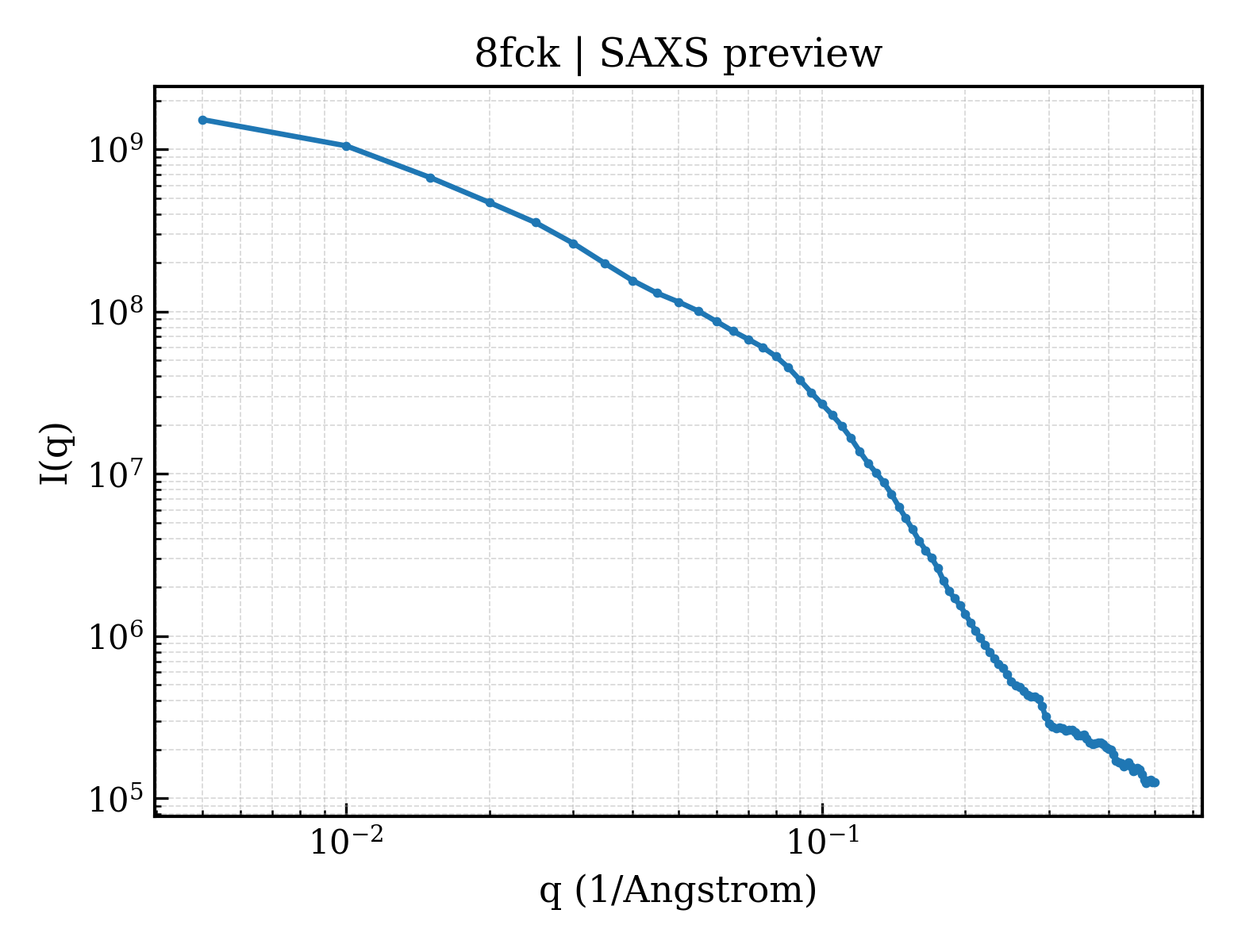

SAXS 散射曲线 SAXS Profile

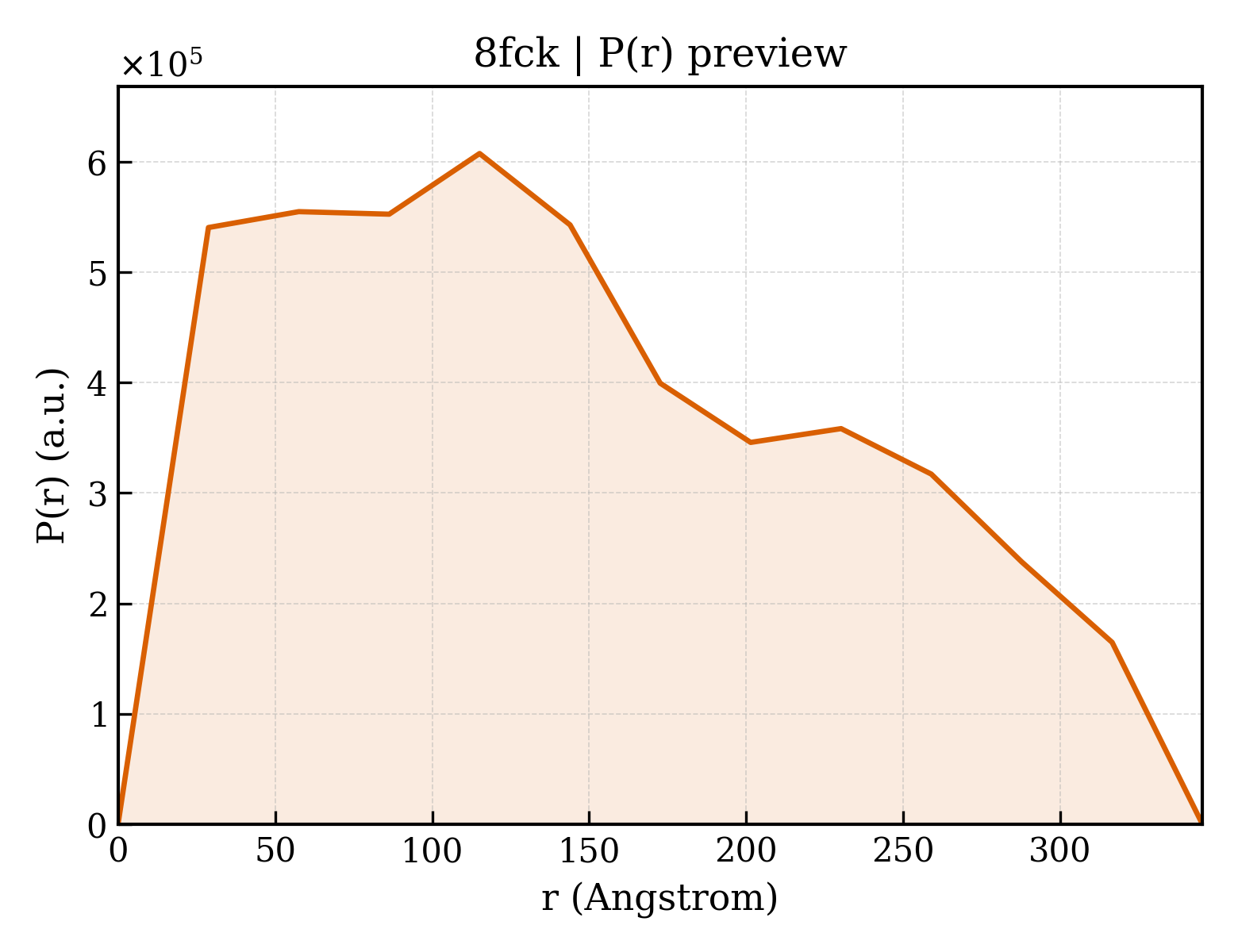

P(r) 距离分布 P(r) Distribution

下载 Download SAXS (.dat) P(r) (.pr.out) CIF

▼

1. 结构基本信息 1. Structure Basics

条目编号 entry_id	8fck
沉积日期 deposition_date	2022-12-01
结构标题 title	Structure of the vertebrate augmin complex
关键词 keywords	microtubule, branching microtubule nucleation, spindle assembly, CELL CYCLE; CELL CYCLE
实验方法 method	ELECTRON MICROSCOPY

▼

2. SAXS 参数 (CRYSOL 理论计算) 2. SAXS Parameters (CRYSOL)

回转半径 Rg (Guinier) rg_guinier	— Å
回转半径 Rg (电子) rg_electron	132.10 Å
零角强度 I(0) i0	1750320000.00
分子量 molecular_weight	352520.0 kDa
排除体积 excluded_volume	440710 Å³
包络体积 envelope_volume	1190000 Å³
水化壳体积 shell_volume	85892 Å³
包络直径 envelope_diameter	473.2 Å
壳层 Rg shell_rg	79.54 Å
包络 Rg envelope_rg	131.20 Å
形状 Rg shape_rg	132.10 Å
总 Rg total_rg	131.40 Å
总原子数 total_atoms	24717
残基数 n_residues	3067
球谐函数阶数 n_harmonics	20
q 范围 q_range	— – 0.5000 Å⁻¹
数据点数 n_points	101
壳层类型 shell_type	directional
溶剂电子密度 solvent_density	0.3340 e/Å³
壳层衬度 contrast_shell	0.0300 e/Å³
CRYSOL 版本 crysol_version	4.1.3

▼

3. P(r) 距离分布 (GNOM 反演) 3. P(r) Analysis (GNOM)

最大尺寸 Dmax dmax	345.2 Å
Rg (实空间) rg_real	117.70 Å
Rg 误差 (实空间) rg_real_error	2.63 Å
I(0) (实空间) i0_real	1.6710e+09
I(0) 误差 (实空间) i0_real_error	4.7510e+07
Rg (倒空间) rg_reciprocal	99.31 Å
I(0) (倒空间) i0_reciprocal	1598000000.0000
解质量估计 total_estimate	0.7818
解质量评级 solution_quality	GOOD a GOOD solution
P(r) 峰数 n_peaks	3
主峰位置 r_peak_primary	115.1 Å
偏度 Skewness skewness	0.380
峰度 Kurtosis kurtosis	-0.906
角度范围 angular_range	— – 0.0600 Å⁻¹
当前正则化参数 α current_alpha	0.5023
最高正则化参数 α highest_alpha	76940000.0000
实空间数据点数 n_real_points	13
GNOM 版本 gnom_version	4.1.3
质量判据 quality_criteria	AN1: 0.014; Oscil: 0.546; Stabil: 0.940; Sysdev: 1.000; Positv: 1.000; Valcen: 0.732; Smooth: 0.002

▶

4. 晶体学与实验 4. Crystallography & Experiment

▶

5. 实体与聚合体信息 (8)

Entity 1 polymer

描述 description	HAUS augmin-like complex subunit 1
分子量 formula_weight	32655.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	A
原子数 atom_count	24717

MDEKSTKIIMWLKKMFGDKPLPPYEVNTRTMEILYQLAEWNEARDKDLSLVTEDLKLKSAEVKAEAKYLQDLLTEGLGPSYTNLSRMGNNYLNQIVDSCLALELKNSSLSSYIPAVNDLSSELVAIELNNQEMEAELTSLRKKLTEALVLEKSLEQDLKKAEEQCNFEKAKVEIRSQNMKKLKDKSEEYKYKIHAAKDQLSSAGMEEPLTHRSLVSLSETLTELKAQSMAAKEKLNSYLDLAPNPSLVKVKIEEAKRELKATEVELTTKVNMMEFVVPEPSKRRLK

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Spodoptera frugiperda

Entity 2 polymer

描述 description	HAUS augmin-like complex subunit 3
分子量 formula_weight	68112.2 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	B

MSGGDRFVQTLQKLNYPKGAQLDGEDFDWLFEAVDLKPFLDWFCSAASEQNVVPDEKLQAFNTLKESGKPVLDEKALDEVLKTFSISKVPAIEEVAIEKLEEEVKALQKQKNLHIRRRNKLQMVESGNRQMCLKSKDKEEETGRAFQEVLHLLRVTNKKLNHELQSIVNGVQTLMSFFSTPETACELSSQPIFLSQLLLDKYLSLEEQSTAALTSFTKEHFFEGMSKFVEGSDENFQLVQLNVNSFGEDGTTEDKCKEMMRLQLAYICAKHKLIQMKAKSASLKVGLQWAENNASVVQDKASQKEENLKVRITSLKNETLQIENHTNSISNEKLPGLVRDNAQLLNMPIVKGDYDLQMAHQTSCSSRQDLVCDHLMKQKASFELLQLGYELELRKHRDVYRELGSIVQELKESGDKLEERLTMLSDVNLLSASKPRSNIDSKDLTSHRLYQLLDGDNTQKLFRTYDGLESVAQKLSQDIASMRDQLEVSEQEHSLLLSKLDSHLKELRDFMYPEGNTLMLTTPELSGEFHQLGSQLEKLNHITVEILGDLQLKRKMLESNKLQQIEKQLYVYFFQNEEQLKSIVGKLEAQTGGGSSA

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Spodoptera frugiperda

Entity 3 polymer

描述 description	HAUS augmin like complex subunit 4 L homeolog
分子量 formula_weight	41256.4 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	C

MAQTLQYVSSRLSMLQIDEEDLERNAQFGKVLIELCPLLGPNGGSANLNRELEETRRELLLQRKMWMRSEVIYQLVQEMLLDLQVRKLEGSLTEEERKFQDGLQQCMLVSECSRLLTADSVPPSDSTSILGLDKQDLLDLLPPNMLVLWVRDRLQKQLEEALKKKCFTFLSFHQPETDEEGDVLRAAKVLRLASTLEDEKRRLQNEQEKHQEMRALLEKQQEIYPHVLLRCLSLLRQAASELRLRAQSDIDRINAEYLEAKSNALFLKLRMEELQVLTDCYTPEKVLVHRQIRDTLEAGVKKEKQELSTSRQILSSYEFLGPEFEGLVQEYTRLKDKIKDNRWMLQELSKSLP

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Spodoptera frugiperda

Entity 4 polymer

描述 description	HAUS augmin-like complex subunit 5
分子量 formula_weight	77357.3 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	D

MERRSLAQELKKWAVEEMGLPAQKAPSEEMLQRLFIGQCGDIWKFIIRHIHSHRTVRKIEGNLLWYQQLQHTEAQRTAEEEQQQRRKQLCKEILELRAELHHLQEQIQTAEREIVGQDLNCERAQDLCRRSLLLRAFNKKREEECEALCQSNKKIQYRCEQLQEIRRASQREVMFSAVDPDLSSSTFLEPEVLRDVREVCKLRFKFLRSLHDDSISSSVHPGKEDLRSLSHQQWMSMAEKVWNTHTPNHILAALERLTLNSTQELKKLQFSQAADLSKGPSCQLKEFSEPITQSRSCNESTHLDPQETLPSFHSLIQEGWANSVKVSSELRRVQSQAQALSEHLAERIQEIHKKLSDGSEVSVLTRAAFDAELRCVILRGCRDALMQECRMLQEEAAGKKQEMKLLQQQQQNIQEACLLLDKKQKHIQILIKGNSSSKSQIRRSSVEAQKYVQDKLLPWPQEIIQESQRLQDSIQKEVKHFSAICLPALLKVSTDGFNLLPSRELSINRMSNTHAPYYGIFKGIYESVRLPLYKAPESVLSHVADMKKQLFFLRSQLSSRSEAISKTQRALQKNTNPDTDALLKSLSDHYSLELDEMVPKMQRLIQQCEKHQEYGKEVQATVMDWWEQPVQLCLPSEERGGLTLRQWRERWTVAVTALQRATGSRS

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Spodoptera frugiperda

Entity 5 polymer

描述 description	HAUS augmin like complex subunit 2 L homeolog, Green fluorescent protein chimera
分子量 formula_weight	53505.5 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	E

MMAANPWSPVQPSAASLLLEKCLAAGVLSQNALDQAQLEAPCFSHAEELQRITEIKAEINQKSLELELLRLEKETADITHPLYLGQKHQALQAMNSHLEAVLREKRSLRQRLAQPVCQENLPIEASYHRFTAELLPLAVNFIEKLEIYIKTIQTIPKIPDCASNMDNALMRMESLEAEMEEVTEQILTWREQQKTAFQMNSDANSSCITAQTSYLSIENLHPVDMVSKGEELFTGVVPILVELDGDVNGHKFSVSGEGEGDATYGKLTLKFICTTGKLPVPWPTLVTTLTYGVQCFSRYPDHMKQHDFFKSAMPEGYVQERTIFFKDDGNYKTRAEVKFEGDTLVNRIELKGIDFKEDGNILGHKLEYNYNSHNVYIMADKQKNGIKVNFKIRHNIEDGSVQLADHYQQNTPIGDGPVLLPDNHYLSTQSALSKDPNEKRDHMVLKEFVTAAGITLGMDELYKVDHHHHHHH

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Spodoptera frugiperda

Entity 6 polymer

描述 description	HAUS augmin like complex subunit 6 L homeolog
分子量 formula_weight	50928.0 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	F

GPASGSTRGAEFMQSGSRPHLAWQREHMWLALQGLGFESGAEAANAGKTLVHVTFGVNMFDKPNKDAFYVVFHFLFGKLDNVRCKEVFRYCWPPLDKKRDAEFRKACCEWLKKISDEVGAGFPQVVASIFLSPGGPKFVHLLYHFARYVMLQHIKRDADAGNVFISEALQSKIQDPQKALARNKLARQKYLKVLQKENLVIEEYQRKAQLLIKQIRDMRSEHVALQNQQKLAEKVDRKISDKDENIQKTRCMWNTIMQMLKEMEKEVDVVDAVVRGNIDQYCLDGTNATLNIPNLLISRIESEMHRLQMDNVYEAGKVNLITVVQLLNEALKLVSGERSLYDCKGVRLDLQYLHGKAKFESEVLTRLRNMRHKIKREDLVSIEKIIADREREWERKWEKILGKCPFSLLKGLNPALELNPPMAPFSFDPASEEVLKSSVFCH

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Spodoptera frugiperda

Entity 7 polymer

描述 description	HAUS augmin like complex subunit 7 S homeolog
分子量 formula_weight	39379.6 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	G

MTGGKELGAAVELYERLQMLSCPCLEGVYLTDPQSIYELLCTPSSHRLDILQWLCSRIYPPVQEQLSSLKESQTDTKVKEIAKLCFDLMLCHFDDLDLIRGHASPFKQISFIGQLLDVIQYPDTISSNVILESLSHSTEKNVVTCIRENEELLKELFSSPHFQATLSPECNPWPADFKPLLNAEESLQKRATQSSKGKDMSNSVEALLEISSSLKALKEECVDLCSSVTDGDKVIQSLRLALTDFHQLTIAFNQIYANEFQEHCGHPAPHMSPMGPFFQFVHQSLSTCFKELESIAQFTETSENIVDVVRERHQSKEKWAGSTISTLCEKMKELRQSYEAFQQSSLQD

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Spodoptera frugiperda

Entity 8 polymer

描述 description	HAUS augmin-like complex subunit 8
分子量 formula_weight	41144.9 kDa
来源方法 src_method	man
拷贝数 entity_count	1

聚合体 Polymer

聚合体类型 type	polypeptide(L)
链编号 strand_id	H

MSEAGVAPIEDGSQNSSGGSSGDAALKKSKGGAKVVKSRYMQIGRSKVSKNSLANTTVCSGGKVPERGSGGTPTRRSLAPHKAKITAAVPLPALDGSIFTKEDLQSTLLDGHRIARPDLDLSVINDRTLQKITPRPVVTSEQKKPKRDTTPVNLVPEDMVEMIESQTLLLTYLTIKMQKNLFRLEEKAERNLLLVNDQKDQLQETIHMMKRDLTLLQREERLRDLIEKQDEVLTPVVTSKDPFKDNYTTFATALDSTRHQLAIKNIHITGNRHRYLEELQKHLAITKSLLEEIMPSHASENAESFDTIKDLENIVLKTDEELARSFRQILDLSFKVNKEISLQSQKAVEETCESALVRQWYFDGSLP

来源 Source

来源生物 organism	Xenopus laevis
通用名 common_name	African clawed frog
NCBI 分类编号 ncbi_taxonomy_id	8355
宿主生物 host_organism	Spodoptera frugiperda

▶

7. 引用文献 (1)

▶

晶胞边长 a length_a	1.000 Å
晶胞边长 b length_b	1.000 Å
晶胞边长 c length_c	1.000 Å
晶胞夹角 α angle_alpha	90.00 °
晶胞夹角 β angle_beta	90.00 °
晶胞夹角 γ angle_gamma	90.00 °
晶胞分子数 Z z_pdb	—

空间群 space_group	P 1
空间群编号 int_tables_number	1
晶系 crystal_system	—

分辨率 resolution	6.88 Å
分辨率测定方法 resolution_method	—
颗粒数 num_particles	114000

fit	/app/data/saxs_computation/fc/8fck/8fck.fit
pddf	/app/data/pr_computation/fc/8fck/8fck.pr.out
profile	/app/data/saxs_computation/fc/8fck/8fck.dat
