1. Protein Identity and Related Structures Protein Identity & Related Structures

Sodium channel protein type 5 subunit alpha,Green fluorescent protein

Aequorea victoria

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1 其他Polymer 2	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 beta-D-mannopyranose × 3 (R)-ranolazine × 1 [(2~{R})-1-[2-azanylethoxy(oxidanyl)phosphoryl]oxy-3-hexadecanoyloxy-propan-2-yl] (~{Z})-octadec-9-enoate × 6 CHOLESTEROL HEMISUCCINATE × 13	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	SCN5A_RAT
Isoform	P15389-2
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1–461； UniProt 1–461 Author chain A； PDBConstruct 462–871； UniProt 659–1068 Author chain A； PDBConstruct 872–1580； UniProt 1137–1845

Sodium channel protein type 5 subunit alpha,Green fluorescent protein

Aequorea victoria

UniProt P42212

State in the Current Structure

Assembly	Physical composition	Protein state	Molecular copy count	Associated components	Data consistency
1	Insufficient information	Monomer	Protein 1 其他Polymer 2	2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose × 2 2-acetamido-2-deoxy-beta-D-glucopyranose × 7 beta-D-mannopyranose × 3 (R)-ranolazine × 1 [(2~{R})-1-[2-azanylethoxy(oxidanyl)phosphoryl]oxy-3-hexadecanoyloxy-propan-2-yl] (~{Z})-octadec-9-enoate × 6 CHOLESTEROL HEMISUCCINATE × 13	Consistent with protein count

Other States of the Same Protein in the Database

View Construct and Data Evidence

UniProt name	GFP_AEQVI
Isoform	—
PDB entities	1
Chains and sequence ranges	Author chain A； PDBConstruct 1592–1828； UniProt 2–238

The page prioritizes protein identity, the current assembly, associated components, oligomeric state and cross-PDB links. Chain mapping and sequence ranges are retained as data evidence. Internal IDs, import timestamps and assembly operation expressions are maintenance fields and are not shown here.

▼

2. Structure Basics 2. Structure Basics

Entry ID entry_id	8f6p
Deposition date deposition_date	2022-11-16
Structure title title	Rat Cardiac Sodium Channel with Ranolazine Bound
Keywords keywords	Ion Channel Voltage-Gated Ion Channel, MEMBRANE PROTEIN; MEMBRANE PROTEIN
Experimental Method method	ELECTRON MICROSCOPY

▼

3. Official assembly/model SAXS Official SAXS Profiles

This page reads only the latest assembly calculations. Every curve maps to an explicit PDB entry, official biological assembly and coordinate model.

8f6p__assembly_1__model_1

Assembly 1 · Model 1 · CRYSOL 4.1.3-1-20251215 (887e7ef)

Download this curve (.dat)

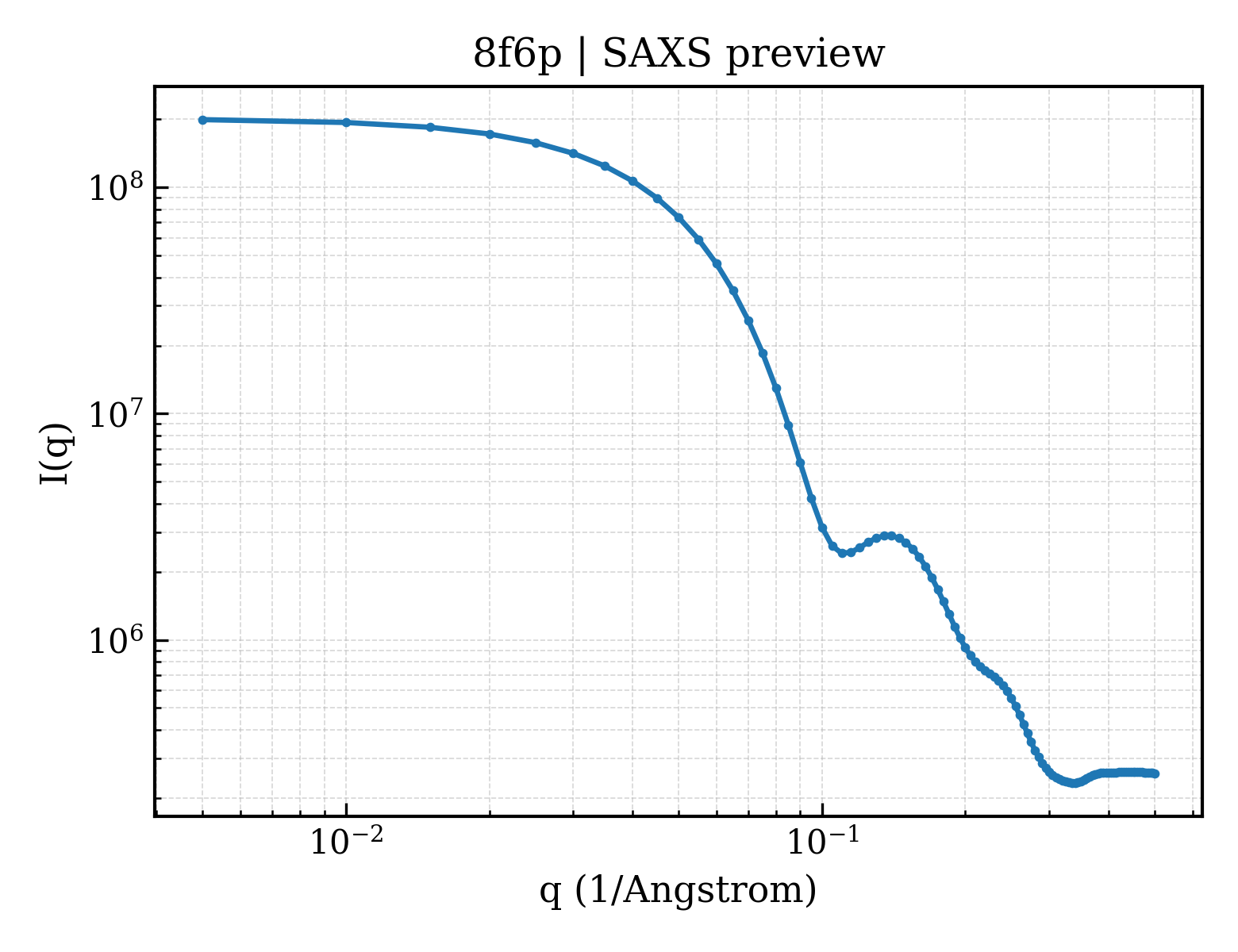

8f6p__assembly_1__model_1 | I(q)

100 plotted points; both axes use logarithmic scales.

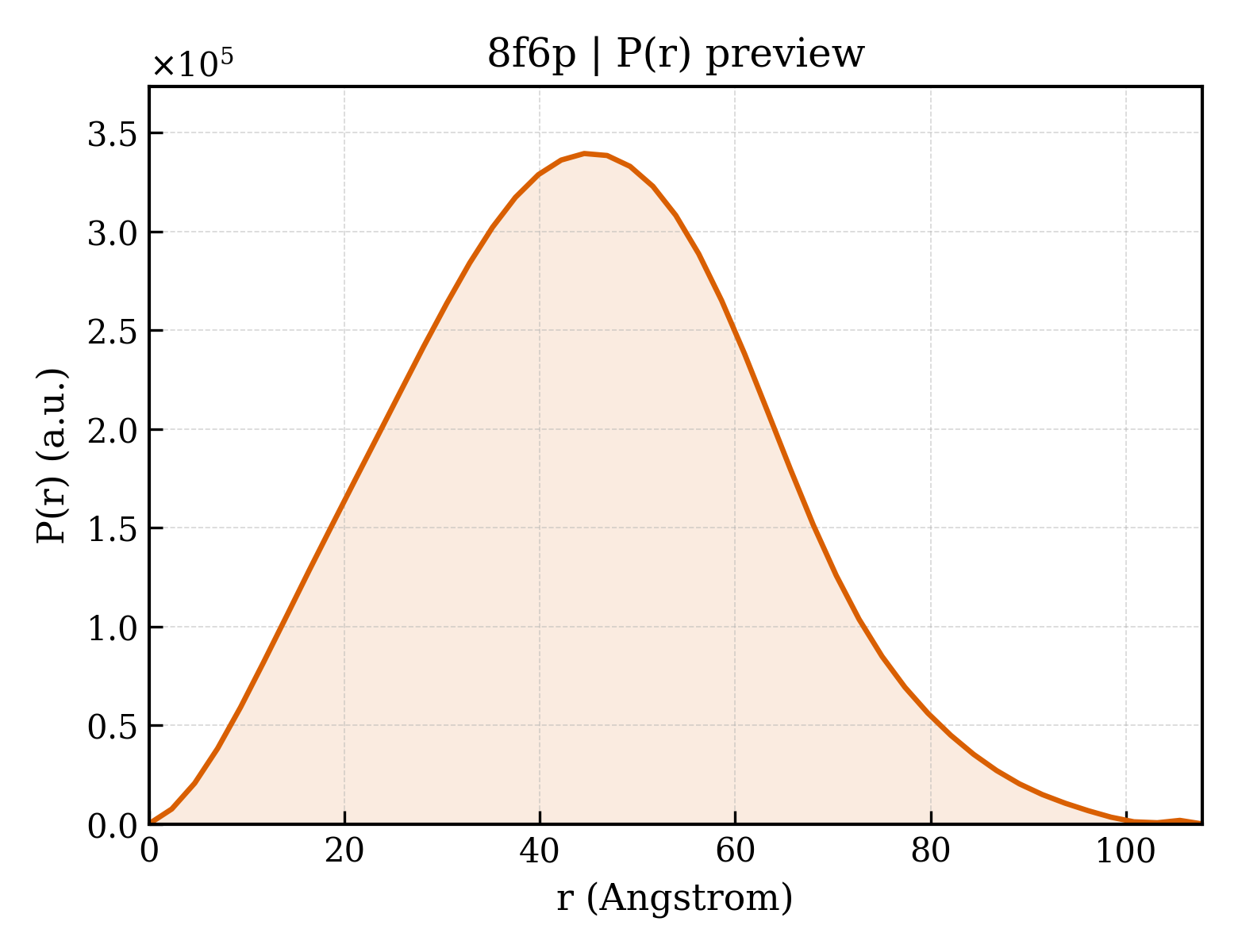

8f6p__assembly_1__model_1 | P(r) · Pending

P(r) will be calculated and displayed separately for the same assembly/model.

Rg（Guinier）	34.19 Å
Rg (electron density)	32.85 Å
Total Rg	33.43 Å
Atom count	18565
Residues	1091
Excluded volume	172010 Å³
Maximum q	0.500 Å⁻¹

Assembly	Model	Structure unit	Oligomeric description	Status	CRYSOL	Actions
1	1	`8f6p__assembly_1__model_1`	monomeric （1）	Success	4.1.3-1-20251215 (887e7ef)	View Download

▶
