9w25

DENV2 non-structural protein 1 (NS1) with C-terminal mVenus Conformation 1

Method: ELECTRON MICROSCOPY Dmax: 123.7 Å Quality: GOOD

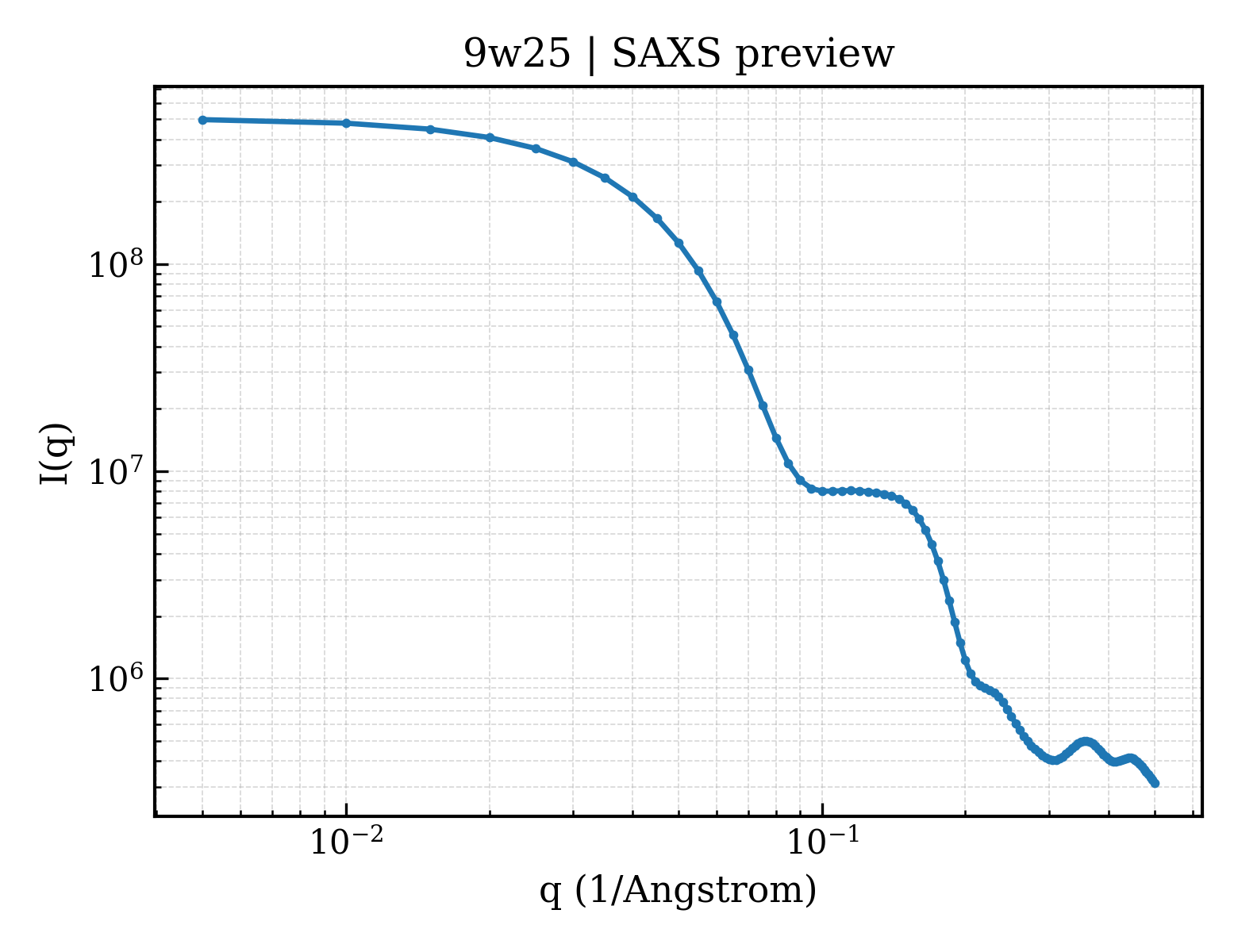

SAXS Profile

SAXS profile for 9w25

P(r) Distribution

P(r) distribution for 9w25
▼

1. Structure Basics

entry_id9w25
deposition_date2025-07-26
titleDENV2 non-structural protein 1 (NS1) with C-terminal mVenus Conformation 1
keywordsDengue virus; non-structural protein 1; flavivirus; mVenus, VIRAL PROTEIN; VIRAL PROTEIN
methodELECTRON MICROSCOPY
▼

Download Data

▼

2. SAXS Parameters (CRYSOL)

rg_guinier39.94 Å
rg_electron39.26 Å
i0504261000.00
molecular_weight182750.0 kDa
excluded_volume222070 ų
envelope_volume204100 ų
shell_volume45709 ų
envelope_diameter119.5 Å
shell_rg43.33 Å
envelope_rg36.40 Å
shape_rg39.39 Å
total_rg39.43 Å
total_atoms—
n_residues—
n_harmonics20
q_range— – 0.5000 Å−1
n_points101
shell_typedirectional
solvent_density0.3340 e/ų
contrast_shell0.0300 e/ų
crysol_version4.1.3
▼

3. P(r) Analysis (GNOM)

dmax123.7 Å
rg_real39.66 Å
rg_real_error0.61 Å
i0_real5.0420e+08
i0_real_error8.0110e+06
rg_reciprocal39.84 Å
i0_reciprocal504300000.0000
total_estimate0.8955
solution_quality GOOD a GOOD solution
n_peaks1
r_peak_primary52.6 Å
skewness0.097
kurtosis-0.499
angular_range— – 0.2000 Å−1
current_alpha0.0014
highest_alpha29140000.0000
n_real_points41
gnom_version4.1.3
quality_criteria AN1: 0.000; Oscil: 0.898; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.984; Smooth: 0.958
▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
