9w1y

DENV2 non-structural protein 1 (NS1) with C-terminal mVenus Conformation 2

Method: ELECTRON MICROSCOPY D_max: 131.9 Å Quality: GOOD

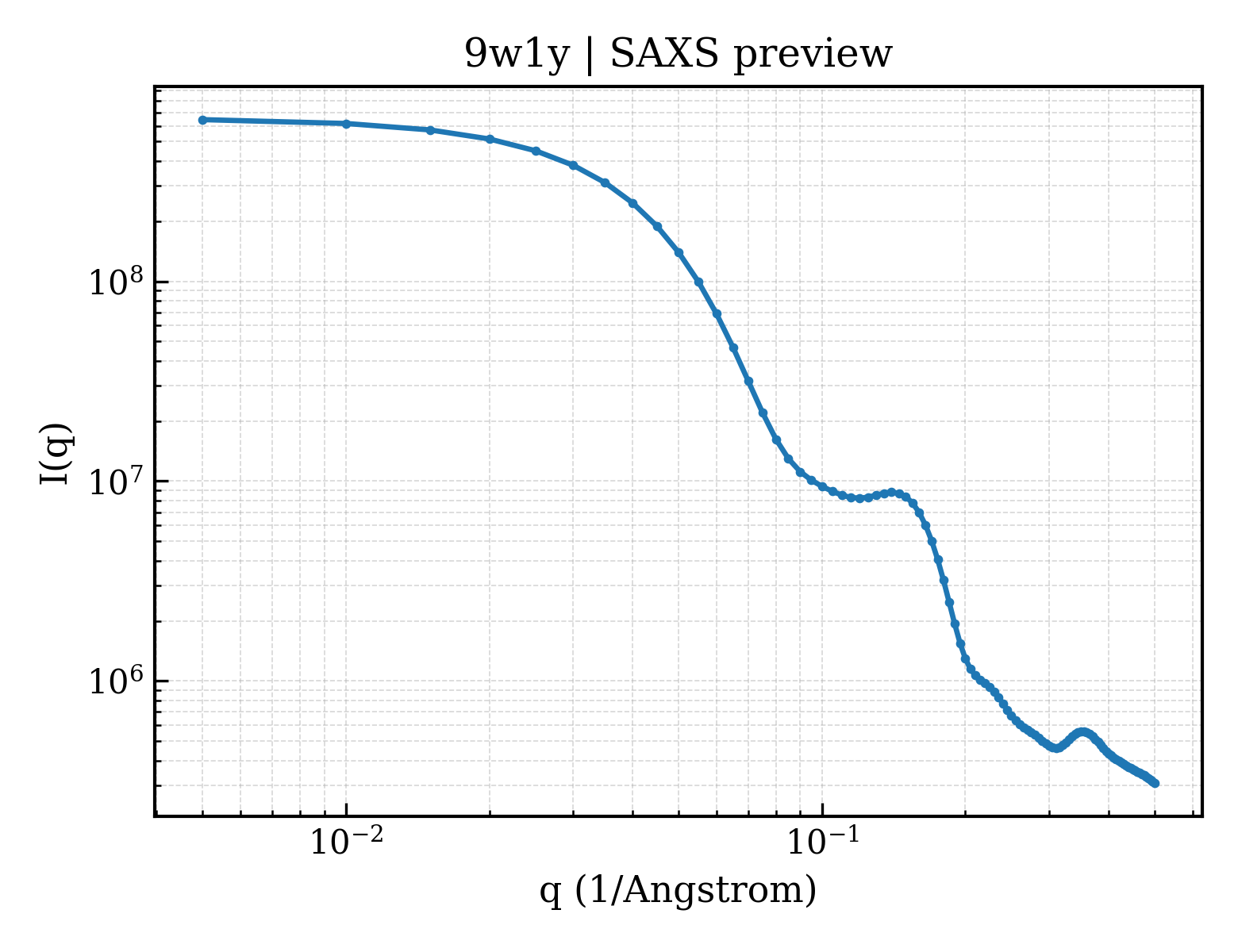

SAXS Profile

P(r) Distribution

P(r) distribution for 9w1y

▼

1. Structure Basics

entry_id	9w1y
deposition_date	2025-07-26
title	DENV2 non-structural protein 1 (NS1) with C-terminal mVenus Conformation 2
keywords	Dengue virus; non-structural protein 1; flavivirus; mVenus, VIRAL PROTEIN; VIRAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	42.20 Å
rg_electron	41.67 Å
i0	653610000.00
molecular_weight	208990.0 kDa
excluded_volume	254040 Å³
envelope_volume	241830 Å³
shell_volume	51142 Å³
envelope_diameter	129.6 Å
shell_rg	44.70 Å
envelope_rg	38.70 Å
shape_rg	41.72 Å
total_rg	41.79 Å
total_atoms	—
n_residues	—
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	131.9 Å
rg_real	42.01 Å
rg_real_error	0.69 Å
i0_real	6.5360e+08
i0_real_error	1.0430e+07
rg_reciprocal	42.19 Å
i0_reciprocal	653700000.0000
total_estimate	0.8919
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	53.5 Å
skewness	0.126
kurtosis	-0.522
angular_range	— – 0.1850 Å⁻¹
current_alpha	0.0004
highest_alpha	24560000.0000
n_real_points	38
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.892; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.981; Smooth: 0.934

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
