9w24

DENV2 non-structural protein 1 (NS1) with C-terminal mVenus fusion

Method: ELECTRON MICROSCOPY D_max: 116.5 Å Quality: GOOD

SAXS Profile

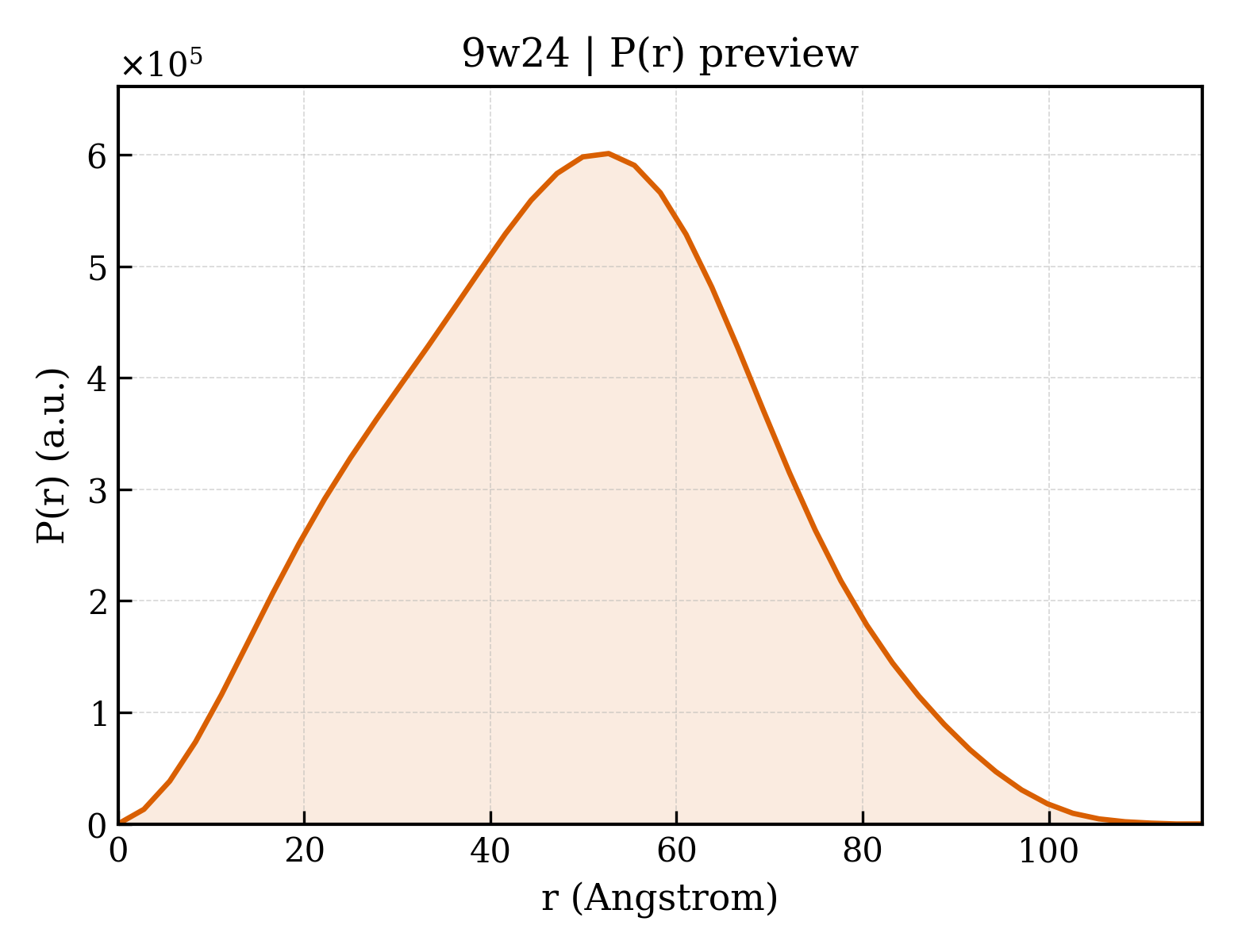

P(r) Distribution

P(r) distribution for 9w24

▼

1. Structure Basics

entry_id	9w24
deposition_date	2025-07-26
title	DENV2 non-structural protein 1 (NS1) with C-terminal mVenus fusion
keywords	Dengue virus; non-structural protein 1; flavivirus; NS1, VIRAL PROTEIN; VIRAL PROTEIN
method	ELECTRON MICROSCOPY

▼

Download Data

SAXS curve (.dat) P(r) distribution (.pr.out) Structure (CIF)

▼

2. SAXS Parameters (CRYSOL)

rg_guinier	37.64 Å
rg_electron	36.63 Å
i0	382130000.00
molecular_weight	156420.0 kDa
excluded_volume	194710 Å³
envelope_volume	268250 Å³
shell_volume	58693 Å³
envelope_diameter	118.4 Å
shell_rg	44.80 Å
envelope_rg	36.25 Å
shape_rg	36.58 Å
total_rg	37.31 Å
total_atoms	10988
n_residues	1376
n_harmonics	20
q_range	— – 0.5000 Å⁻¹
n_points	101
shell_type	directional
solvent_density	0.3340 e/Å³
contrast_shell	0.0300 e/Å³
crysol_version	4.1.3

▼

3. P(r) Analysis (GNOM)

dmax	116.5 Å
rg_real	37.36 Å
rg_real_error	0.59 Å
i0_real	3.8210e+08
i0_real_error	6.3860e+06
rg_reciprocal	37.54 Å
i0_reciprocal	382200000.0000
total_estimate	0.8897
solution_quality	GOOD a GOOD solution
n_peaks	1
r_peak_primary	52.7 Å
skewness	0.064
kurtosis	-0.463
angular_range	— – 0.2100 Å⁻¹
current_alpha	0.0000
highest_alpha	77160000.0000
n_real_points	43
gnom_version	4.1.3
quality_criteria	AN1: 0.000; Oscil: 0.885; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.975; Smooth: 0.931

▶

4. Crystallography & Experiment

▶

5. Entities & Polymer Info (1)

▶

6. Citations (1)

▶

7. Files & Curves (10)
