9w21
DENV2 non-structural protein 1 (NS1) Loose Tetramer Conformation 1
SAXS Profile
P(r) Distribution
1. Structure Basics
| entry_id | 9w21 |
| deposition_date | 2025-07-26 |
| title | DENV2 non-structural protein 1 (NS1) Loose Tetramer Conformation 1 |
| keywords | Dengue virus; non-structural protein 1; flavivirus; NS1, VIRAL PROTEIN; VIRAL PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 39.75 Å |
| rg_electron | 38.88 Å |
| i0 | 387229000.00 |
| molecular_weight | 157550.0 kDa |
| excluded_volume | 196050 ų |
| envelope_volume | 277950 ų |
| shell_volume | 59137 ų |
| envelope_diameter | 120.4 Å |
| shell_rg | 45.29 Å |
| envelope_rg | 37.97 Å |
| shape_rg | 38.84 Å |
| total_rg | 39.42 Å |
| total_atoms | 11064 |
| n_residues | 1384 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |

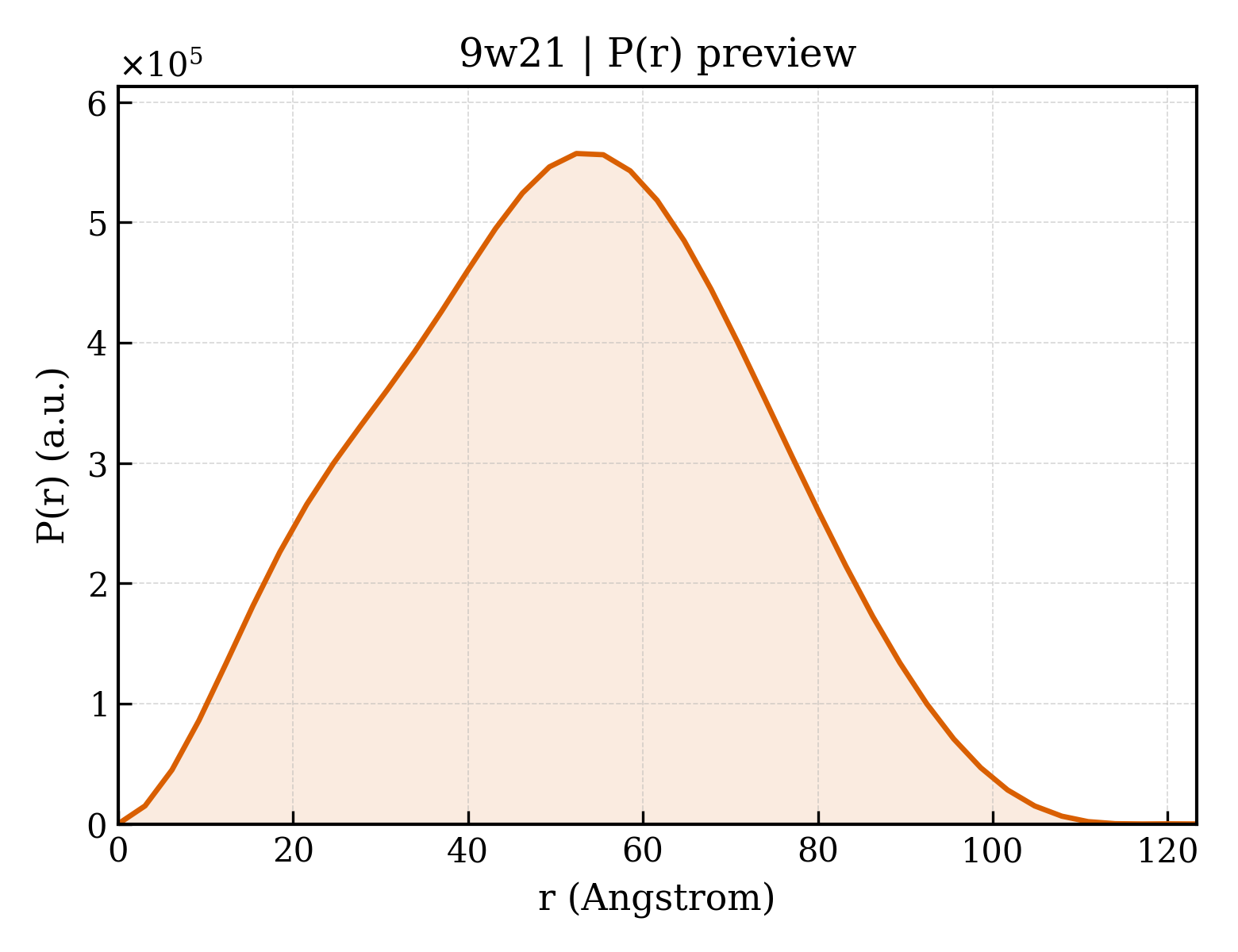

3. P(r) Analysis (GNOM)
| dmax | 123.3 Å |
| rg_real | 39.44 Å |
| rg_real_error | 0.64 Å |
| i0_real | 3.8720e+08 |
| i0_real_error | 5.9900e+06 |
| rg_reciprocal | 39.63 Å |
| i0_reciprocal | 387300000.0000 |
| total_estimate | 0.9018 |
| solution_quality | EXCELLENT a EXCELLENT solution |
| n_peaks | 2 |
| r_peak_primary | 52.4 Å |
| skewness | 0.030 |
| kurtosis | -0.572 |
| angular_range | — – 0.2000 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 34890000.0000 |
| n_real_points | 41 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.920; Stabil: 1.000; Sysdev: 1.000; Positv: 1.000; Valcen: 0.987; Smooth: 0.970 |
