9w1z
DENV2 non-structural protein 1 (NS1) Stable Tetramer Conformation 2
SAXS Profile

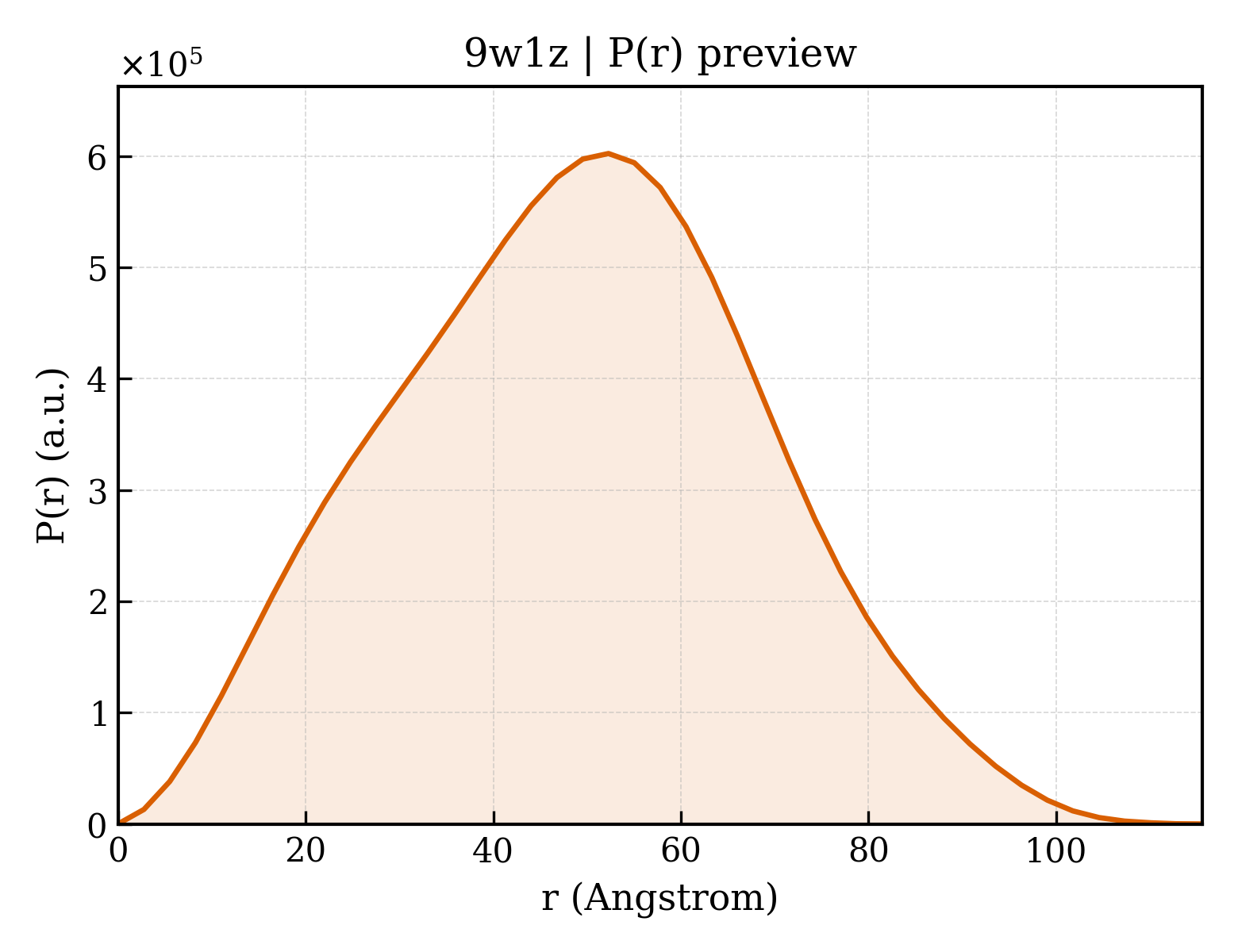

P(r) Distribution
1. Structure Basics
| entry_id | 9w1z |
| deposition_date | 2025-07-26 |
| title | DENV2 non-structural protein 1 (NS1) Stable Tetramer Conformation 2 |
| keywords | Dengue virus; non-structural protein 1; flavivirus; NS1, VIRAL PROTEIN; VIRAL PROTEIN |
| method | ELECTRON MICROSCOPY |
Download Data
2. SAXS Parameters (CRYSOL)
| rg_guinier | 37.63 Å |
| rg_electron | 36.62 Å |
| i0 | 381817000.00 |
| molecular_weight | 156420.0 kDa |
| excluded_volume | 194710 ų |
| envelope_volume | 266190 ų |
| shell_volume | 58238 ų |
| envelope_diameter | 118.9 Å |
| shell_rg | 44.81 Å |
| envelope_rg | 36.26 Å |
| shape_rg | 36.57 Å |
| total_rg | 37.30 Å |
| total_atoms | 10988 |
| n_residues | 1376 |
| n_harmonics | 20 |
| q_range | — – 0.5000 Å−1 |
| n_points | 101 |
| shell_type | directional |
| solvent_density | 0.3340 e/ų |
| contrast_shell | 0.0300 e/ų |
| crysol_version | 4.1.3 |
3. P(r) Analysis (GNOM)
| dmax | 115.6 Å |
| rg_real | 37.36 Å |
| rg_real_error | 0.66 Å |
| i0_real | 3.8180e+08 |
| i0_real_error | 6.3420e+06 |
| rg_reciprocal | 37.53 Å |
| i0_reciprocal | 381900000.0000 |
| total_estimate | 0.6630 |
| solution_quality | REASONABLE a REASONABLE solution |
| n_peaks | 1 |
| r_peak_primary | 52.3 Å |
| skewness | 0.063 |
| kurtosis | -0.461 |
| angular_range | — – 0.2100 Å−1 |
| current_alpha | 0.0000 |
| highest_alpha | 72530000.0000 |
| n_real_points | 43 |
| gnom_version | 4.1.3 |
| quality_criteria | AN1: 0.000; Oscil: 0.893; Stabil: 1.000; Sysdev: 0.020; Positv: 1.000; Valcen: 0.975; Smooth: 0.901 |
